Model # ETS22XBMBRCC Official GE refrigerator - m series
Here are the diagrams and repair parts for Official GE ETS22XBMBRCC refrigerator - m series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

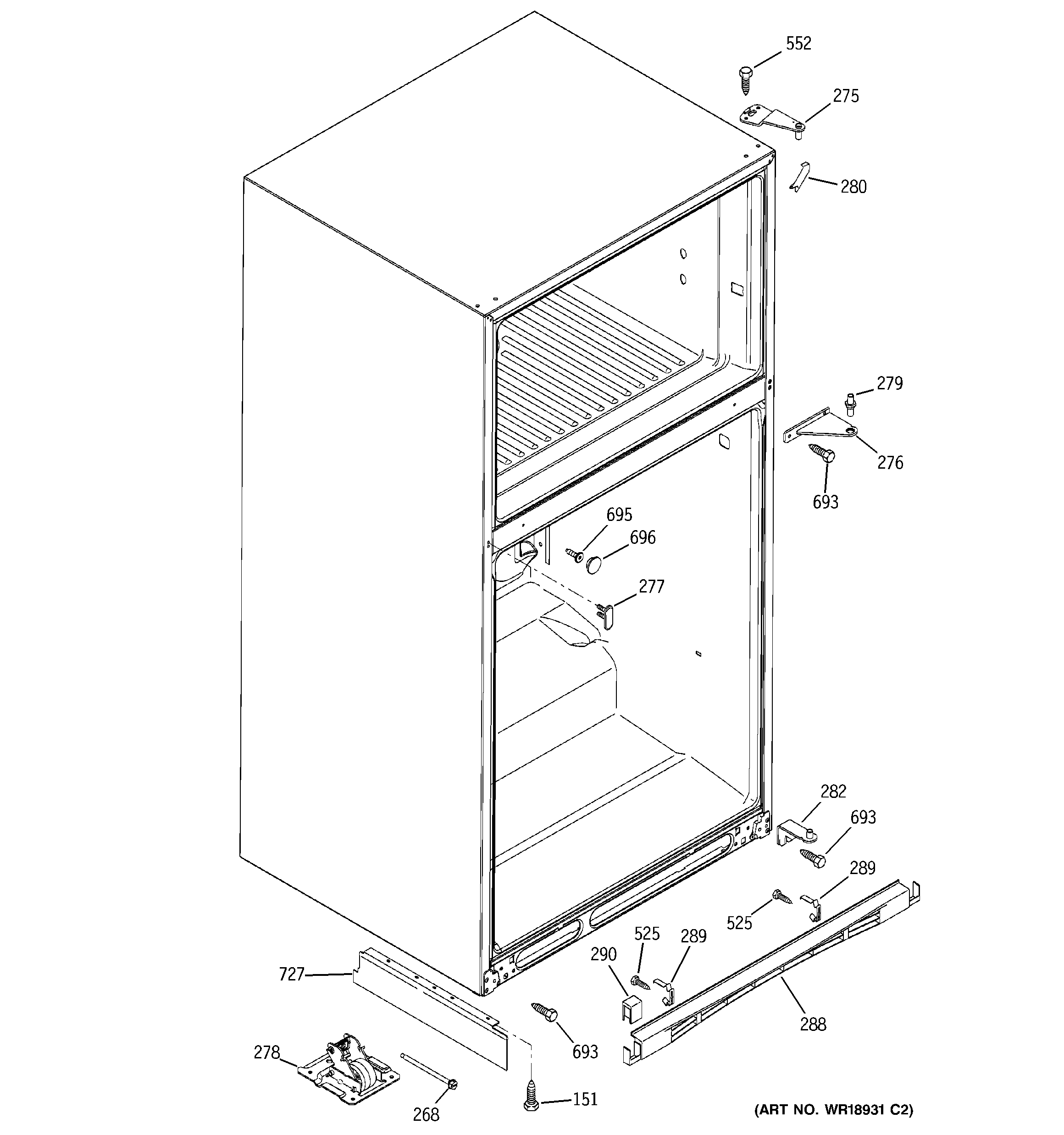

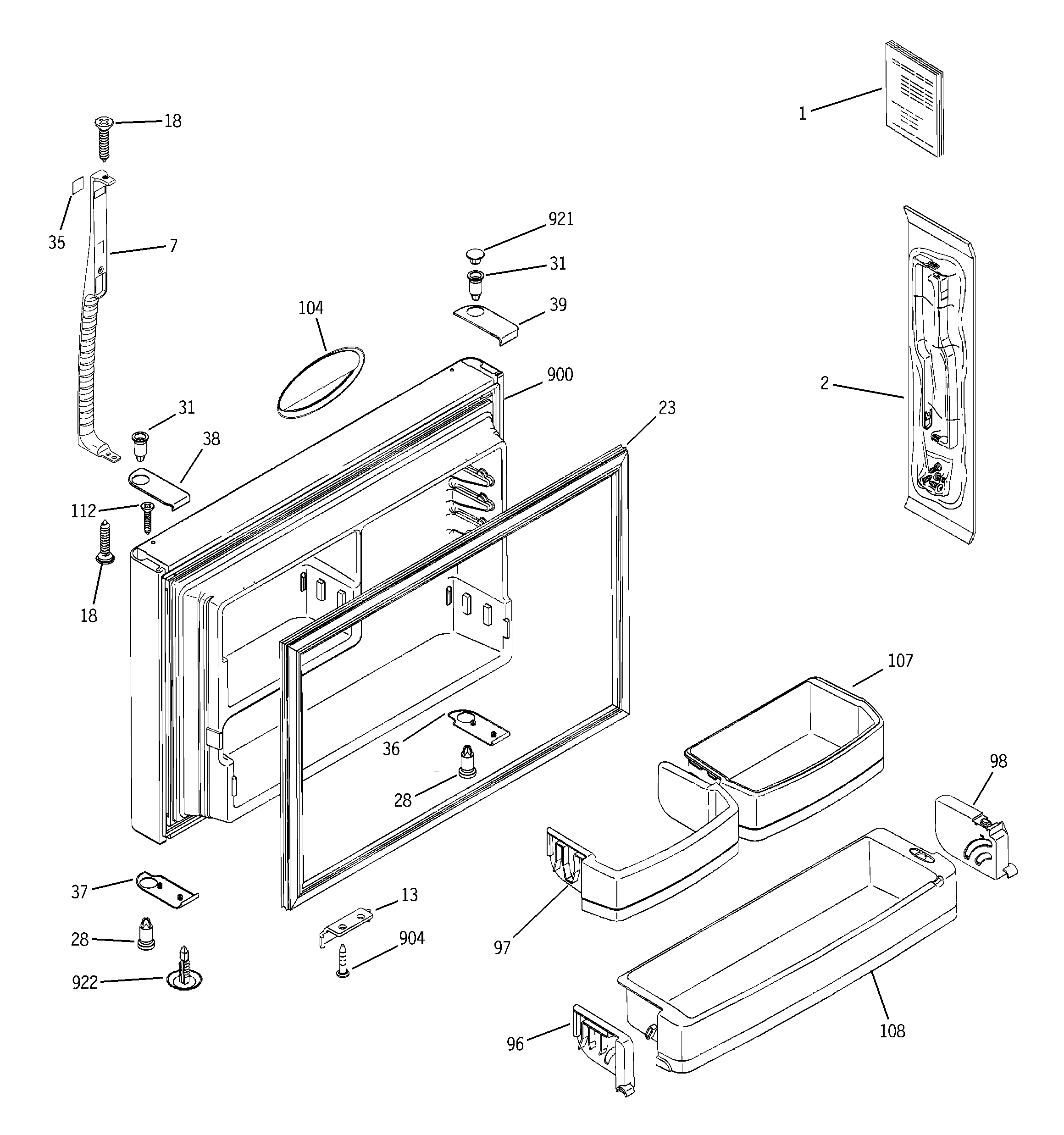

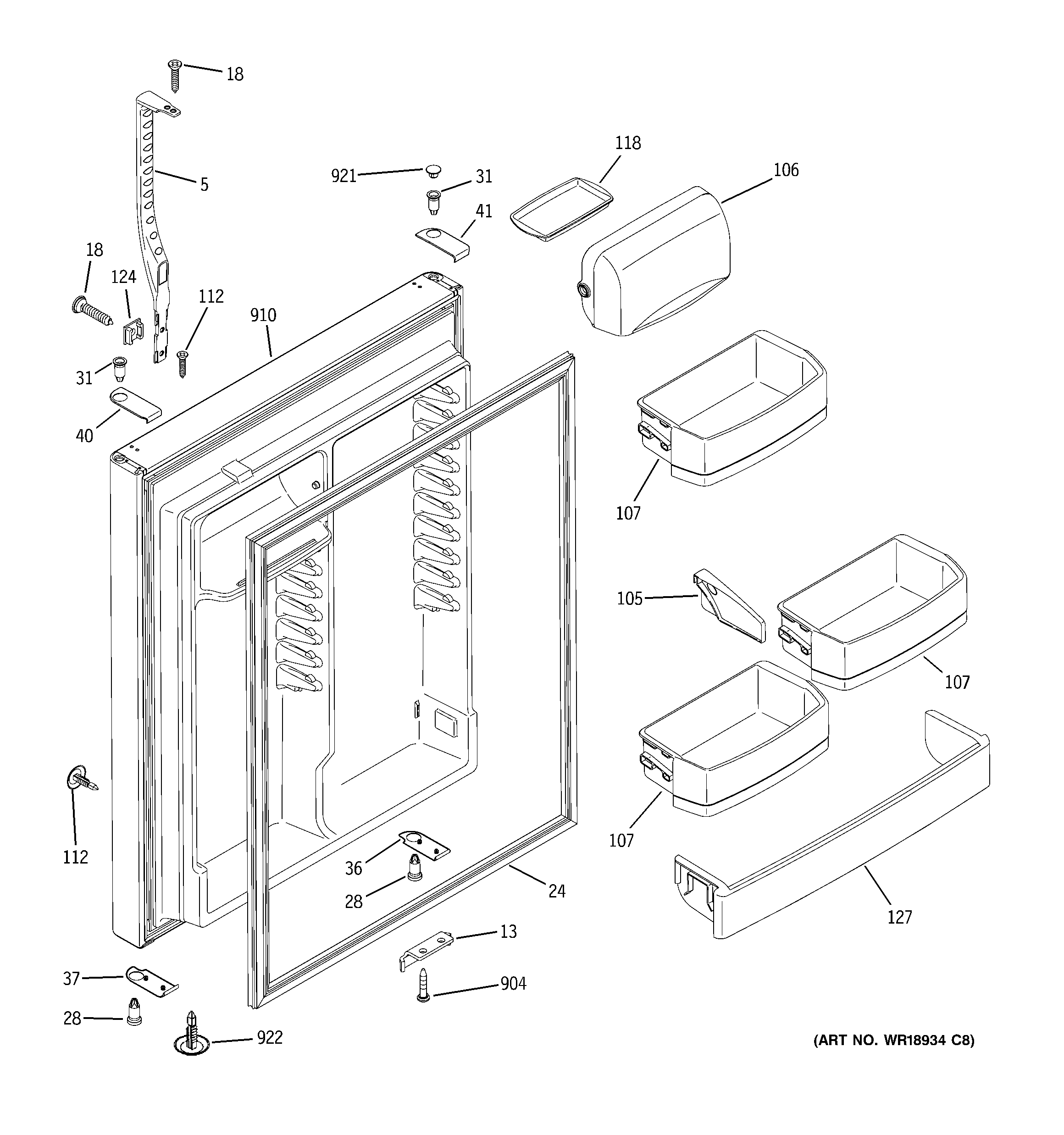

SELECT DIAGRAM
Browse Parts forETS22XBMBRCC Refrigerators
- #635

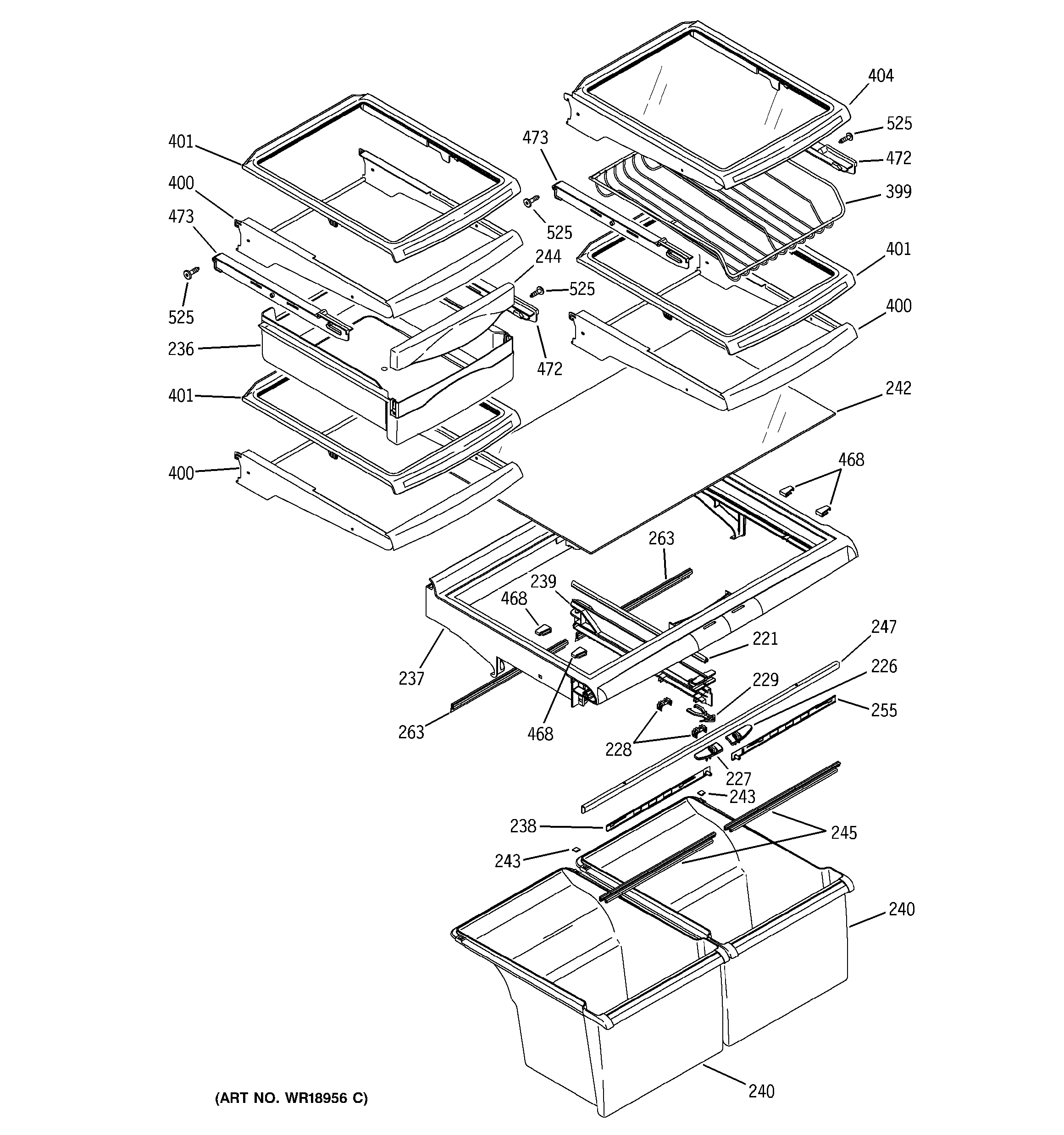

Fresh food section diagram
Refrigerator temperature sensorPart #WR55X10087
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR55X10087. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #605

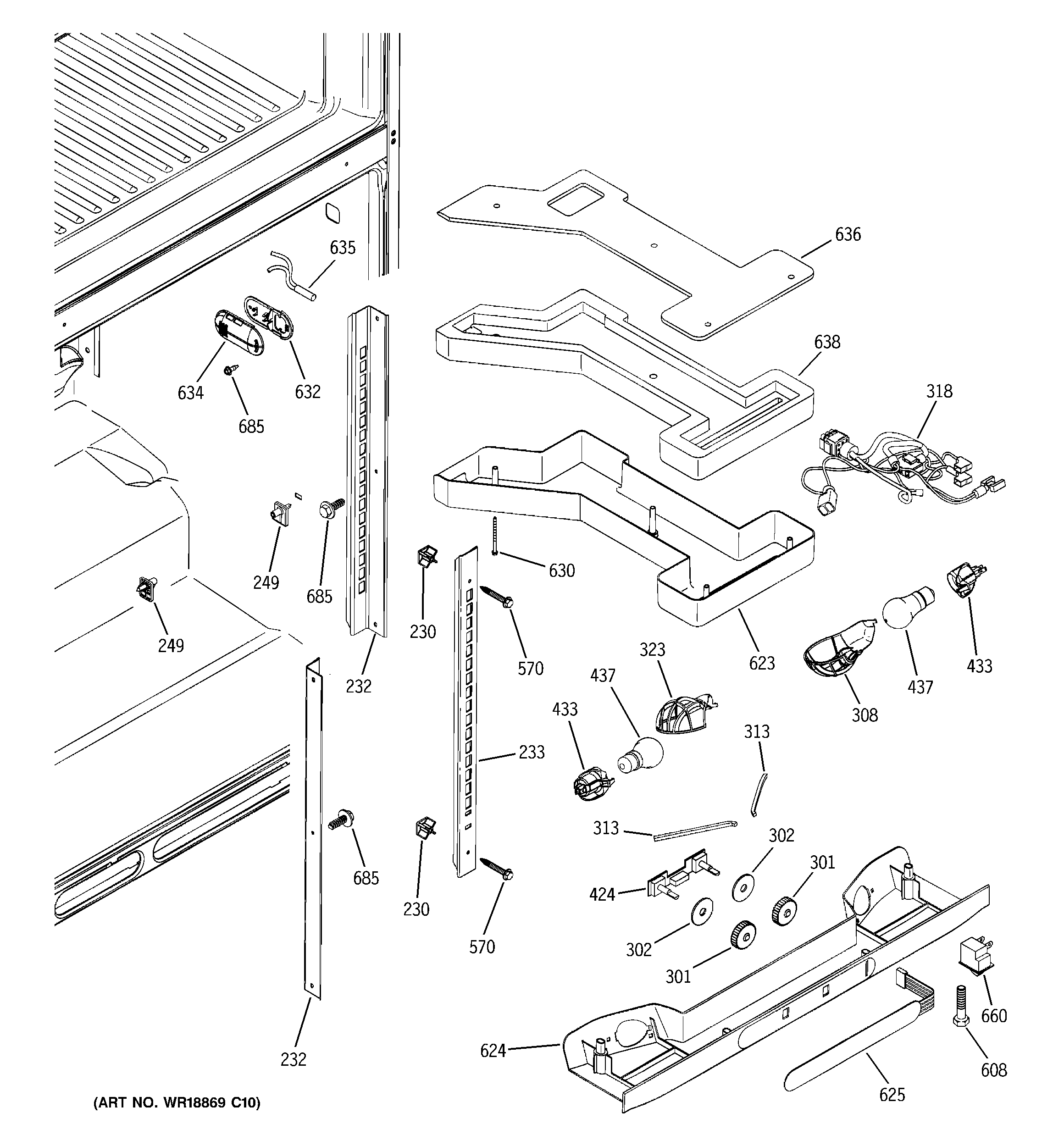

Freezer section diagram
Refrigerator temperature sensorPart #WR55X10089
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR55X10089. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #203
Freezer section diagram
Refrigerator temperature sensorPart #WR55X10088
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR55X10088. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #740

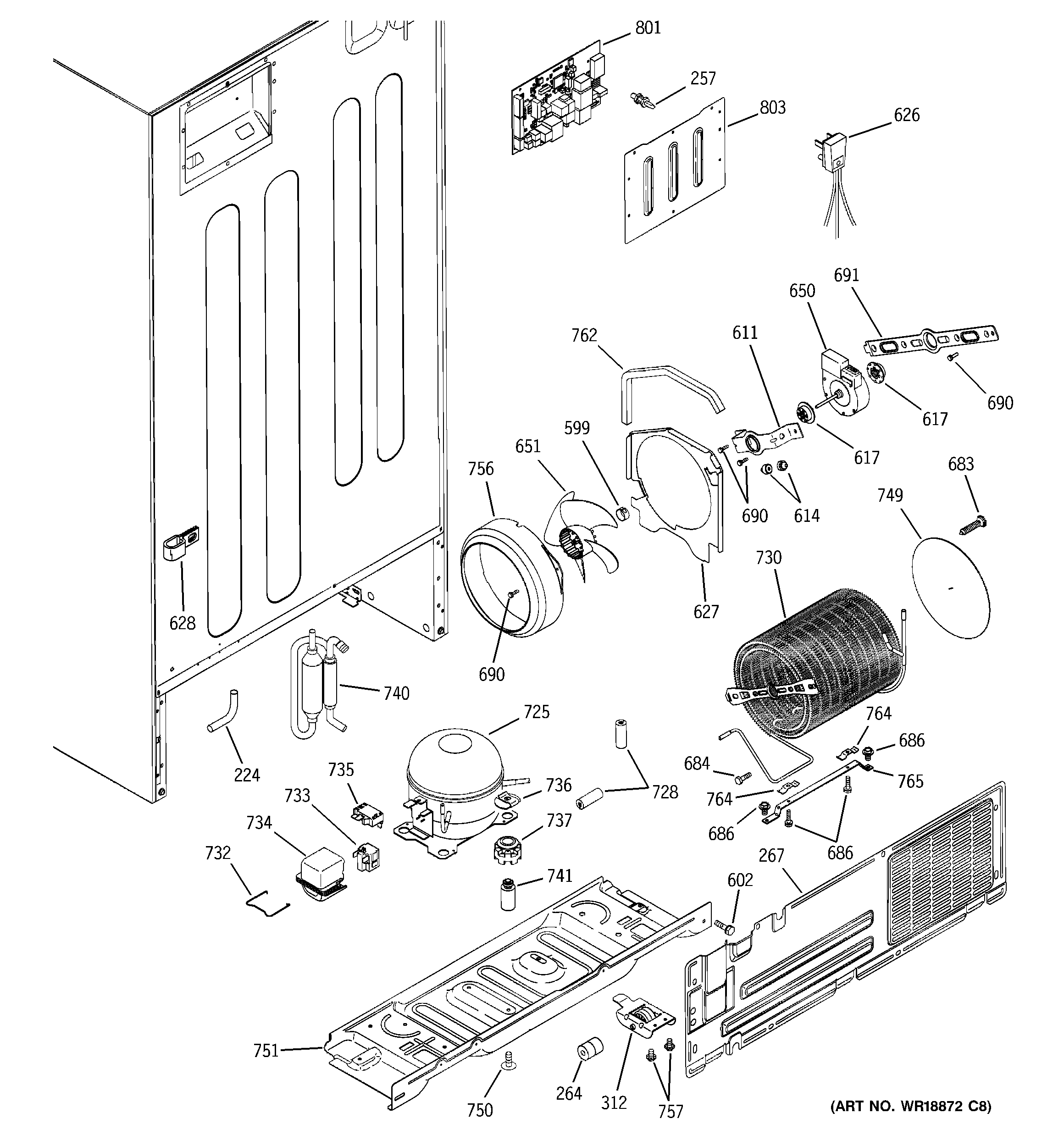

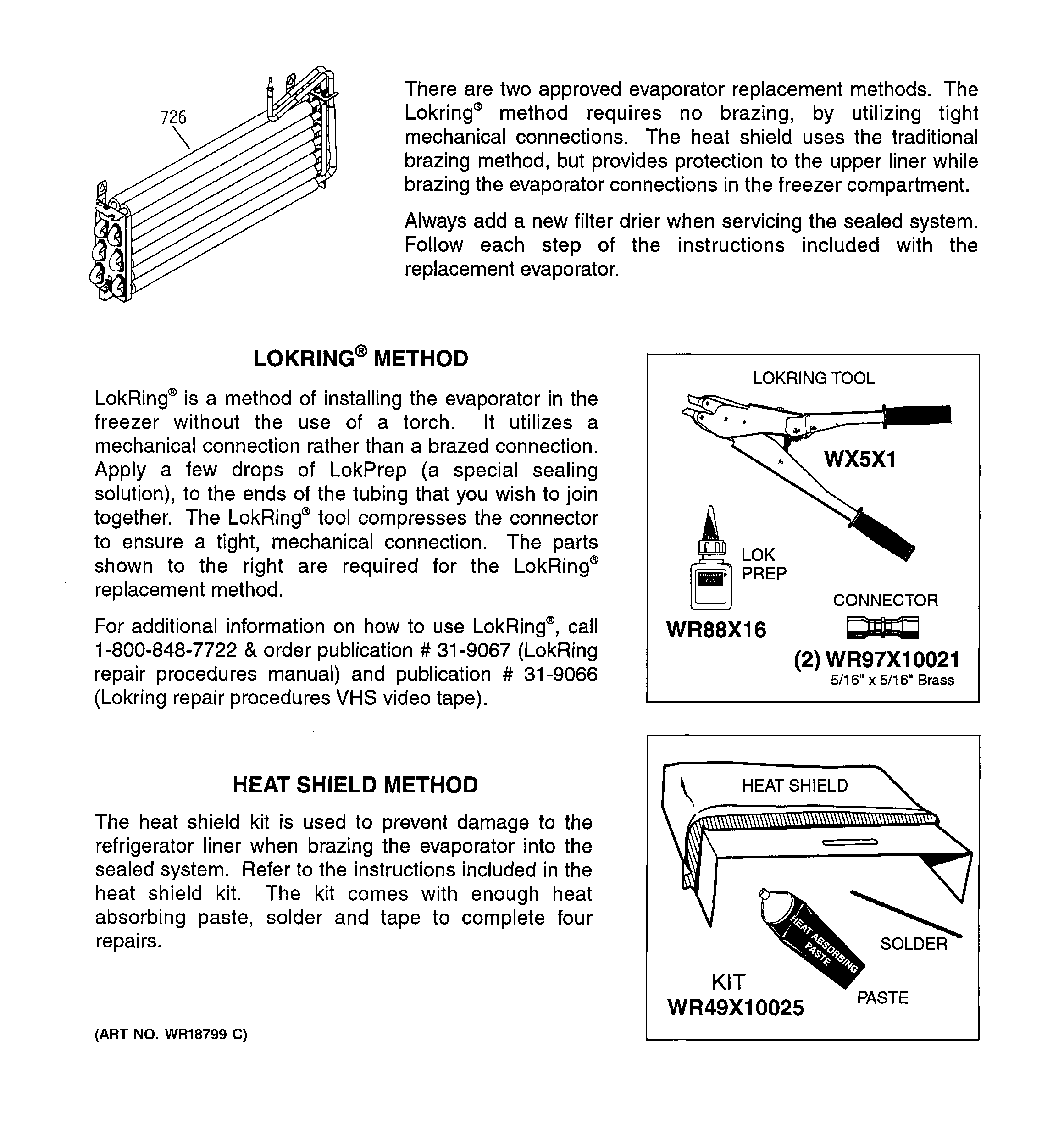

Sealed system & mother board diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - Refrigerator light bulb
Part #60A
Replaced by #40A15
?Manufacturer substitutionThis part replaces 60A. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #620
Freezer section diagram
Refrigerator thermostatPart #WR50X10015
Replaced by #WR50X10068
?Manufacturer substitutionThis part replaces WR50X10015. Substitute parts can look different from the original.$22.27 |21% OFF Phone Price : $28.27In Stock - #725
Sealed system & mother board diagram
Refrigerator compressor kitPart #WR87X10068
Replaced by #WR87X20798
?Manufacturer substitutionThis part replaces WR87X10068. Substitute parts can look different from the original.$448.79 |$12.00 OFF Phone Price : $460.79In Stock - #615
Freezer section diagram
Refrigerator evaporator fan motor grommetPart #WR02X10519
Replaced by #WR02X12008
?Manufacturer substitutionThis part replaces WR02X10519. Substitute parts can look different from the original.$37.93In Stock - #618
Freezer section diagram
Refrigerator defrost heaterPart #WR51X10038
$66.79 |8% OFF Phone Price : $72.79In Stock - #733
Sealed system & mother board diagram
Refrigerator relayPart #WR07X0214
Replaced by #WR07X26748
?Manufacturer substitutionThis part replaces WR07X0214. Substitute parts can look different from the original.This item is not returnable$15.34 |12% OFF Phone Price : $17.34In Stock
