Model # DWD520 TYPE1 Official DeWalt hammer drill

Here are the diagrams and repair parts for Official DeWalt DWD520-TYPE1 hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Screw N068183
#3

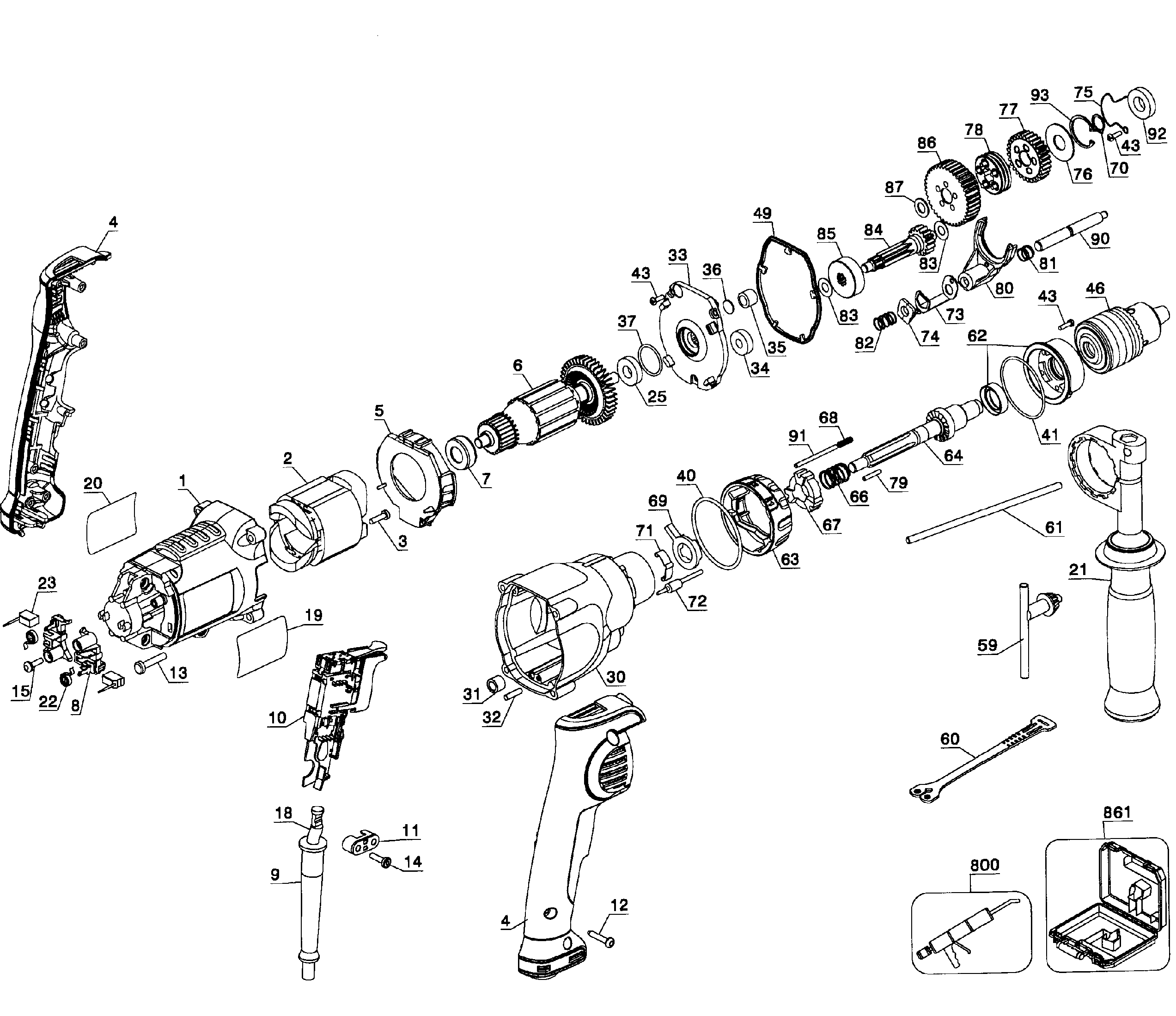

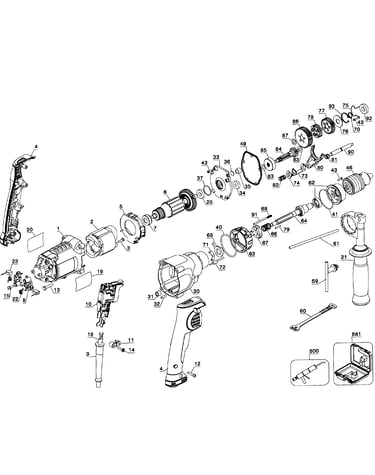

Drill hammer diagram

Screw

Part #N068183

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Gear Case 5140118-33
#33

Drill hammer diagram

Dewalt gear case

Part #5140118-33

The manufacturer no longer makes this part, and there's no substitute part

Brush Hold 653892-01
#8

Drill hammer diagram

Brush hold

Part #653892-01

The manufacturer no longer makes this part, and there's no substitute part

Fan Baffle 641824-00
#5

Drill hammer diagram

Fan baffle

Part #641824-00

The manufacturer no longer makes this part, and there's no substitute part

Chuck 584925-02
#46

Drill hammer diagram

Chuck

Part #584925-02

The manufacturer no longer makes this part, and there's no substitute part

Collar 655856-00
#63

Drill hammer diagram

Collar

Part #655856-00

The manufacturer no longer makes this part, and there's no substitute part

Shift Ring 643924-00SV
#78

Drill hammer diagram

Shift ring

Part #643924-00SV

The manufacturer no longer makes this part, and there's no substitute part

Spring 662999-00
#22

Drill hammer diagram

Spring

Part #662999-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Nameplate 659029-01
#19

Drill hammer diagram

Dewalt nameplate

Part #659029-01

The manufacturer no longer makes this part, and there's no substitute part

Bearing 605040-02
#34

Drill hammer diagram

Bearing

Part #605040-02

The manufacturer no longer makes this part, and there's no substitute part
