Hotpoint
Gas Range

Model # RGB508PEF2WH Official Hotpoint gas range

Here are the diagrams and repair parts for Official Hotpoint RGB508PEF2WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

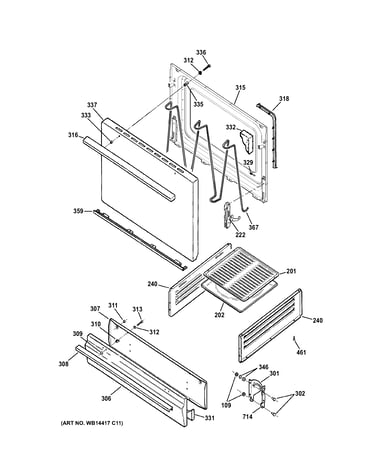

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Bake Burner Ignition WB13K0021
#218

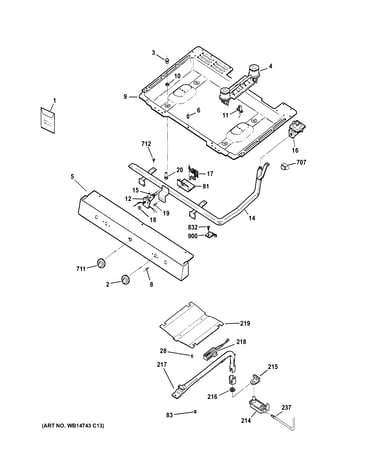

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$54.97 |
10% OFF Phone Price : $60.97
In Stock
Range Oven Control Thermostat WB24X24270
#17

Gas & burner parts diagram

Range oven control thermostat

Part #WB24X24270

$80.24 |
7% OFF Phone Price : $86.24
In Stock
Double Burner WB16K10003
#4

Gas & burner parts diagram

Double burner

Part #WB16K10003

Replaced by #WB16K10026

?
Manufacturer substitution
This part replaces WB16K10003. Substitute parts can look different from the original.
$55.13 |
10% OFF Phone Price : $61.13
Back Order
Hex Washer Head Screw WB01K0050
#28

Gas & burner parts diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Hinge Receiver WB10X20220
#1330

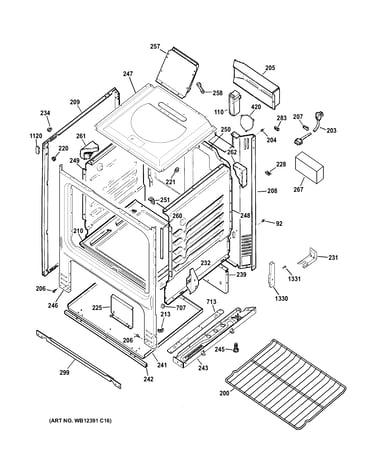

Control panel & cooktop diagram

Range oven door hinge receiver

Part #WB10X20220

This item is not returnable
$7.84 |
11% OFF Phone Price : $8.84
In Stock
Range Main Top (white) (replaces Wb62k0016, Wb62k15, Wb62k16) WB62K10001
#114

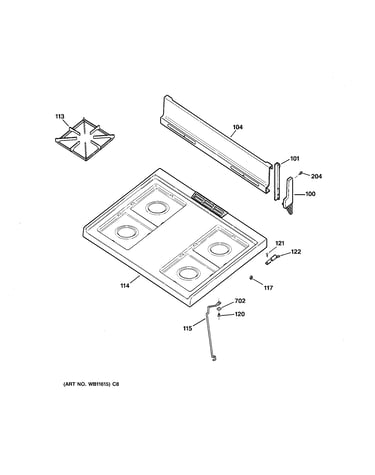

Body parts diagram

Range main top (white) (replaces wb62k0016, wb62k15, wb62k16)

Part #WB62K10001

$204.83 |
6% OFF Phone Price : $216.83
In Stock
Range Surface Burner Valve WB28K10578
#15

Gas & burner parts diagram

Range surface burner valve

Part #WB28K10578

$23.80 |
20% OFF Phone Price : $29.80
In Stock
Range Oven Rack WB48X20249
#200

Control panel & cooktop diagram

Range oven rack

Part #WB48X20249

$61.49 |
9% OFF Phone Price : $67.49
In Stock
Range Surface Burner Knob WB03K10216
#2

Gas & burner parts diagram

Range surface burner knob

Part #WB03K10216

This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Range Oven Burner Orifice WB28X21079
#83

Gas & burner parts diagram

Range oven burner orifice

Part #WB28X21079

This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
