Model # GCE23LBYDFSS Official GE refrigerator - y series

Here are the diagrams and repair parts for Official GE GCE23LBYDFSS refrigerator - y series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

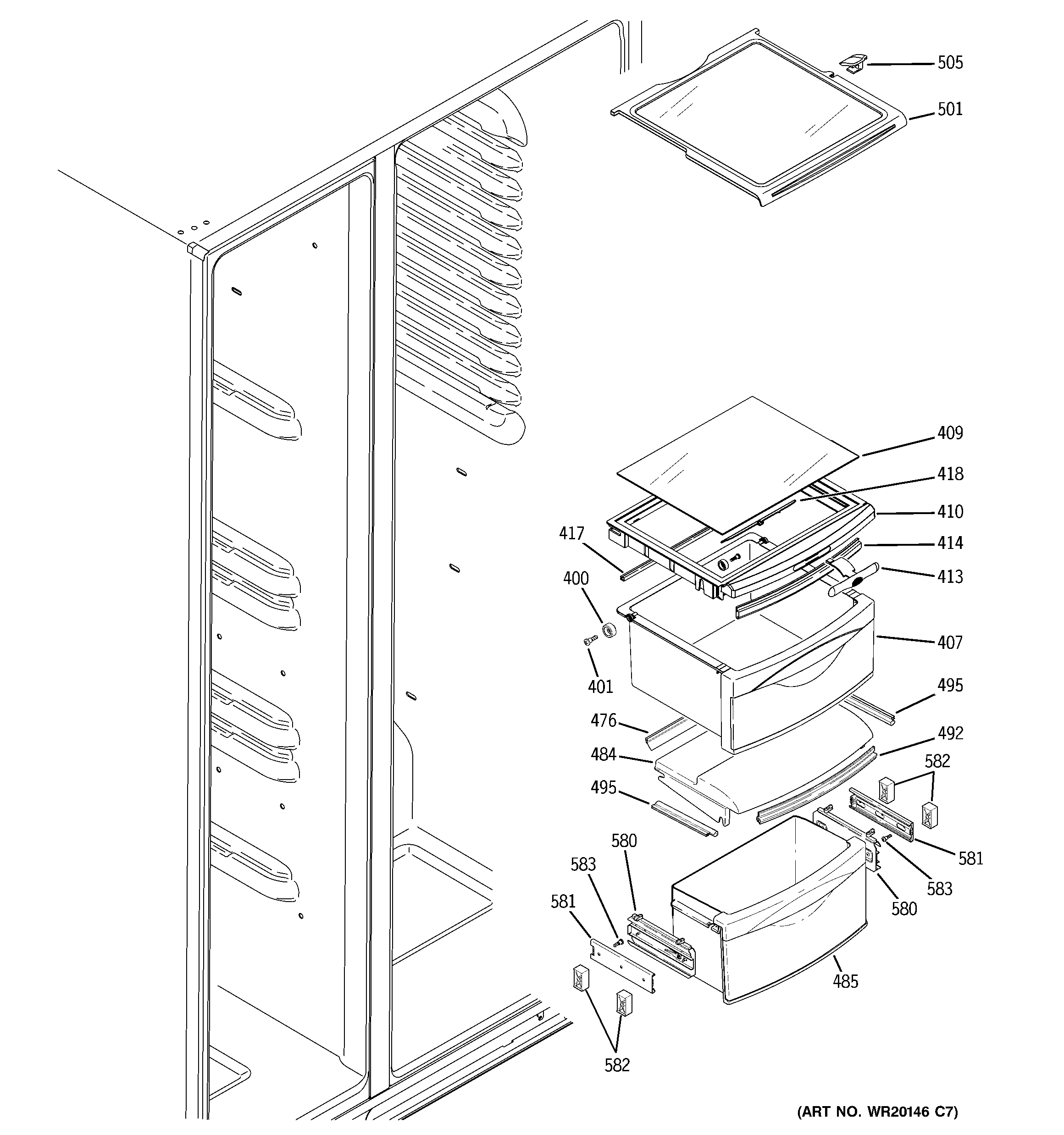

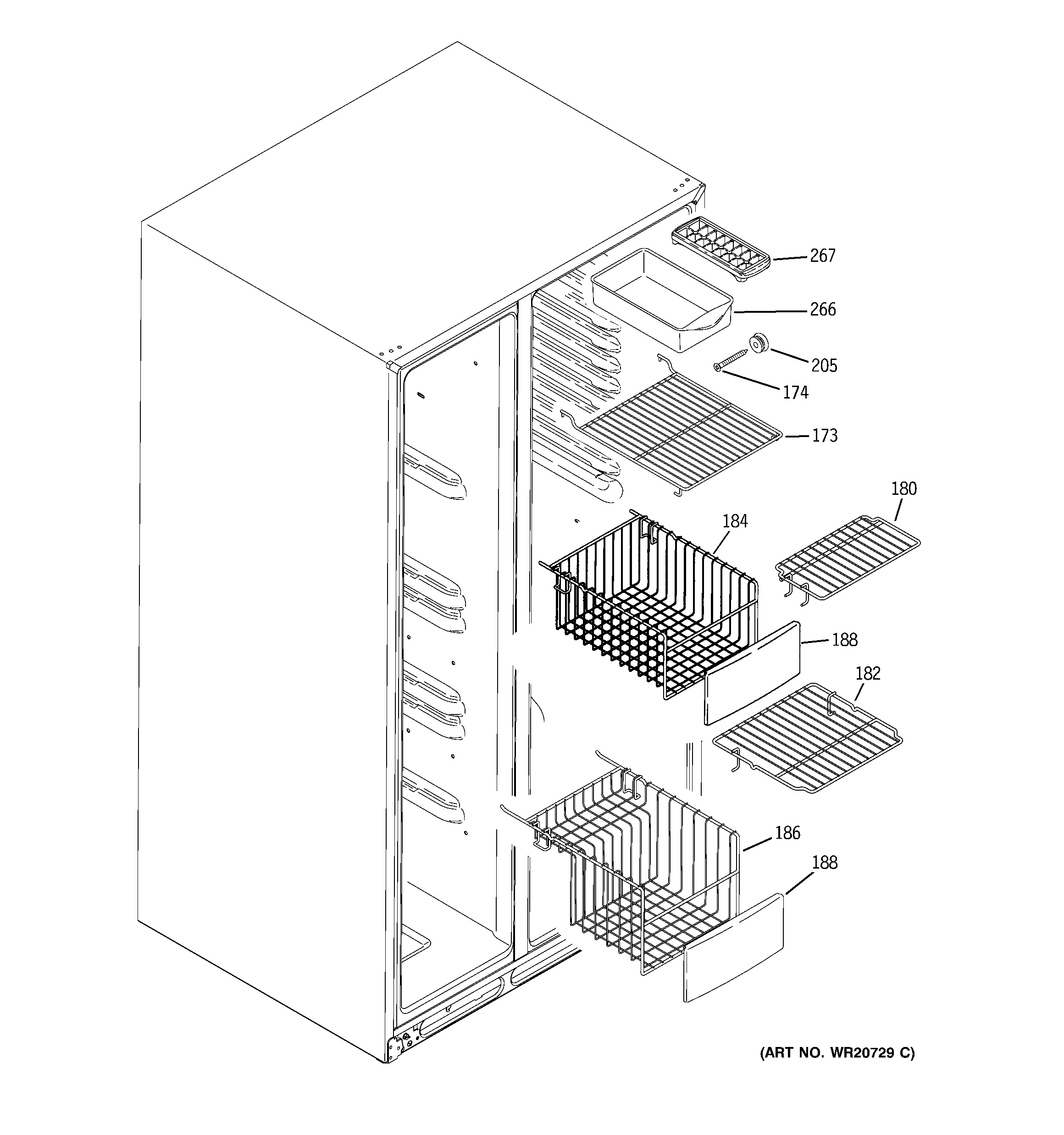

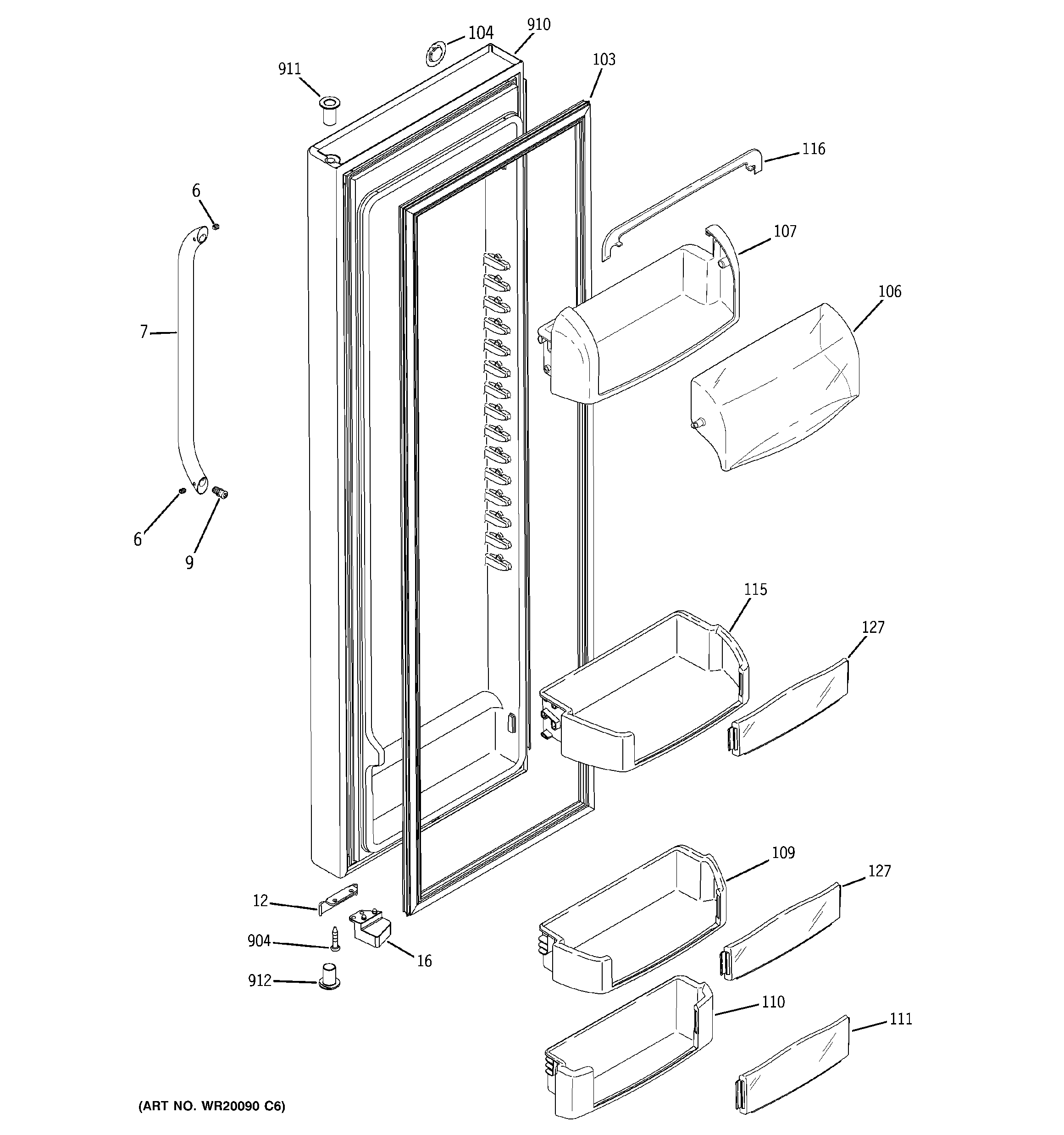

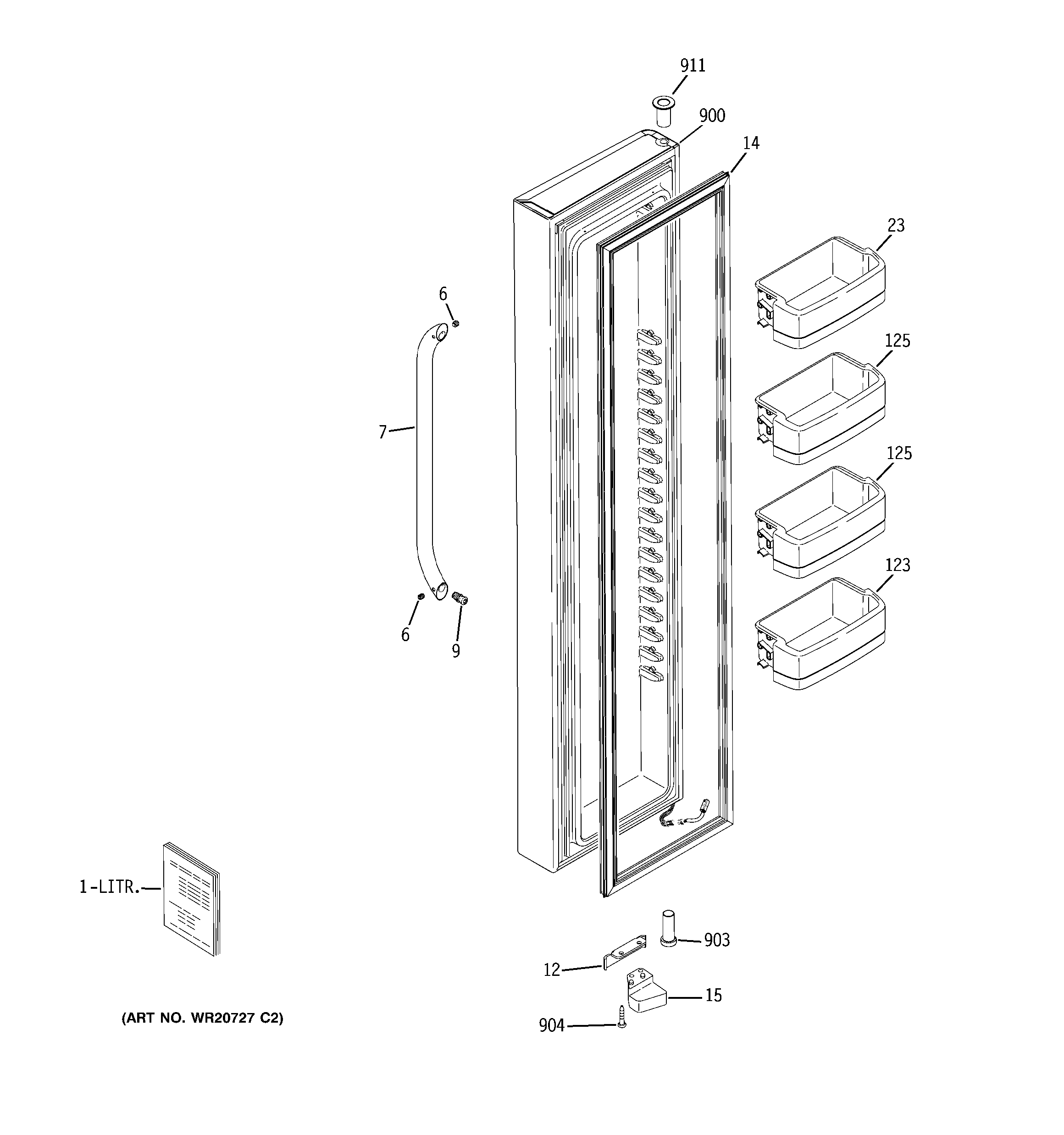

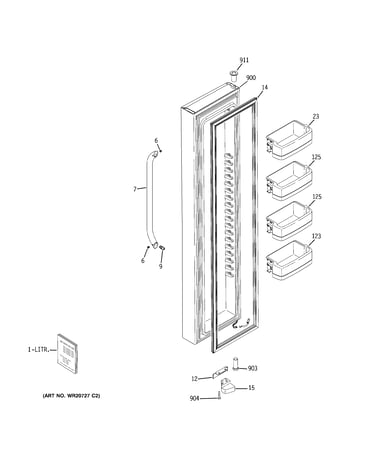

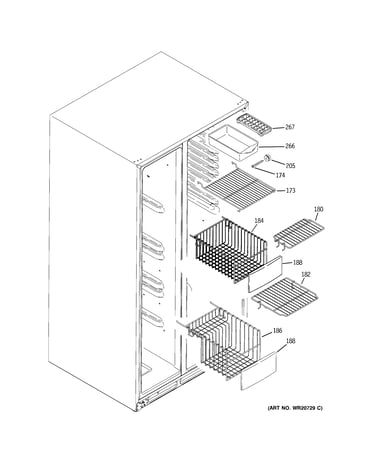

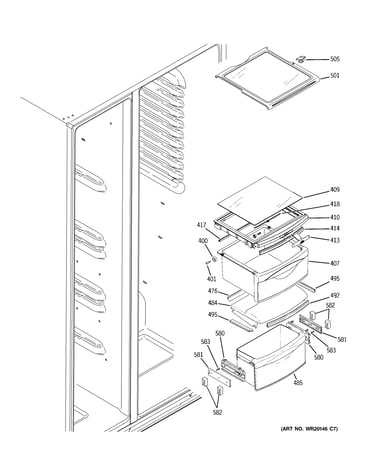

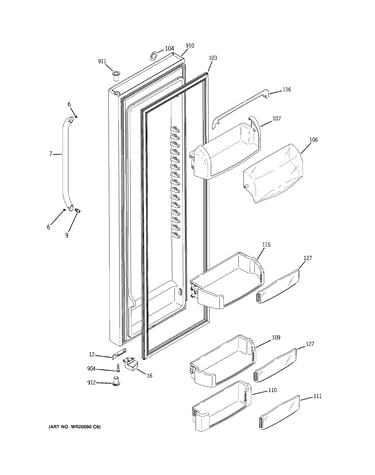

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
#241

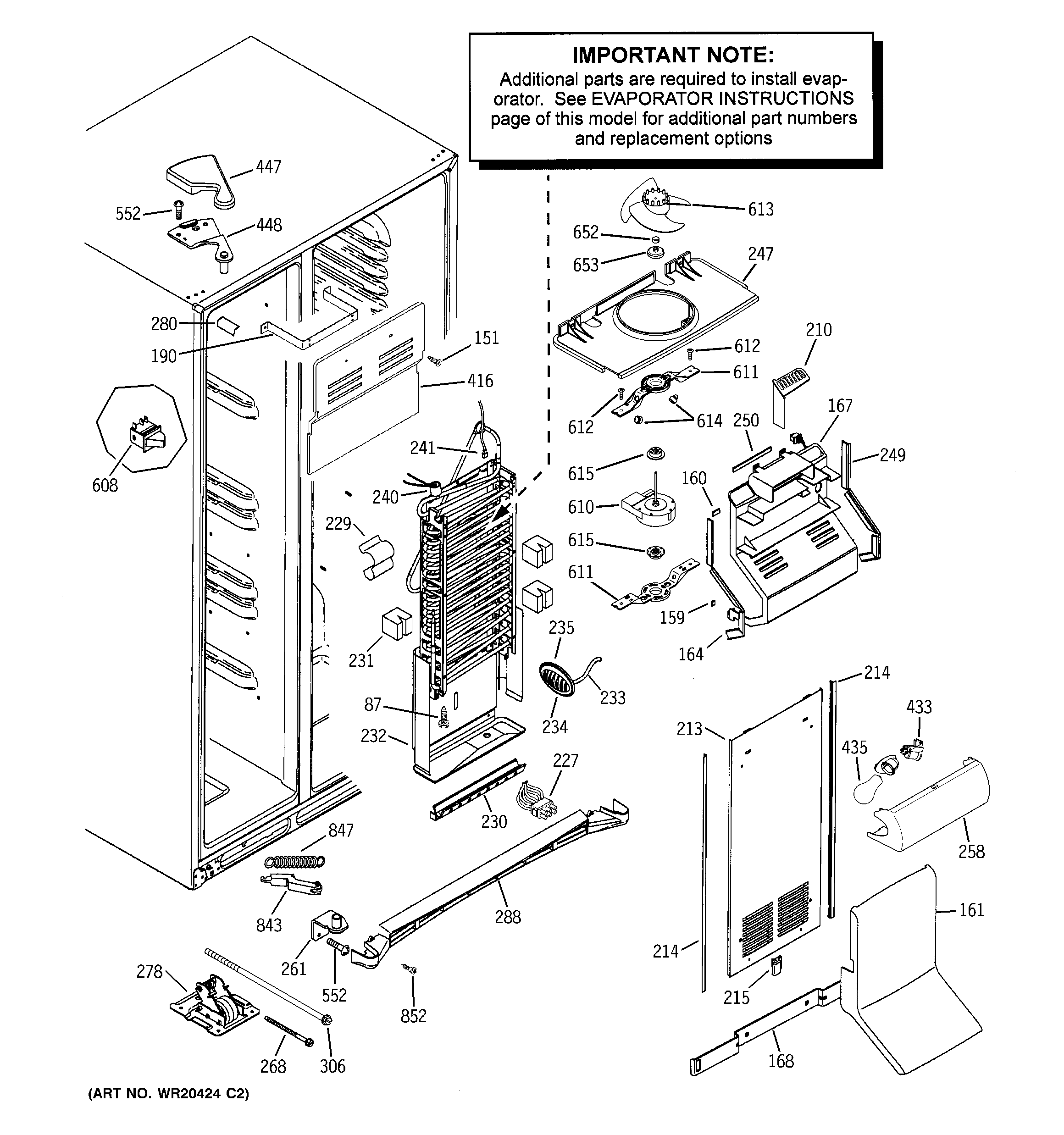

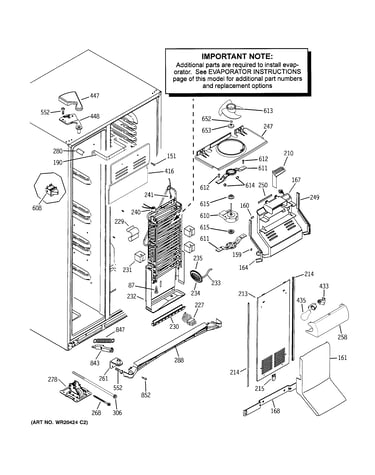

Freezer section diagram

Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10937
#237

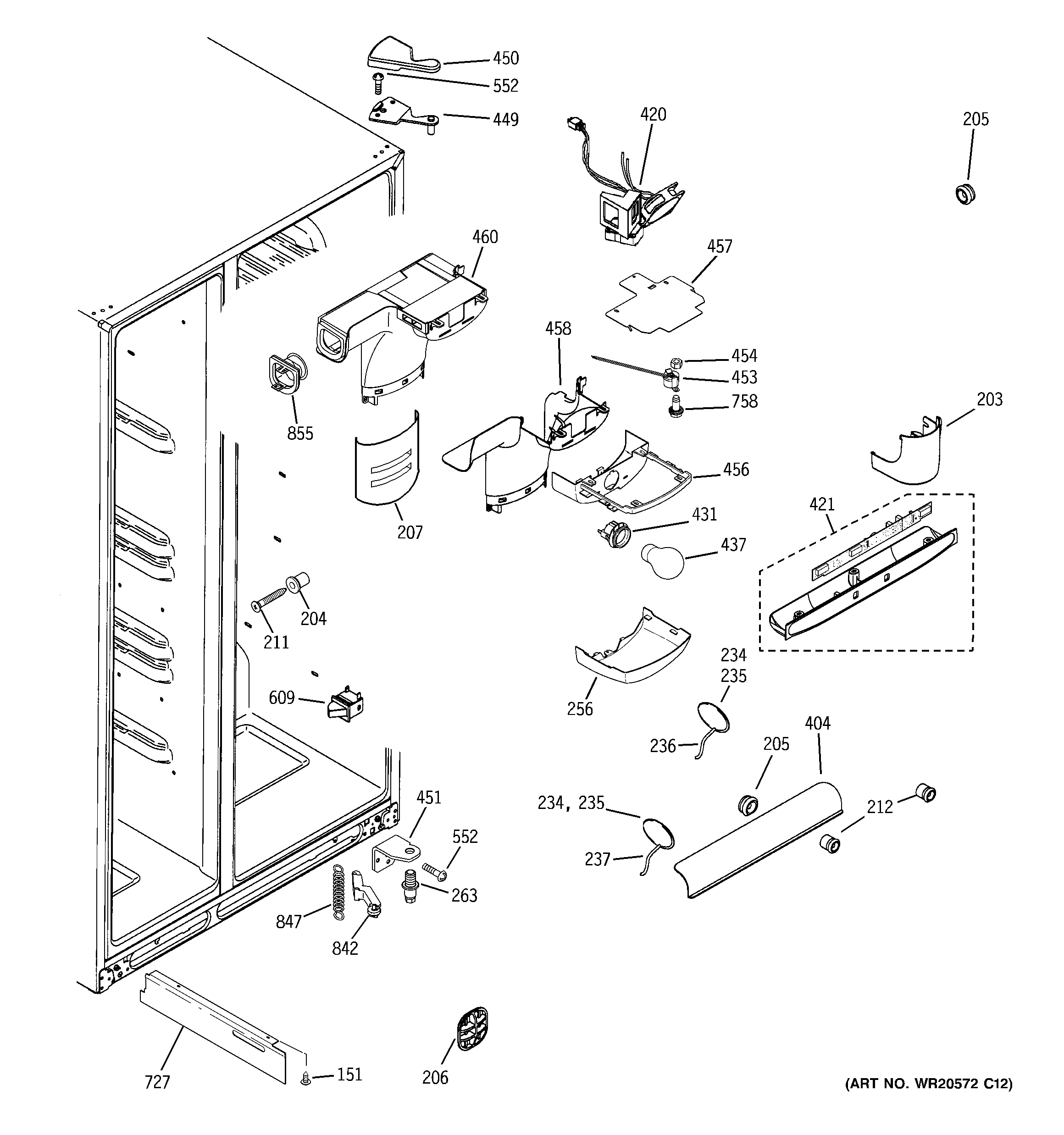

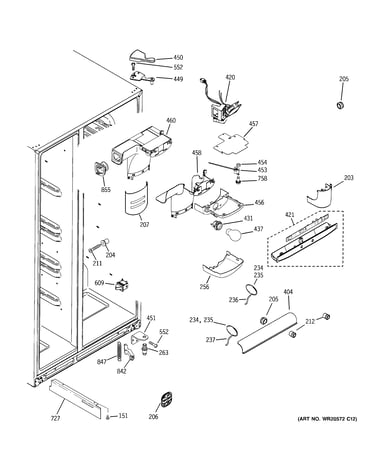

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10937

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10937. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10939
#236

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10939

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10939. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10938
#233

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10938

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10938. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

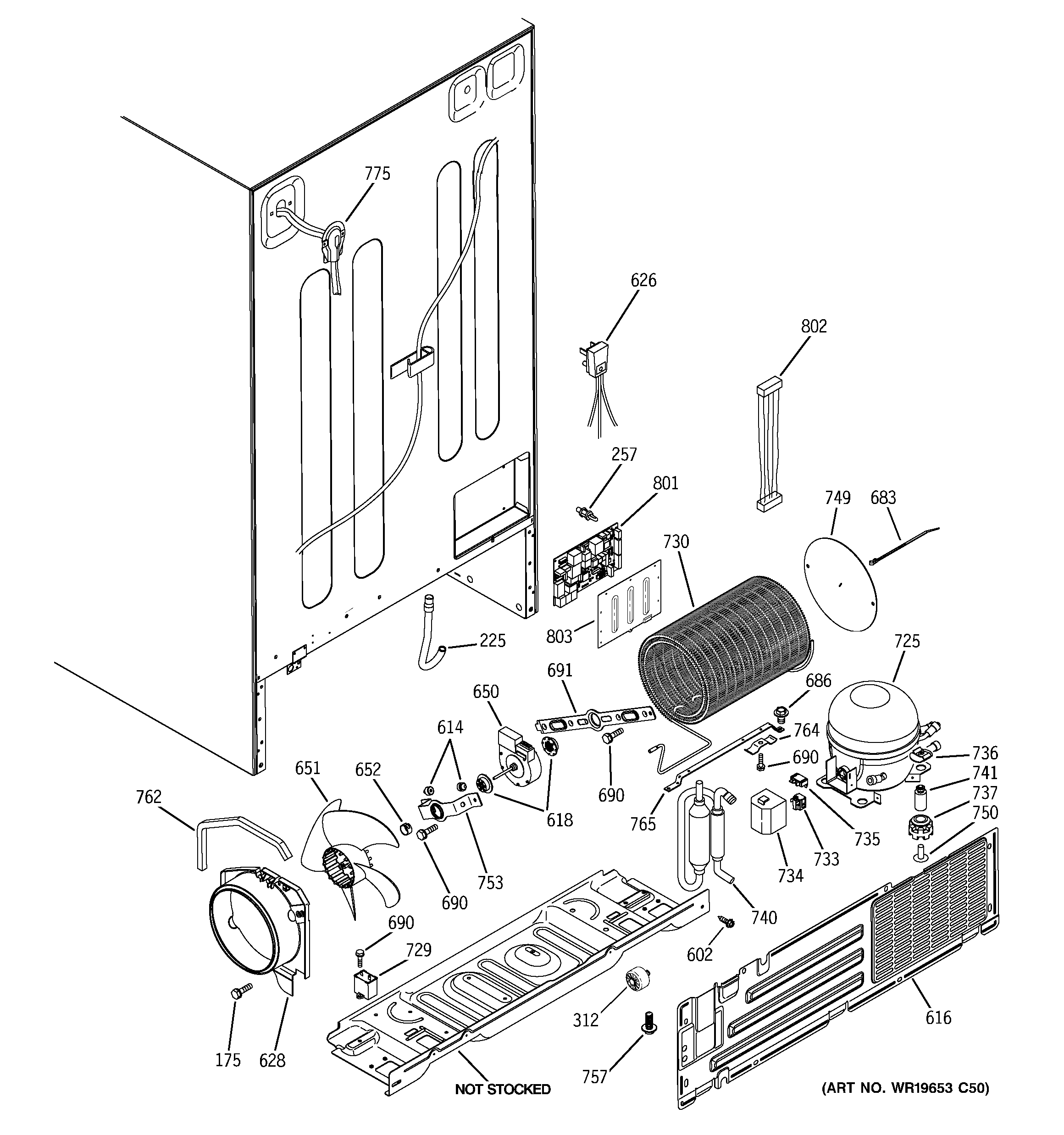

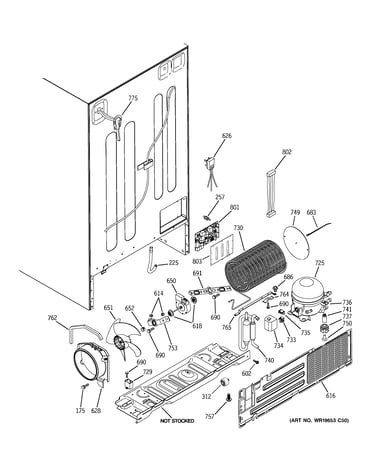

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Comp Rep Kit WR87X10044
#725

Sealed system & mother board diagram

Comp rep kit

Part #WR87X10044

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10044. Substitute parts can look different from the original.
BEST SELLER
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
Condenser Motor WR60X10216
#650

Sealed system & mother board diagram

Condenser motor

Part #WR60X10216

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10216. Substitute parts can look different from the original.
BEST SELLER
$57.54 |
9% OFF Phone Price : $63.54
In Stock
Refrigerator Evaporator WR85X10022
#228

Evaporator instructions diagram

Refrigerator evaporator

Part #WR85X10022

Replaced by #WR87X29147

?
Manufacturer substitution
This part replaces WR85X10022. Substitute parts can look different from the original.
BEST SELLER
$406.73 |
$12.00 OFF Phone Price : $418.73
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#615

Freezer section diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
