Dacor
Range

Model # ERSD30LP Official Dacor range

Here are the diagrams and repair parts for Official Dacor ERSD30LP range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

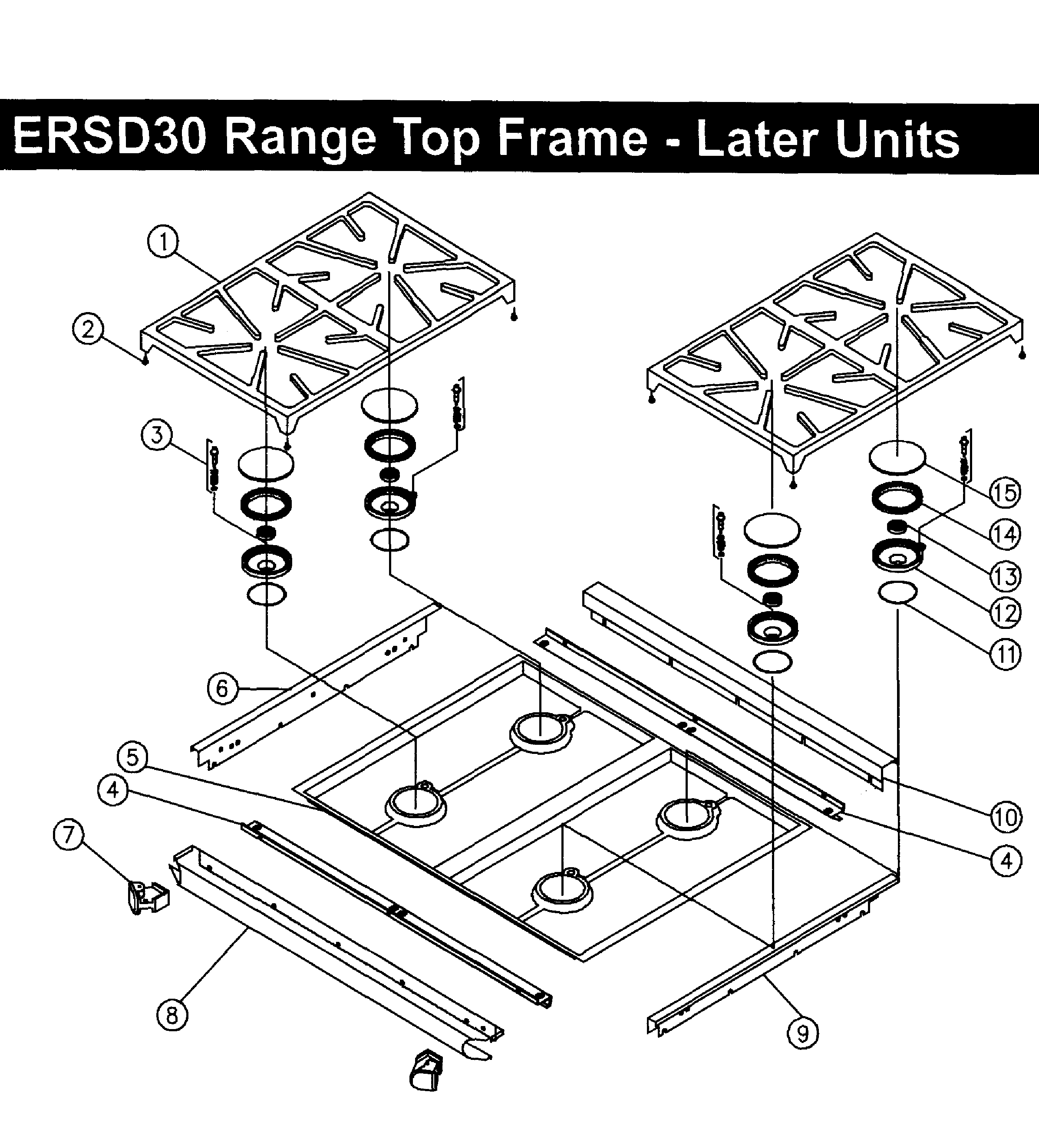

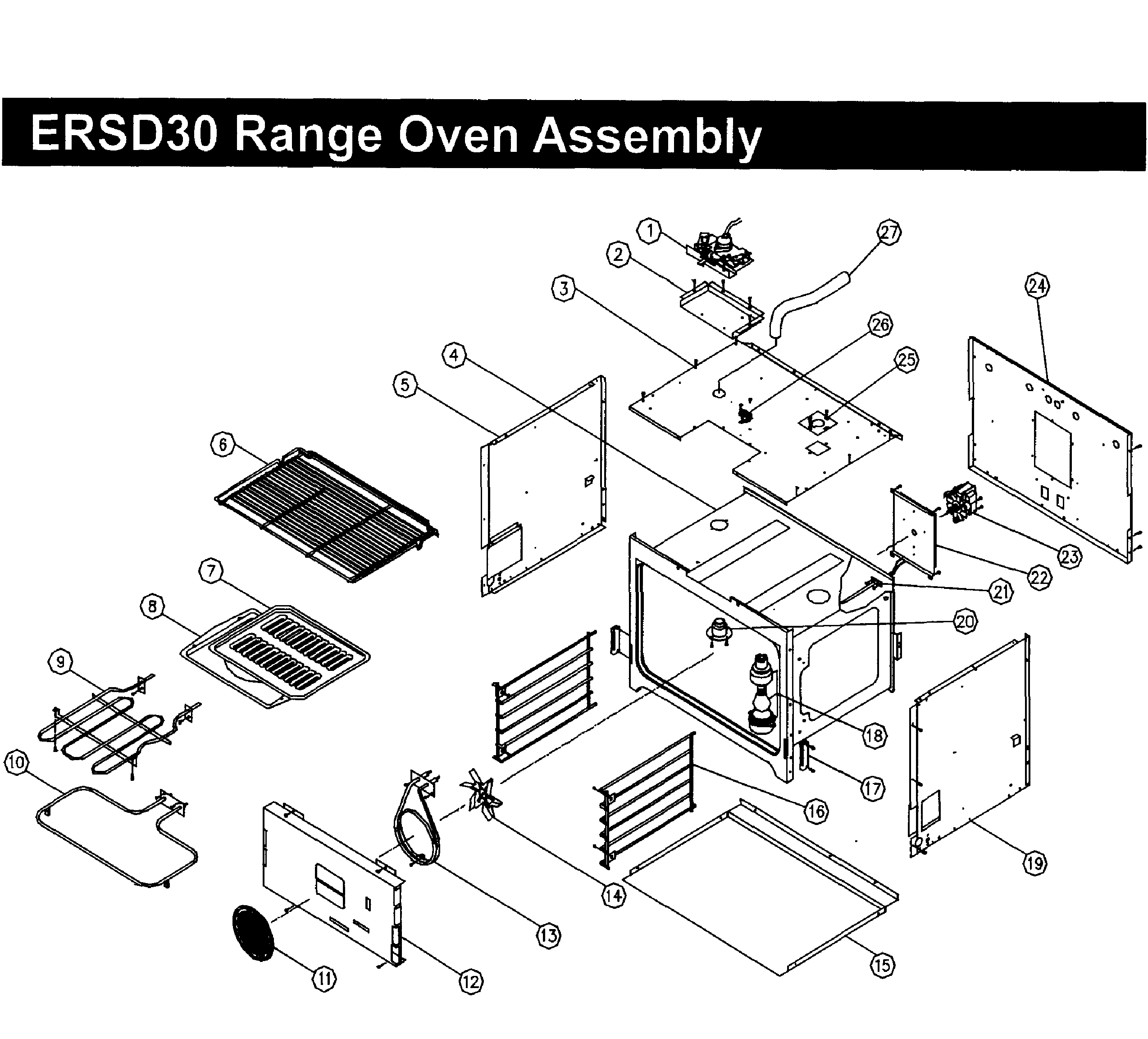

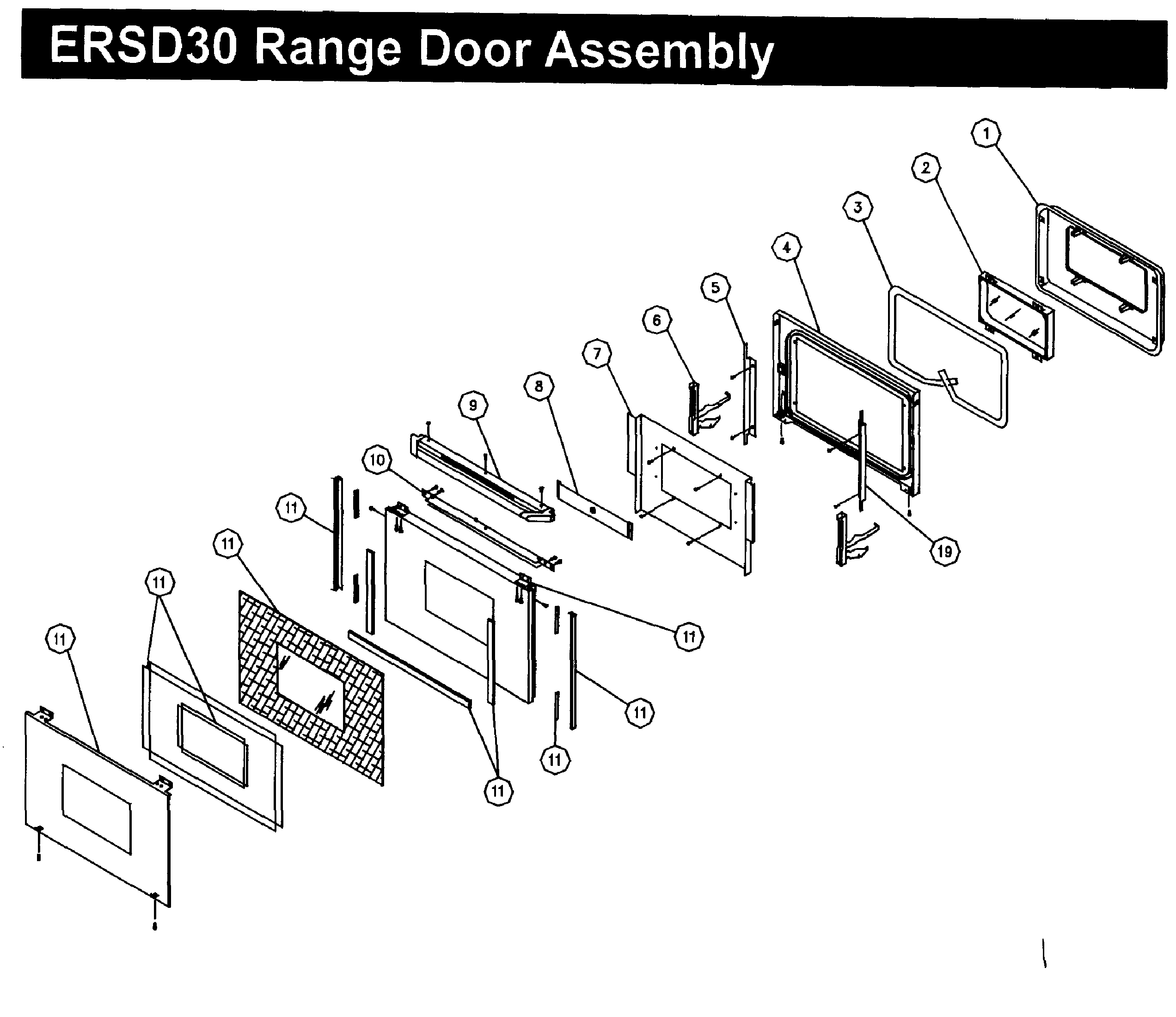

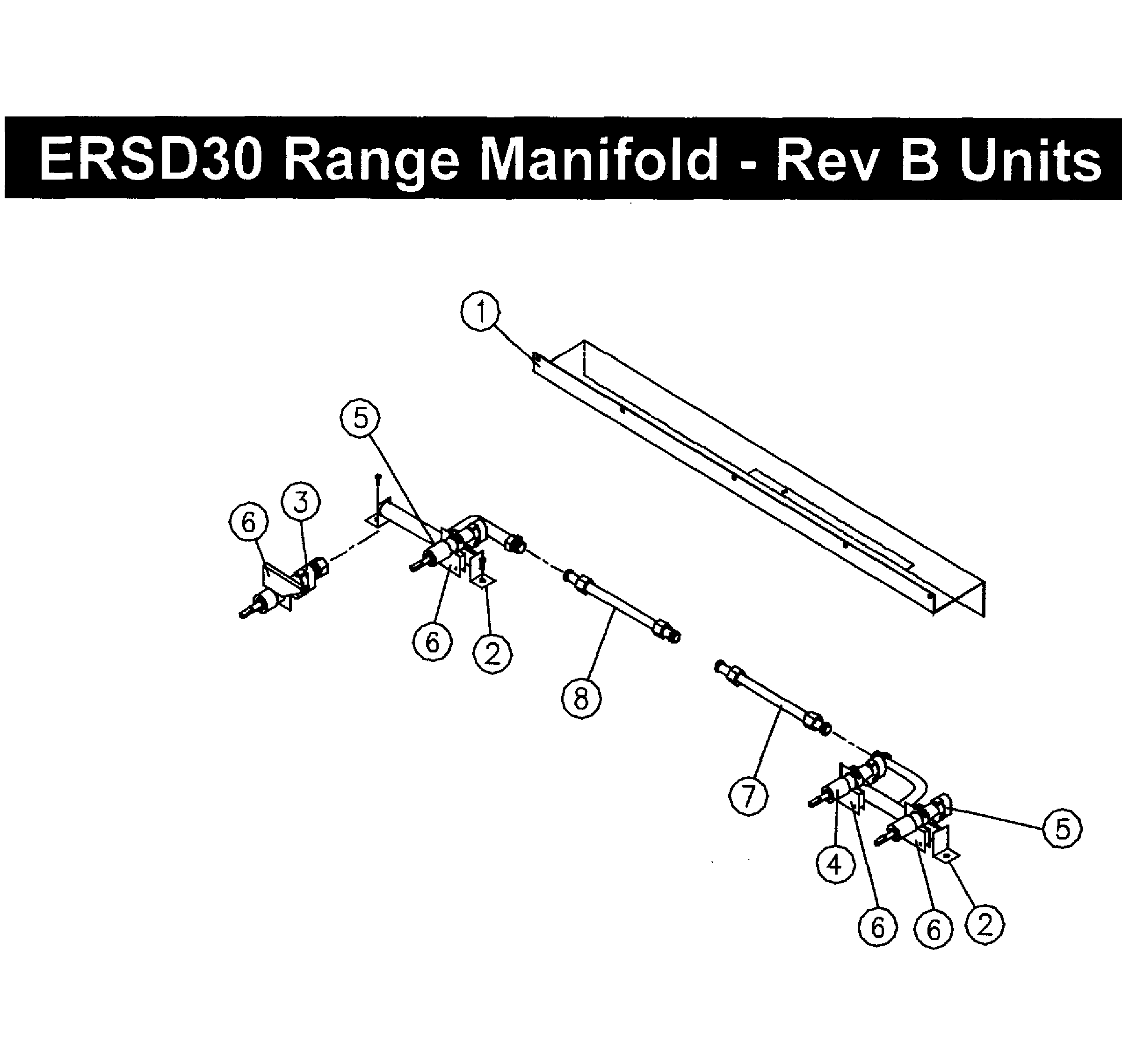

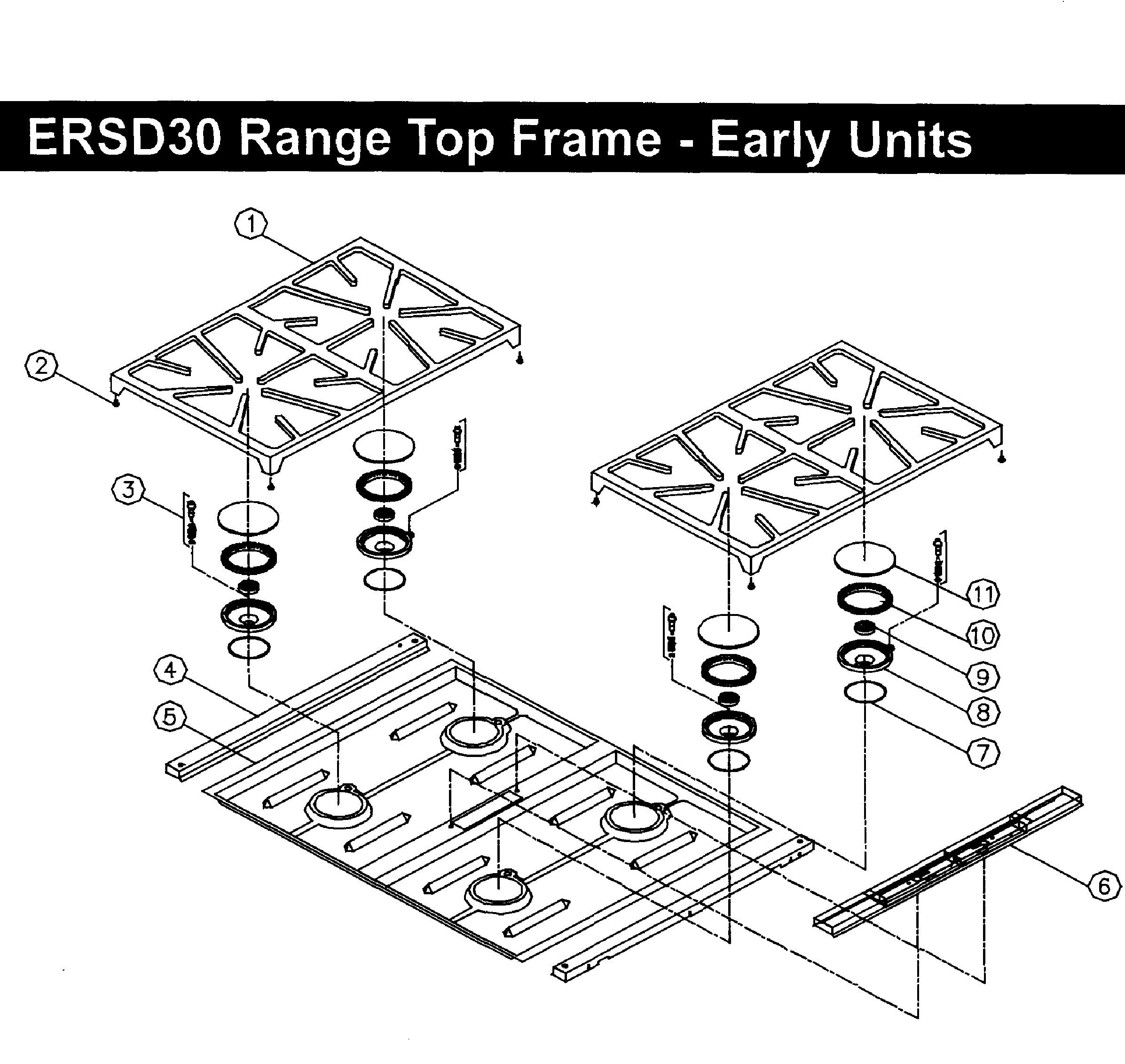

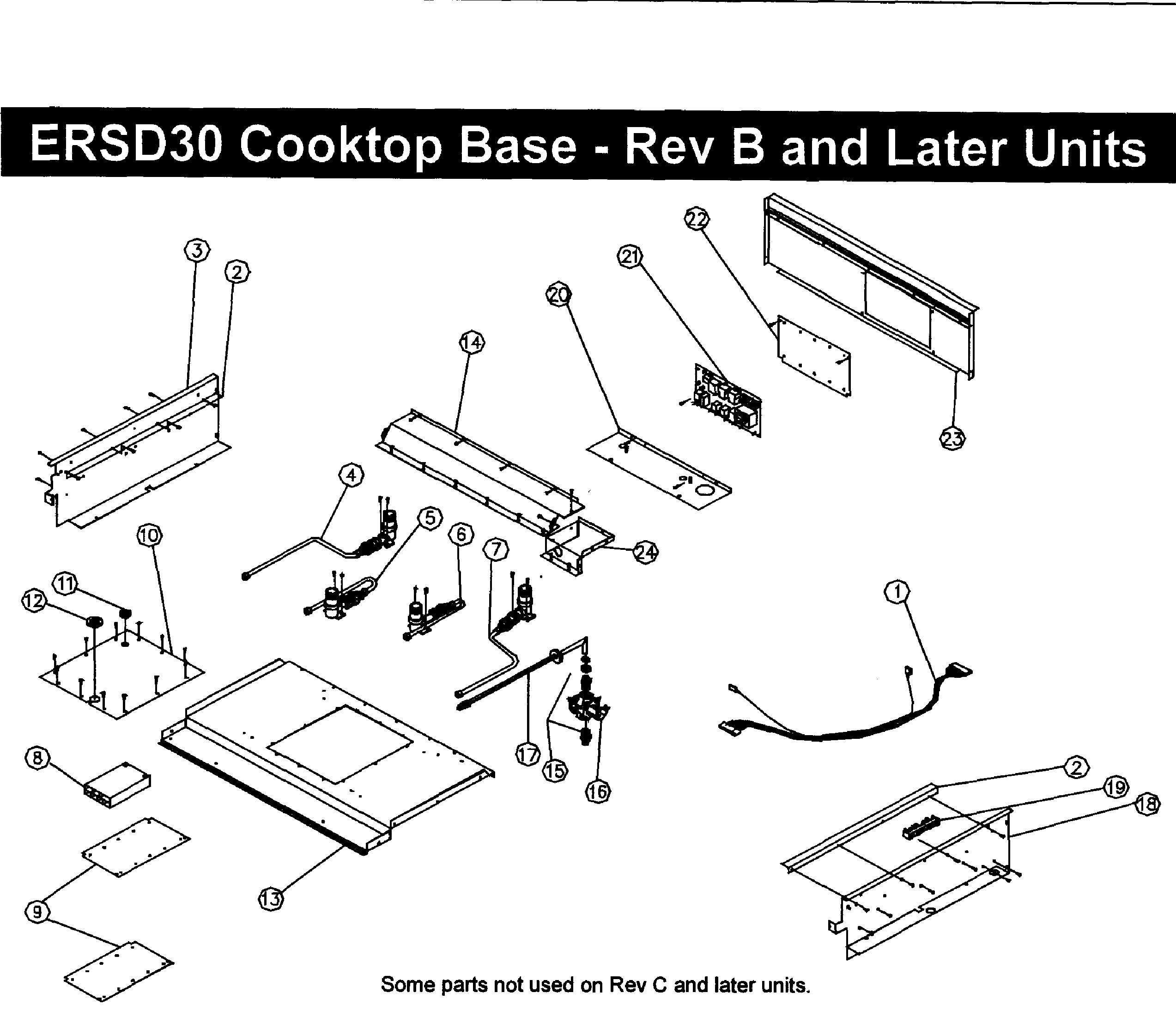

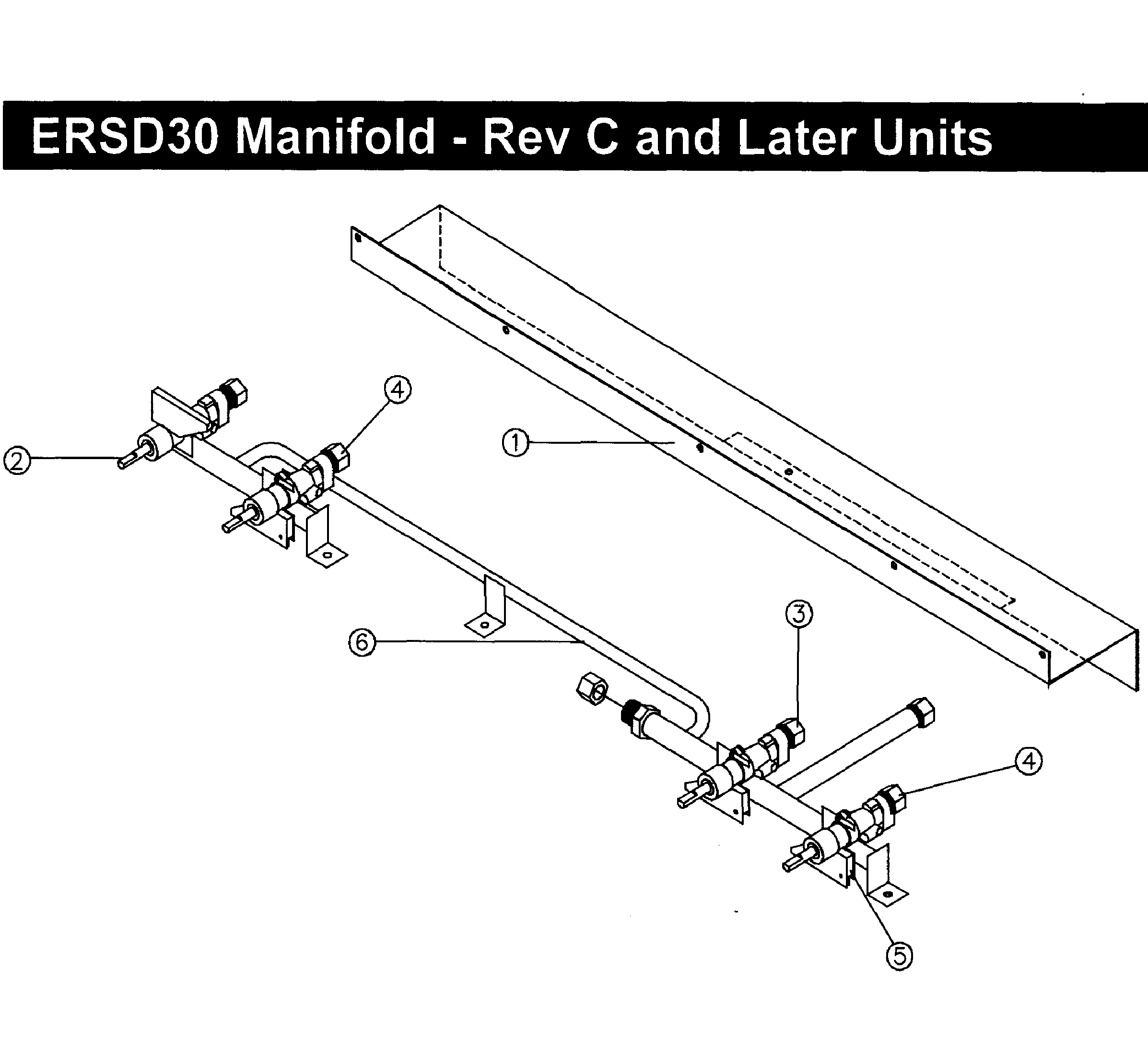

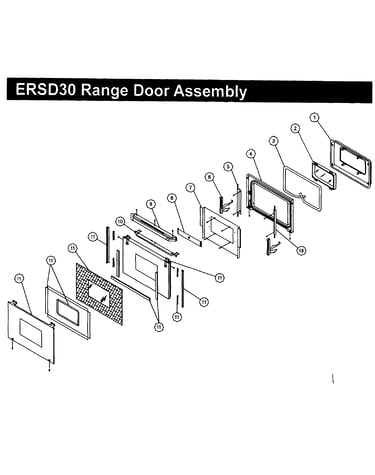

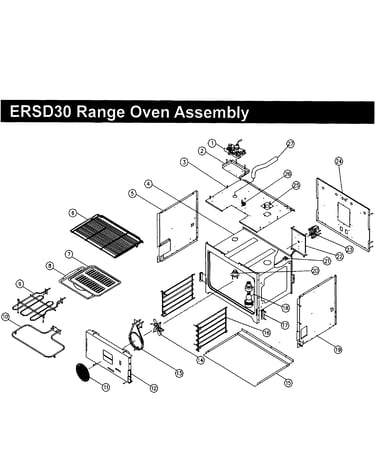

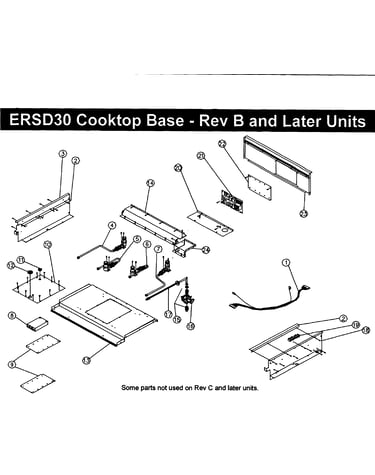

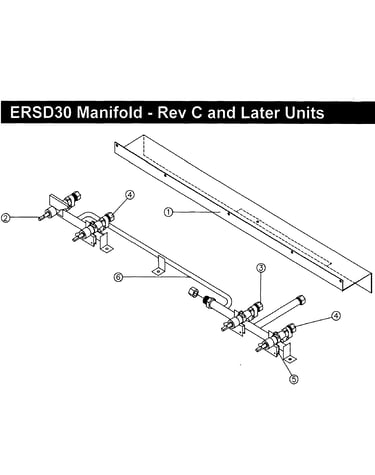

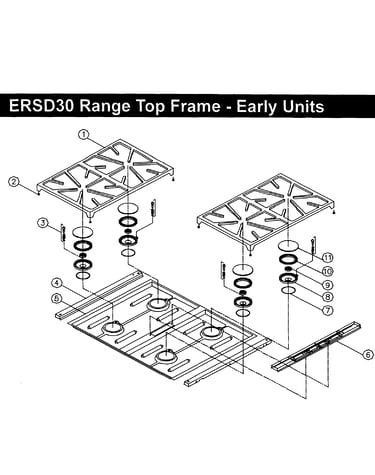

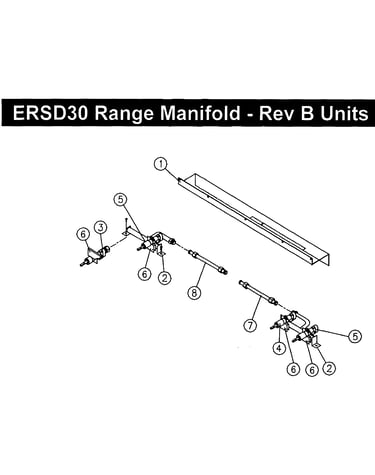

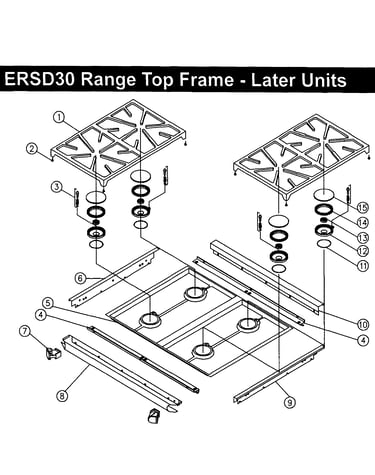

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Cap 62022BM
Cap

Part #62022BM

Replaced by #72435SB

?
Manufacturer substitution
This part replaces 62022BM. Substitute parts can look different from the original.
$15.99
Back Order
Int Grill 26288B
#8

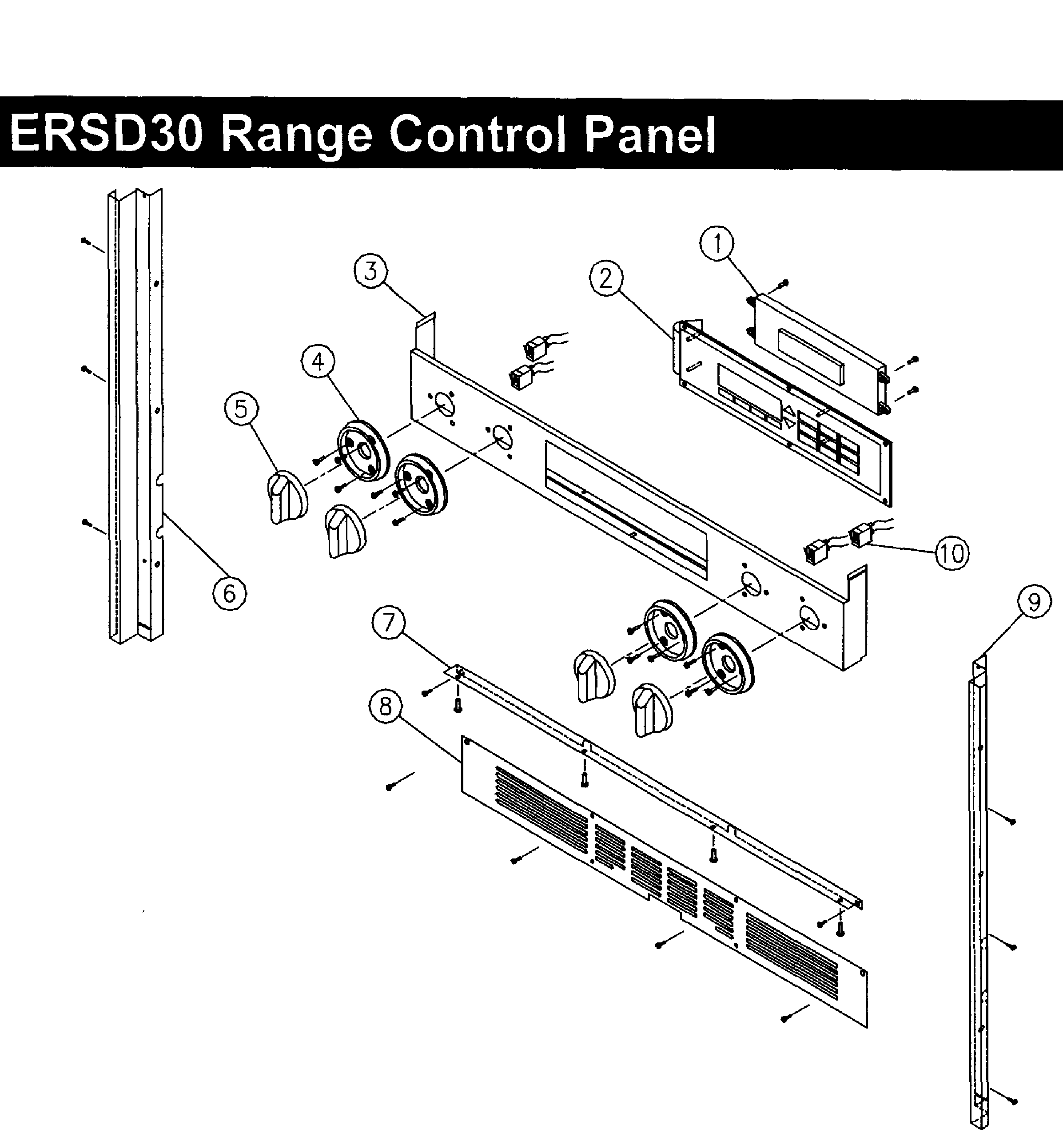

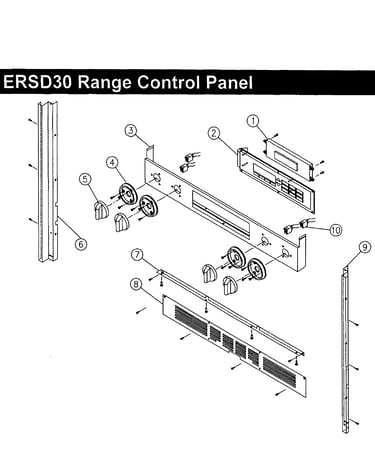

Control assy diagram

Int grill

Part #26288B

$24.49
In Stock
Valve Liquid Propane 86558
Valve liquid propane

Part #86558

$94.99
In Stock
Tube Lr 62028
#9

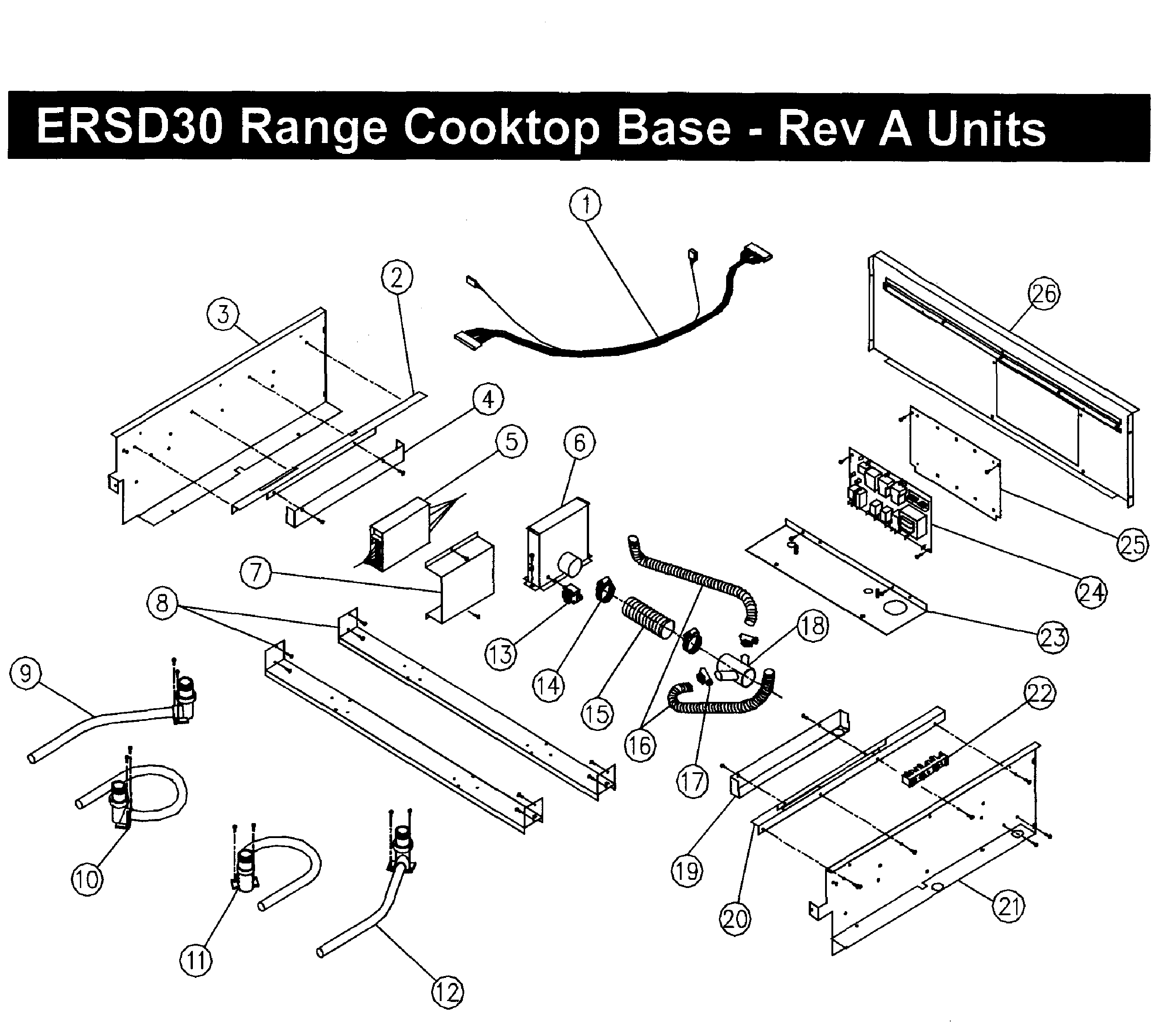

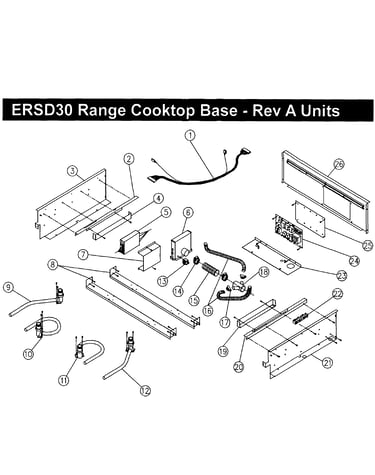

Cooktop-rev a diagram

Tube lr

Part #62028

$20.99
In Stock
Trim Post 26799
#9

Control assy diagram

Trim post

Part #26799

$43.99
In Stock
Fuse Holder 62281
#10

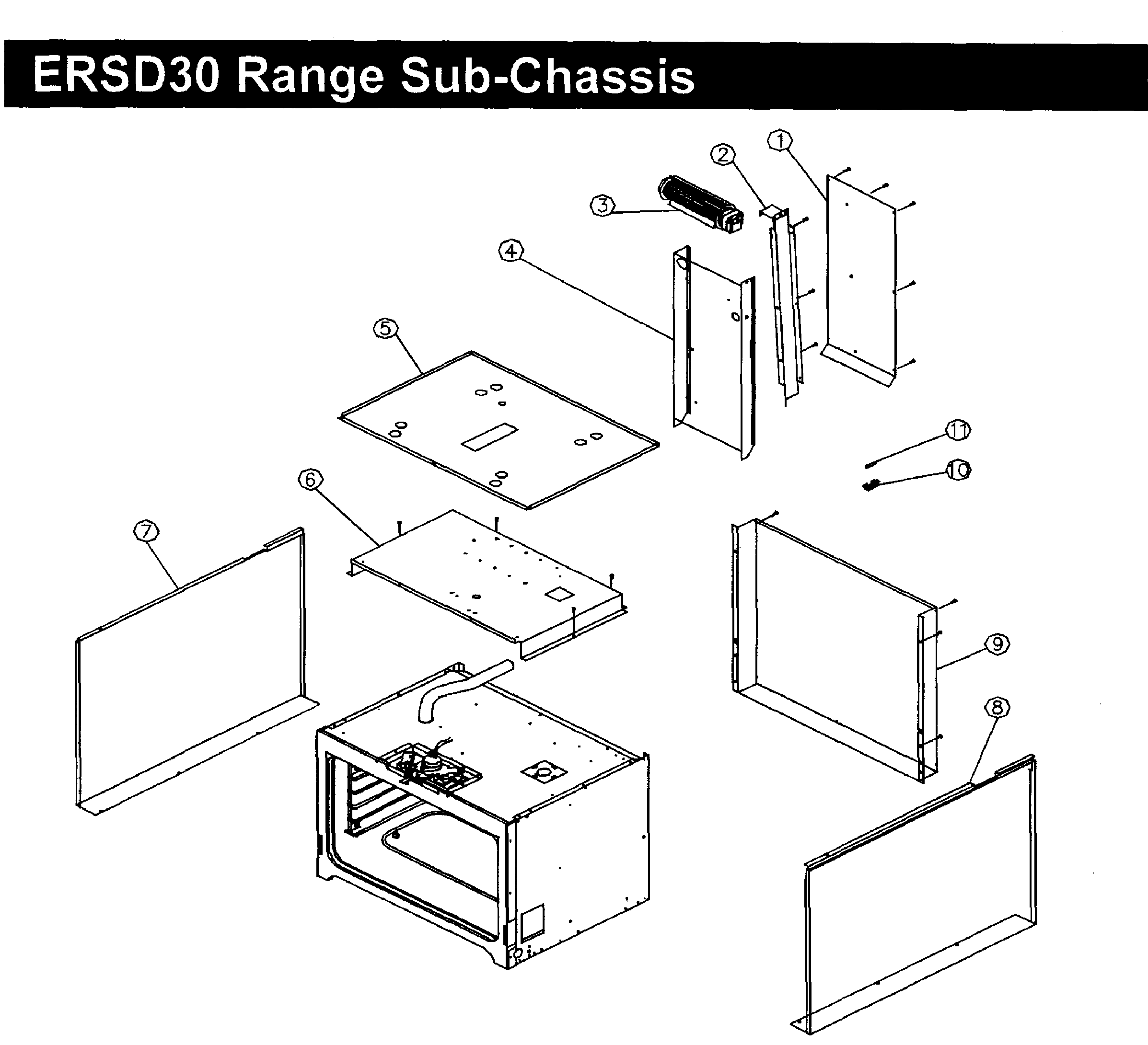

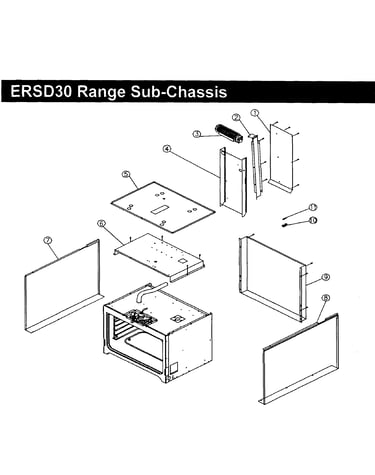

Sub-chassis diagram

Fuse holder

Part #62281

$7.99
In Stock
Valve Seal 83067
#12

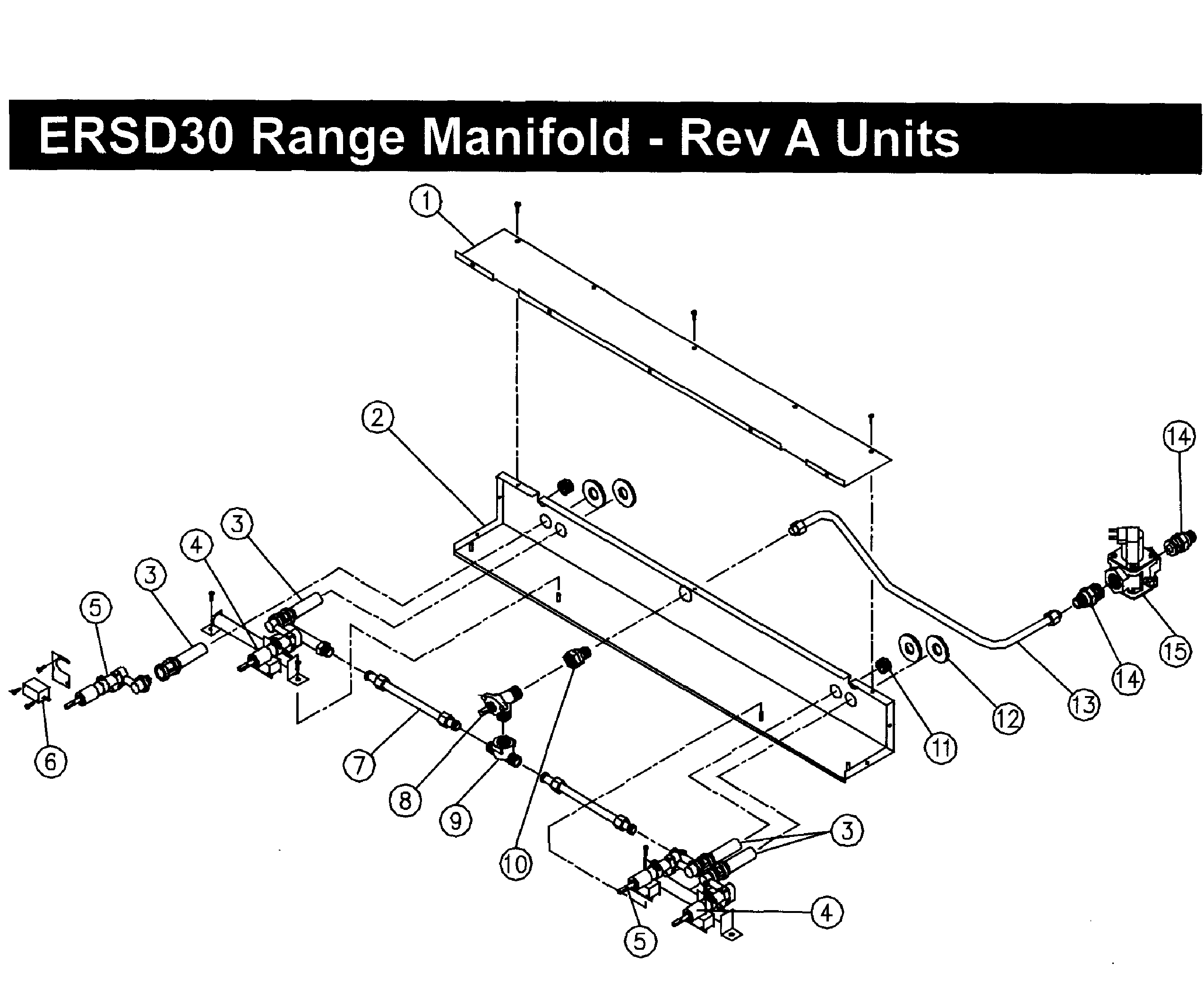

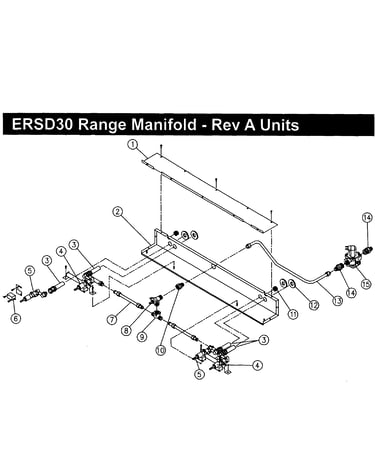

Manifold-rev a diagram

Valve seal

Part #83067

This item is not returnable
$2.16
In Stock
Plate 26788
#1

Manifold-rev a diagram

Plate

Part #26788

$9.49
In Stock
Anti Tip 26041
#7

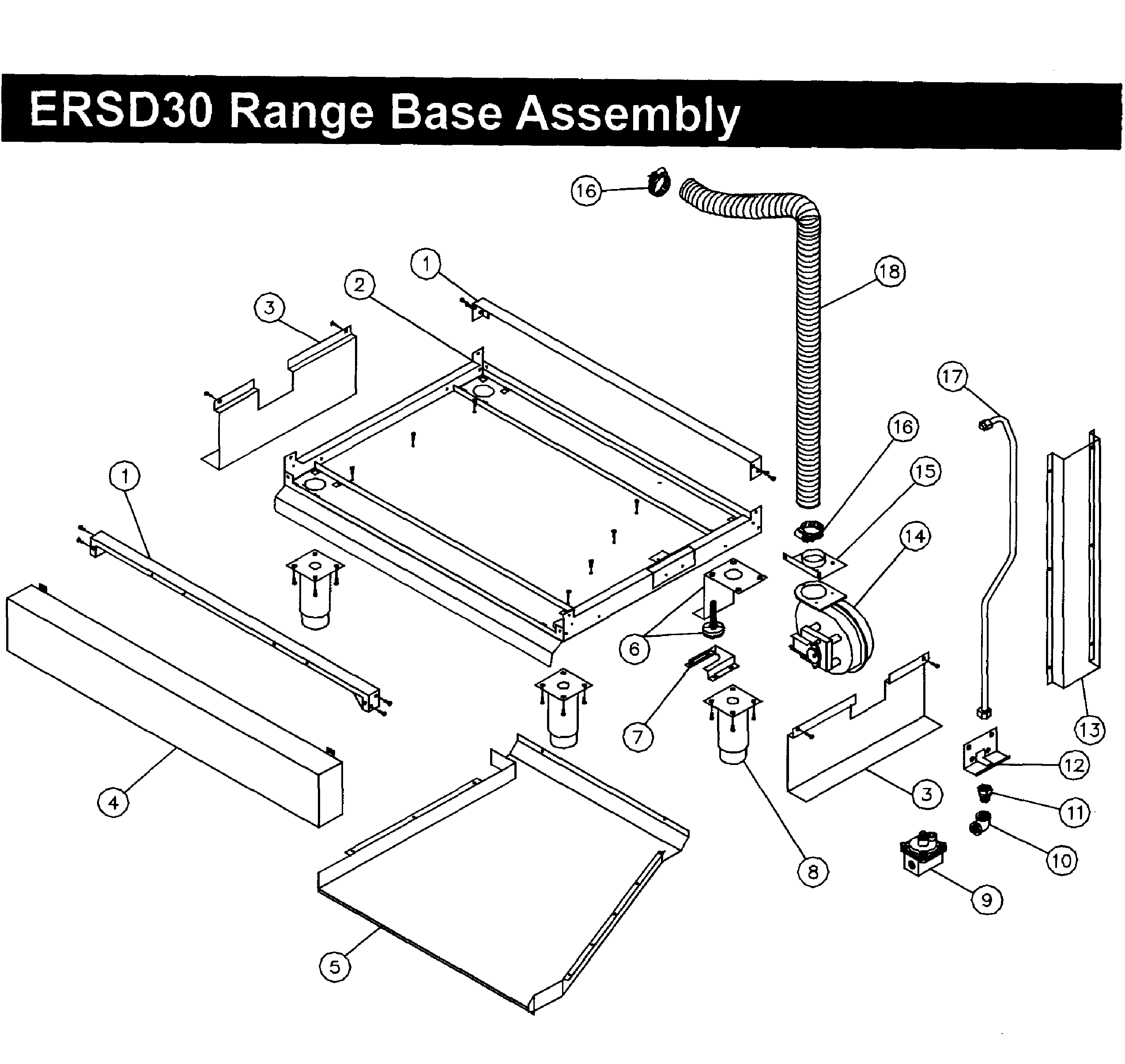

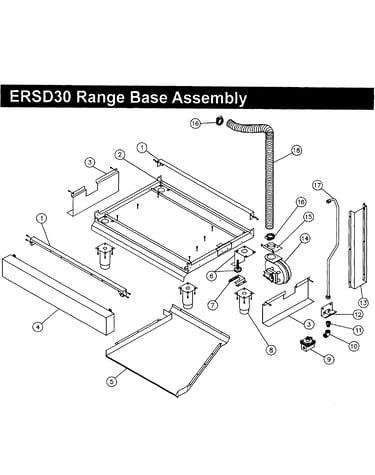

Base assy diagram

Anti tip

Part #26041

This item is not returnable
$7.49
In Stock
Duct Cover 26848
#1

Sub-chassis diagram

Duct cover

Part #26848

$20.49
In Stock
