Model # DKO-791 Official Modern Maid wall oven

Here are the diagrams and repair parts for Official Modern Maid DKO-791 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

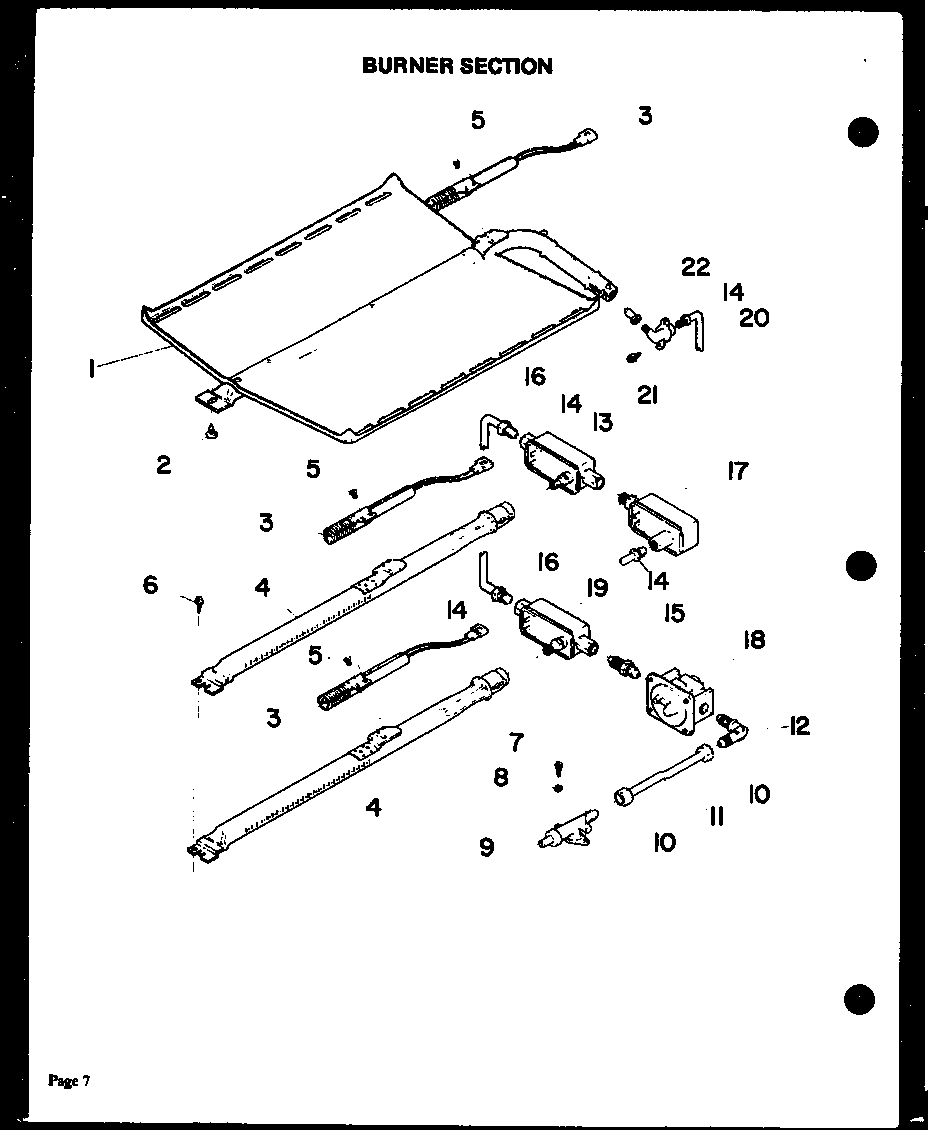

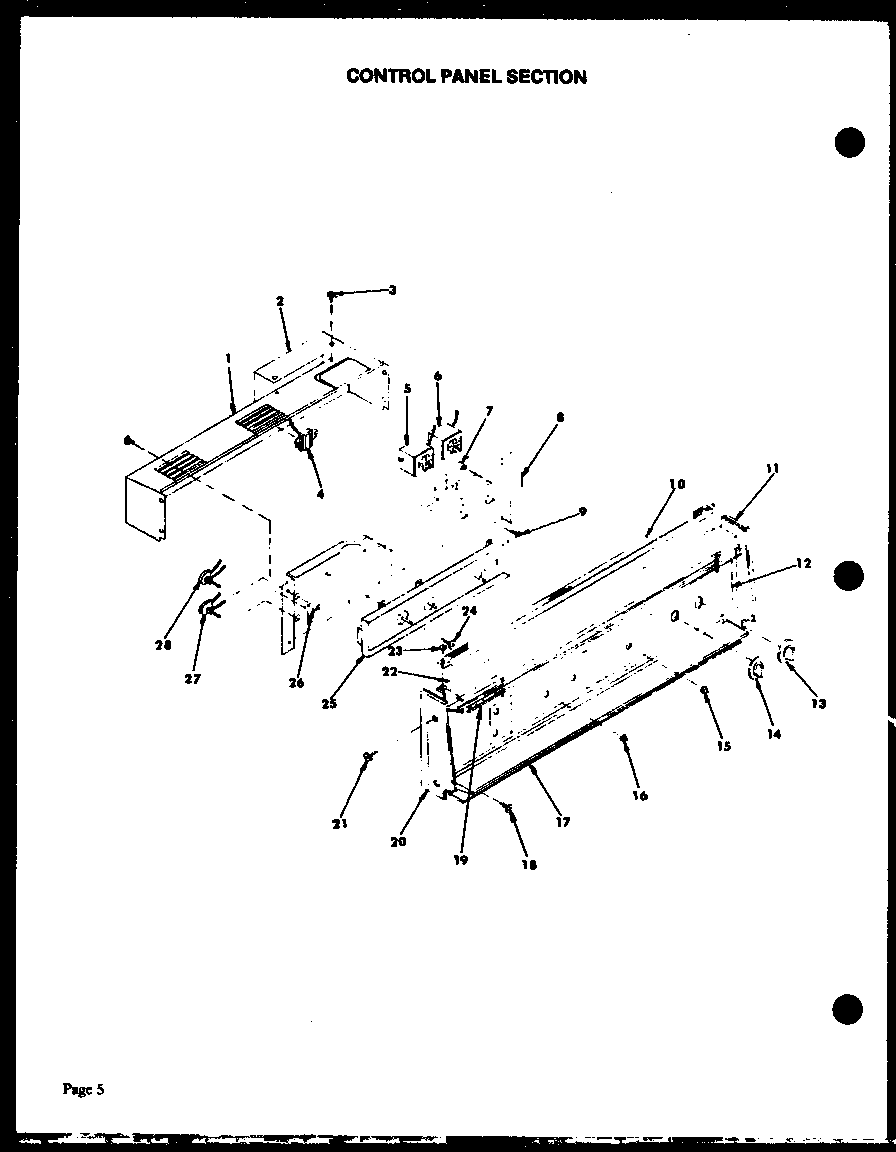

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |

Door Baffle 40732
Door baffle

Part #40732

The manufacturer no longer makes this part, and there's no substitute part

Lower Flue Cover, Bottom 40695
#24

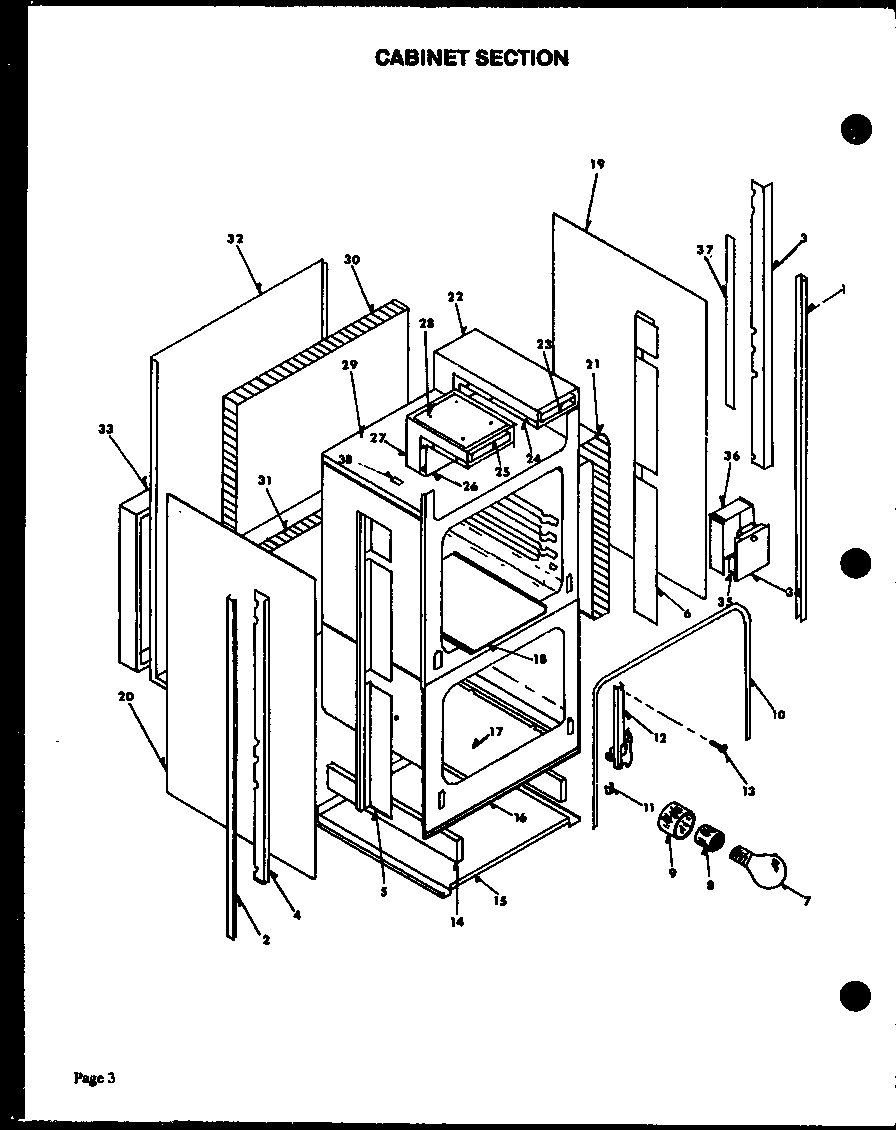

Cabinet section diagram

Lower flue cover, bottom

Part #40695

The manufacturer no longer makes this part, and there's no substitute part

Door Side Trim, Lt. 42484

#NI

All parts diagram

Door side trim, lt.

Part #42484

The manufacturer no longer makes this part, and there's no substitute part

Screw 41768
#34B

Cabinet section diagram

Screw

Part #41768

The manufacturer no longer makes this part, and there's no substitute part

Hinge Shield - Rt. 40678
#6

Cabinet section diagram

Hinge shield - rt.

Part #40678

The manufacturer no longer makes this part, and there's no substitute part

Door Handle Screw 41767
#10

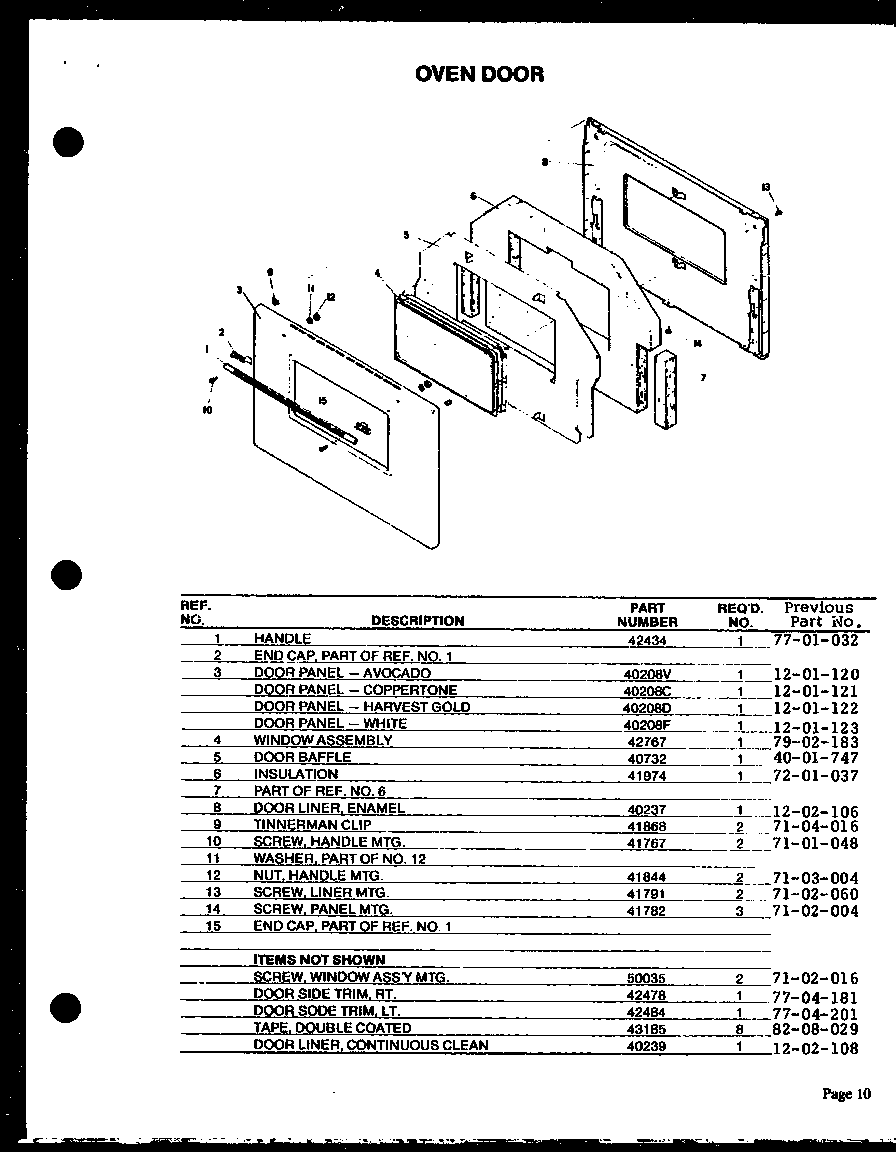

Oven door diagram

Door handle screw

Part #41767

The manufacturer no longer makes this part, and there's no substitute part

Oven Broiler Pan Insert 40623
#1

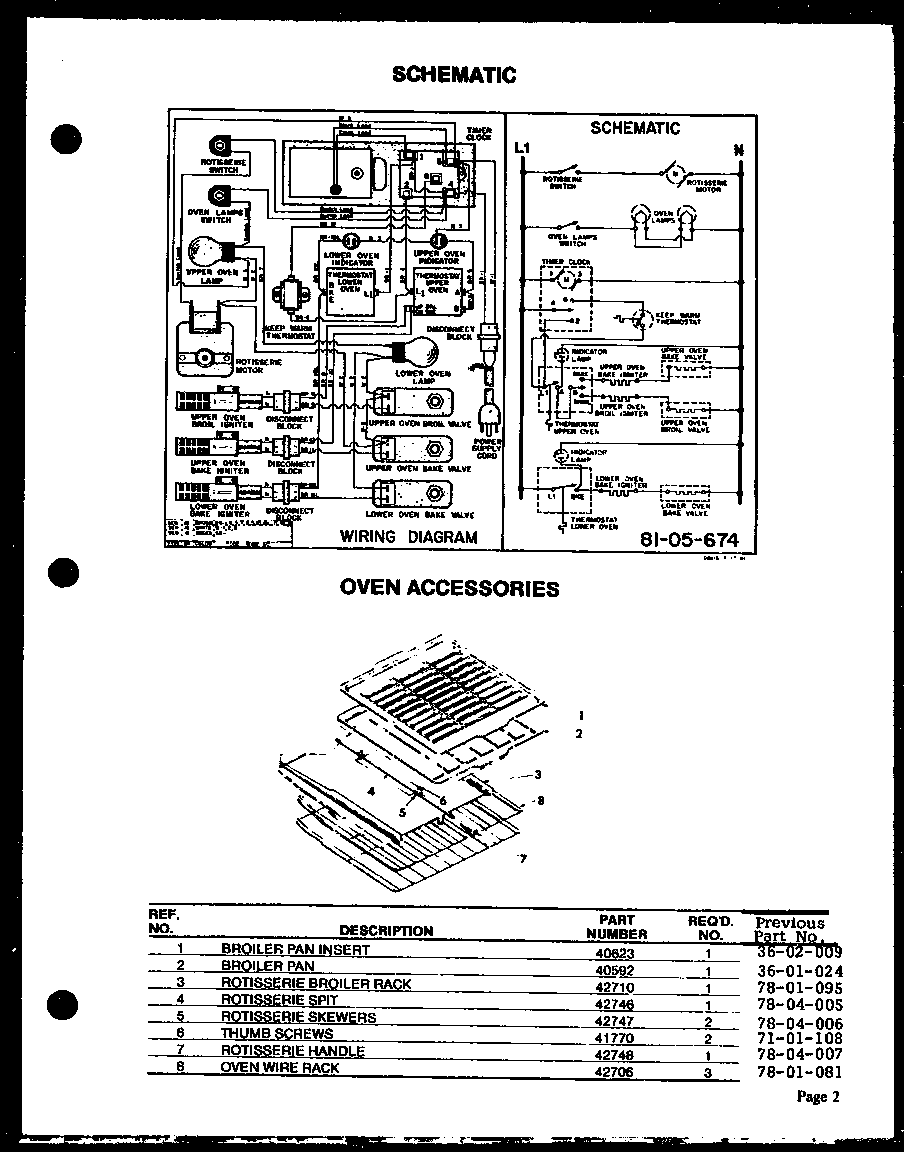

Accessory kit parts diagram

Oven broiler pan insert

Part #40623

The manufacturer no longer makes this part, and there's no substitute part

Inside Glass 42768
#7

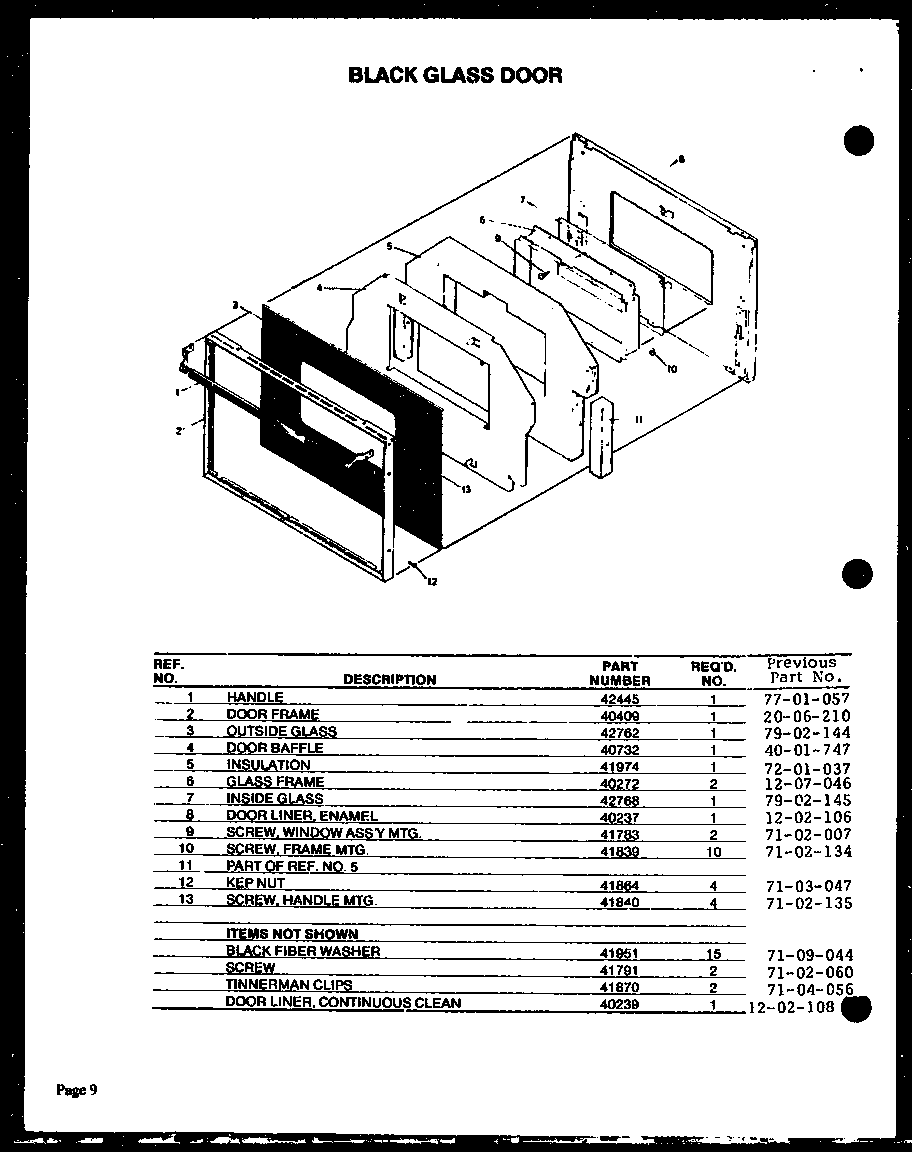

Black glass door diagram

Inside glass

Part #42768

The manufacturer no longer makes this part, and there's no substitute part

Flue Box W/a 40576
#25

Cabinet section diagram

Flue box w/a

Part #40576

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 41877
#38

Cabinet section diagram

Strain relief

Part #41877

The manufacturer no longer makes this part, and there's no substitute part
