Model # 143103012 Official Craftsman 4-cycle gas engine

Here are the diagrams and repair parts for Official Craftsman 143103012 4-cycle gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

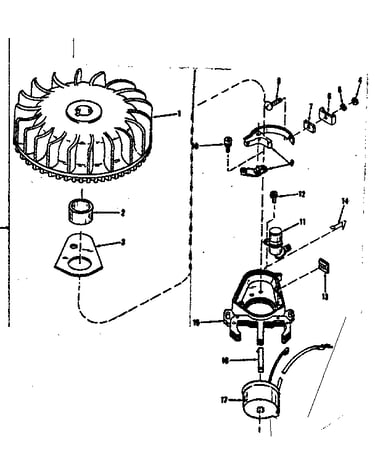

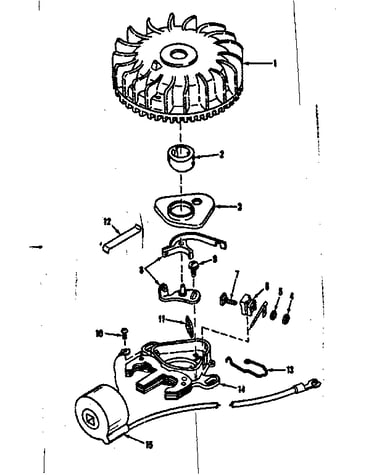

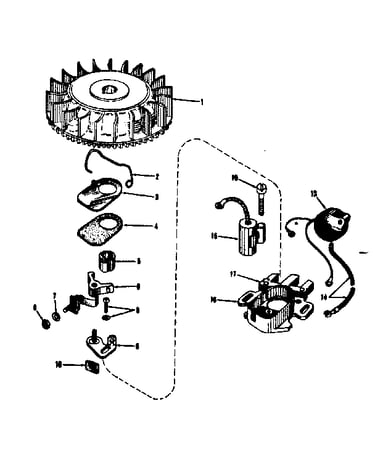

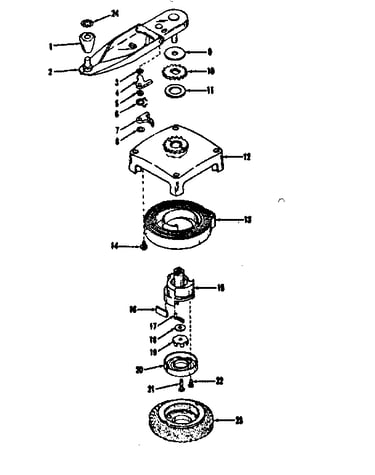

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 235 parts  |

Fuel Line 30120
#114

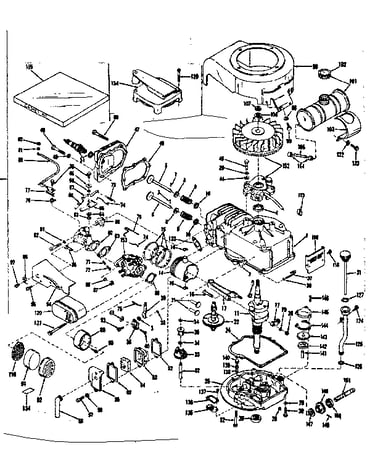

Basic engine diagram

Fuel line

Part #30120

The manufacturer no longer makes this part, and there's no substitute part

Element 27233
#54

Basic engine diagram

Element

Part #27233

The manufacturer no longer makes this part, and there's no substitute part

Valve Kit 29314
#5

Basic engine diagram

Valve kit

Part #29314

The manufacturer no longer makes this part, and there's no substitute part

Shaft 29194
#32

Basic engine diagram

Shaft

Part #29194

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 30117
#33

Basic engine diagram

Gear assembly

Part #30117

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#58

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Spool 30116
#35

Basic engine diagram

Spool

Part #30116

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#5

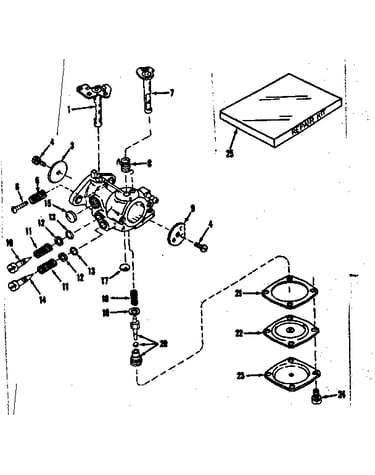

Carburetor no.30119 (power products 0234-14) diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Gasket 630750
#21

Carburetor no.30119 (power products 0234-14) diagram

Gasket

Part #630750

The manufacturer no longer makes this part, and there's no substitute part

Muffler 30121
#120

Basic engine diagram

Muffler

Part #30121

The manufacturer no longer makes this part, and there's no substitute part
