Model # TGB500CFB1 Official Tappan gas wall oven - 5995295648

Here are the diagrams and repair parts for Official Tappan TGB500CFB1 gas wall oven - 5995295648, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

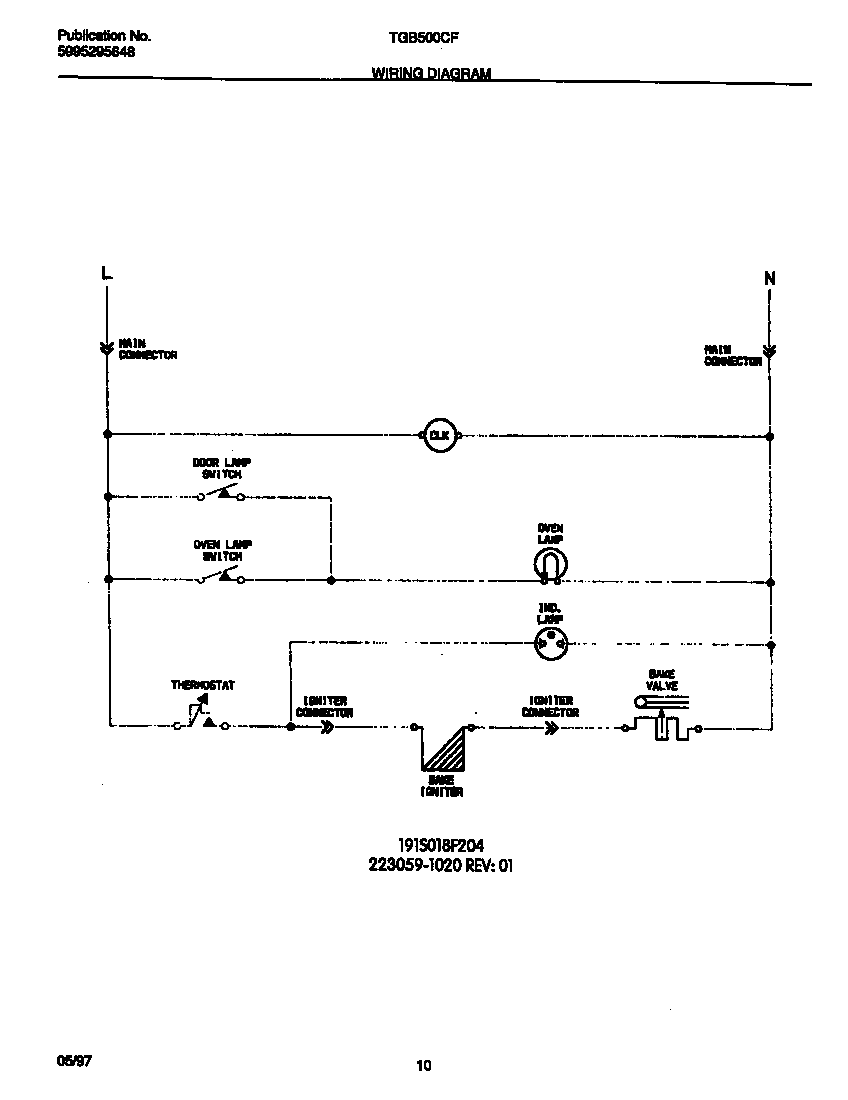

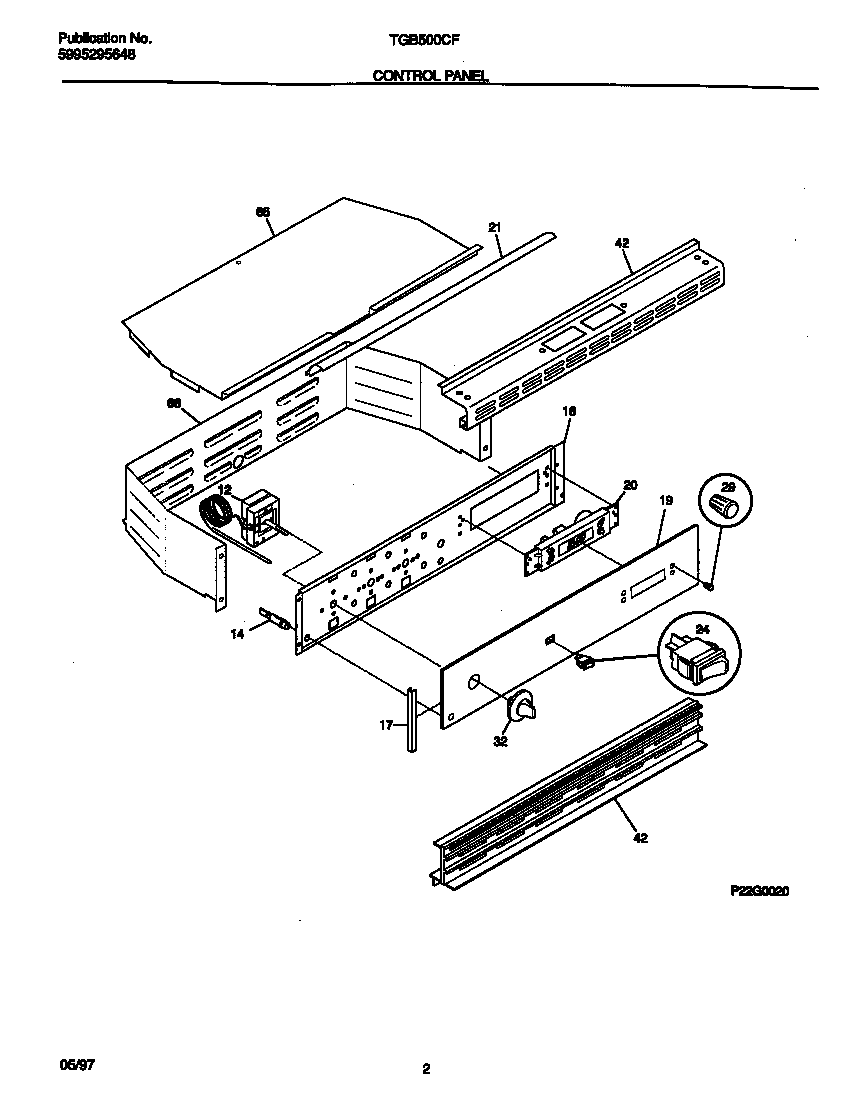

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Bulb 3201908
#15

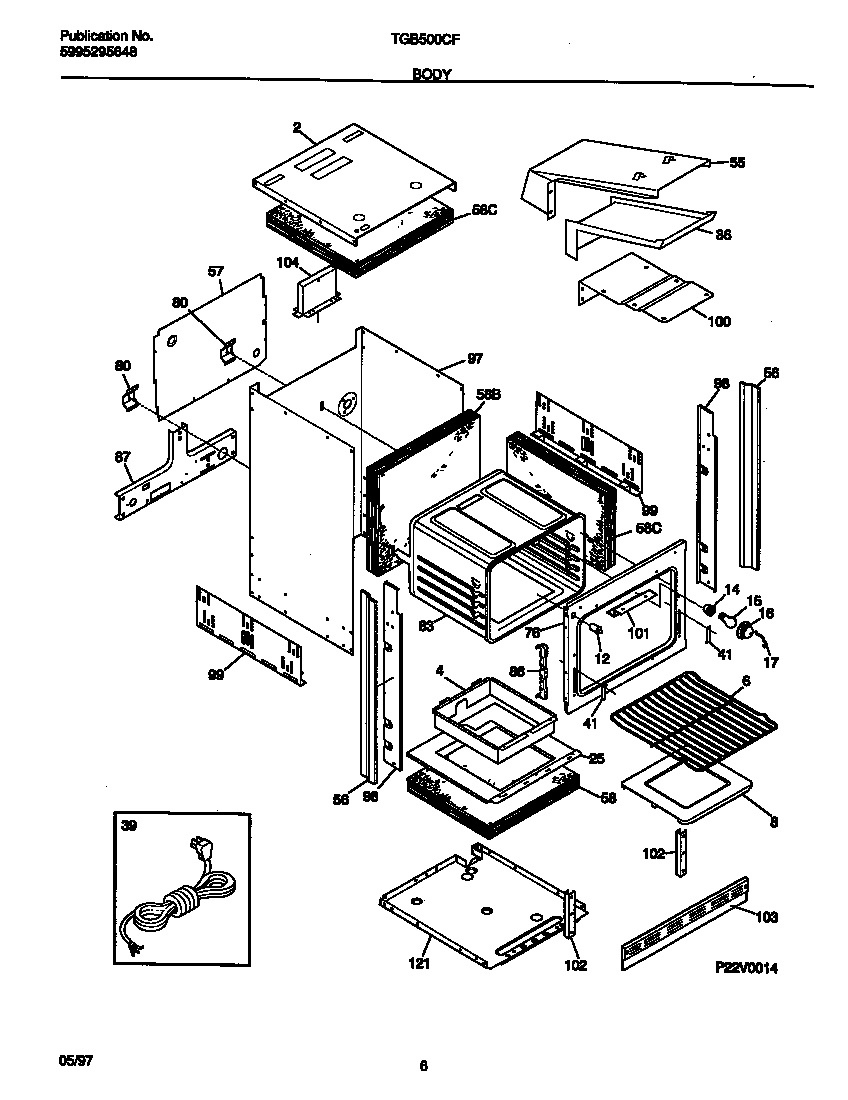

Body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
White-westinghouse Wall Oven Gas Valve (replaces 385211, P385211) 3203702
#17

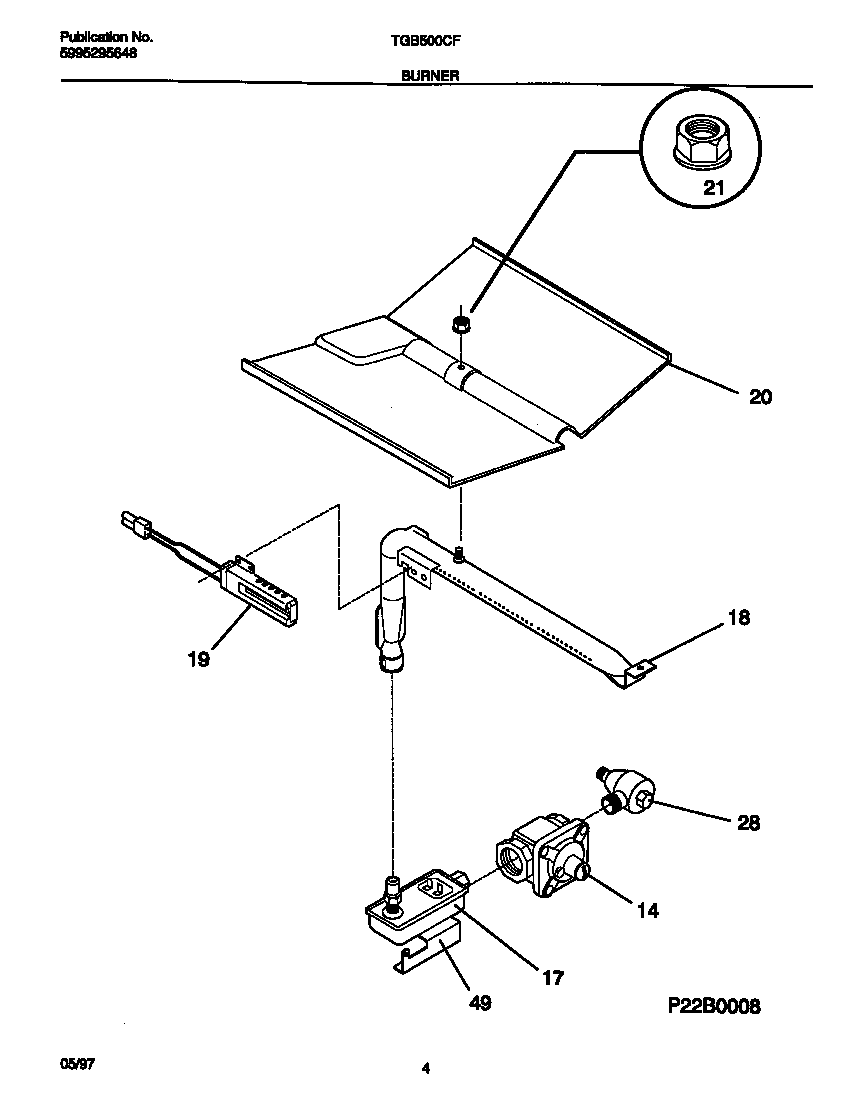

Burner diagram

White-westinghouse wall oven gas valve (replaces 385211, p385211)

Part #3203702

$174.75 |
6% OFF Phone Price : $186.75
In Stock
Range Broil Pan 318126200
#46

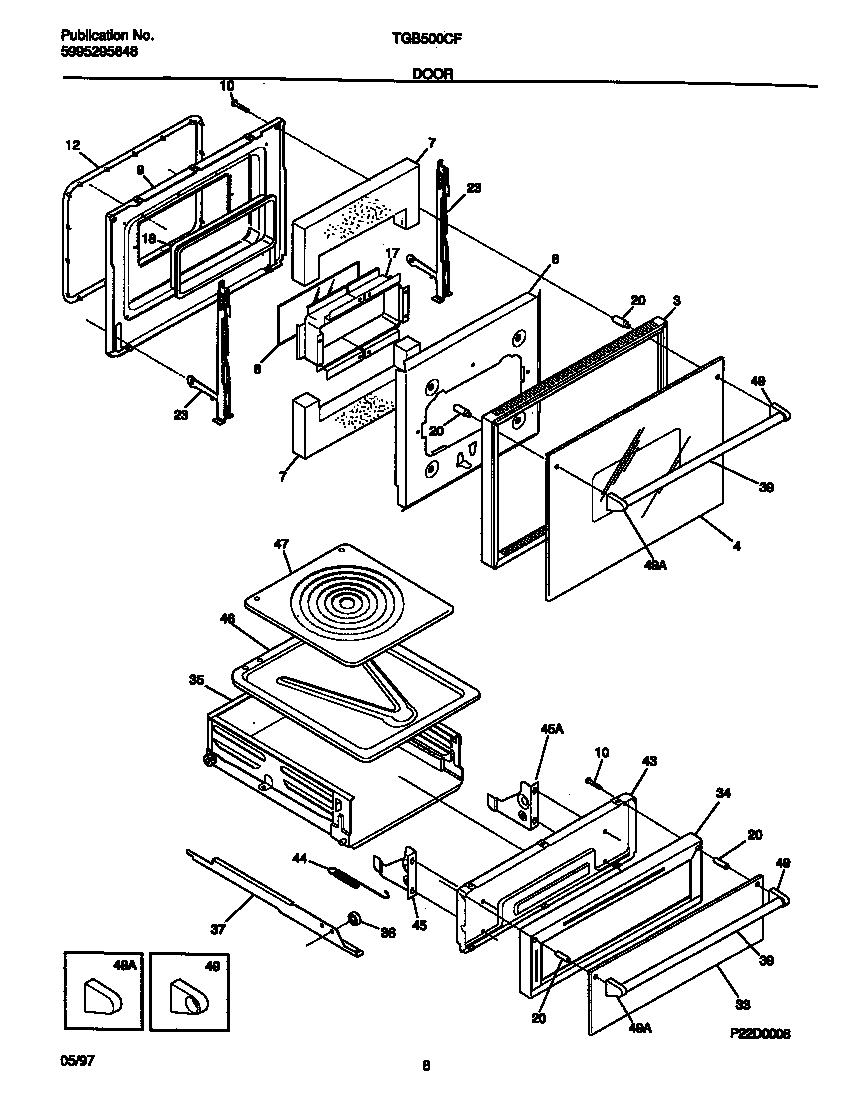

Door diagram

Range broil pan

Part #318126200

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 318126200. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Broil Pan Insert 318126300
#47

Door diagram

Range broil pan insert

Part #318126300

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 318126300. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Screw 3051070

#NI

All parts diagram

Screw

Part #3051070

Replaced by #5304500008

?
Manufacturer substitution
This part replaces 3051070. Substitute parts can look different from the original.
$13.29
In Stock
Nut 3201885
Nut

Part #3201885

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3201885. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Electrolux Range Screw 5303308458
#37C

Door diagram

Electrolux range screw

Part #5303308458

This item is not returnable
$2.16
In Stock
Wall Oven Door Switch 5301314211
#12

Body diagram

Wall oven door switch

Part #5301314211

$64.33 |
9% OFF Phone Price : $70.33
In Stock
Range Screw, #10-24 X 0.375-in 08011955

#NI

All parts diagram

Range screw, #10-24 x 0.375-in

Part #08011955

Replaced by #5303311174

?
Manufacturer substitution
This part replaces 08011955. Substitute parts can look different from the original.
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Thermostat Clip 318144700

#NI

All parts diagram

Thermostat clip

Part #318144700

Replaced by #5303284616

?
Manufacturer substitution
This part replaces 318144700. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
