Model # 706650330 Official Craftsman 8-drawer roller cabinet

Here are the diagrams and repair parts for Official Craftsman 706650330 8-drawer roller cabinet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |

Slide Spring M-3163
#8

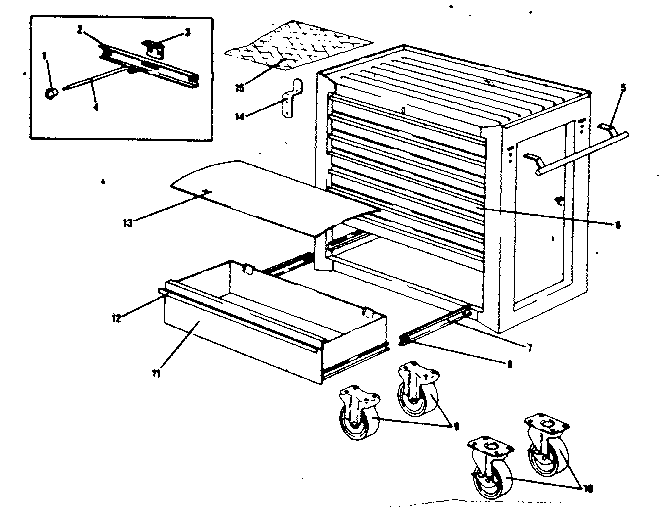

Unit parts diagram

Slide spring

Part #M-3163

The manufacturer no longer makes this part, and there's no substitute part

Act Rod T-13493
#4

Unit parts diagram

Act rod

Part #T-13493

The manufacturer no longer makes this part, and there's no substitute part

Lock M-7411
#1

Unit parts diagram

Lock

Part #M-7411

The manufacturer no longer makes this part, and there's no substitute part

Actuatr Brkt T-12396
#3

Unit parts diagram

Actuatr brkt

Part #T-12396

The manufacturer no longer makes this part, and there's no substitute part

Top Mate M-4739
#15

Unit parts diagram

Top mate

Part #M-4739

The manufacturer no longer makes this part, and there's no substitute part

Side Handle M-6313-1
#5

Unit parts diagram

Side handle

Part #M-6313-1

The manufacturer no longer makes this part, and there's no substitute part

Drawer Pull M-7412
#12

Unit parts diagram

Drawer pull

Part #M-7412

The manufacturer no longer makes this part, and there's no substitute part

Slide W/sprg A-2834
#7

Unit parts diagram

Slide w/sprg

Part #A-2834

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual F-435-2

#NI

All parts diagram

Owner's manual

Part #F-435-2

The manufacturer no longer makes this part, and there's no substitute part

Actuatr Chnl T-13495
#2

Unit parts diagram

Actuatr chnl

Part #T-13495

The manufacturer no longer makes this part, and there's no substitute part
