GE
Electric Range

Model # JCBP65SM1SS Official GE electric range

Here are the diagrams and repair parts for Official GE JCBP65SM1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

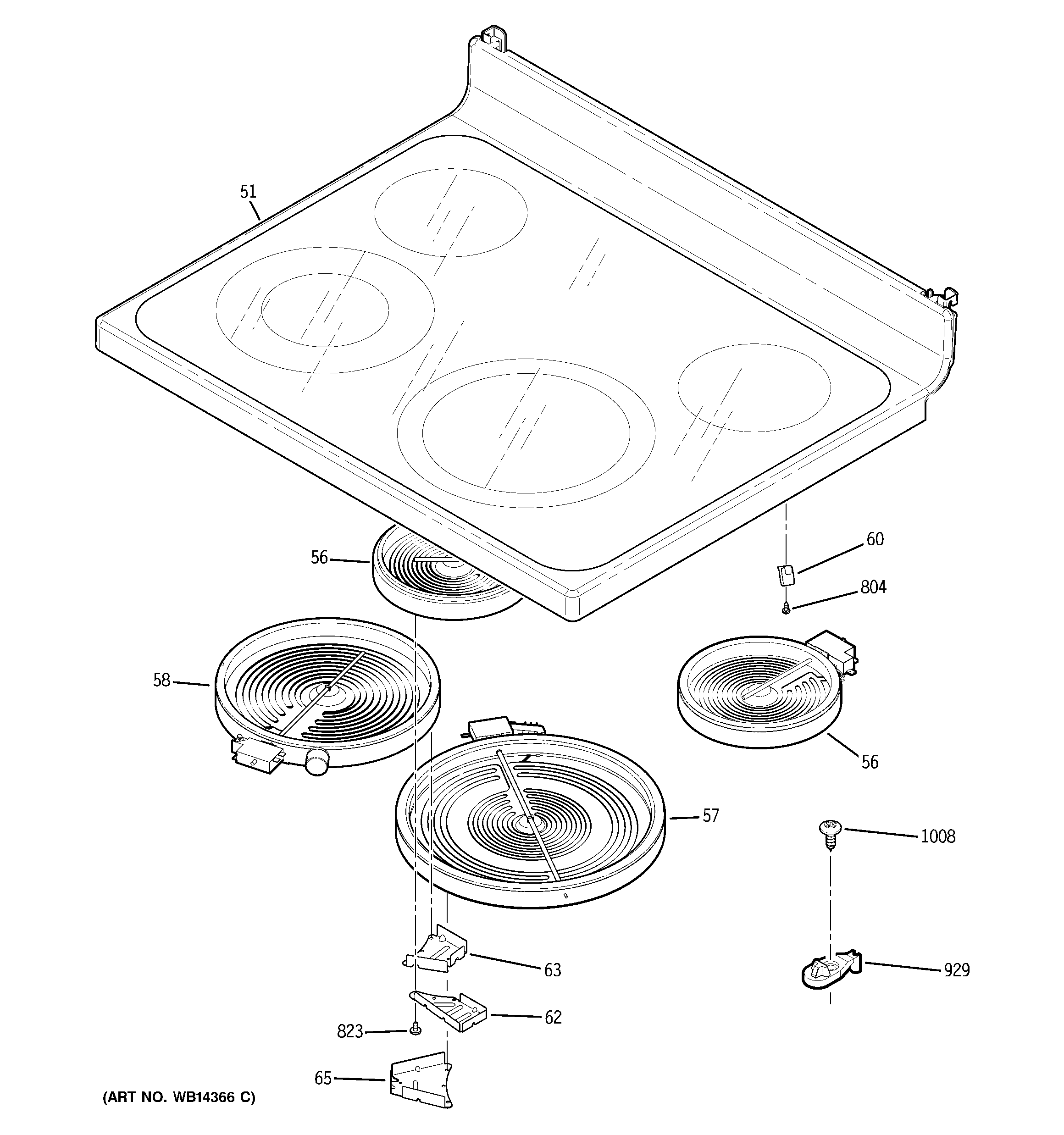

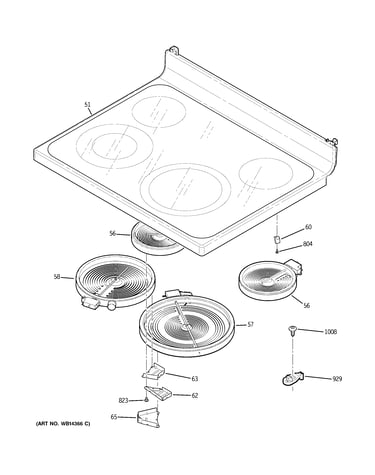

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Range Oven Light Bulb WX12X1510
#257

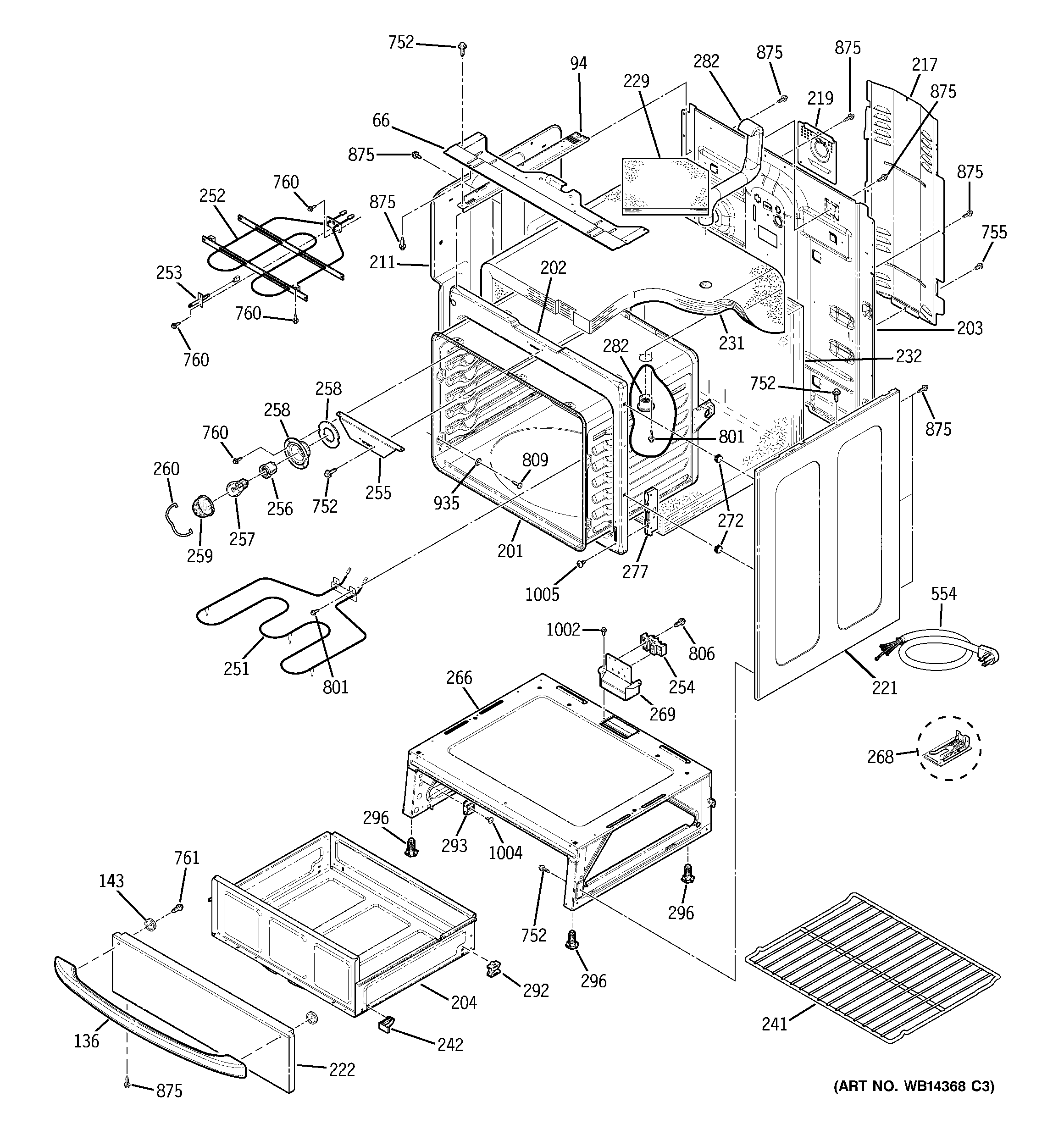

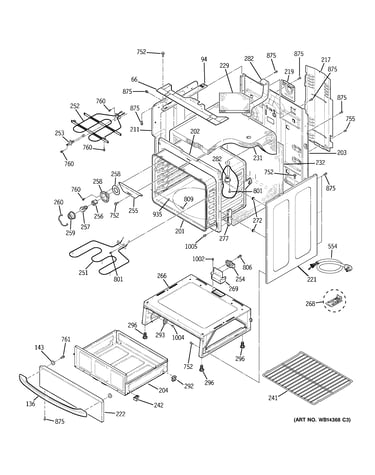

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Oven Control WB27T10817
#16

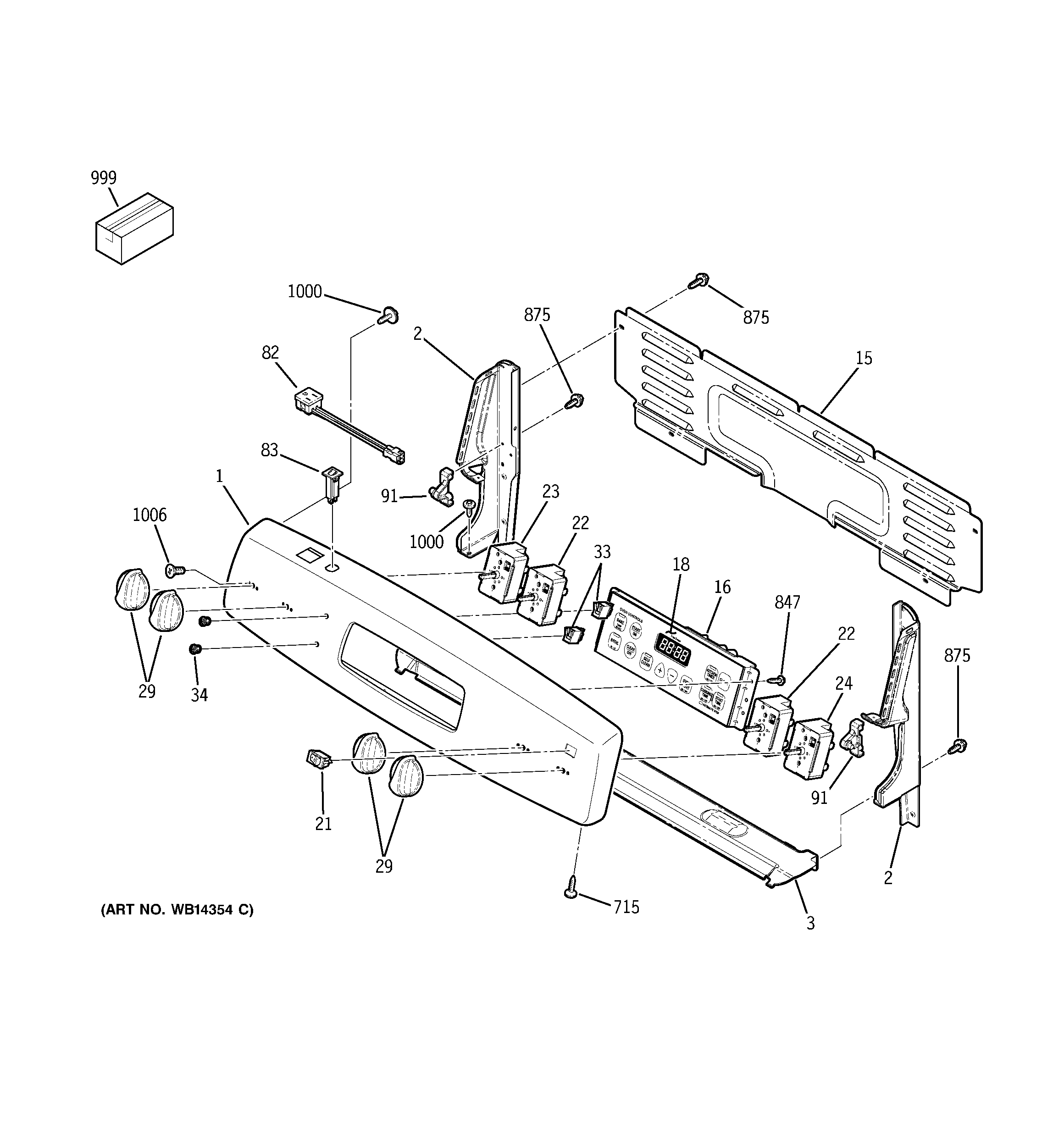

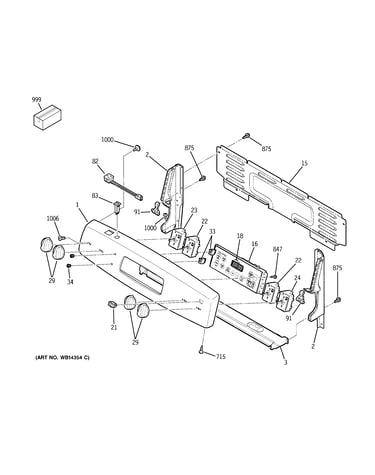

Control panel diagram

Oven control

Part #WB27T10817

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27T10817. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$139.52 |
8% OFF Phone Price : $151.52
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
G.e. Range Bake Element WB44T10010
#251

Body parts diagram

G.e. range bake element

Part #WB44T10010

BEST SELLER
$67.68 |
8% OFF Phone Price : $73.68
Back Order
Range Dual Surface Element Control Switch (replaces Wb24t10031) WB24T10058
#24

Control panel diagram

Range dual surface element control switch (replaces wb24t10031)

Part #WB24T10058

BEST SELLER
$103.81 |
10% OFF Phone Price : $115.81
In Stock
Pack Window WB56T10152
#338

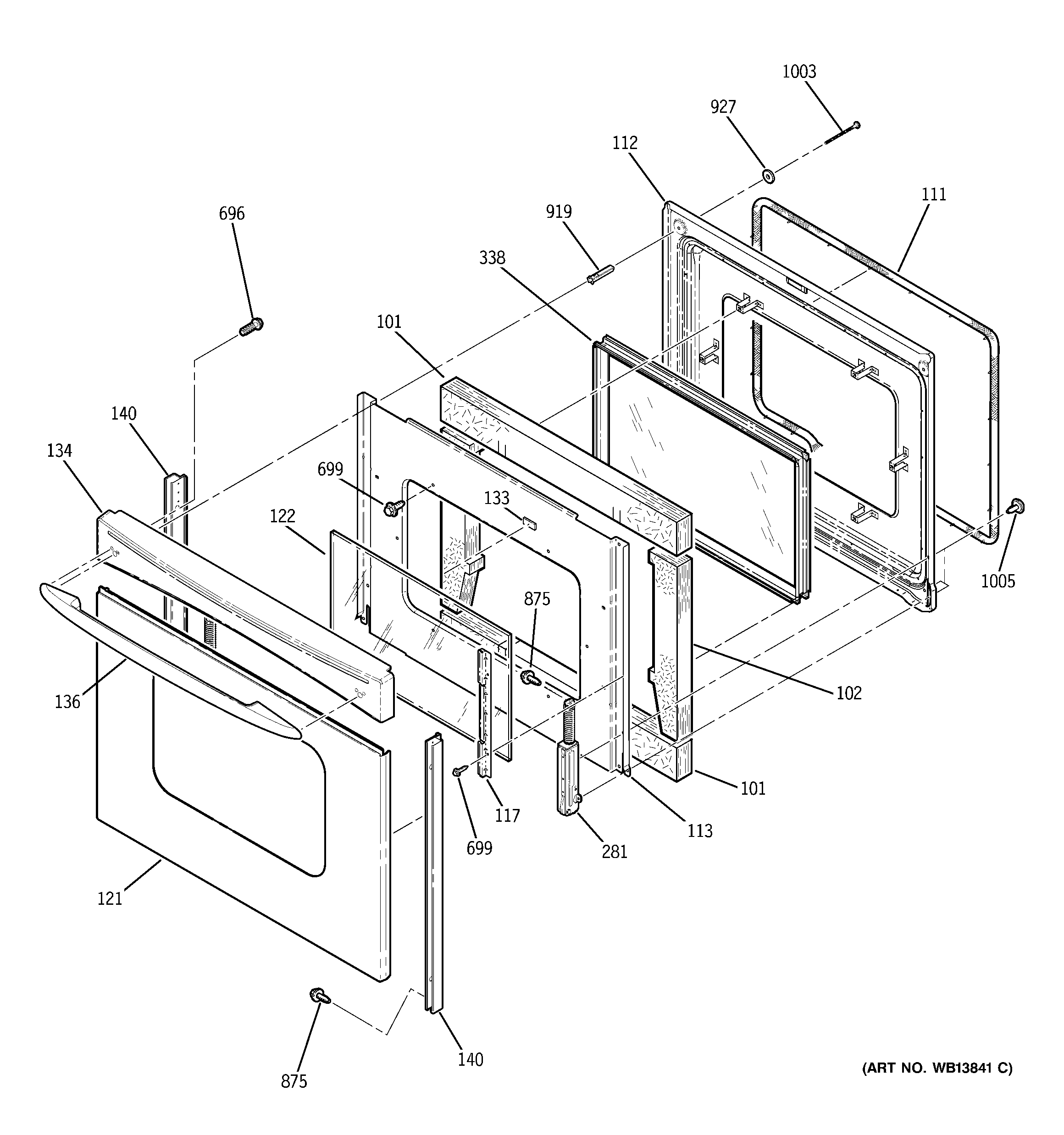

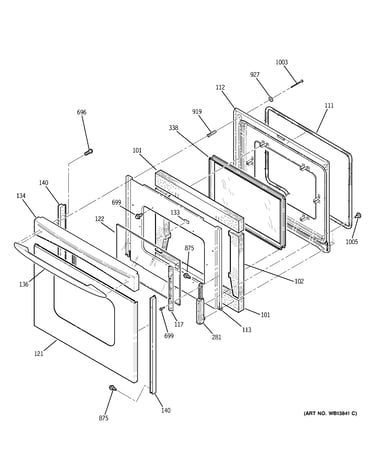

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$359.05 |
$12.00 OFF Phone Price : $371.05
In Stock
Range Surface Element Control Switch WB24T10145
#22

Control panel diagram

Range surface element control switch

Part #WB24T10145

BEST SELLER
This item is not returnable
$72.78 |
8% OFF Phone Price : $78.78
In Stock
Terminal Block WB17T10012
#254

Body parts diagram

Terminal block

Part #WB17T10012

Replaced by #WB17T10011

?
Manufacturer substitution
This part replaces WB17T10012. Substitute parts can look different from the original.
BEST SELLER
$40.67 |
13% OFF Phone Price : $46.67
In Stock
Rocker Switch WB24T10049
#21

Control panel diagram

Rocker switch

Part #WB24T10049

Replaced by #WB24T10165

?
Manufacturer substitution
This part replaces WB24T10049. Substitute parts can look different from the original.
BEST SELLER
$33.71 |
15% OFF Phone Price : $39.71
In Stock
Range Oven Door Gasket WB04T10001
#111

Door diagram

Range oven door gasket

Part #WB04T10001

Replaced by #WB04T10086

?
Manufacturer substitution
This part replaces WB04T10001. Substitute parts can look different from the original.
$39.75 |
13% OFF Phone Price : $45.75
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10055
    Foam tape
    $6.06 |
    14% OFF Phone Price : $7.06
  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
