Model # 314-3000 Official Hydro-Gear hydro-gear transaxle

Here are the diagrams and repair parts for Official Hydro-Gear 314-3000 hydro-gear transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Screw #50653 161175
#138

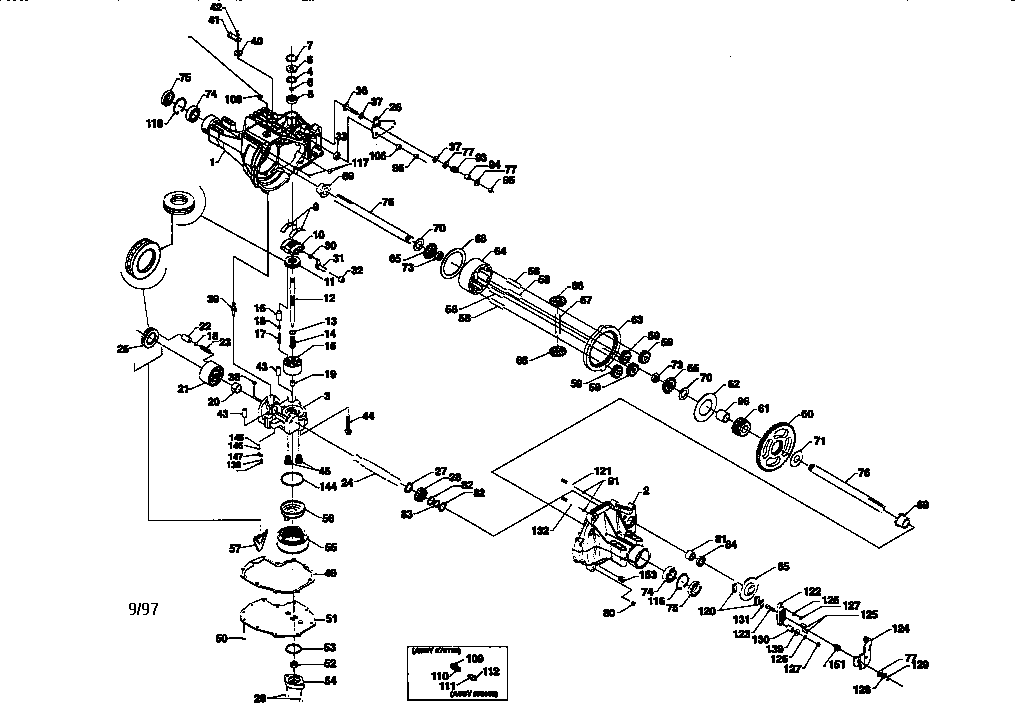

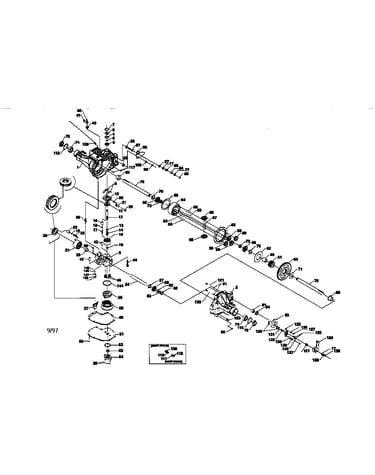

Hydro gear transaxle-314-3000 diagram

Screw #50653

Part #161175

Replaced by #587798701

?
Manufacturer substitution
This part replaces 161175. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Seal.1" (507 161157
#75

Hydro gear transaxle-314-3000 diagram

Seal.1" (507

Part #161157

Replaced by #583000201

?
Manufacturer substitution
This part replaces 161157. Substitute parts can look different from the original.
$24.09 |
20% OFF Phone Price : $30.09
In Stock
Comp.sprg.br 161181
#151

Hydro gear transaxle-314-3000 diagram

Comp.sprg.br

Part #161181

Replaced by #583001401

?
Manufacturer substitution
This part replaces 161181. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Spacer.(2371 161174
#130

Hydro gear transaxle-314-3000 diagram

Spacer.(2371

Part #161174

Replaced by #583001201

?
Manufacturer substitution
This part replaces 161174. Substitute parts can look different from the original.
This item is not returnable
$11.97
In Stock
Bearing 142934
#8

Hydro gear transaxle-314-3000 diagram

Bearing

Part #142934

Replaced by #532122745

?
Manufacturer substitution
This part replaces 142934. Substitute parts can look different from the original.
$101.96
In Stock
Stud.5/16-24 161134
#36

Hydro gear transaxle-314-3000 diagram

Stud.5/16-24

Part #161134

Replaced by #582998501

?
Manufacturer substitution
This part replaces 161134. Substitute parts can look different from the original.
$13.69
In Stock
Thumb Bearing 150771
#11

Hydro gear transaxle-314-3000 diagram

Thumb bearing

Part #150771

Replaced by #532150771

?
Manufacturer substitution
This part replaces 150771. Substitute parts can look different from the original.
$39.98
In Stock
Tapping.self 161136
#50

Hydro gear transaxle-314-3000 diagram

Tapping.self

Part #161136

Replaced by #582207101

?
Manufacturer substitution
This part replaces 161136. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Control Arm 161128
#26

Hydro gear transaxle-314-3000 diagram

Control arm

Part #161128

The manufacturer no longer makes this part, and there's no substitute part

Gear.21t.sun 161146
#61

Hydro gear transaxle-314-3000 diagram

Gear.21t.sun

Part #161146

The manufacturer no longer makes this part, and there's no substitute part
