Model # 13953995SRT Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 13953995SRT garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 49 parts |

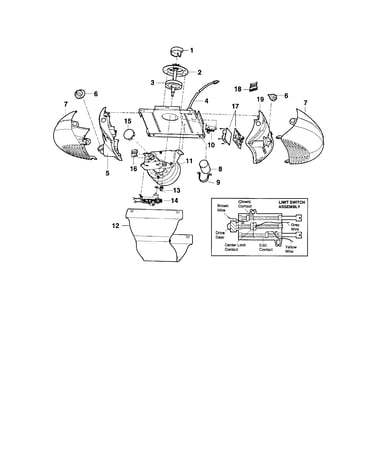

Motor unit assembly diagram

Garage door opener drive and worm gear kit (replaces 3002375, 65409)

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

Motor unit assembly diagram

Garage door opener light socket

Part #4A1344

The manufacturer no longer makes this part, and there's no substitute part

#14

Motor unit assembly diagram

Garage door opener limit switch

Part #41D3452

The manufacturer no longer makes this part, and there's no substitute part

Motor unit assembly diagram

Garage door opener gear and sprocket assembly

Part #41C4220A

The manufacturer no longer makes this part, and there's no substitute part

Rail assembly diagram

Garage door opener chain idler pulley

Part #144C56

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Rpm Sensor Assembly 41C4398A

#16

Motor unit assembly diagram

Garage door opener rpm sensor assembly

Part #41C4398A

The manufacturer no longer makes this part, and there's no substitute part

Motor unit assembly diagram

Start cap

Part #30B363

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Motor Assembly 41D3058

#11

Motor unit assembly diagram

Garage door opener motor assembly

Part #41D3058

The manufacturer no longer makes this part, and there's no substitute part

#NI05

All parts diagram

Garage door opener hardware bag

Part #41A2825

The manufacturer no longer makes this part, and there's no substitute part

Motor unit assembly diagram

Garage door opener sprocket cover

Part #31D380

The manufacturer no longer makes this part, and there's no substitute part
