Model # 867802982 Official Kenmore heat pump outdoor section
Here are the diagrams and repair parts for Official Kenmore 867802982 heat pump outdoor section, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867802982 Heat Pump Outdoor Section
#11

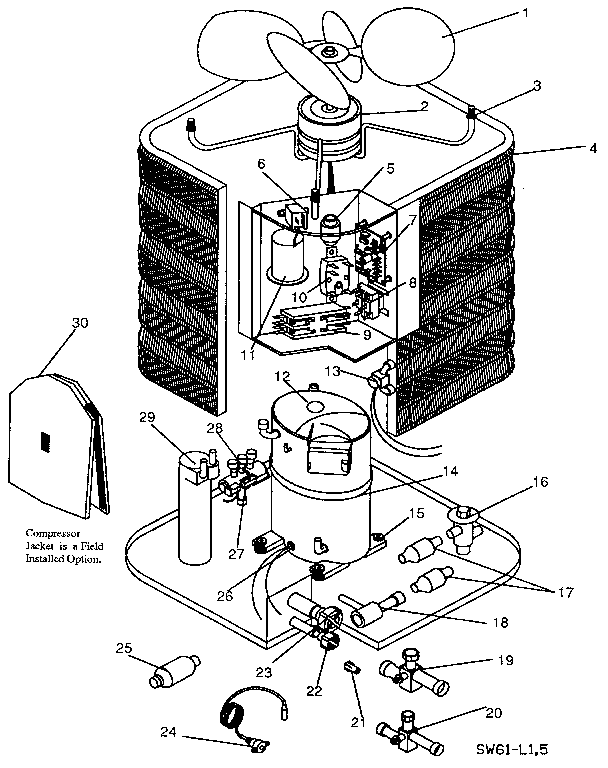

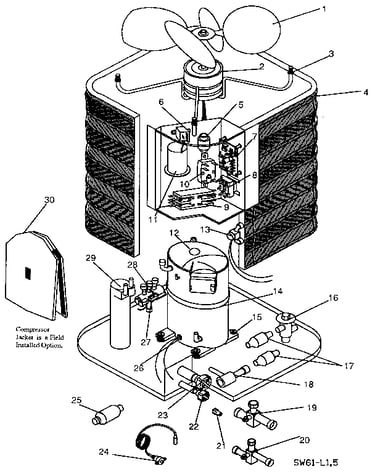

Functional replacement parts diagram
Capacitor
Part #1053139
Replaced by #12005
?
Manufacturer substitution
This part replaces 1053139. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
#10
Functional replacement parts diagram
Spst relay
Part #1053004
The manufacturer no longer makes this part, and there's no substitute part
#18
Functional replacement parts diagram
Check valve
Part #1052910
$84.67
In Stock
#2
Functional replacement parts diagram
Fan motor
Part #1052820
$521.22
In Stock
#24
Functional replacement parts diagram
Press switch
Part #1053017
$11.23
In Stock
#25
Functional replacement parts diagram
Muffler
Part #1059730
Replaced by #1174688
?
Manufacturer substitution
This part replaces 1059730. Substitute parts can look different from the original.
$47.30 |
11% OFF Phone Price : $53.30
In Stock
#9
Functional replacement parts diagram
Contactor
Part #607339
Replaced by #90-163
?
Manufacturer substitution
This part replaces 607339. Substitute parts can look different from the original.
$38.53
In Stock
#3
Functional replacement parts diagram
Motor mount
Part #1052968
Replaced by #1081813
?
Manufacturer substitution
This part replaces 1052968. Substitute parts can look different from the original.
$474.22
In Stock
#13
Functional replacement parts diagram
Sensor
Part #1053015
Replaced by #1172766
?
Manufacturer substitution
This part replaces 1053015. Substitute parts can look different from the original.
$28.80 |
17% OFF Phone Price : $34.80
In Stock
#1
Functional replacement parts diagram
Fan blade
Part #1053341
Replaced by #1085839
?
Manufacturer substitution
This part replaces 1053341. Substitute parts can look different from the original.
$122.86
In Stock
