GE
Top-Mount Refrigerator

Model # GIE21GTHGBB Official GE refrigerator

Here are the diagrams and repair parts for Official GE GIE21GTHGBB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

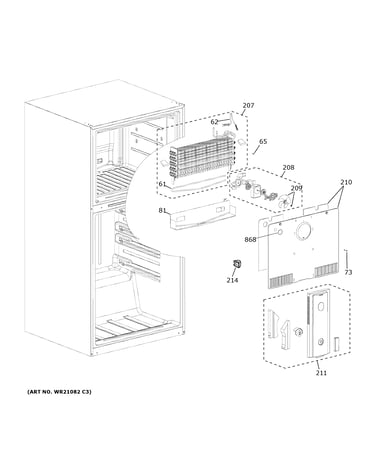

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
R600 Drier W/ Red Cap WR87X30875
#82

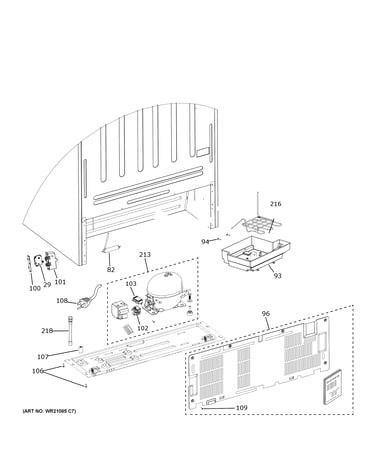

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
Refrigerator Water Inlet Valve WR57X32213
#800

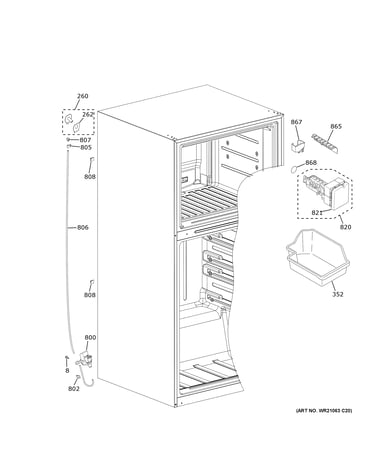

Ice maker diagram

Refrigerator water inlet valve

Part #WR57X32213

BEST SELLER
$30.94 |
16% OFF Phone Price : $36.94
In Stock
Thermal Protector WR08X25647
#103

Machine compartment diagram

Thermal protector

Part #WR08X25647

Replaced by #WR09X27095

?
Manufacturer substitution
This part replaces WR08X25647. Substitute parts can look different from the original.
$82.19 |
7% OFF Phone Price : $88.19
In Stock
Cplg1/4-5/32 WR97X10033
#7000

Lokring connectors diagram

Cplg1/4-5/32

Part #WR97X10033

$31.76
In Stock
Clpg5/16-1/4 WR97X10036
#7003

Lokring connectors diagram

Clpg5/16-1/4

Part #WR97X10036

$28.31
In Stock
Refrigerator Ice Maker Fill Cup WR29X10021
#867

Ice maker diagram

Refrigerator ice maker fill cup

Part #WR29X10021

Replaced by #WR29X10092

?
Manufacturer substitution
This part replaces WR29X10021. Substitute parts can look different from the original.
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Cond Aux Asm WR87X27262
#216

Machine compartment diagram

Cond aux asm

Part #WR87X27262

$146.15 |
8% OFF Phone Price : $158.15
In Stock
Refrigerator Crisper Drawer WR71X22730
#13

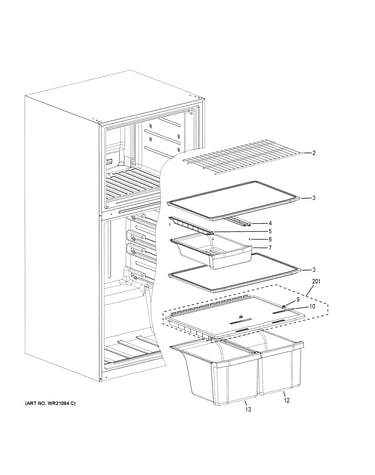

Shelves & drawers diagram

Refrigerator crisper drawer

Part #WR71X22730

$97.58 |
11% OFF Phone Price : $109.58
In Stock
Black Handle Assembly Pk WR12X36946
#204

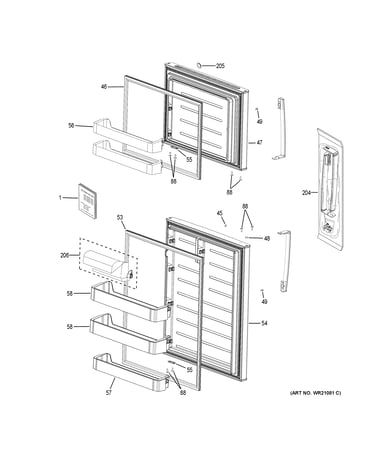

Doors diagram

Black handle assembly pk

Part #WR12X36946

$197.82
In Stock
Refrigerator Hinge WR02X22746
#21

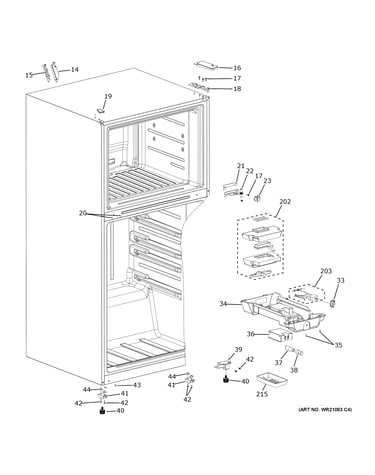

Fresh food section diagram

Refrigerator hinge

Part #WR02X22746

This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
