Upright Vacuum

Model # S677A-1 Official Eureka sanitaire upright vacuum

Here are the diagrams and repair parts for Official Eureka S677A-1 sanitaire upright vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
S677A-1 Vacuum Cleaners
Grip 15596-288N
#1

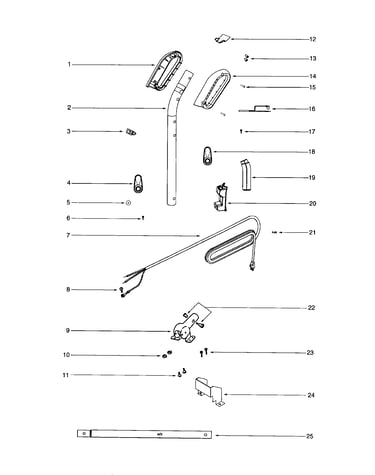

Handle/cord diagram

Grip

Part #15596-288N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-14
Vacuum screw, 10-pack

Part #53238-14

The manufacturer no longer makes this part, and there's no substitute part

Lens 12601-8
#4

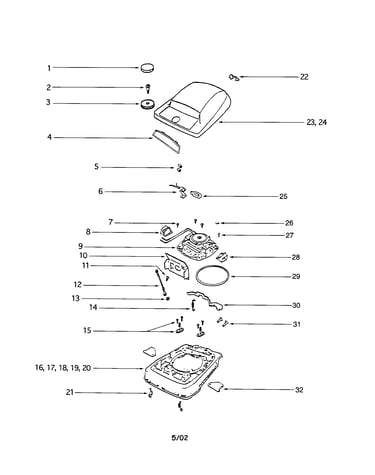

Base/hood diagram

Lens

Part #12601-8

The manufacturer no longer makes this part, and there's no substitute part

Cam 24965A-1
#18

Base/hood diagram

Cam

Part #24965A-1

The manufacturer no longer makes this part, and there's no substitute part

Cord 28011-6
#16

Handle/cord diagram

Cord

Part #28011-6

The manufacturer no longer makes this part, and there's no substitute part

Upright Vacuum Screw 53143
#2

Base/hood diagram

Upright vacuum screw

Part #53143

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 54396
#4

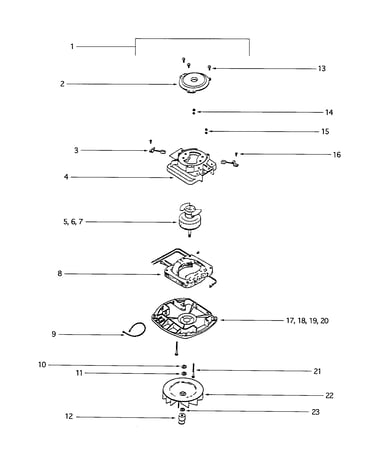

Motor/motor base and cover diagram

Motor cover

Part #54396

The manufacturer no longer makes this part, and there's no substitute part

Lower Handle Tub 12637-8
#25

Handle/cord diagram

Lower handle tub

Part #12637-8

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 53121
#2

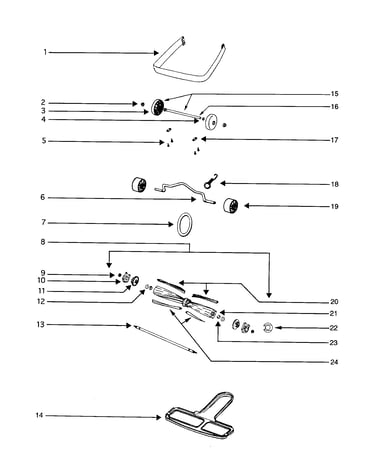

Wheel/axle/disturbulator diagram

Push nut

Part #53121

The manufacturer no longer makes this part, and there's no substitute part

Garter Spring 48410
#3

Bag/hardware package diagram

Garter spring

Part #48410

The manufacturer no longer makes this part, and there's no substitute part
