Model # 126302-0206-E1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 126302-0206-E1 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

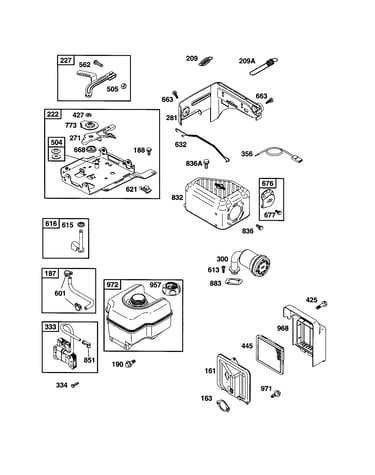

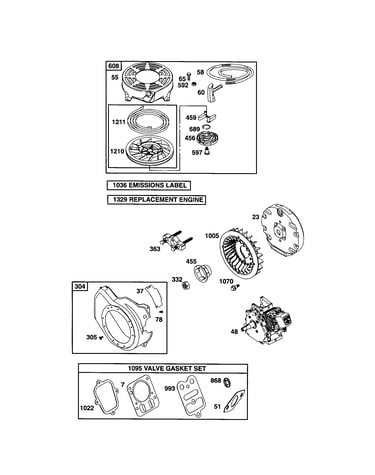

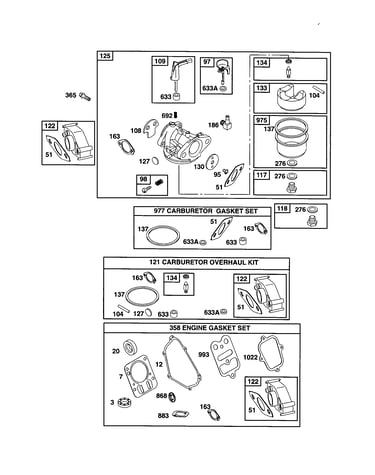

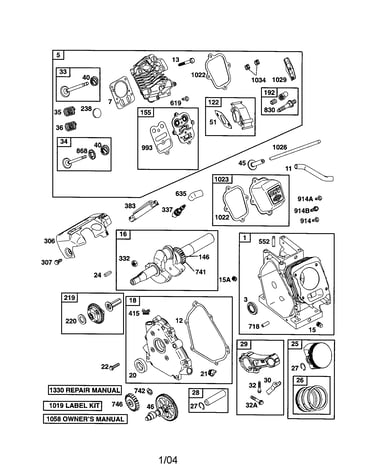

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Lawn & Garden Equipment Engine Air Filter 491588

#445

All parts diagram

Lawn & garden equipment engine air filter

Part #491588

Replaced by #491588S

?
Manufacturer substitution
This part replaces 491588. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$9.24 |
10% OFF Phone Price : $10.24
In Stock
Starter Rope 692259

#58

All parts diagram

Starter rope

Part #692259

Replaced by #697316

?
Manufacturer substitution
This part replaces 692259. Substitute parts can look different from the original.
BEST SELLER
$7.50 |
12% OFF Phone Price : $8.50
In Stock
Fuel Tank Cap 694261

#957

All parts diagram

Fuel tank cap

Part #694261

Replaced by #795027

?
Manufacturer substitution
This part replaces 694261. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.24 |
14% OFF Phone Price : $14.24
In Stock
Carburetor 696981

#125

All parts diagram

Carburetor

Part #696981

Replaced by #798653

?
Manufacturer substitution
This part replaces 696981. Substitute parts can look different from the original.
BEST SELLER
$57.71 |
9% OFF Phone Price : $63.71
In Stock
Fuel Tank 694260

#972

All parts diagram

Fuel tank

Part #694260

Replaced by #799863

?
Manufacturer substitution
This part replaces 694260. Substitute parts can look different from the original.
BEST SELLER
$80.71 |
7% OFF Phone Price : $86.71
In Stock
Key 222698

#24

All parts diagram

Key

Part #222698

Replaced by #222698S

?
Manufacturer substitution
This part replaces 222698. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.29 |
23% OFF Phone Price : $4.29
In Stock
Grip-str Rpe 281434

#60

All parts diagram

Grip-str rpe

Part #281434

Replaced by #281434S

?
Manufacturer substitution
This part replaces 281434. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Lawn & Garden Equipment Engine Carburetor Float Bowl Gasket (replaces 280492) 693981

#137

All parts diagram

Lawn & garden equipment engine carburetor float bowl gasket (replaces 280492)

Part #693981

BEST SELLER
This item is not returnable
$4.50 |
18% OFF Phone Price : $5.50
In Stock
Lawn & Garden Equipment Engine Carburetor Needle Valve (replaces 281144, 281178, Bs-398188) 398188

#134

All parts diagram

Lawn & garden equipment engine carburetor needle valve (replaces 281144, 281178, bs-398188)

Part #398188

This item is not returnable
$8.13 |
11% OFF Phone Price : $9.13
In Stock
Pawl 281505

#459

All parts diagram

Pawl

Part #281505

Replaced by #281505S

?
Manufacturer substitution
This part replaces 281505. Substitute parts can look different from the original.
This item is not returnable
$5.80 |
15% OFF Phone Price : $6.80
In Stock
