Model # 4-1629 Official Hedstrom playground equipment

Here are the diagrams and repair parts for Official Hedstrom 4-1629 playground equipment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Center Legs, 80 1/2" X 1 3/4" X 20 Ga. 48-921680-595
#A-5

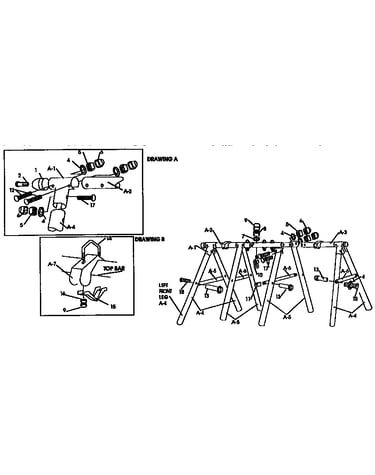

Main frame diagram

Center legs, 80 1/2" x 1 3/4" x 20 ga.

Part #48-921680-595

The manufacturer no longer makes this part, and there's no substitute part

Nylon Lock Nut, #10-24 416-162C
#SL13

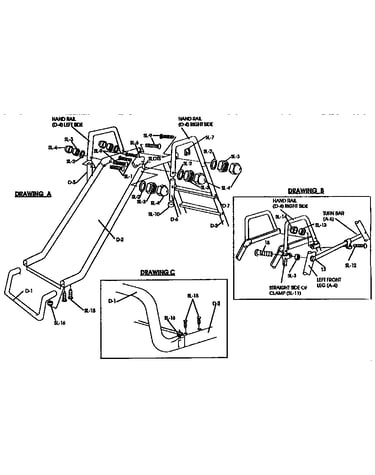

Slide diagram

Nylon lock nut, #10-24

Part #416-162C

The manufacturer no longer makes this part, and there's no substitute part

Seat Bracket, 1/4" 416-8104C
#16-1

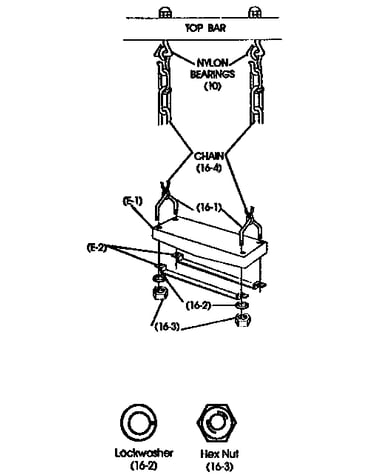

Swing hardware bag diagram

Seat bracket, 1/4"

Part #416-8104C

The manufacturer no longer makes this part, and there's no substitute part

Barrel Nut (spiral Lock), 1/4" 416-271C
#10-8

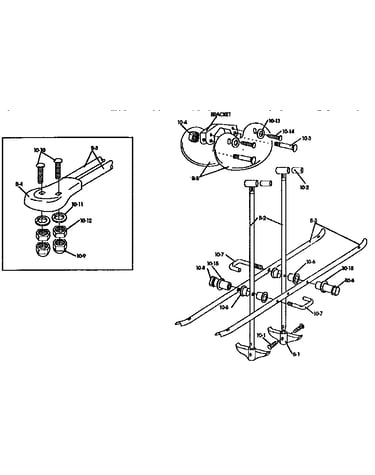

Glider assembly diagram

Barrel nut (spiral lock), 1/4"

Part #416-271C

The manufacturer no longer makes this part, and there's no substitute part

Seat, Plastic 441-1117
#B-4

Glider assembly diagram

Seat, plastic

Part #441-1117

The manufacturer no longer makes this part, and there's no substitute part

Short Hand Rail, 19" X 1" X 20 Ga. 58-8433P-758
#D-4

Slide diagram

Short hand rail, 19" x 1" x 20 ga.

Part #58-8433P-758

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt, 2 1/4" X 5/16"-18 416-3816C
Carriage bolt, 2 1/4" x 5/16"-18

Part #416-3816C

The manufacturer no longer makes this part, and there's no substitute part

End Caps, Plastic 441-691
#SL-7

Slide diagram

End caps, plastic

Part #441-691

The manufacturer no longer makes this part, and there's no substitute part

Seat Support, 37 3/8" X 1" X 20 Ga. 48-9821P-748
#B-3

Glider assembly diagram

Seat support, 37 3/8" x 1" x 20 ga.

Part #48-9821P-748

The manufacturer no longer makes this part, and there's no substitute part

Slide Clamp, 1/2" Band Steel 419-449
#SL11

Slide diagram

Slide clamp, 1/2" band steel

Part #419-449

The manufacturer no longer makes this part, and there's no substitute part
