Model # 41790042991 Official Kenmore dryer

Here are the diagrams and repair parts for Official Kenmore 41790042991 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

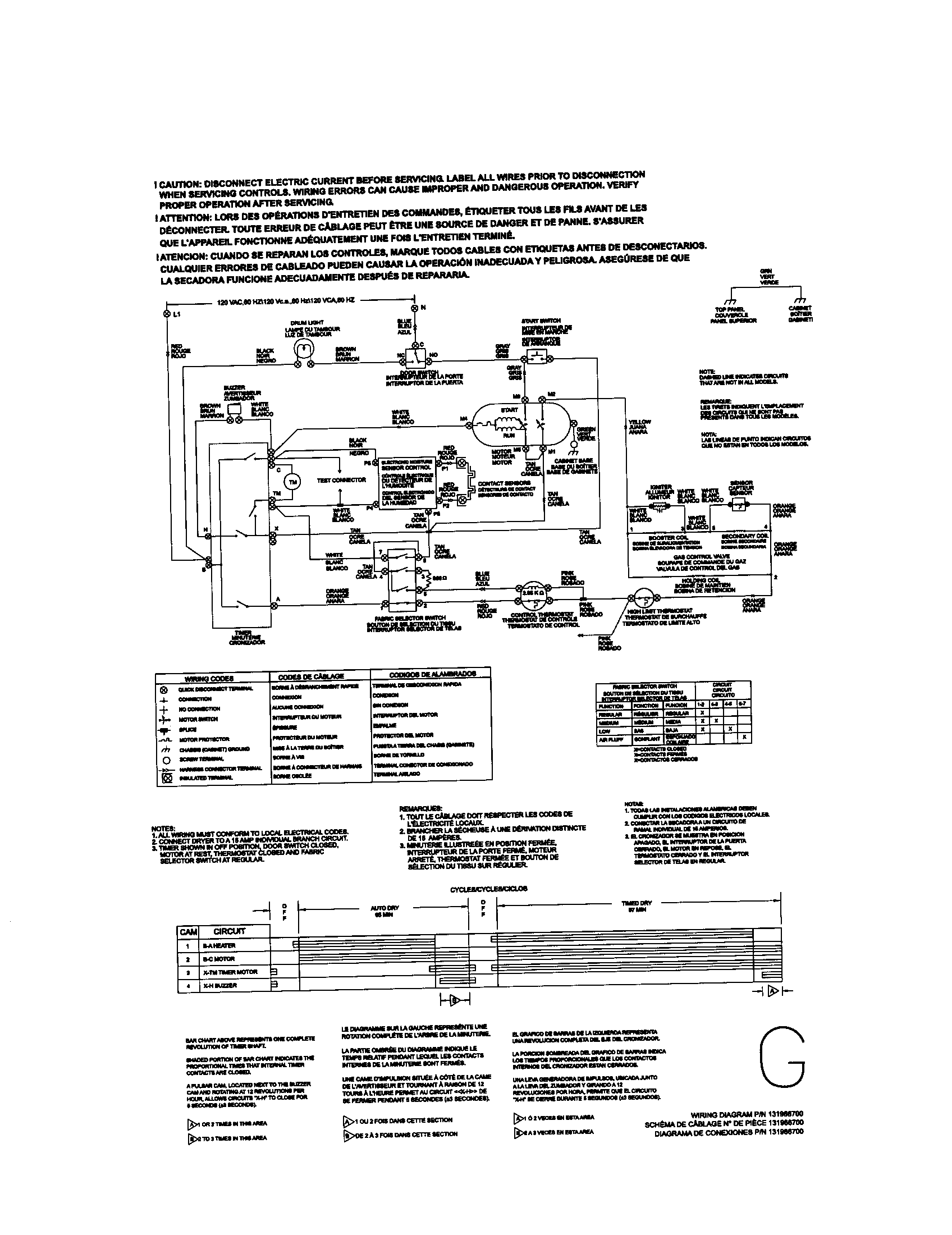

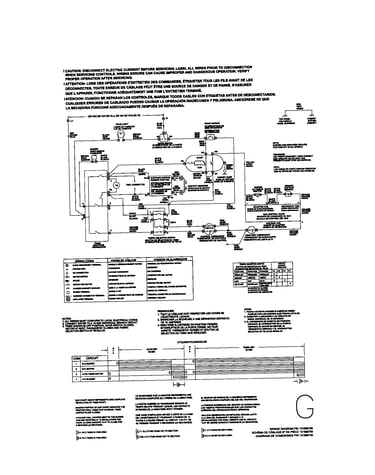

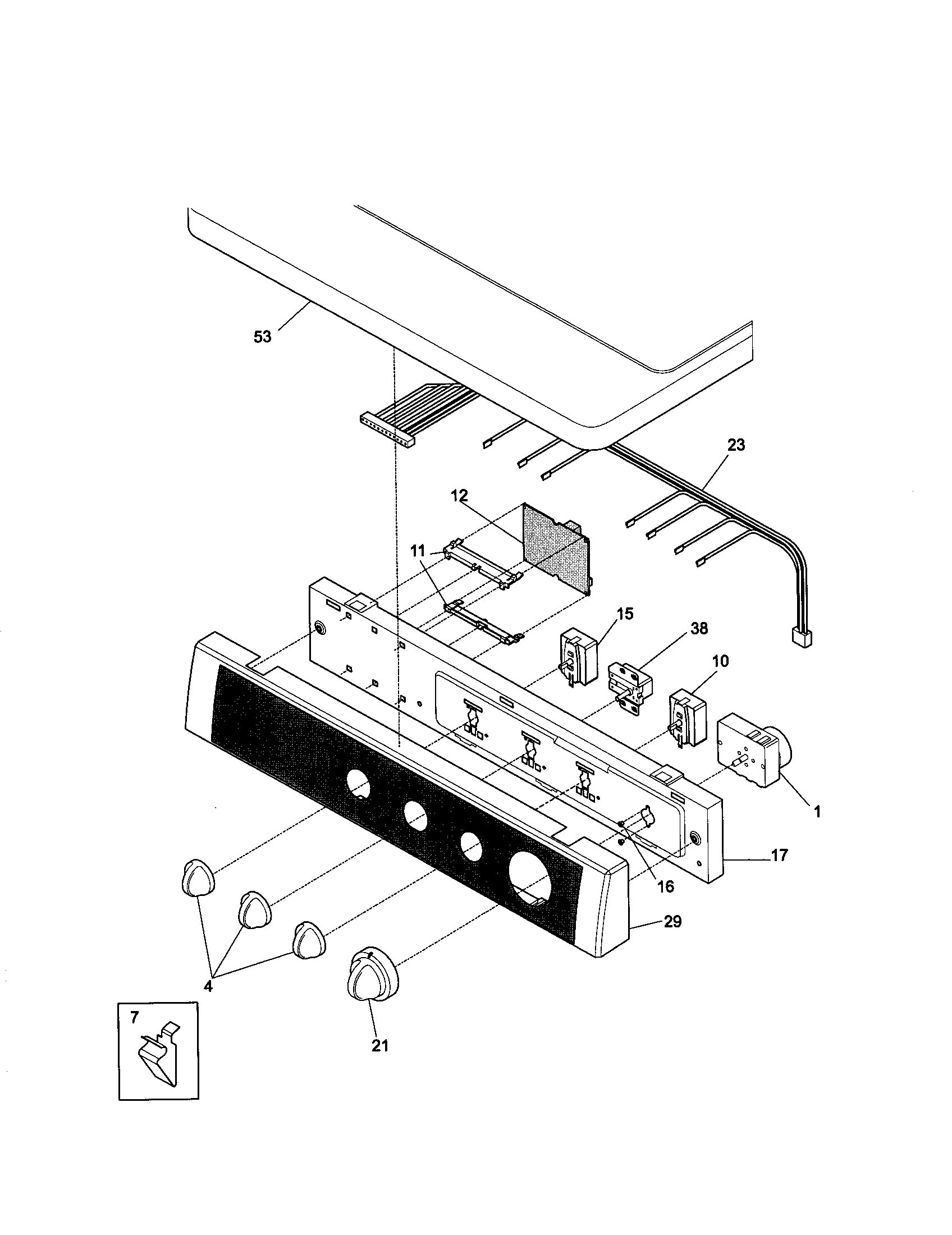

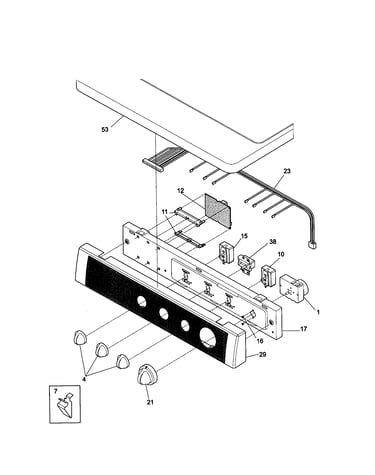

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

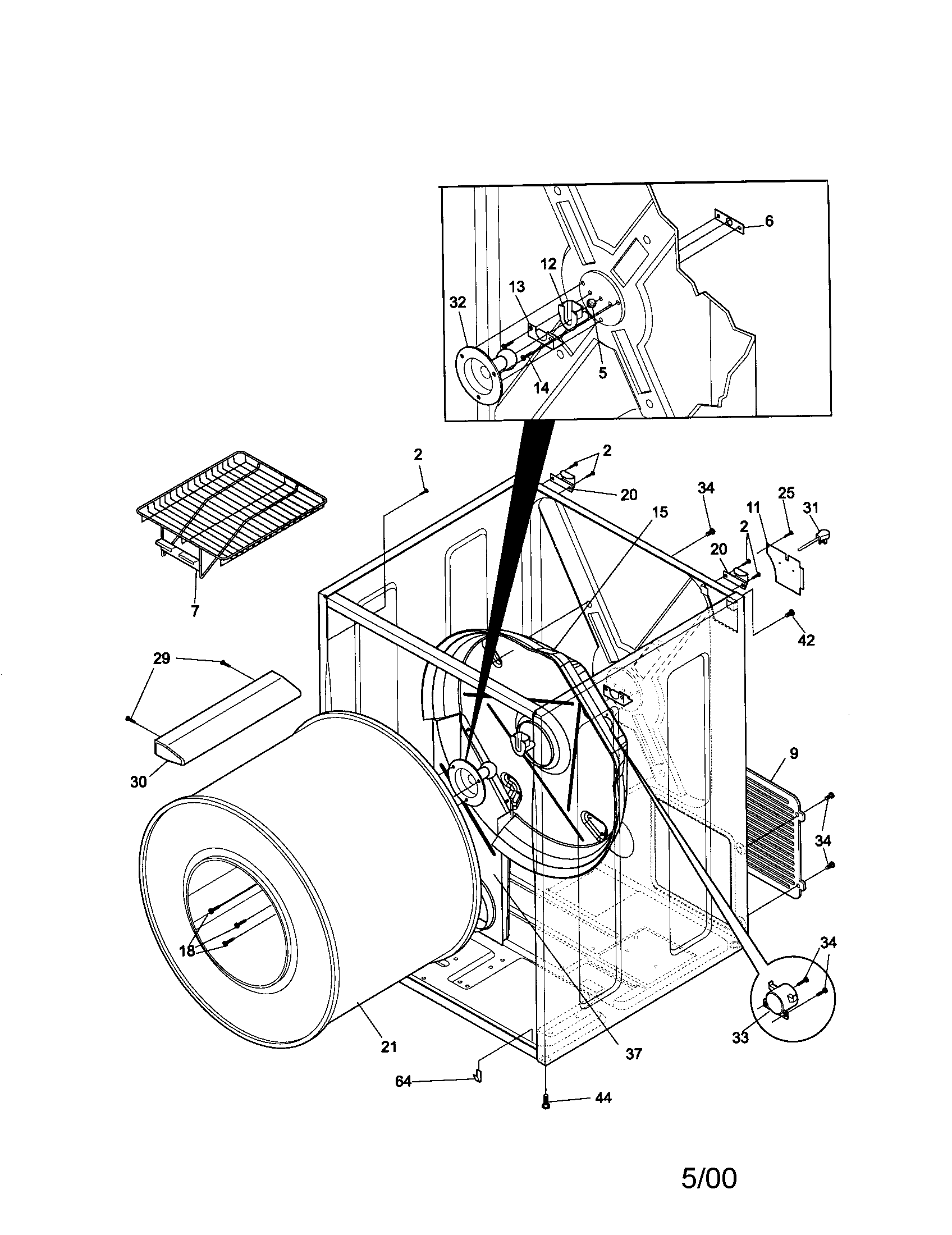

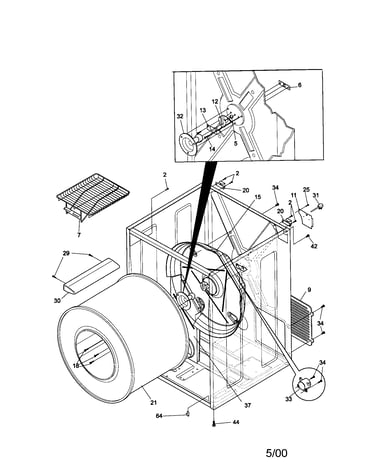

Drum/heater housting diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Dryer Drum Bearing Kit (replaces 000142850, 142850, 3281153, Q000142850, Wq142850) 5303281153

#NI

All parts diagram

Dryer drum bearing kit (replaces 000142850, 142850, 3281153, q000142850, wq142850)

Part #5303281153

BEST SELLER
$29.64 |
17% OFF Phone Price : $35.64
In Stock
Dryer Drum Support Shaft (replaces 137088600) 131777700
#32

Drum/heater housting diagram

Dryer drum support shaft (replaces 137088600)

Part #131777700

BEST SELLER
$58.75 |
9% OFF Phone Price : $64.75
In Stock
Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

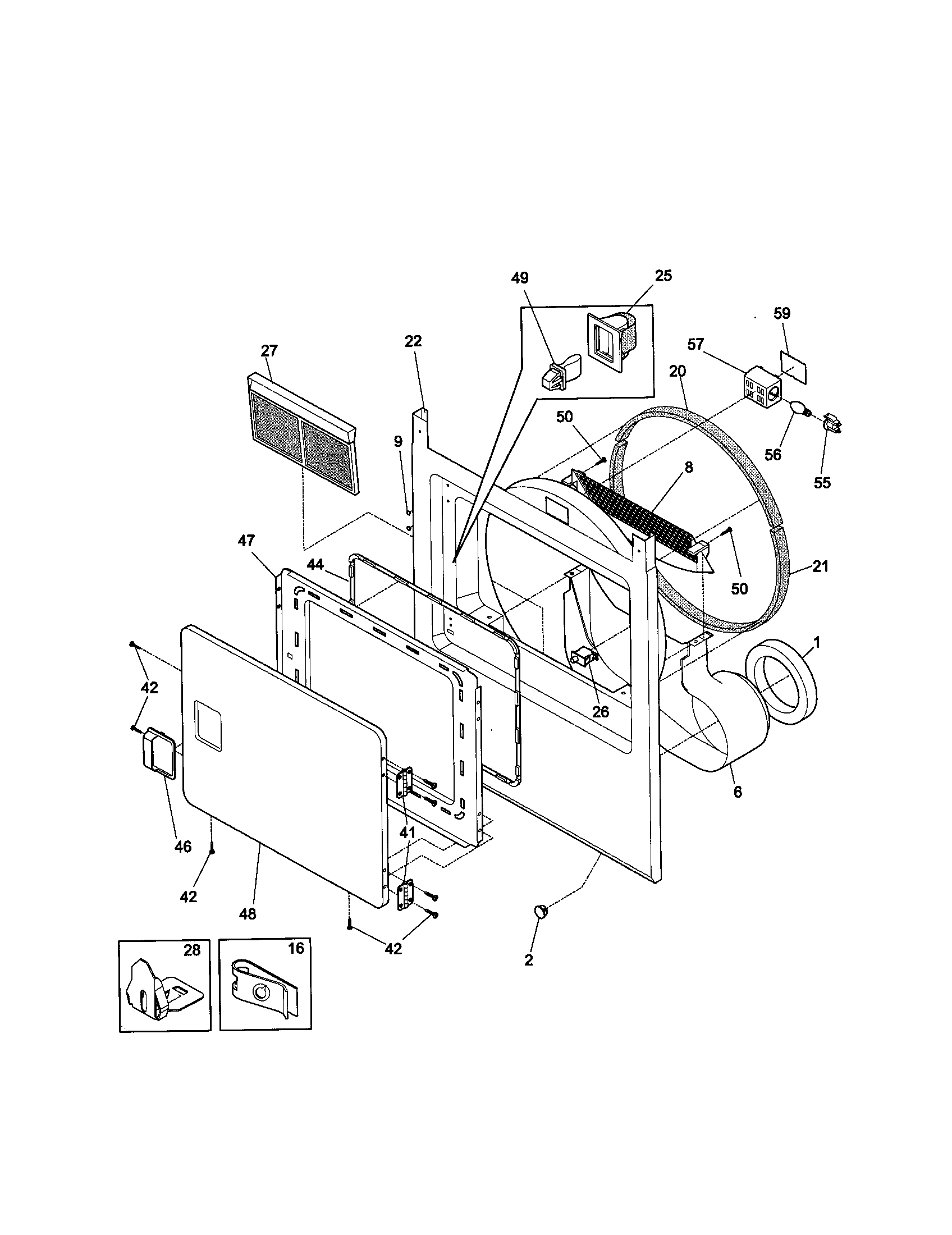

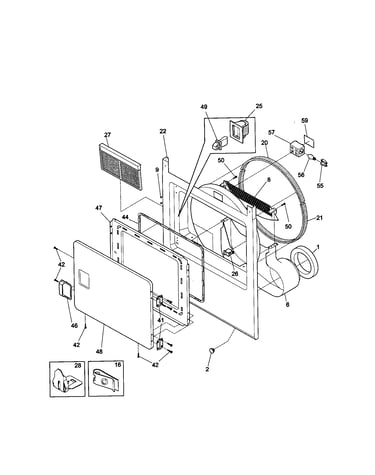

Door diagram

Dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Dryer Drive Motor (replaces 134156500, S131560100) 131560100
#28

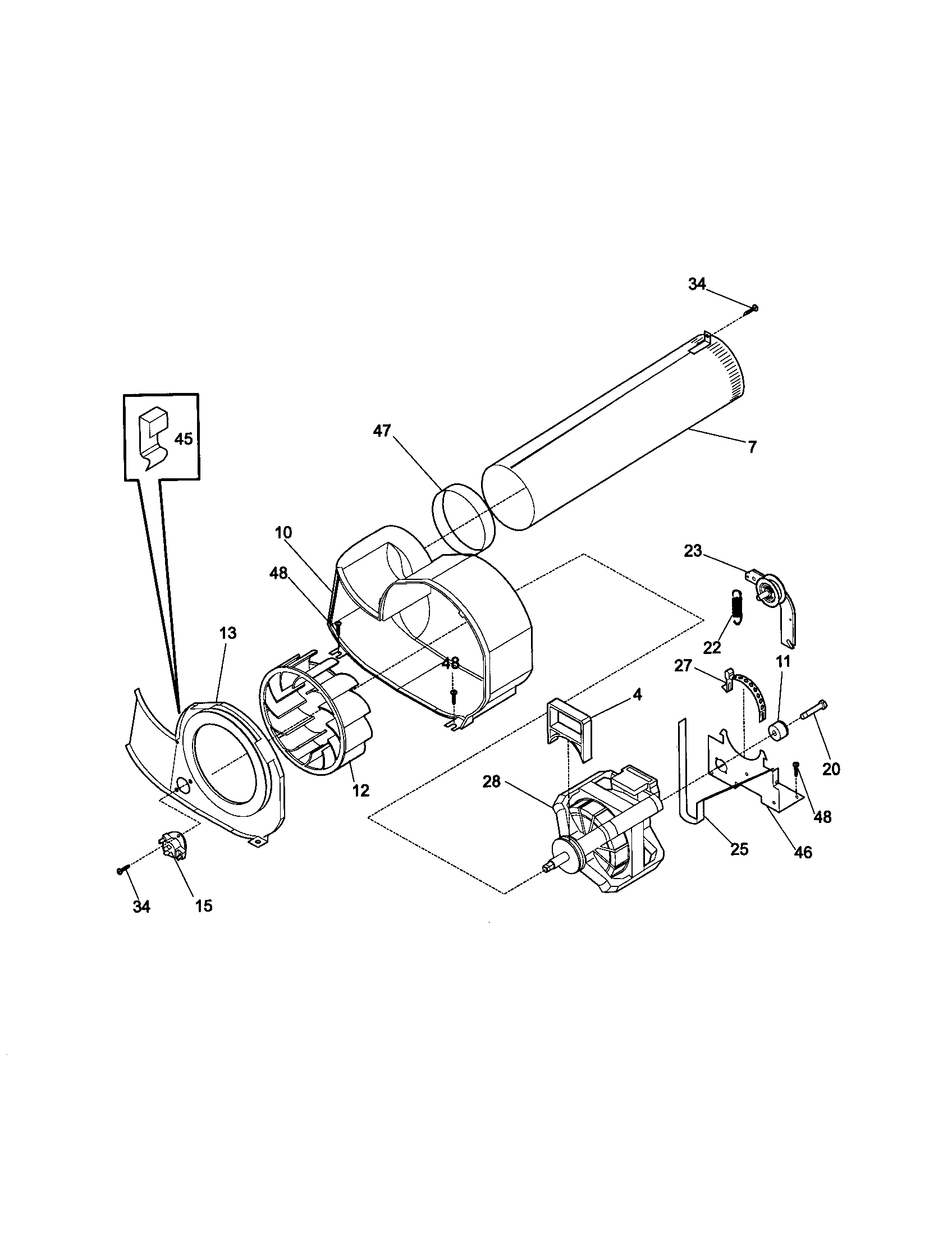

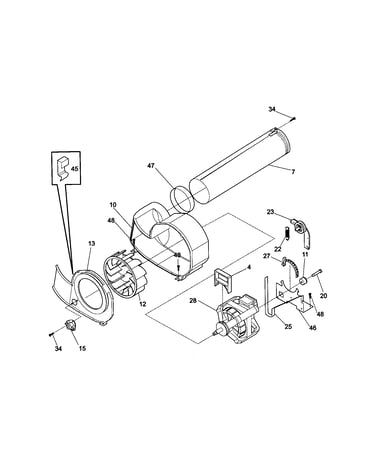

Motor/fan housing diagram

Dryer drive motor (replaces 134156500, s131560100)

Part #131560100

BEST SELLER
$156.46 |
7% OFF Phone Price : $168.46
In Stock
Dryer Felt And Glide Kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, F141811-000) 5303937139
#20

Door diagram

Dryer felt and glide kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, f141811-000)

Part #5303937139

BEST SELLER
$35.84 |
14% OFF Phone Price : $41.84
In Stock
Dryer Drum Felt Seal, Lower 5303283286
#21

Door diagram

Dryer drum felt seal, lower

Part #5303283286

BEST SELLER
$37.40 |
14% OFF Phone Price : $43.40
In Stock
Coil-seconda 5303307291
#71

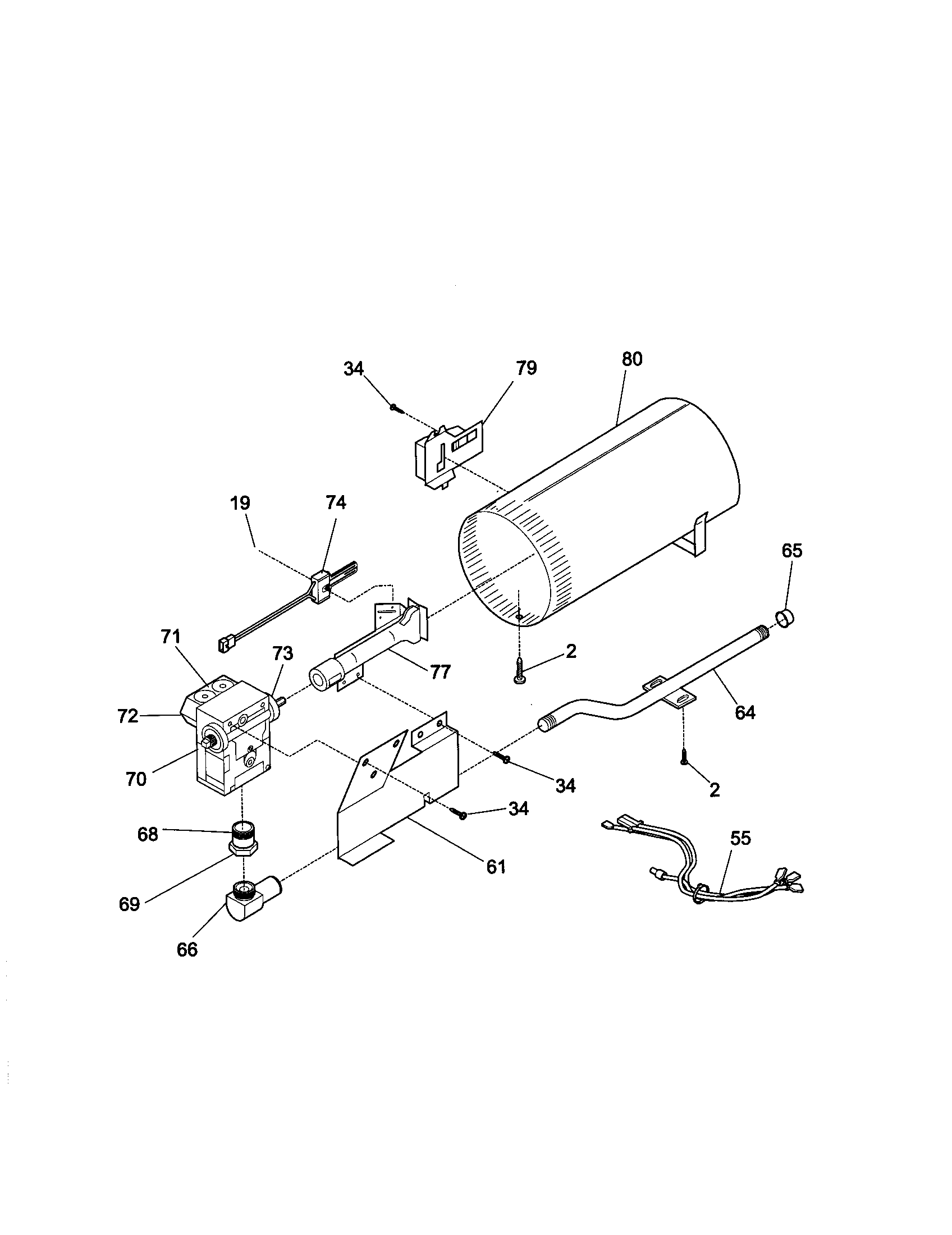

Burner diagram

Coil-seconda

Part #5303307291

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5303307291. Substitute parts can look different from the original.
BEST SELLER
$37.09 |
14% OFF Phone Price : $43.09
In Stock
Booster Coil 5303307292
#72

Burner diagram

Booster coil

Part #5303307292

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5303307292. Substitute parts can look different from the original.
BEST SELLER
$37.09 |
14% OFF Phone Price : $43.09
In Stock
Dryer Drum Bearing Bracket 131724300
#13

Drum/heater housting diagram

Dryer drum bearing bracket

Part #131724300

Replaced by #131724301

?
Manufacturer substitution
This part replaces 131724300. Substitute parts can look different from the original.
BEST SELLER
$13.29 |
13% OFF Phone Price : $15.29
In Stock
