Model # DUS314-19/MN03 Official Caloric dishwasher

Here are the diagrams and repair parts for Official Caloric DUS314-19-MN03 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

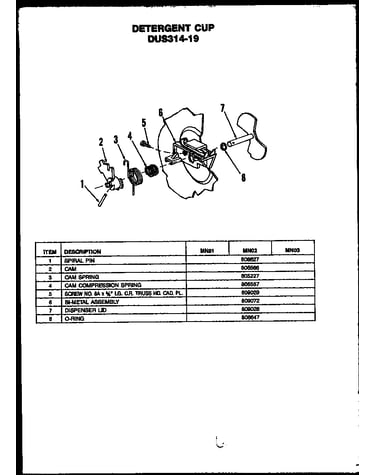

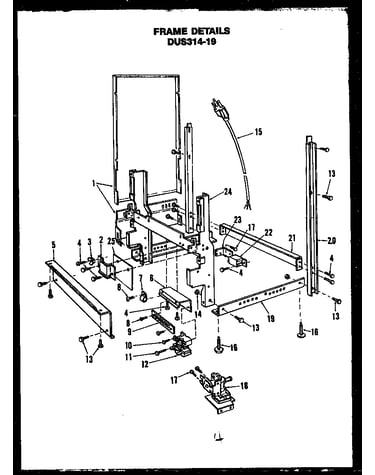

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Clamp Ring(p 807712
#15

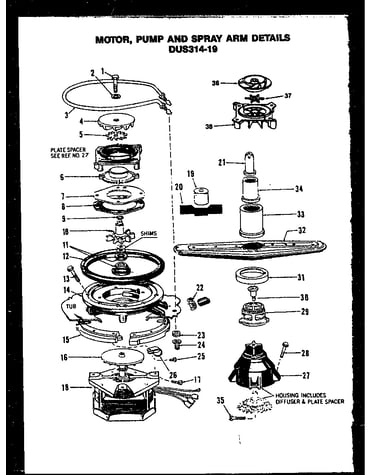

Motor diagram

Clamp ring(p

Part #807712

The manufacturer no longer makes this part, and there's no substitute part

Gasket 808063
#17

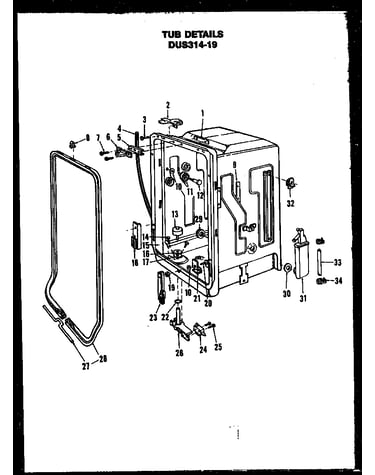

Tub details diagram

Gasket

Part #808063

Replaced by #5300808063

?
Manufacturer substitution
This part replaces 808063. Substitute parts can look different from the original.
This item is not returnable
$4.51 |
18% OFF Phone Price : $5.51
In Stock
Impeller 809918
#36

Motor diagram

Impeller

Part #809918

Replaced by #5300809918

?
Manufacturer substitution
This part replaces 809918. Substitute parts can look different from the original.
$64.09
In Stock
Screw 806890
#7

Tub details diagram

Screw

Part #806890

Replaced by #WP22001496

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Gasket 805763
#8

Tub details diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
Rack Slide 809644
#8A

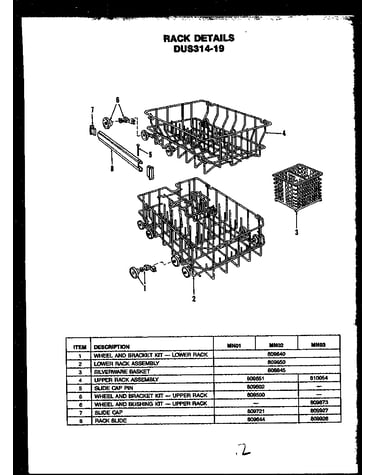

Rack details diagram

Rack slide

Part #809644

The manufacturer no longer makes this part, and there's no substitute part

Clamp 806090
#22A

Motor diagram

Clamp

Part #806090

The manufacturer no longer makes this part, and there's no substitute part

Screw - 8b X 7/16 Lg. C.r. Truss Hd. 809175
#1

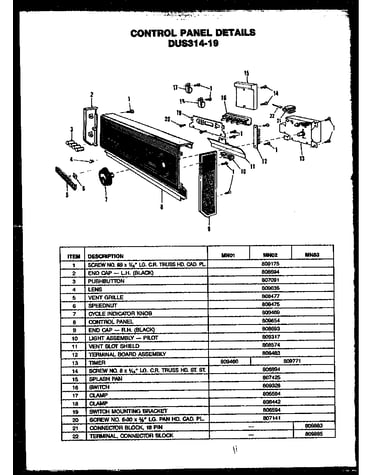

Control panel details diagram

Screw - 8b x 7/16 lg. c.r. truss hd.

Part #809175

The manufacturer no longer makes this part, and there's no substitute part

Acces Panel Trim-l.h. 808104
#32

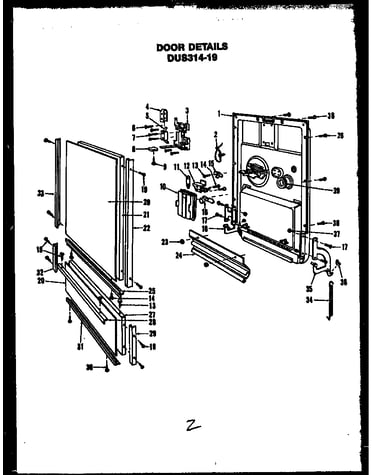

Door details diagram

Acces panel trim-l.h.

Part #808104

The manufacturer no longer makes this part, and there's no substitute part

Screw 807359
#28A

Motor diagram

Screw

Part #807359

The manufacturer no longer makes this part, and there's no substitute part
