Craftsman
Front-Engine Lawn Tractor

Model # 917446400 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917446400 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

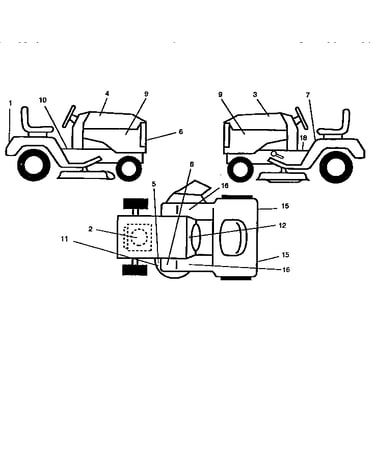

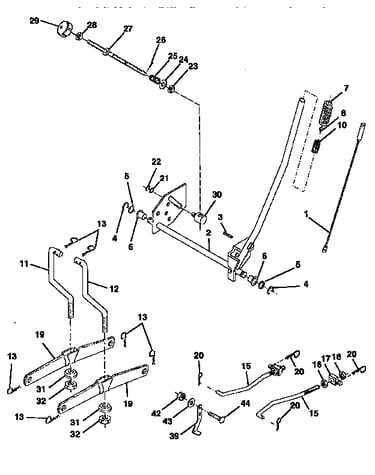

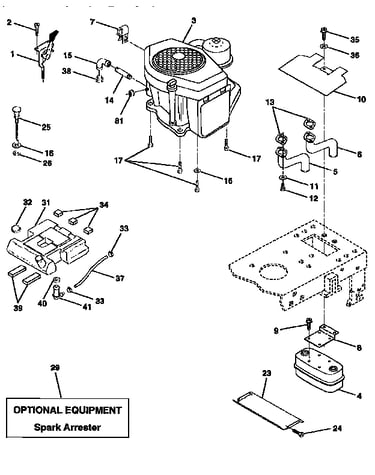

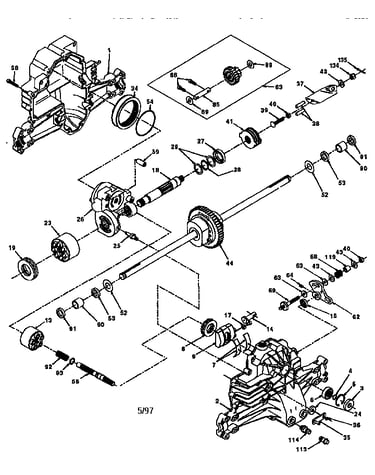

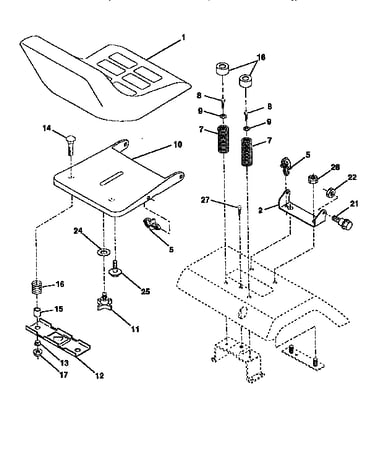

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 453 parts  |
Blade 42" 138498
#11

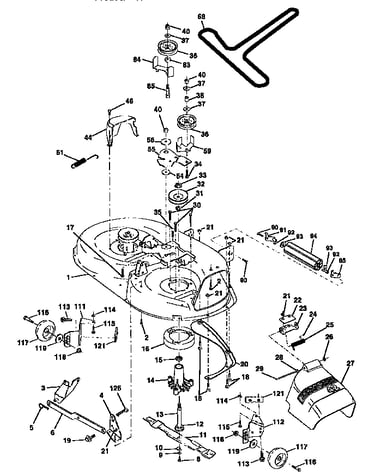

Mower deck diagram

Blade 42"

Part #138498

Replaced by #532138971

?
Manufacturer substitution
This part replaces 138498. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14 |
21% OFF Phone Price : $28.14
In Stock
Hub Cap 104757X
#11

Wheels and tires diagram

Hub cap

Part #104757X

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Ground Drive Belt, 1/2 X 82-in 140294
#57

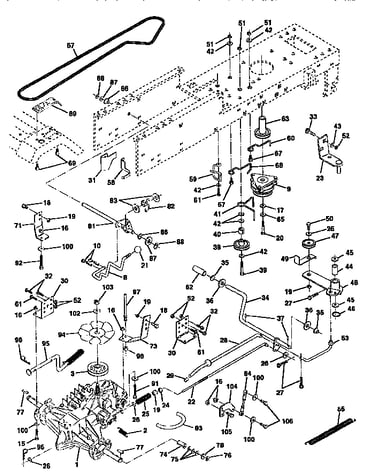

Drive diagram

Lawn tractor ground drive belt, 1/2 x 82-in

Part #140294

Replaced by #532140294

?
Manufacturer substitution
This part replaces 140294. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$32.99 |
15% OFF Phone Price : $38.99
In Stock
Lawn Tractor Bagger Attachment Chute Latch 109808X
#80

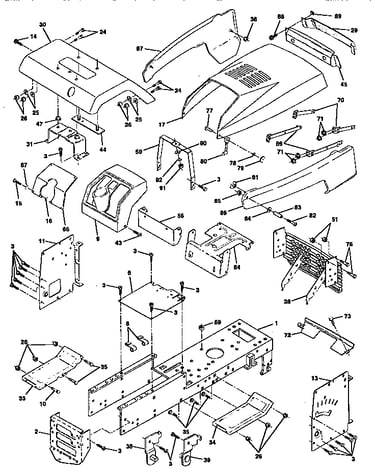

Chassis and enclosures diagram

Lawn tractor bagger attachment chute latch

Part #109808X

Replaced by #532109808

?
Manufacturer substitution
This part replaces 109808X. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Tractor Drive Belt 144200
#68

Mower deck diagram

Lawn tractor drive belt

Part #144200

Replaced by #532144200

?
Manufacturer substitution
This part replaces 144200. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$36.91 |
14% OFF Phone Price : $42.91
In Stock
Switch 140404
#50

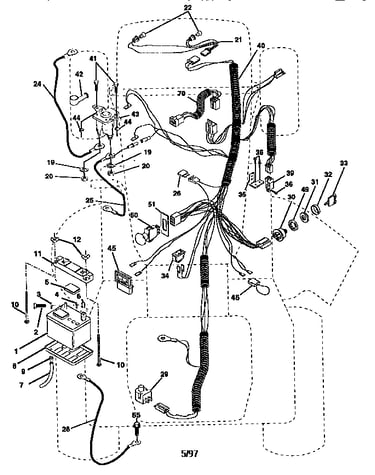

Electrical diagram

Switch

Part #140404

Replaced by #582107601

?
Manufacturer substitution
This part replaces 140404. Substitute parts can look different from the original.
BEST SELLER
$30.76 |
16% OFF Phone Price : $36.76
In Stock
Tire 106222X
#3

Wheels and tires diagram

Tire

Part #106222X

Replaced by #532122073

?
Manufacturer substitution
This part replaces 106222X. Substitute parts can look different from the original.
BEST SELLER
$61.64 |
9% OFF Phone Price : $67.64
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
Lawn Tractor Deflector Shield 130968
#27

Mower deck diagram

Lawn tractor deflector shield

Part #130968

Replaced by #532130968

?
Manufacturer substitution
This part replaces 130968. Substitute parts can look different from the original.
BEST SELLER
$34.98 |
15% OFF Phone Price : $40.98
In Stock
Lawn Tractor Bearing 3366R
#9

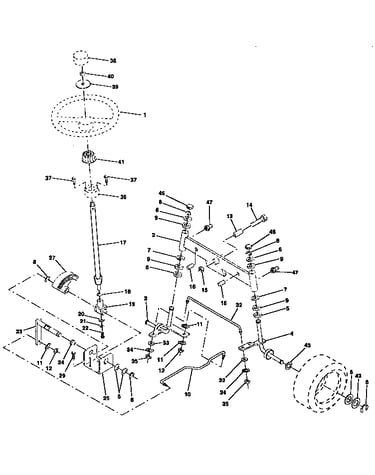

Steering assembly diagram

Lawn tractor bearing

Part #3366R

Replaced by #532003366

?
Manufacturer substitution
This part replaces 3366R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
