Model # JGBS17GER1 Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS17GER1 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

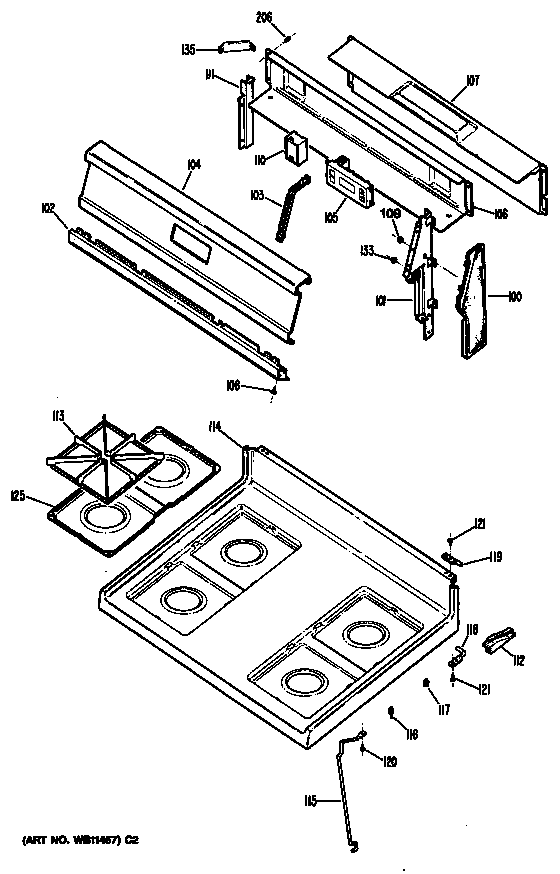

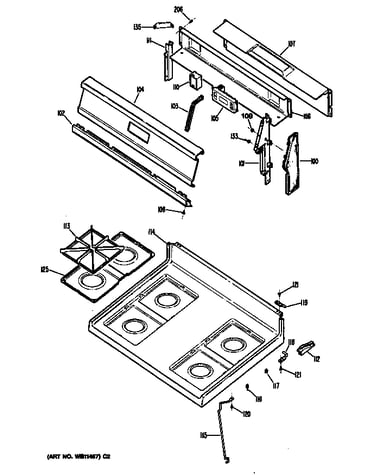

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Double Burner WB29K17
#4

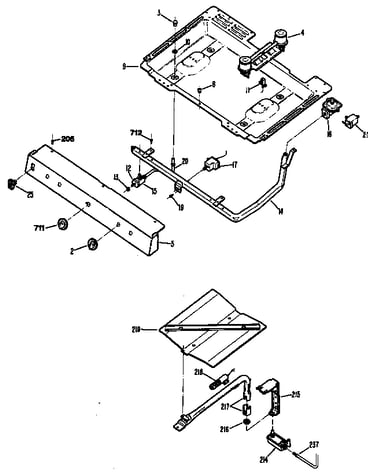

Gas lines diagram

Double burner

Part #WB29K17

Replaced by #WB16K10026

?
Manufacturer substitution
This part replaces WB29K17. Substitute parts can look different from the original.
$55.13 |
10% OFF Phone Price : $61.13
Back Order
Range Surface Burner Valve Guard WB2K24
#13

Gas lines diagram

Range surface burner valve guard

Part #WB2K24

This item is not returnable
$27.25 |
18% OFF Phone Price : $33.25
In Stock
Range Screw WB1X536
#354

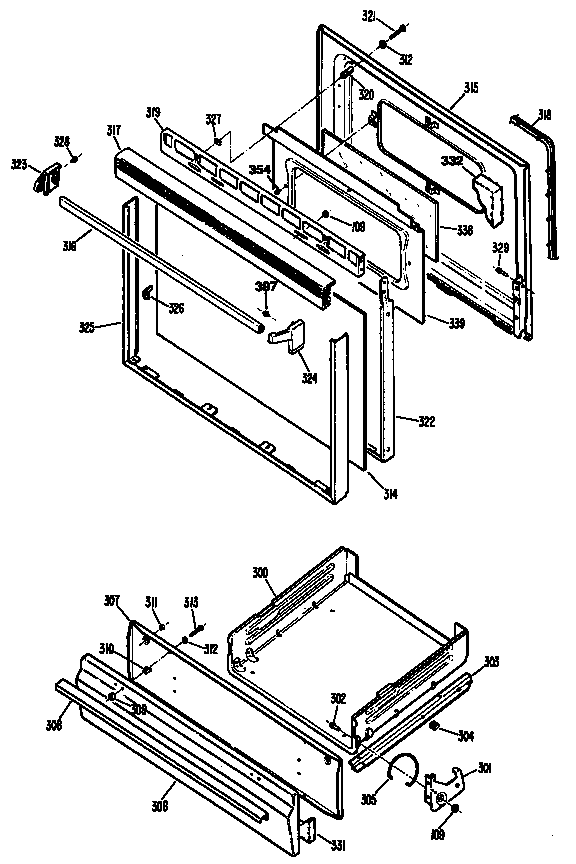

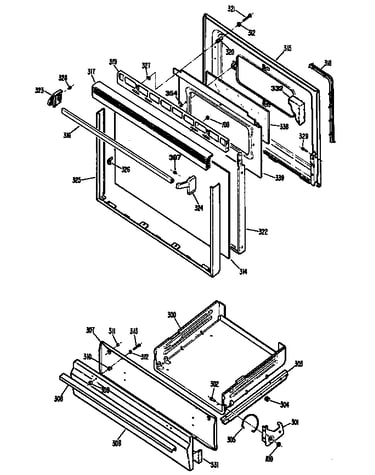

Door diagram

Range screw

Part #WB1X536

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Anti-tip Bracket WB2K20

#NI

All parts diagram

Range anti-tip bracket

Part #WB2K20

$11.37 |
15% OFF Phone Price : $13.37
In Stock
Washer WB1X119
#312

Door diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Range Screw WB1K21
Range screw

Part #WB1K21

Replaced by #WR01X10065

?
Manufacturer substitution
This part replaces WB1K21. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Spacer WB2K14
#310

Door diagram

Spacer

Part #WB2K14

This item is not returnable
$8.11
In Stock
Range Oven Insulation, Rear WB35K16
#262

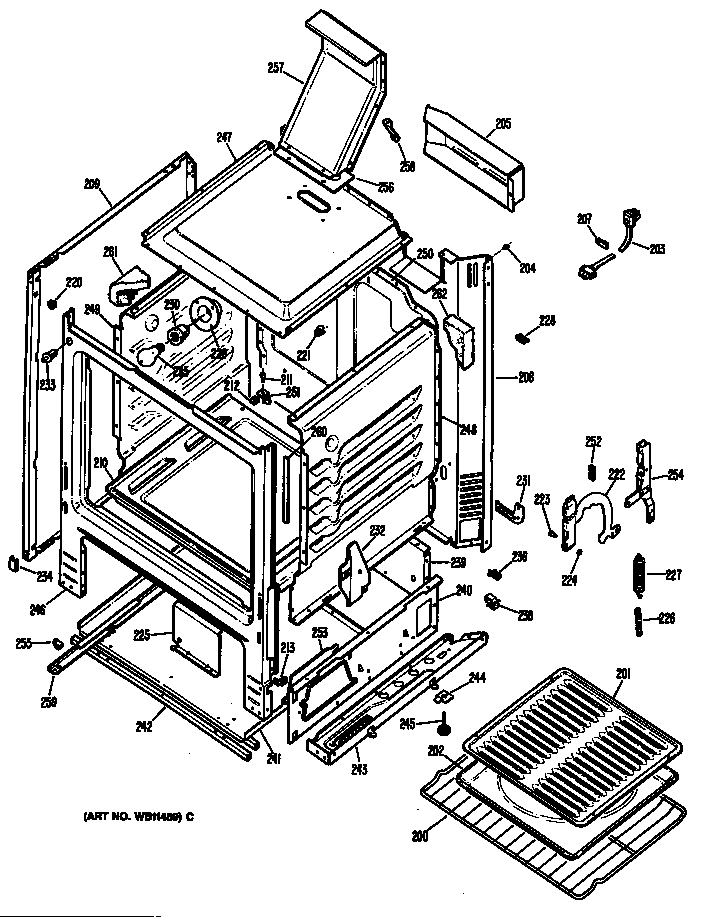

Oven diagram

Range oven insulation, rear

Part #WB35K16

$36.35 |
14% OFF Phone Price : $42.35
In Stock
Rocker Switch WB24K11
#25

Gas lines diagram

Rocker switch

Part #WB24K11

Replaced by #WB24K5022

?
Manufacturer substitution
This part replaces WB24K11. Substitute parts can look different from the original.
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Screw WB1X5731
#321

Door diagram

Screw

Part #WB1X5731

Replaced by #WB1X5731D

?
Manufacturer substitution
This part replaces WB1X5731. Substitute parts can look different from the original.
This item is not returnable
$31.66 |
16% OFF Phone Price : $37.66
In Stock
