GE
Freestanding Ice Maker

Model # ZDIS150ZSSD Official GE ice cube maker

Here are the diagrams and repair parts for Official GE ZDIS150ZSSD ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Freestanding Ice Maker Recirculation Pump WR57X10077
#201

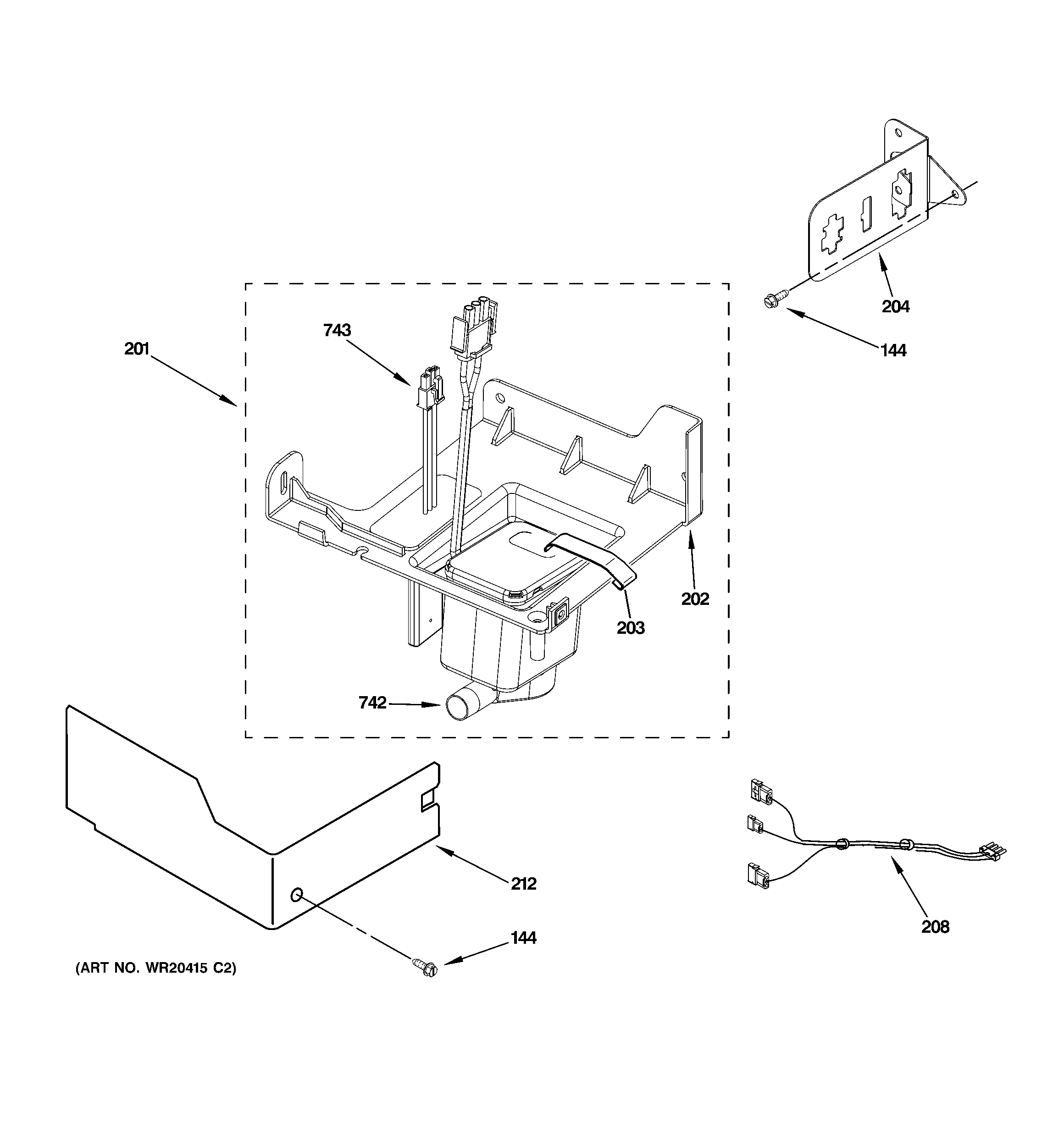

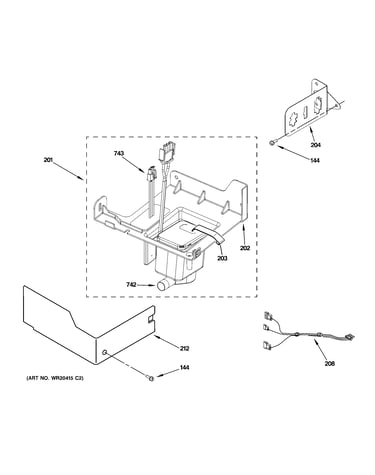

Pump parts diagram

Freestanding ice maker recirculation pump

Part #WR57X10077

Replaced by #WR57X26823

?
Manufacturer substitution
This part replaces WR57X10077. Substitute parts can look different from the original.
$287.15 |
$12.00 OFF Phone Price : $299.15
In Stock
Ice Maker Temperature Sensor WR55X10544
#320

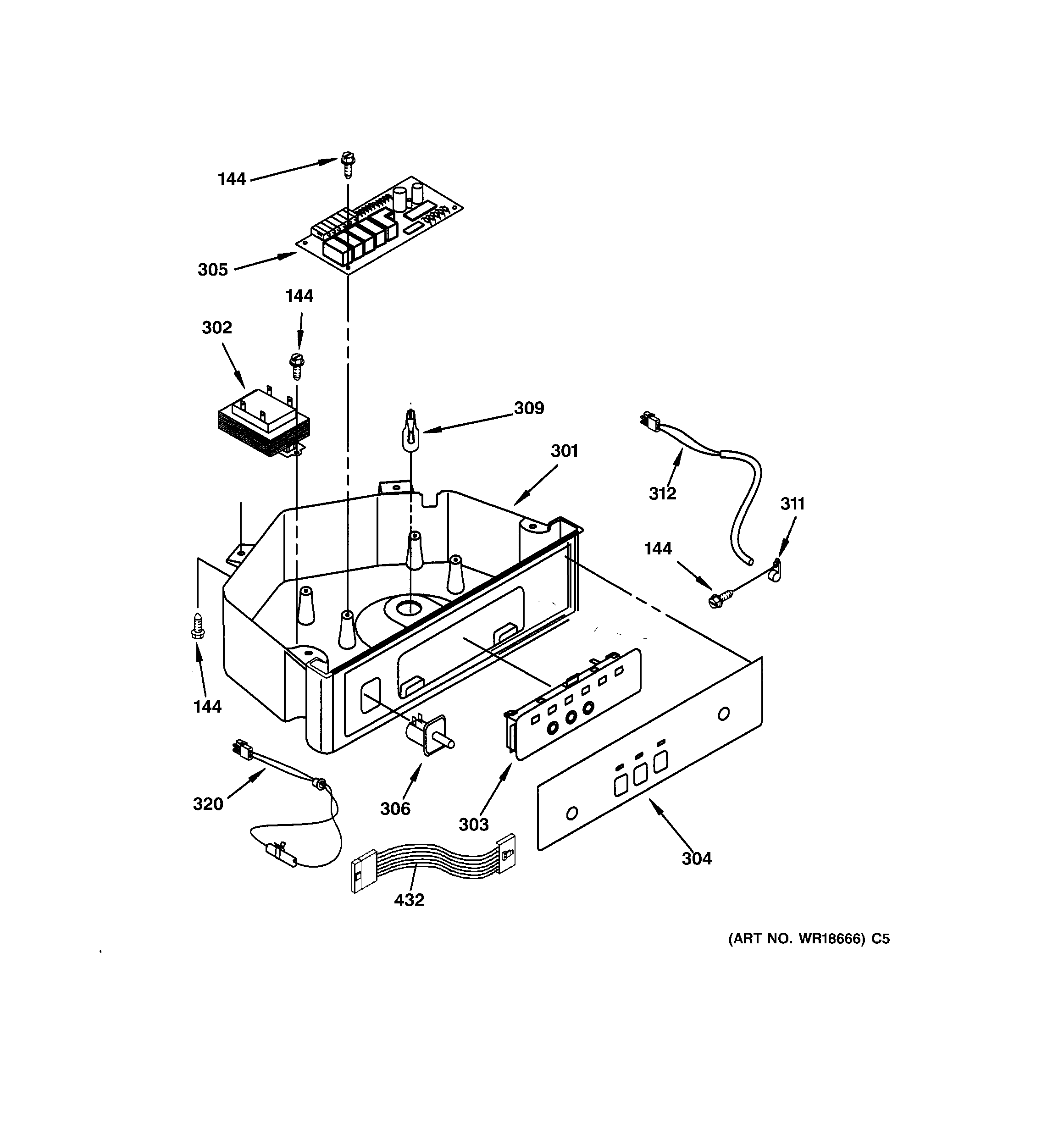

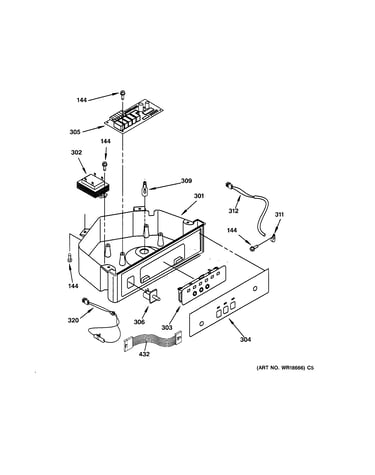

Control panel parts diagram

Ice maker temperature sensor

Part #WR55X10544

$64.49 |
9% OFF Phone Price : $70.49
In Stock
Ice Maker Cutter Grid (replaces Wr29x10070, Wr29x10100) WR29X10073
#128

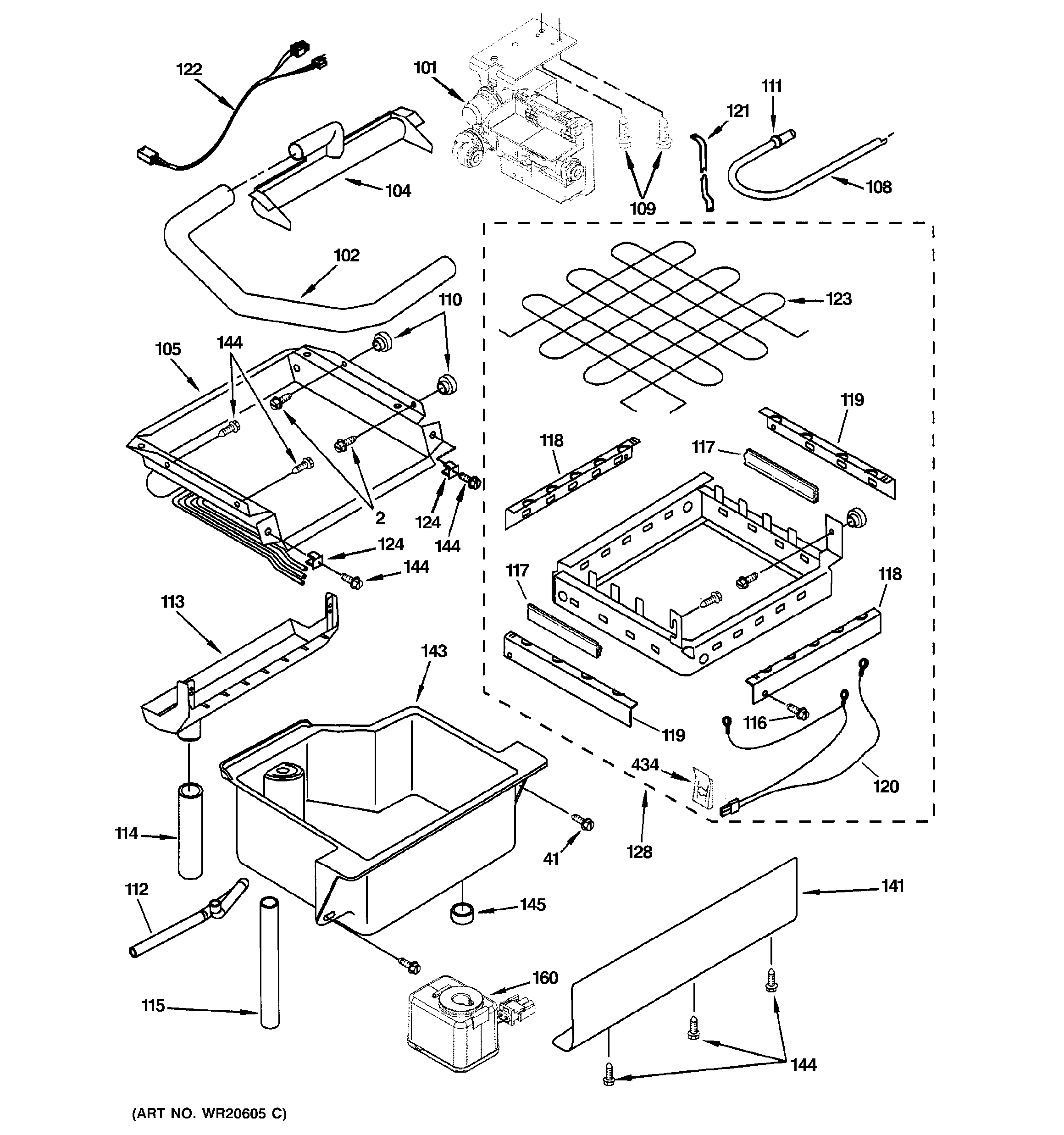

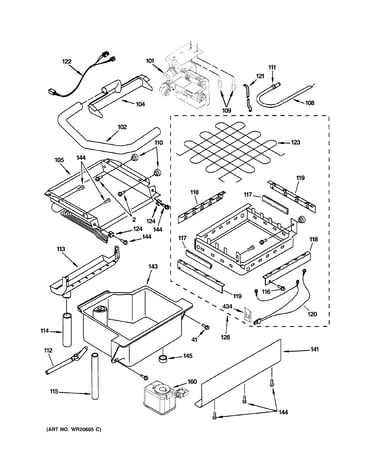

Evaporator, ice cutter grid & water diagram

Ice maker cutter grid (replaces wr29x10070, wr29x10100)

Part #WR29X10073

$328.36 |
$12.00 OFF Phone Price : $340.36
In Stock
Ice Maker Temperature Sensor WR55X10545
#312

Control panel parts diagram

Ice maker temperature sensor

Part #WR55X10545

$129.20 |
8% OFF Phone Price : $141.20
In Stock
Refrigerator Door Stop, Bottom Right, Top Left WR02X10376
#16

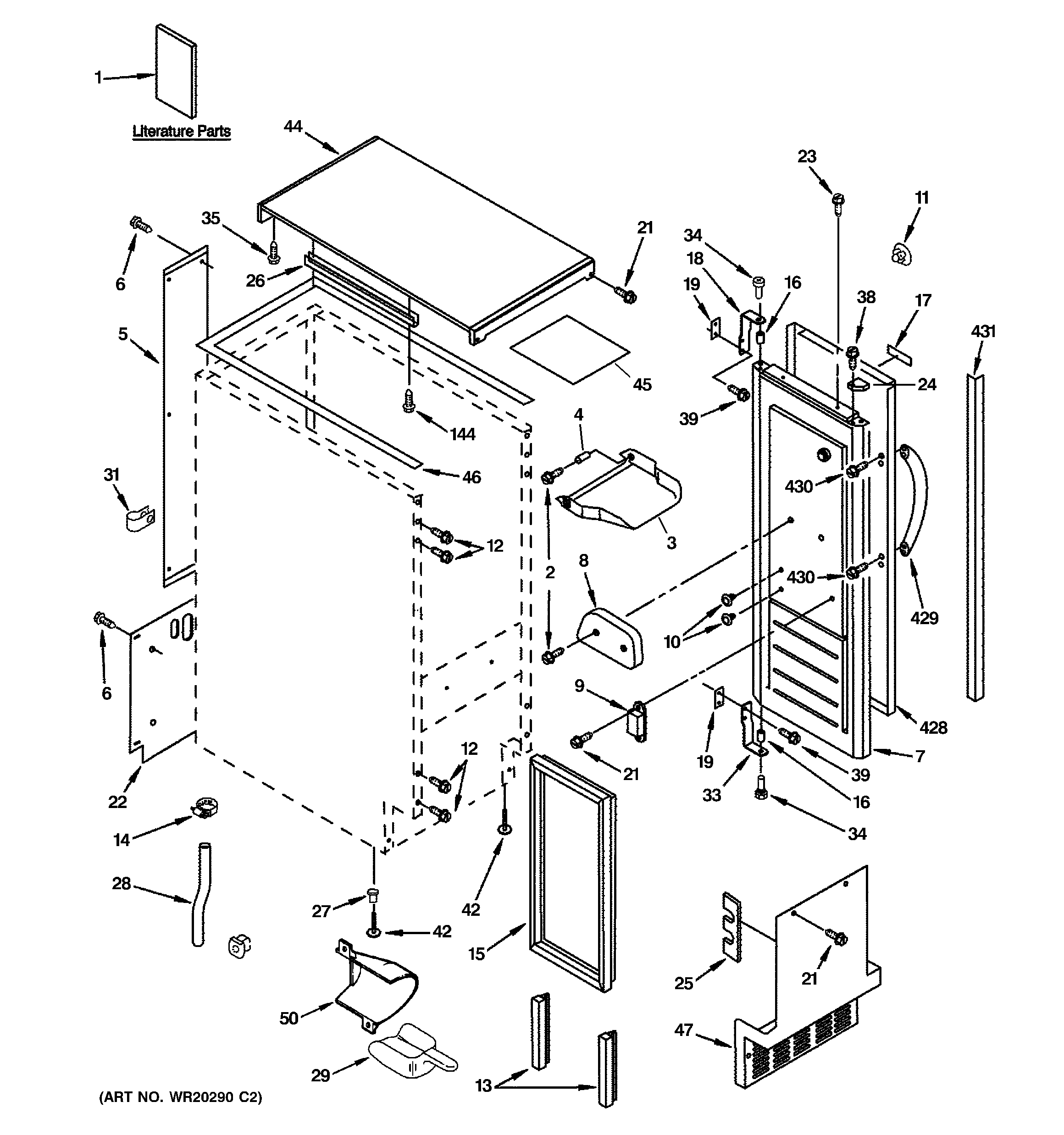

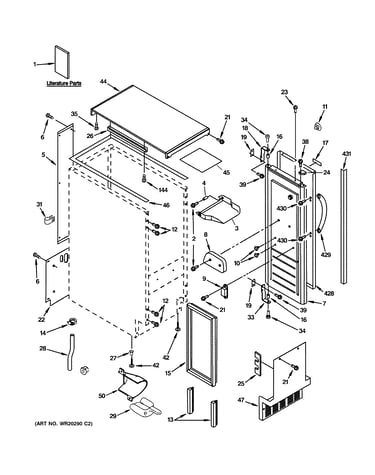

Cabinet, liner & door parts diagram

Refrigerator door stop, bottom right, top left

Part #WR02X10376

$53.29 |
10% OFF Phone Price : $59.29
In Stock
Ice Maker Recirculation Pump Cover WR02X10383
#212

Pump parts diagram

Ice maker recirculation pump cover

Part #WR02X10383

$53.67
In Stock
Speed Nut WR01X10764
#434

Evaporator, ice cutter grid & water diagram

Speed nut

Part #WR01X10764

$70.44
In Stock
Ice Maker Compressor Start Relay WR07X10113
#741

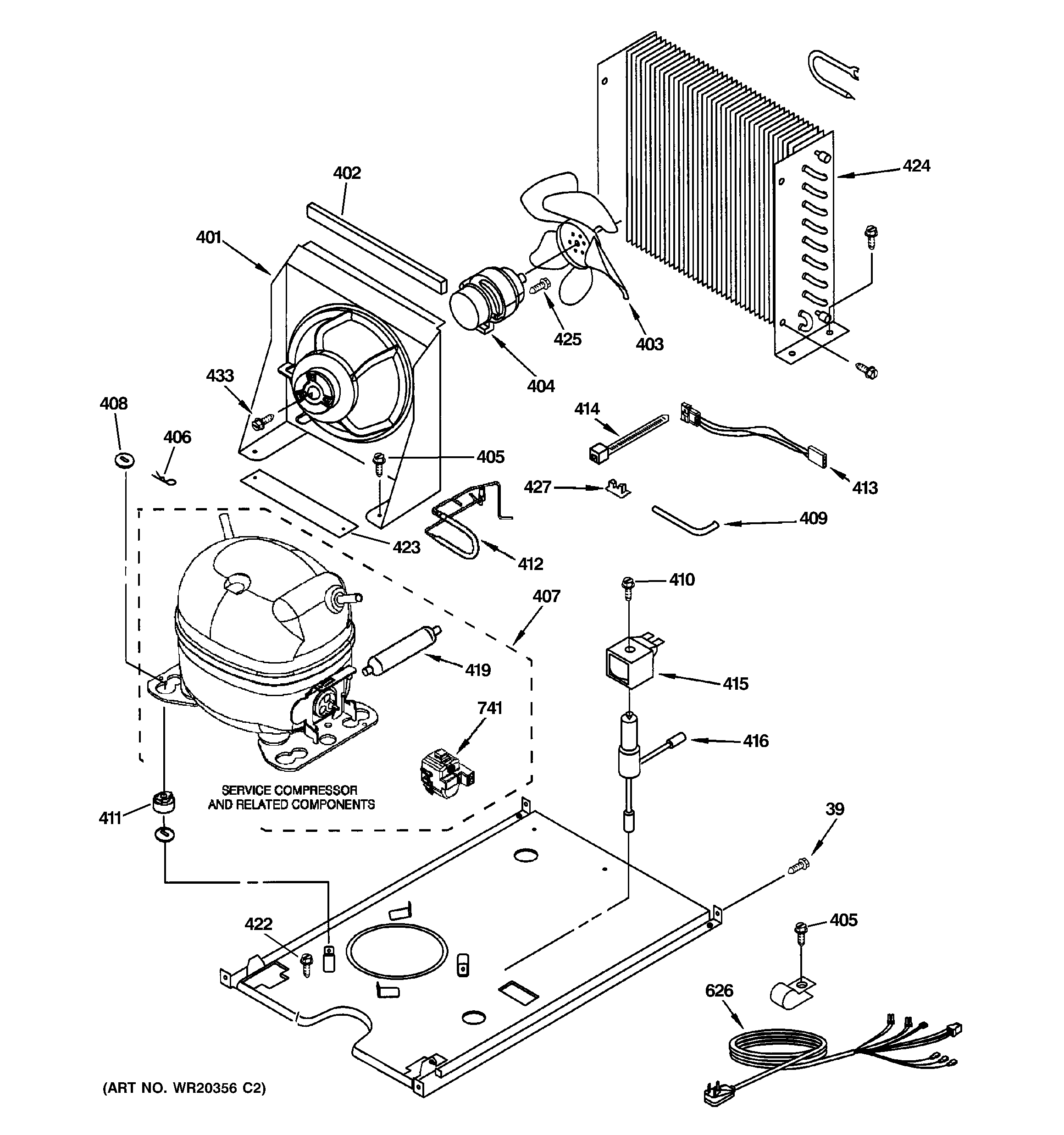

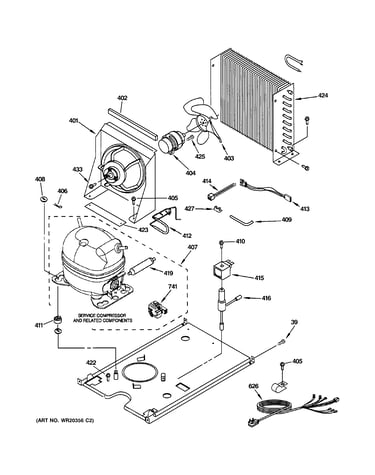

Unit parts diagram

Ice maker compressor start relay

Part #WR07X10113

$83.79 |
7% OFF Phone Price : $89.79
In Stock
Apollo Grey WR02X12730
#24

Cabinet, liner & door parts diagram

Apollo grey

Part #WR02X12730

$37.51
In Stock
Grid Harness WR02X12736
#120

Evaporator, ice cutter grid & water diagram

Grid harness

Part #WR02X12736

$36.89 |
14% OFF Phone Price : $42.89
In Stock
