Kenmore
Upright Vacuum

Model # 1163916581 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1163916581 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Screw 681149
#42

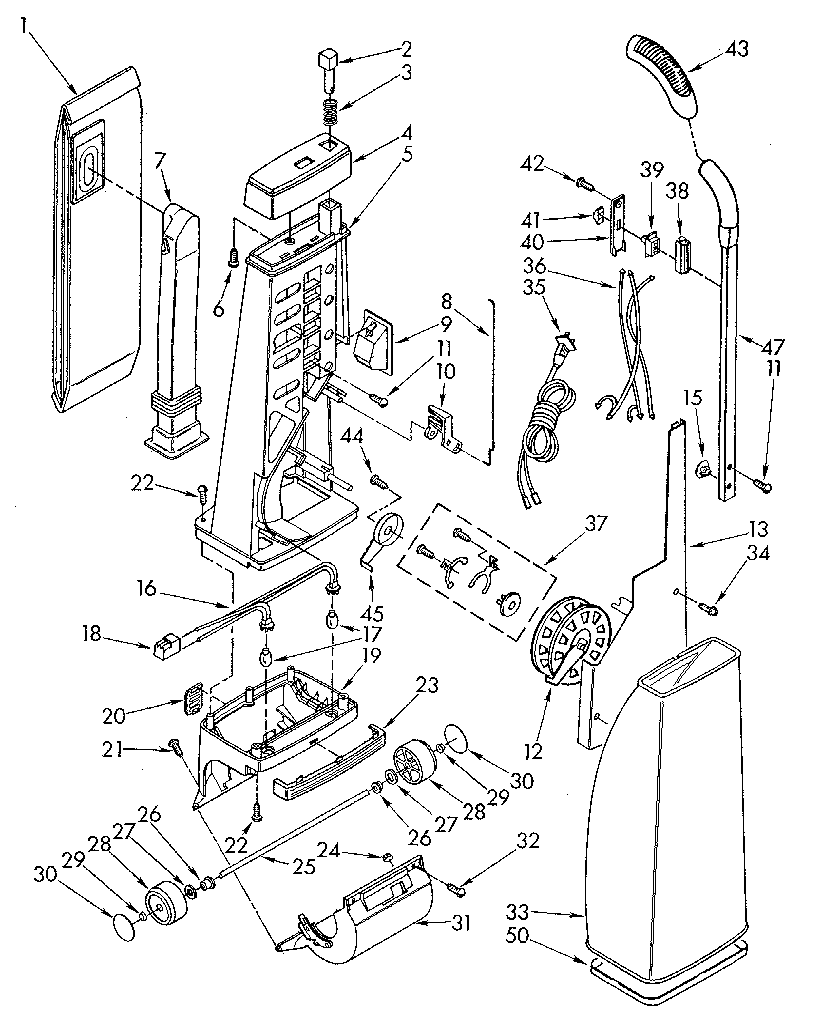

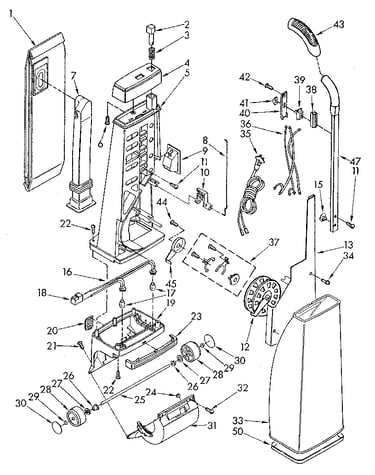

Handle and bag housing diagram

Screw

Part #681149

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 681149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Light Bulb 745362
#17

Handle and bag housing diagram

Light bulb

Part #745362

Replaced by #5248

?
Manufacturer substitution
This part replaces 745362. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 4152184
#2

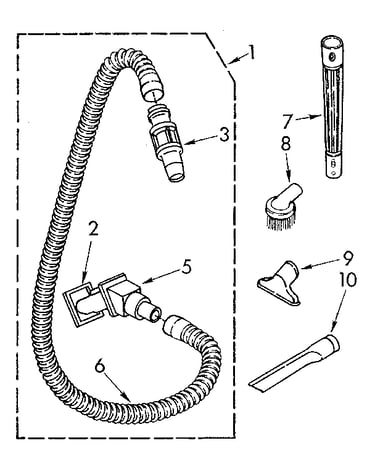

Hose and attachment diagram

Gasket

Part #4152184

The manufacturer no longer makes this part, and there's no substitute part

Covr-implr 4152589
#12

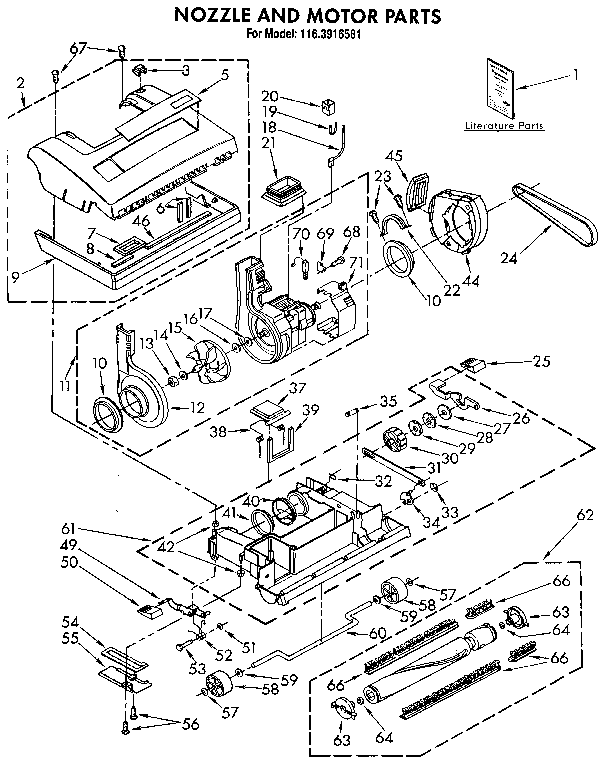

Nozzle and motor diagram

Covr-implr

Part #4152589

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base 4153669
#61

Nozzle and motor diagram

Nozzle base

Part #4153669

The manufacturer no longer makes this part, and there's no substitute part

Spring 4147993
#52

Nozzle and motor diagram

Spring

Part #4147993

The manufacturer no longer makes this part, and there's no substitute part

Bearing 744643
#26

Handle and bag housing diagram

Bearing

Part #744643

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT4152961
#1C

Nozzle and motor diagram

Parts list

Part #LIT4152961

The manufacturer no longer makes this part, and there's no substitute part

Washer 722909
#27

Nozzle and motor diagram

Washer

Part #722909

The manufacturer no longer makes this part, and there's no substitute part

Button Cord 4152364
#2

Handle and bag housing diagram

Button cord

Part #4152364

The manufacturer no longer makes this part, and there's no substitute part
