Kenmore
Electric Range

Model # 6284567990 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 6284567990 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

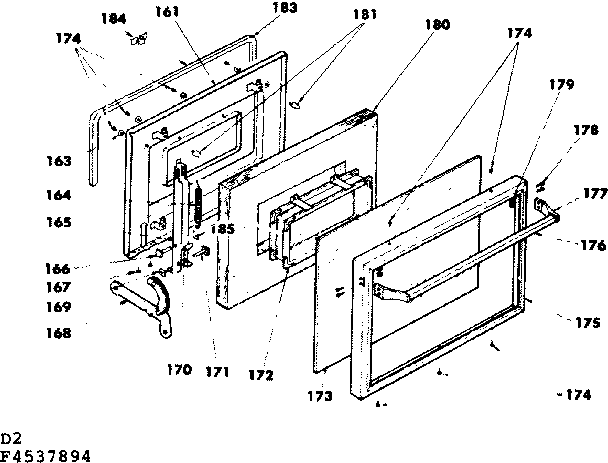

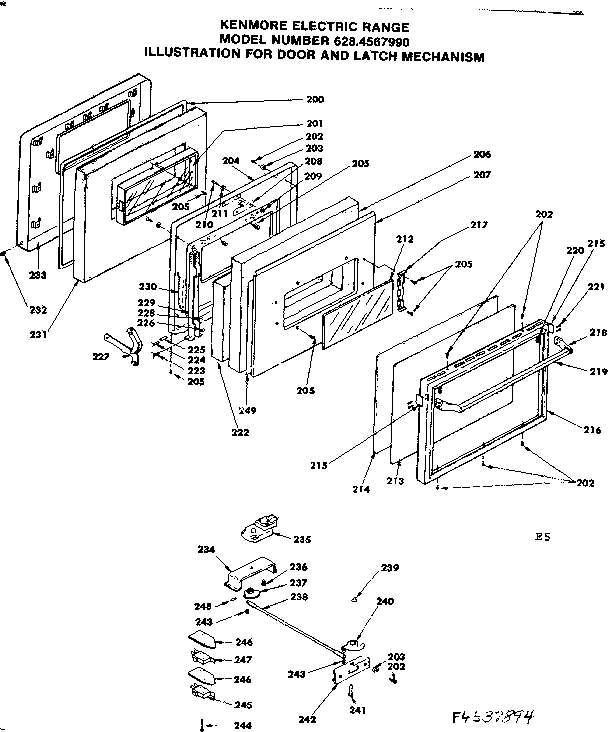

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Oven Lamp STD372401
#85

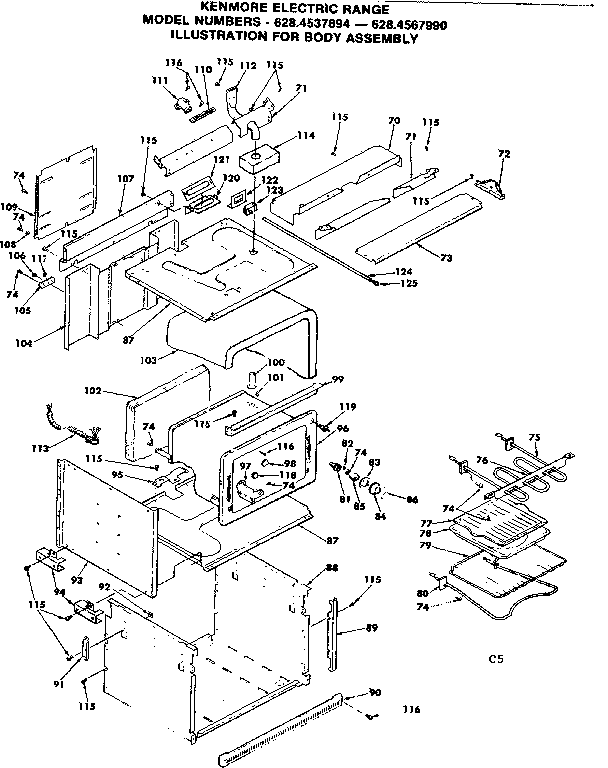

Body assembly diagram

Oven lamp

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Terminal Block 1189558
#105

Body assembly diagram

Terminal block

Part #1189558

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 1189558. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Bake Unit 1312853
#80A

Body assembly diagram

Bake unit

Part #1312853

Replaced by #5303051519

?
Manufacturer substitution
This part replaces 1312853. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Switch 1314211
#119

Body assembly diagram

Switch

Part #1314211

Replaced by #5301314211

?
Manufacturer substitution
This part replaces 1314211. Substitute parts can look different from the original.
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Range Screw 1164479
Range screw

Part #1164479

This item is not returnable
$2.91
In Stock
Terminal STD374251
Terminal

Part #STD374251

The manufacturer no longer makes this part, and there's no substitute part

Broiler Grid 1317972
#77B

Body assembly diagram

Broiler grid

Part #1317972

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 1317972. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Clock-60c 1318981
#19A

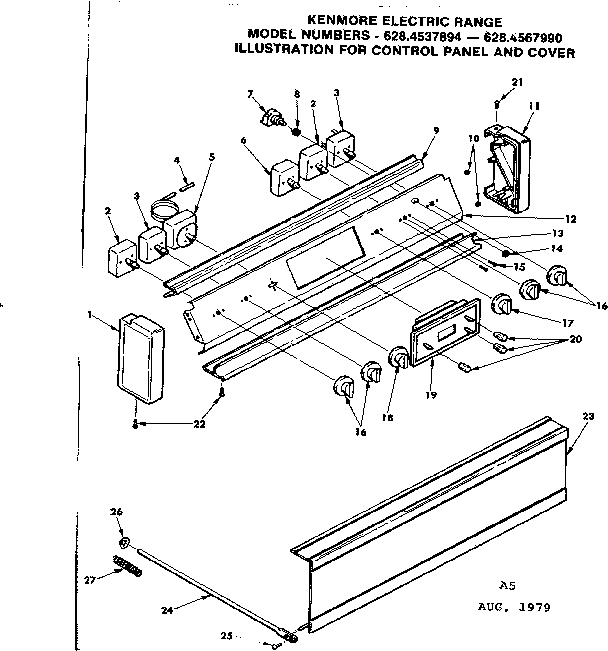

Control panel and cover diagram

Clock-60c

Part #1318981

Replaced by #5303934089

?
Manufacturer substitution
This part replaces 1318981. Substitute parts can look different from the original.
$242.33
In Stock
Broil Unit 1311770
#75B

Body assembly diagram

Broil unit

Part #1311770

The manufacturer no longer makes this part, and there's no substitute part

Terminal STD374250
#321

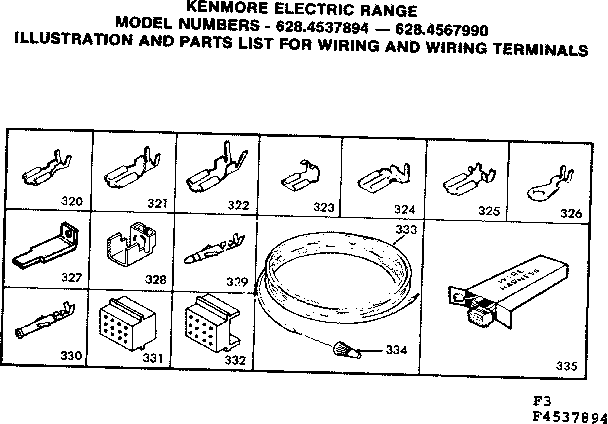

Wiring and wiring terminals diagram

Terminal

Part #STD374250

The manufacturer no longer makes this part, and there's no substitute part
