Upright Vacuum

Model # U5420-900 Official Hoover upright vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U5420-900 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forU5420-900 Vacuum Cleaners

  • Vacuum Handle Release Pedal 38458043
    #3

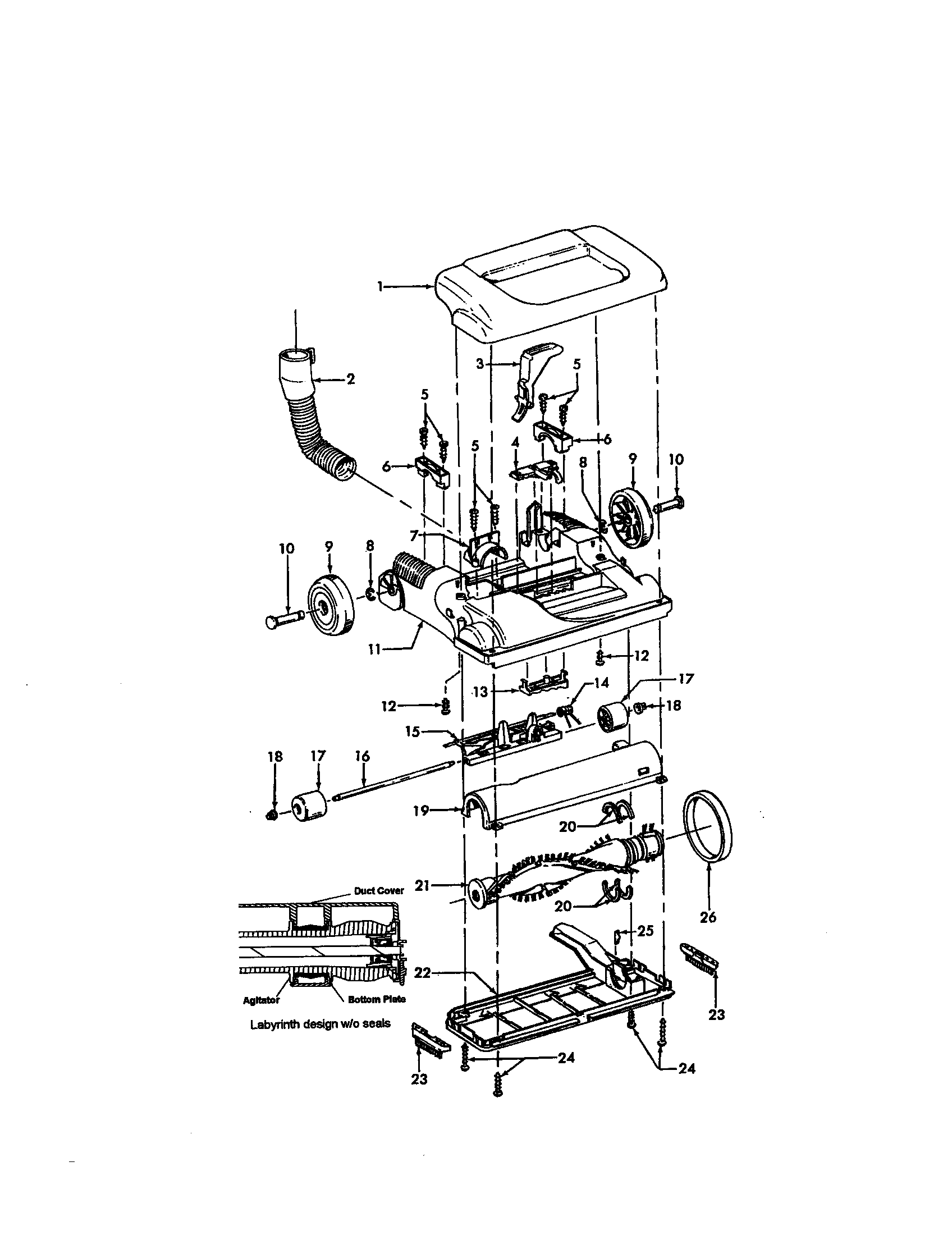

    Hood/agitator diagram

    Vacuum handle release pedal

    Part #38458043

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Beater Bar Belt 38528033
    #26

    Hood/agitator diagram

    Vacuum beater bar belt

    Part #38528033

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Screw 21447121
    #24

    Hood/agitator diagram

    Vacuum screw

    Part #21447121

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Power Cord Strain Relief 27482230
    #10

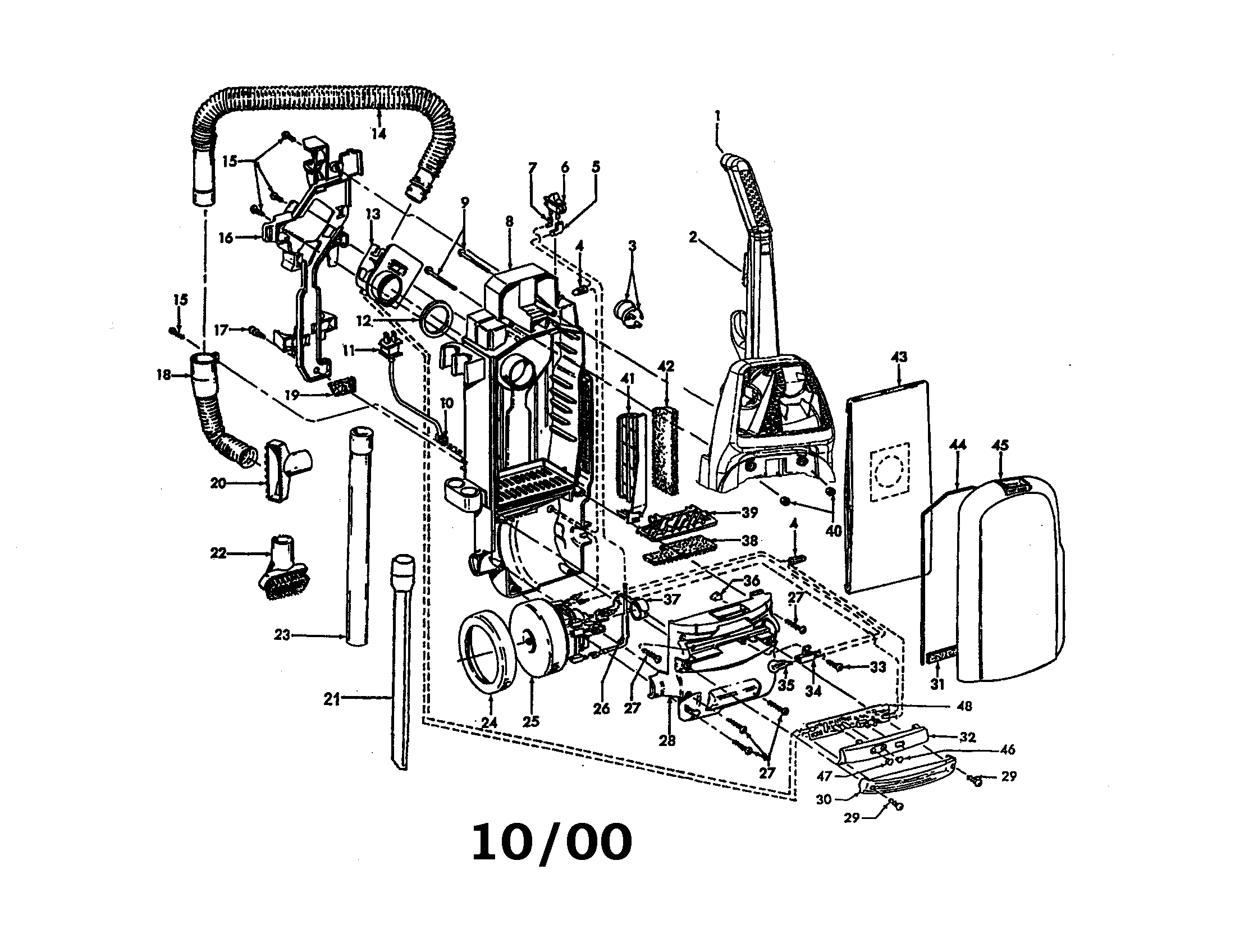

    Main body assembly diagram

    Vacuum power cord strain relief

    Part #27482230

    The manufacturer no longer makes this part, and there's no substitute part

  • Hood 37253316
    #1

    Hood/agitator diagram

    Hood

    Part #37253316

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Screw 21447230
    #27

    Main body assembly diagram

    Vacuum screw

    Part #21447230

    The manufacturer no longer makes this part, and there's no substitute part

  • Regina Carpet Cleaner Screw 23149002
    #17

    Main body assembly diagram

    Regina carpet cleaner screw

    Part #23149002

    The manufacturer no longer makes this part, and there's no substitute part

  • Regina Vacuum Screw 21447228
    Regina vacuum screw

    Part #21447228

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Trunnion Cover 36131094
    #6

    Hood/agitator diagram

    Vacuum trunnion cover

    Part #36131094

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Hose Center Tube 43457024

    #NI

    All parts diagram

    Vacuum hose center tube

    Part #43457024

    The manufacturer no longer makes this part, and there's no substitute part
