GE
Countertop Microwave

Model # JET114001 Official GE microwave

Here are the diagrams and repair parts for Official GE JET114001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |

Screw WB1X5471
Screw

Part #WB1X5471

This item is not returnable
In Stock
Hinge Arm WB10X5110
#44

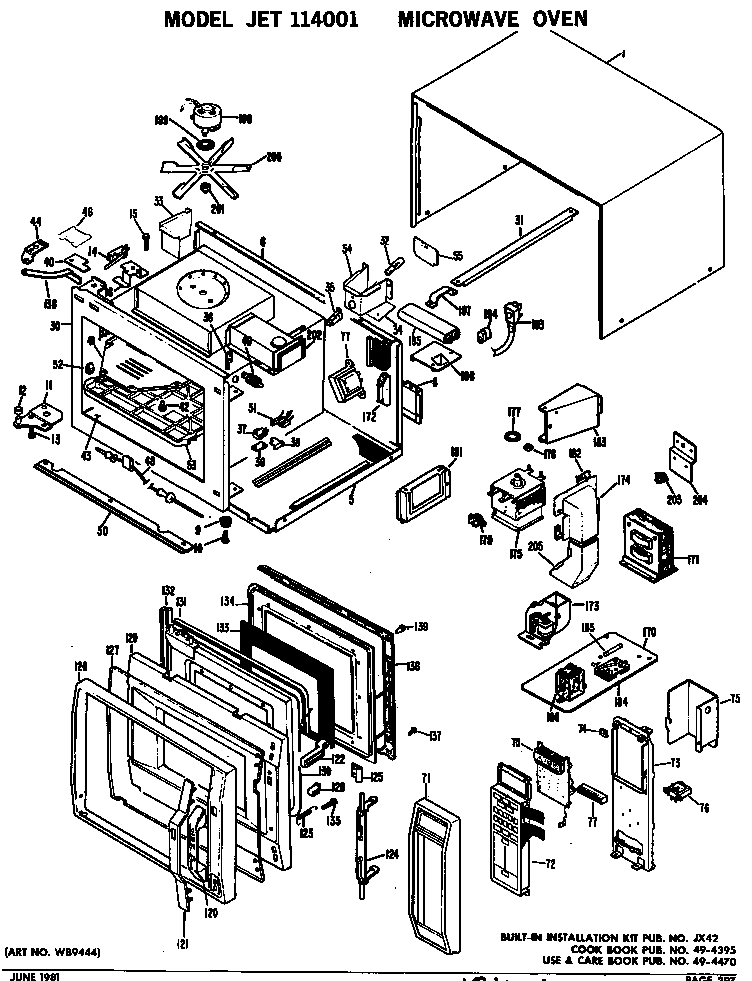

Microwave oven diagram

Hinge arm

Part #WB10X5110

This item is not returnable
In Stock
Magnetron WB27X5144
#175A

Microwave oven diagram

Magnetron

Part #WB27X5144

In Stock
Lamp WX12X1560
#32

Microwave oven diagram

Lamp

Part #WX12X1560

In Stock
Range Screw (replaces Wb01k10018, Wb01x5364) WB1X5364
#137

Microwave oven diagram

Range screw (replaces wb01k10018, wb01x5364)

Part #WB1X5364

$7.90
11% OFF Phone Price : $8.90
In Stock
Screw WB1X537
#126B

Microwave oven diagram

Screw

Part #WB1X537

In Stock
Sleeve WB2X6524
Sleeve

Part #WB2X6524

This item is not returnable
In Stock
Screw WZ4X231
Screw

Part #WZ4X231

Replaced by #WZ4X231D

?
Manufacturer substitution
This part replaces WZ4X231. Substitute parts can look different from the original.
This item is not returnable
In Stock
Microwave Diode WB27X5070
#172A

Microwave oven diagram

Microwave diode

Part #WB27X5070

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover WB56X5639
#41

Microwave oven diagram

Stirrer cover

Part #WB56X5639

The manufacturer no longer makes this part, and there's no substitute part
