Model # CLJ36-1C Official Goodman split-system condensing unit

Here are the diagrams and repair parts for Official Goodman CLJ36-1C split-system condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Spray B260S8292
#NI

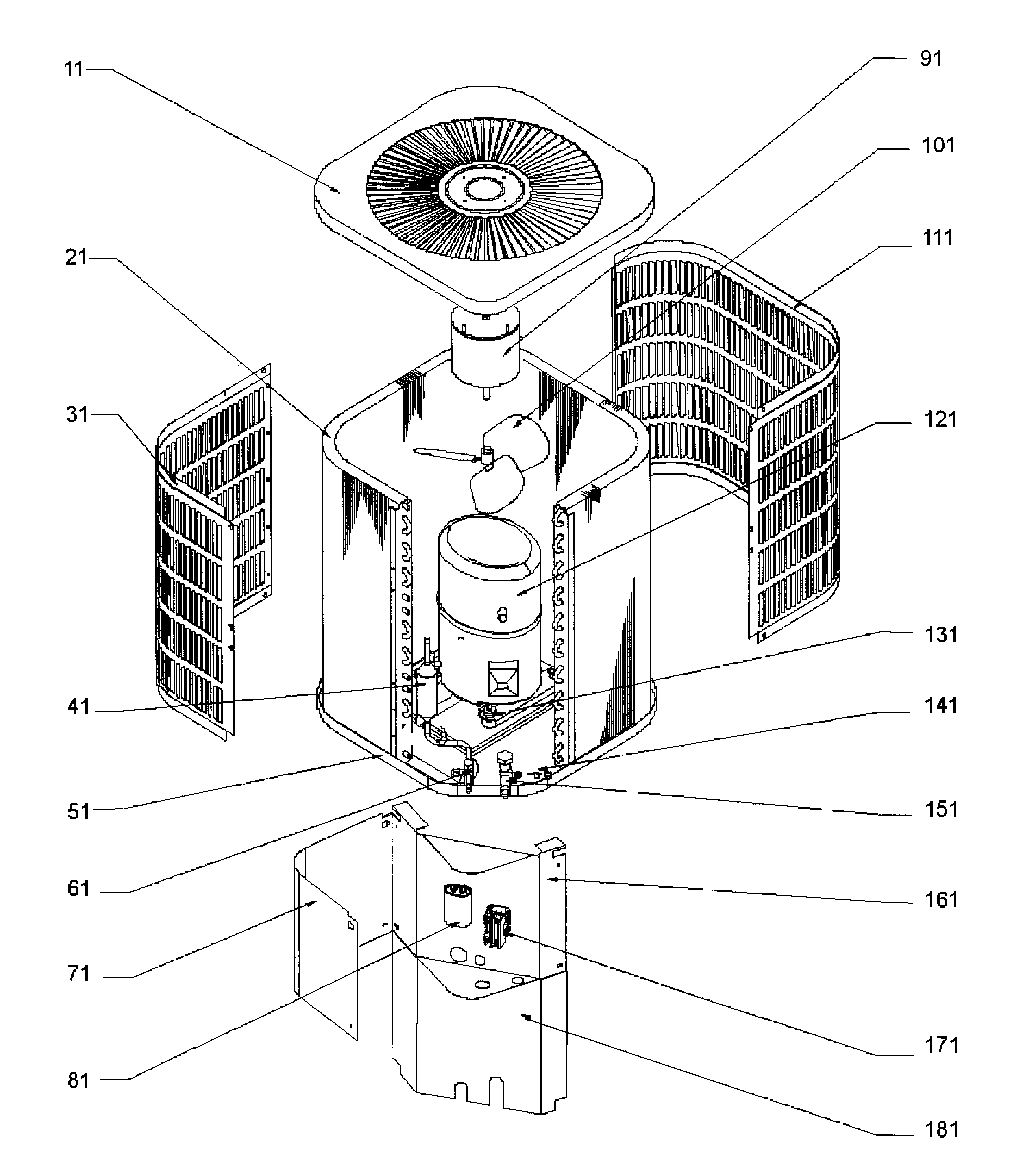

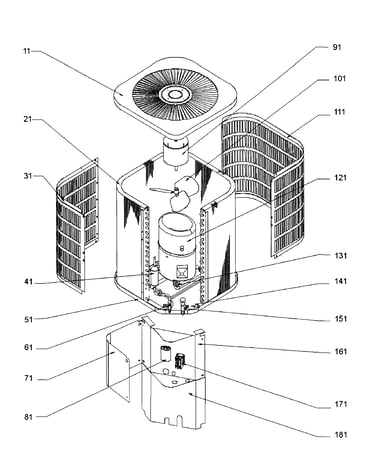

Main asy diagram

Spray

Part #B260S8292

$91.80
In Stock
Core,valve B1787000
#141

Main asy diagram

Core,valve

Part #B1787000

$8.29
In Stock
Strap 1284835
#NI

Main asy diagram

Strap

Part #1284835

This item is not returnable
$2.86
In Stock
Grommet B1339530
#131

Main asy diagram

Grommet

Part #B1339530

This item is not returnable
$2.40
Back Order
Capacitor B94575300
#81

Main asy diagram

Capacitor

Part #B94575300

Replaced by #12972

?
Manufacturer substitution
This part replaces B94575300. Substitute parts can look different from the original.
$16.96 |
11% OFF Phone Price : $18.96
In Stock
Central Air Conditioner Condenser Fan Motor B13400270
#91

Main asy diagram

Central air conditioner condenser fan motor

Part #B13400270

The manufacturer no longer makes this part, and there's no substitute part

Panel 1259571PDG
#111

Main asy diagram

Panel

Part #1259571PDG

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Top Cover 1779415PDG
#11

Main asy diagram

Central air conditioner condenser top cover

Part #1779415PDG

The manufacturer no longer makes this part, and there's no substitute part

Panel 1259568PDG
#31

Main asy diagram

Panel

Part #1259568PDG

The manufacturer no longer makes this part, and there's no substitute part

Cover 1787624PDG
#71

Main asy diagram

Cover

Part #1787624PDG

The manufacturer no longer makes this part, and there's no substitute part
