GE
Wall Oven/Microwave Combo

Model # PT9800SH6SS Official GE electric oven

Here are the diagrams and repair parts for Official GE PT9800SH6SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

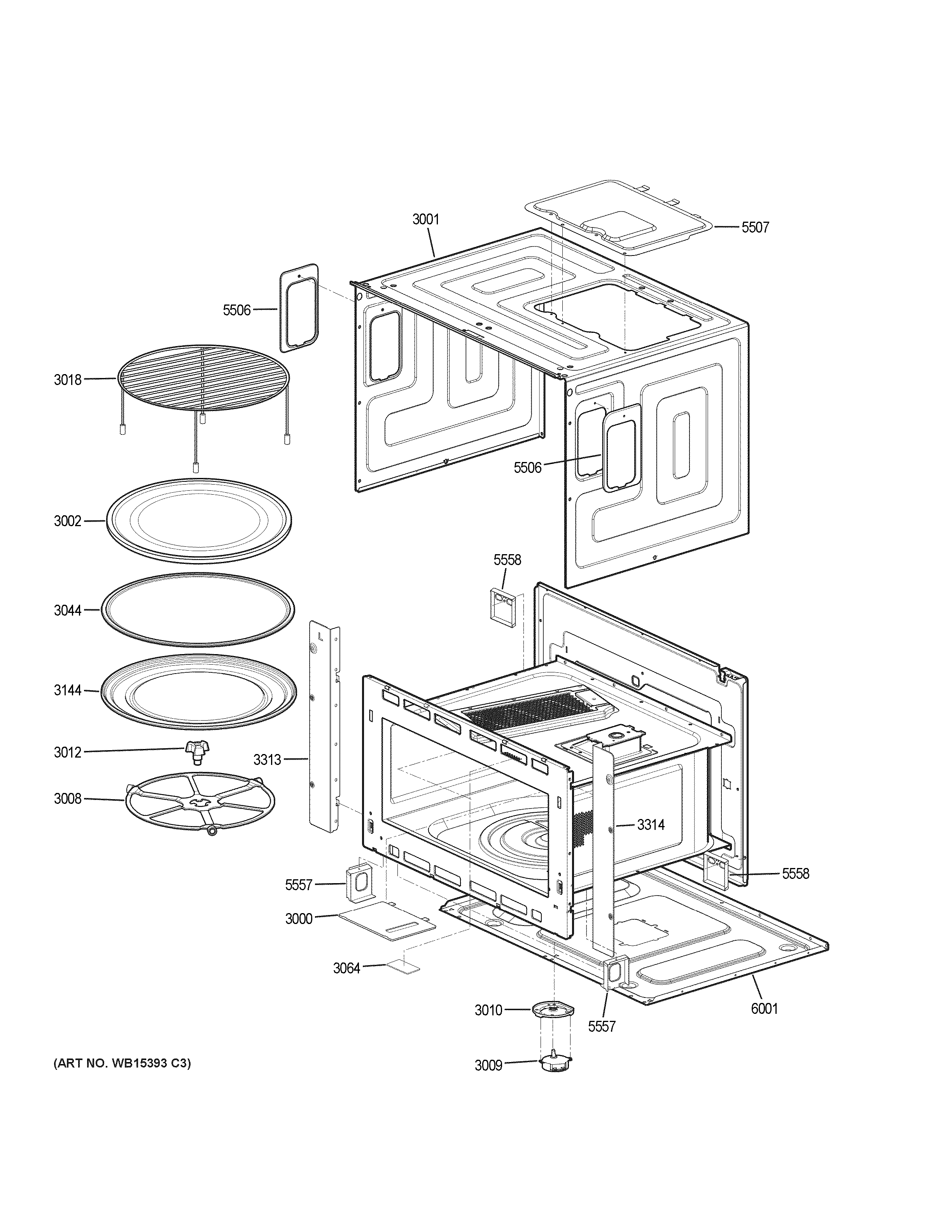

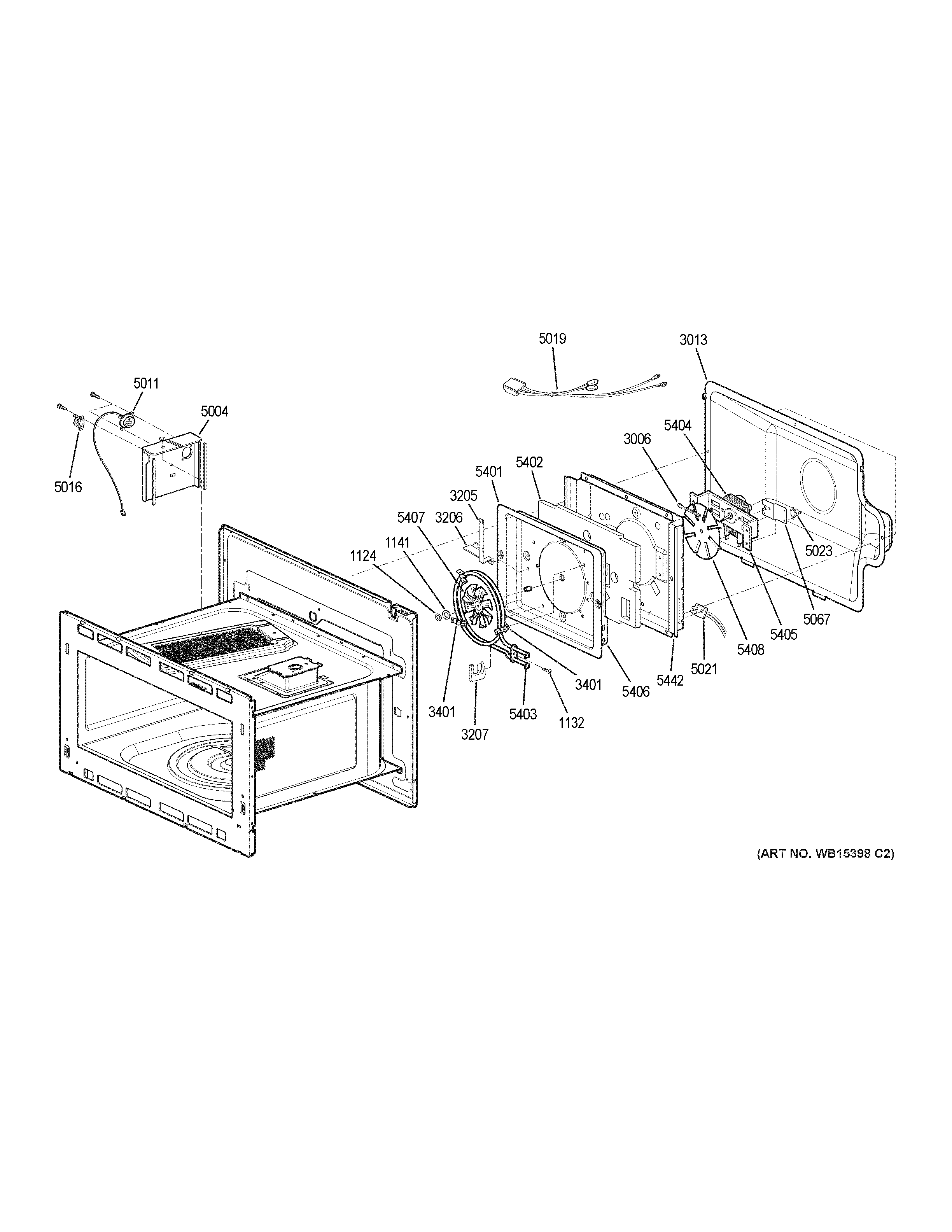

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Microwave Fuse WB27X10388
#5001

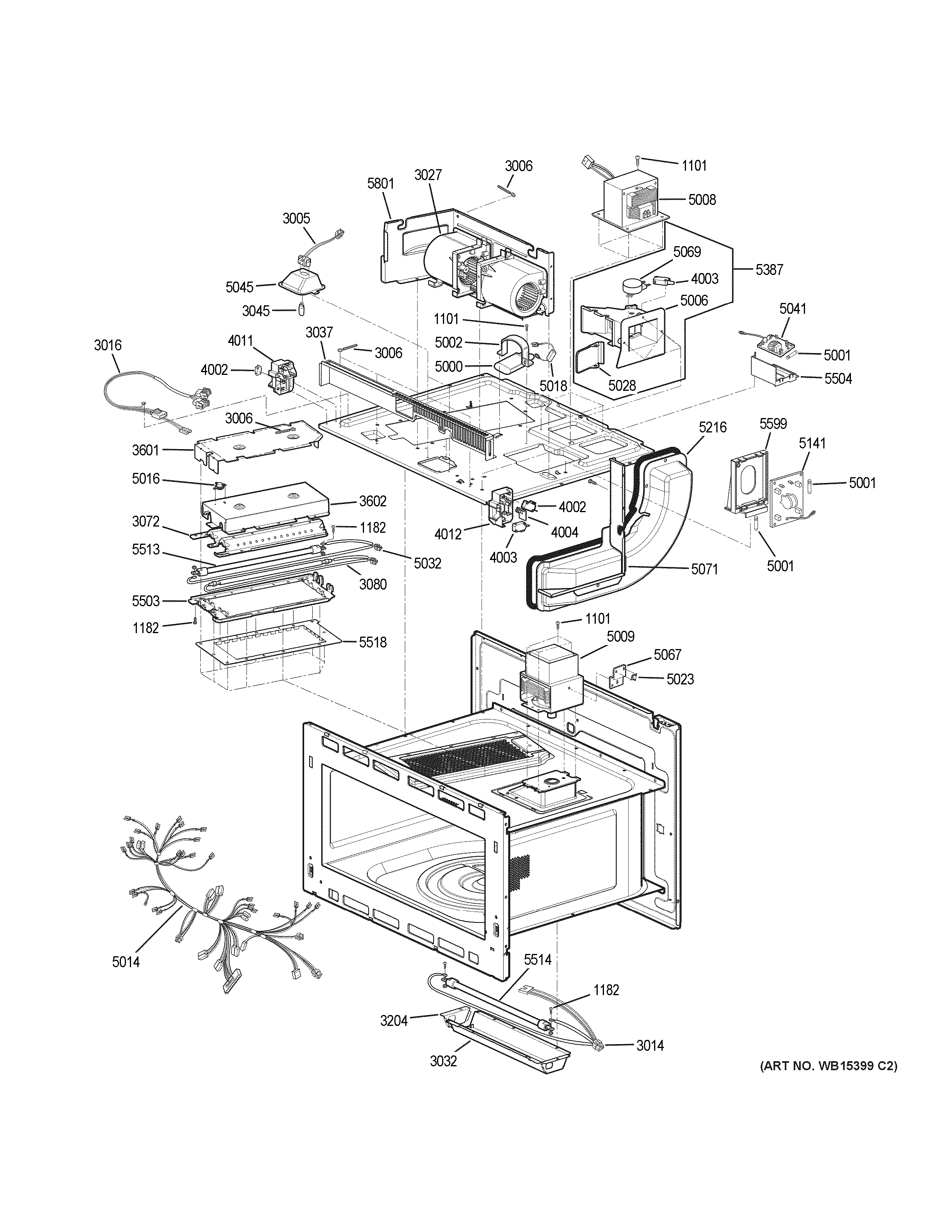

Insulator parts diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#5009

Insulator parts diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Wall Oven Cooling Fan Sensor Board WB27T11463
#599

Center spacer diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
This item is not returnable
$51.74 |
10% OFF Phone Price : $57.74
In Stock
Drive Capacitor WB27X10701
#5000

Insulator parts diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
G.e. Wall Oven Door Window Assembly WB56X27480
#338

Door diagram

G.e. wall oven door window assembly

Part #WB56X27480

BEST SELLER
$193.74 |
6% OFF Phone Price : $205.74
In Stock
Wall Oven Cooling Fan Assembly WB26X24020
#32

Center spacer diagram

Wall oven cooling fan assembly

Part #WB26X24020

BEST SELLER
$118.73 |
9% OFF Phone Price : $130.73
In Stock
Wall Oven Temperature Sensor WB21X10165
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21X10165

BEST SELLER
$19.80 |
9% OFF Phone Price : $21.80
In Stock
Cable WB18X10286
#5018

Insulator parts diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Range High-limit Thermostat WB24T10164
#157

Body parts diagram

Range high-limit thermostat

Part #WB24T10164

Replaced by #WB24X46906

?
Manufacturer substitution
This part replaces WB24T10164. Substitute parts can look different from the original.
BEST SELLER
$99.57 |
11% OFF Phone Price : $111.57
In Stock
Relay Board WB27X22129
#2009

Control panel diagram

Relay board

Part #WB27X22129

Replaced by #WB27X32625

?
Manufacturer substitution
This part replaces WB27X22129. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$44.88 |
12% OFF Phone Price : $50.88
In Stock
