Model # B2100 Official Bosch drill/driver

Here are the diagrams and repair parts for Official Bosch B2100 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Motor 2607022931
#802

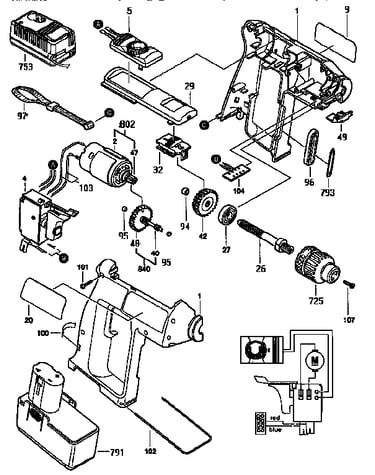

3/8" driver drills diagram

Motor

Part #2607022931

The manufacturer no longer makes this part, and there's no substitute part

Spring 2601322016
#100

3/8" driver drills diagram

Spring

Part #2601322016

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1900905120
#27

3/8" driver drills diagram

Bearing

Part #1900905120

The manufacturer no longer makes this part, and there's no substitute part

Housing 2605104466
#1A

3/8" driver drills diagram

Housing

Part #2605104466

The manufacturer no longer makes this part, and there's no substitute part

Strap 2601398013
#97

3/8" driver drills diagram

Strap

Part #2601398013

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 2610905785
#20A

3/8" driver drills diagram

Nameplate

Part #2610905785

The manufacturer no longer makes this part, and there's no substitute part

Lever 2601099058
#32

3/8" driver drills diagram

Lever

Part #2601099058

The manufacturer no longer makes this part, and there's no substitute part

Plate 2608018004
#104

3/8" driver drills diagram

Plate

Part #2608018004

The manufacturer no longer makes this part, and there's no substitute part

Ring 2600290022
#96

3/8" driver drills diagram

Ring

Part #2600290022

The manufacturer no longer makes this part, and there's no substitute part

Motor 2607022925
#802A

3/8" driver drills diagram

Motor

Part #2607022925

The manufacturer no longer makes this part, and there's no substitute part
