Model # 66513203N413 Official Kenmore dishwasher
Here are the diagrams and repair parts for Official Kenmore 66513203N413 dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part

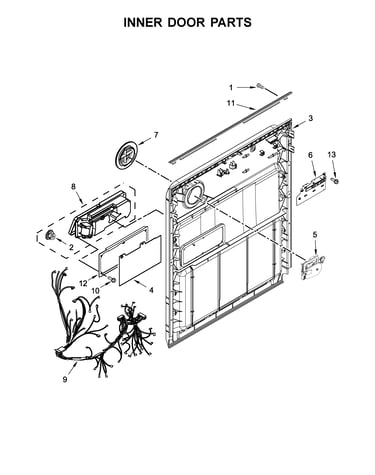

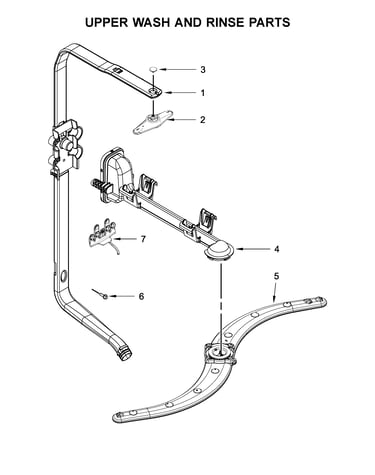

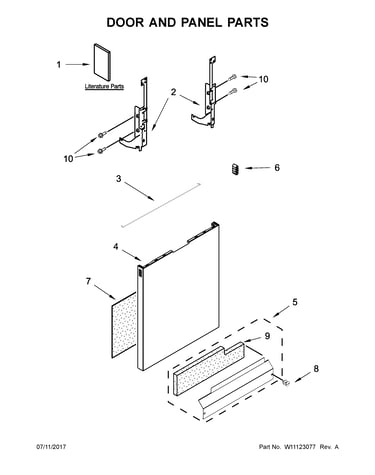

SELECT DIAGRAM
Browse Parts for
66513203N413 Dishwasher
#5

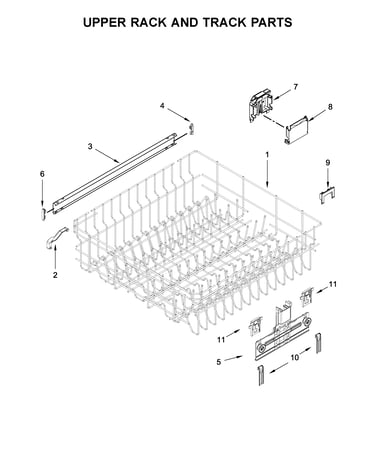

Upper rack and track parts diagram
Dishwasher rack adjuster
Part #W10350375
Replaced by #W10712395
?
Manufacturer substitution
This part replaces W10350375. Substitute parts can look different from the original.
$38.04 |
14% OFF Phone Price : $44.04
In Stock
#21

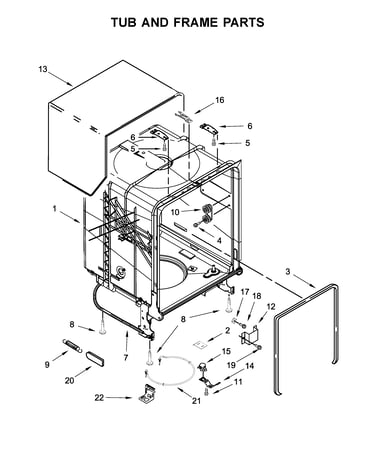

Tub and frame parts diagram
Element assembly
Part #W10441445
Replaced by #W10518394
?
Manufacturer substitution
This part replaces W10441445. Substitute parts can look different from the original.
$54.95 |
10% OFF Phone Price : $60.95
In Stock
#7

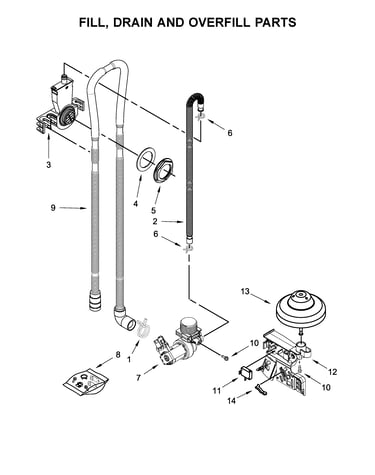

Fill, drain and overfill parts diagram
Dishwasher water inlet valve
Part #W10327250
Replaced by #W11175771
?
Manufacturer substitution
This part replaces W10327250. Substitute parts can look different from the original.
$45.25 |
12% OFF Phone Price : $51.25
In Stock
#13

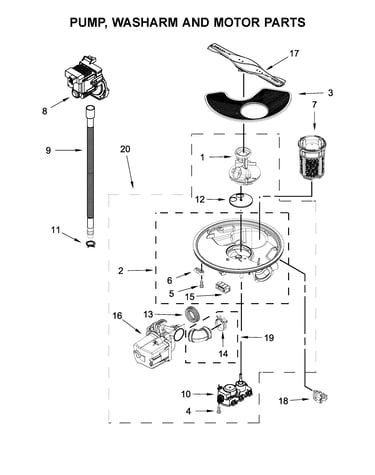

Pump, washarm and motor parts diagram
Dishwasher pump grommet
Part #W10538166
Replaced by #WPW10538166
?
Manufacturer substitution
This part replaces W10538166. Substitute parts can look different from the original.
$18.43 |
10% OFF Phone Price : $20.43
In Stock
#8
Pump, washarm and motor parts diagram
Dishwasher drain pump
Part #W10724439
Replaced by #W10876537
?
Manufacturer substitution
This part replaces W10724439. Substitute parts can look different from the original.
$51.78 |
10% OFF Phone Price : $57.78
In Stock
#10
Pump, washarm and motor parts diagram
Dishwasher diverter motor
Part #W10849439
Replaced by #W10537869
?
Manufacturer substitution
This part replaces W10849439. Substitute parts can look different from the original.
$58.66 |
9% OFF Phone Price : $64.66
In Stock
#9

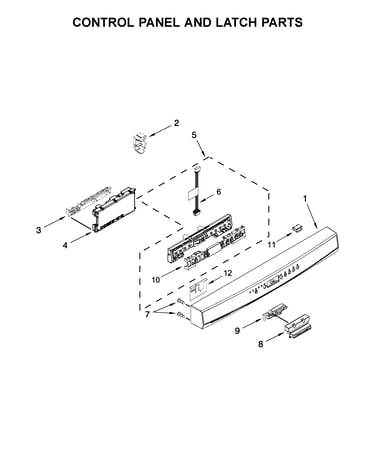

Control panel and latch parts diagram
Dishwasher door latch
Part #W10574864
Replaced by #WPW10653840
?
Manufacturer substitution
This part replaces W10574864. Substitute parts can look different from the original.
$22.78 |
21% OFF Phone Price : $28.78
In Stock
#4
Upper rack and track parts diagram
Dishwasher dishrack slide rail stop, upper
Part #8565925
Replaced by #WP8565925
?
Manufacturer substitution
This part replaces 8565925. Substitute parts can look different from the original.
$7.56 |
12% OFF Phone Price : $8.56
In Stock
#9
Fill, drain and overfill parts diagram
Dishwasher drain hose
Part #W10545278
Replaced by #WPW10545278
?
Manufacturer substitution
This part replaces W10545278. Substitute parts can look different from the original.
$43.11 |
12% OFF Phone Price : $49.11
In Stock
#1

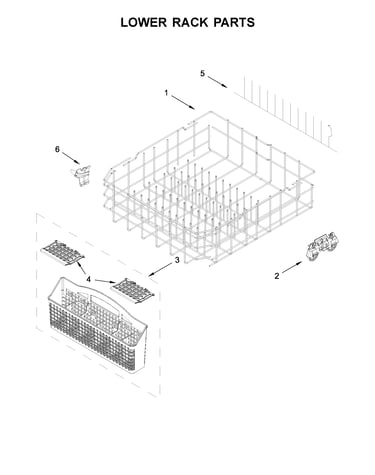

Lower rack parts diagram
Dishwasher dishrack, lower
Part #W10525646
Replaced by #W10728159
?
Manufacturer substitution
This part replaces W10525646. Substitute parts can look different from the original.
$198.45 |
6% OFF Phone Price : $210.45
In Stock
