Amana
Countertop Microwave

Model # 80/46.500 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 80-46500 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Screw M1D486
#32B

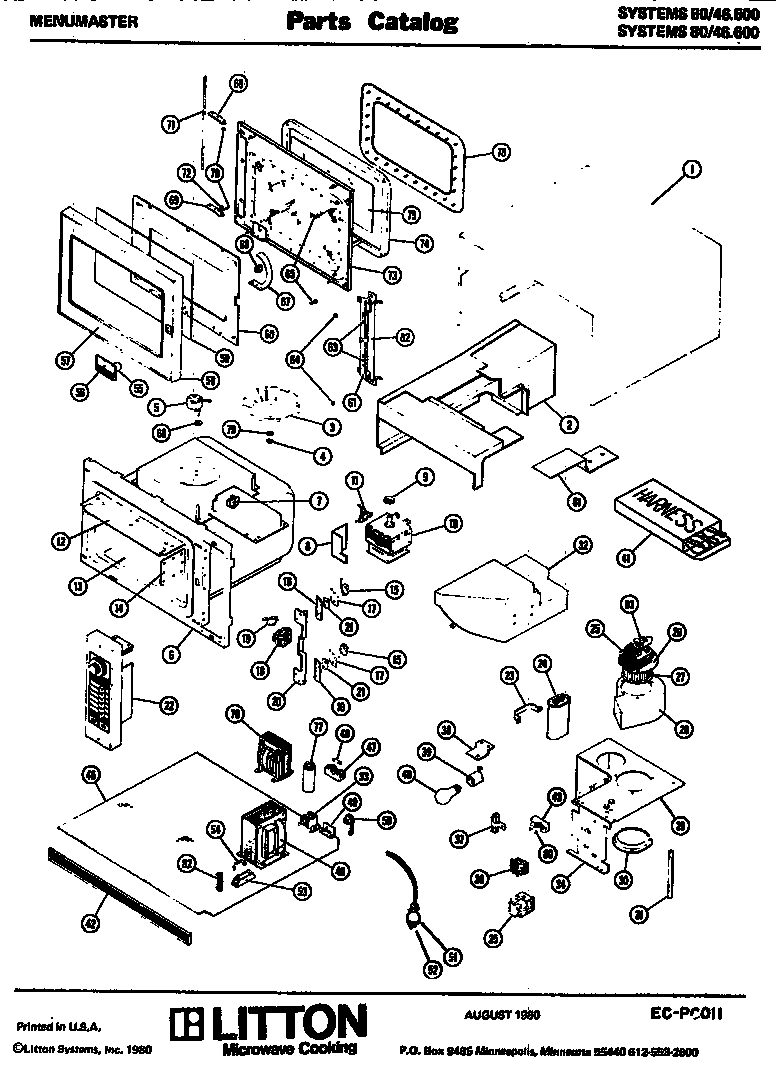

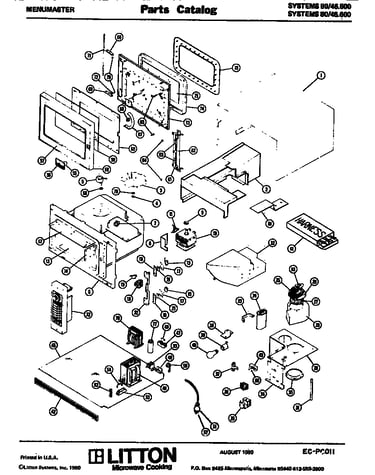

Replacement parts diagram

Screw

Part #M1D486

The manufacturer no longer makes this part, and there's no substitute part

Air Baffle M65D211
#8

Replacement parts diagram

Air baffle

Part #M65D211

The manufacturer no longer makes this part, and there's no substitute part

Relay, Holding M16D72
#36A

Replacement parts diagram

Relay, holding

Part #M16D72

The manufacturer no longer makes this part, and there's no substitute part

Air Duct, Magnetron M65D212
#32A

Replacement parts diagram

Air duct, magnetron

Part #M65D212

The manufacturer no longer makes this part, and there's no substitute part

Keps Nut 4-40 (2 Req.) M1D360
Keps nut 4-40 (2 req.)

Part #M1D360

The manufacturer no longer makes this part, and there's no substitute part

Insulator Washer M5D193
#15C

Replacement parts diagram

Insulator washer

Part #M5D193

The manufacturer no longer makes this part, and there's no substitute part

Resistor, Current Limiting (incl. Mtg. Bracket) M3D58
#37A

Replacement parts diagram

Resistor, current limiting (incl. mtg. bracket)

Part #M3D58

The manufacturer no longer makes this part, and there's no substitute part

Insulator M5D268
#17

Replacement parts diagram

Insulator

Part #M5D268

The manufacturer no longer makes this part, and there's no substitute part

Screw, Handle Mtg. M1D667
#55C

Replacement parts diagram

Screw, handle mtg.

Part #M1D667

The manufacturer no longer makes this part, and there's no substitute part

Wheel, Blower (incl. Set Screw) M35D30
#27

Replacement parts diagram

Wheel, blower (incl. set screw)

Part #M35D30

The manufacturer no longer makes this part, and there's no substitute part
