Model # AG9439 Official Speed Queen gas dryer

Here are the diagrams and repair parts for Official Speed Queen AG9439 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

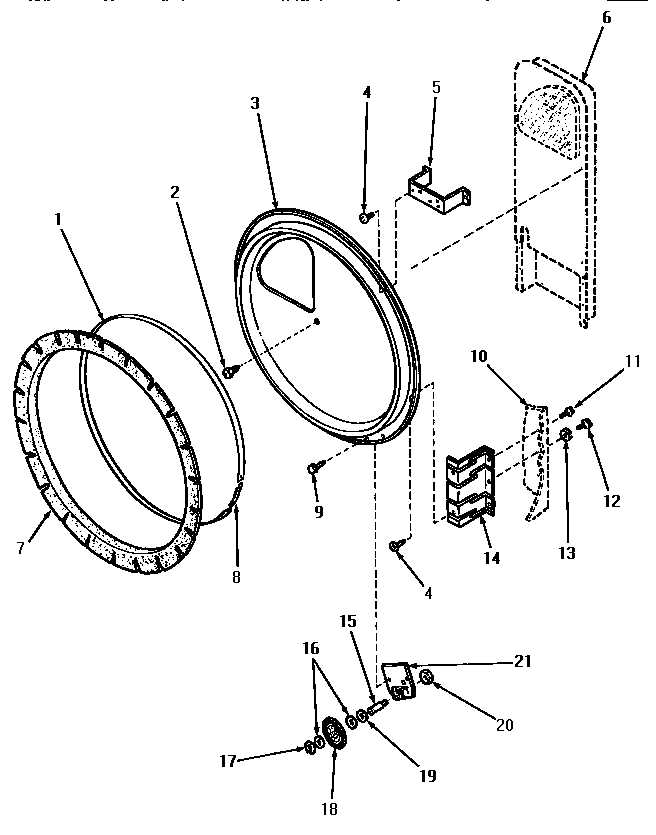

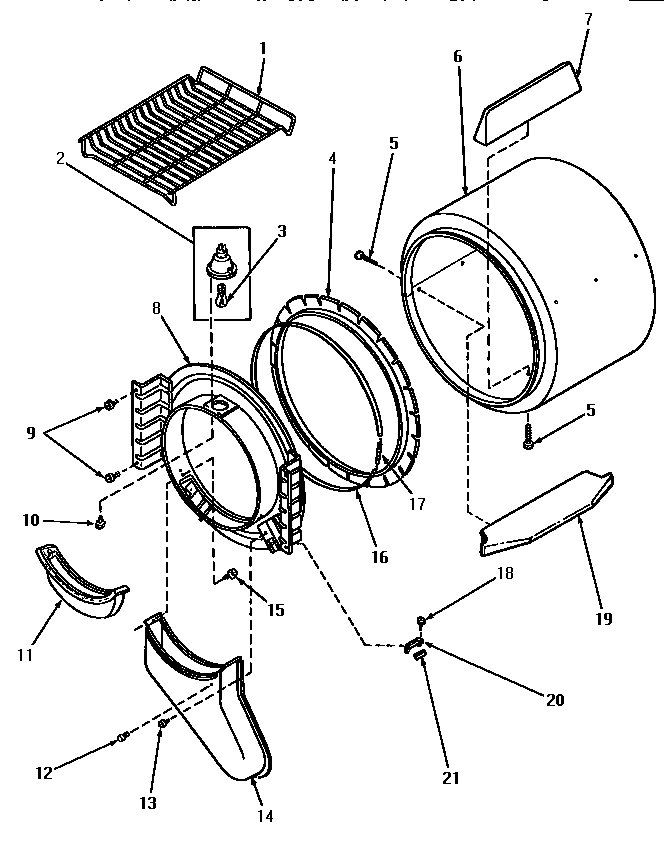

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 258 parts  |
Belt 59174
#9

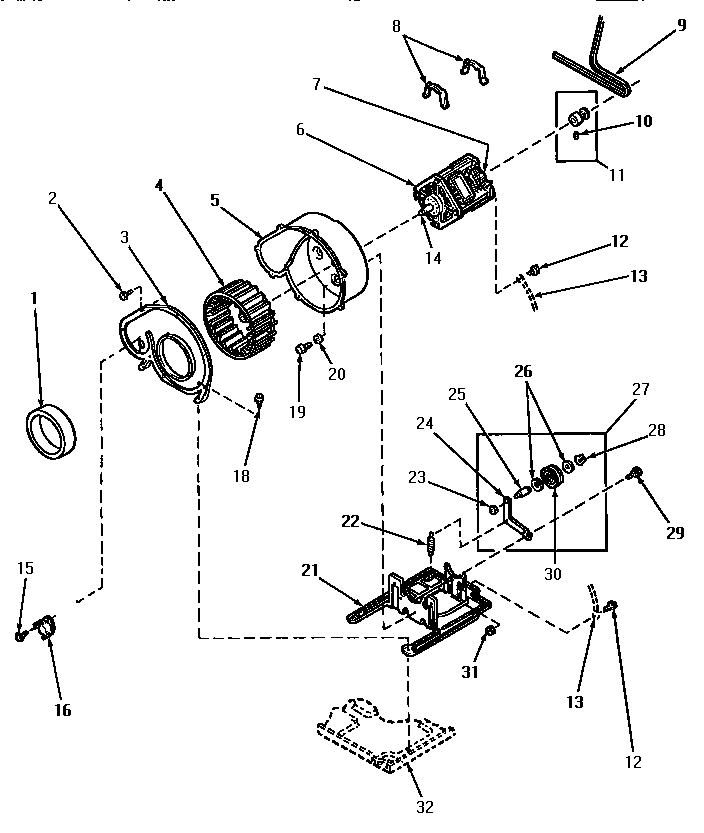

Motor, exhaust fan and belt diagram

Belt

Part #59174

Replaced by #661570V

?
Manufacturer substitution
This part replaces 59174. Substitute parts can look different from the original.
BEST SELLER
$19.35 |
9% OFF Phone Price : $21.35
In Stock
Dryer Blower Fan 56000
#4

Motor, exhaust fan and belt diagram

Dryer blower fan

Part #56000

The manufacturer no longer makes this part, and there's no substitute part

Idler Wheel 54414
#30

Motor, exhaust fan and belt diagram

Idler wheel

Part #54414

Replaced by #WPY54414

?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
BEST SELLER
$18.57 |
10% OFF Phone Price : $20.57
In Stock
Door Switch 56052
#5

Loading door, front panel and seals diagram

Door switch

Part #56052

Replaced by #W10169313

?
Manufacturer substitution
This part replaces 56052. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Door Catch 54660
#8

Loading door, front panel and seals diagram

Door catch

Part #54660

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54660. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Door Strike 54661
#17

Loading door, front panel and seals diagram

Door strike

Part #54661

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54661. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Speed Queen Coil 58804B
#10

Gas valve and igniter diagram

Speed queen coil

Part #58804B

$28.80
In Stock
Screw 32671
Screw

Part #32671

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 32671. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Terminal Block 61923P
#6

Terminal block diagram

Terminal block

Part #61923P

Replaced by #WP61923

?
Manufacturer substitution
This part replaces 61923P. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Speed Queen Anti-seize Compound-1 Oz Tub 27604P
#14

Motor, exhaust fan and belt diagram

Speed queen anti-seize compound-1 oz tub

Part #27604P

$11.63
In Stock
