Model # 867763712 Official Kenmore gas-fired space saver furnace
Here are the diagrams and repair parts for Official Kenmore 867763712 gas-fired space saver furnace, as well as links to manuals and error code tables, if available.
By Schematic

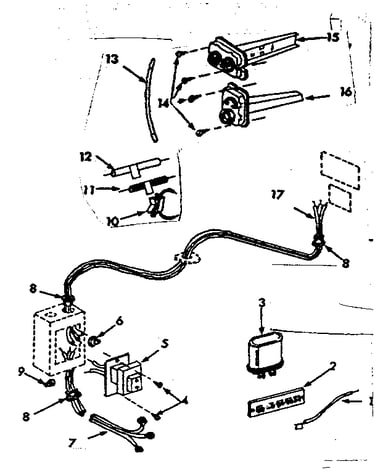

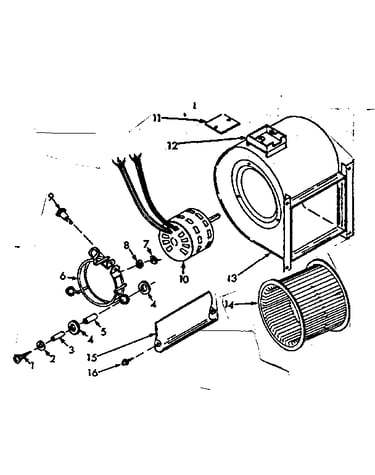

SELECT DIAGRAM
Browse Parts for
867763712 Gas-Fired Space Saver Furnace
#NI

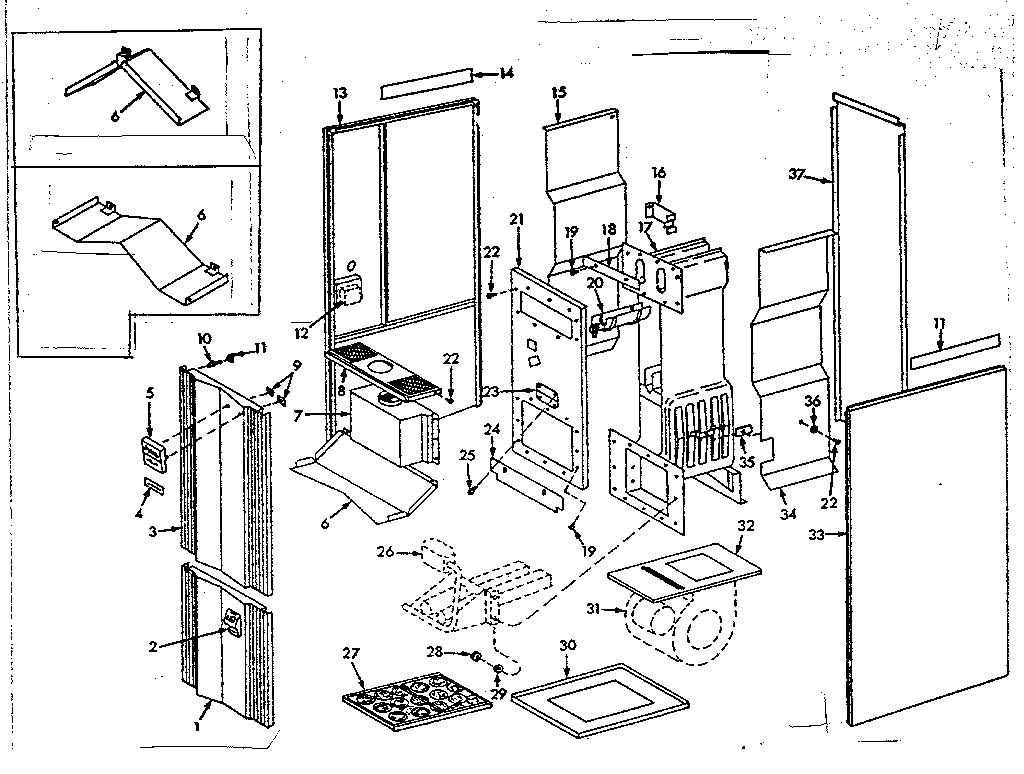

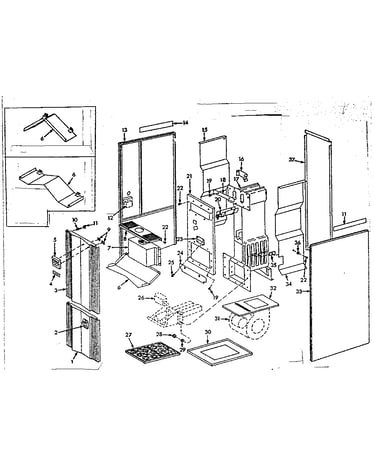

All parts diagram
Thermostat
Part #9235
The manufacturer no longer makes this part, and there's no substitute part
Pilot burner
Part #45893
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostat
Part #9233
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostat
Part #9236
The manufacturer no longer makes this part, and there's no substitute part
Gas valve
Part #73519
Replaced by #36C03-333
?
Manufacturer substitution
This part replaces 73519. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
Orifice
Part #46632
The manufacturer no longer makes this part, and there's no substitute part
#2

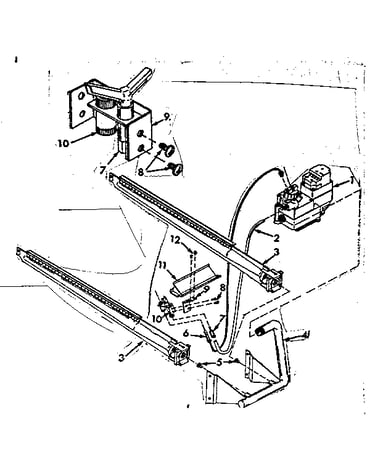

Burner & manifold assembly diagram
Tubing pilot
Part #69455
Replaced by #100108370
?
Manufacturer substitution
This part replaces 69455. Substitute parts can look different from the original.
$36.67
In Stock
Pilot burner
Part #81295
The manufacturer no longer makes this part, and there's no substitute part
Twist-on wire connector
Part #64383
Replaced by #STD375005
?
Manufacturer substitution
This part replaces 64383. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Air filter
Part #64486
The manufacturer no longer makes this part, and there's no substitute part
