Kenmore
Gas Range

Model # 103735610 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 103735610 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Support 86931
#42

Burner section diagram

Support

Part #86931

This item is not returnable
$2.29
In Stock
Drawer Guide 97820
#91B

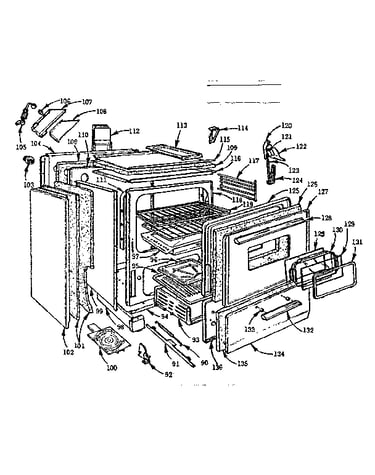

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Door Arm 97758
#122A

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Loxit Nut 79719
#65

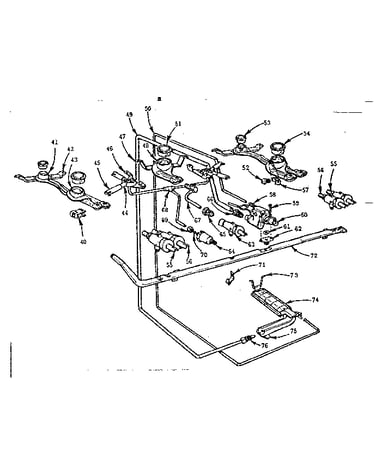

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Door Hinge 97756
#120A

Body section diagram

Door hinge

Part #97756

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 97929
#132

Body section diagram

Door handle

Part #97929

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 96212
#107

Body section diagram

Box cover

Part #96212

The manufacturer no longer makes this part, and there's no substitute part

Spit Assembly 71903
#152

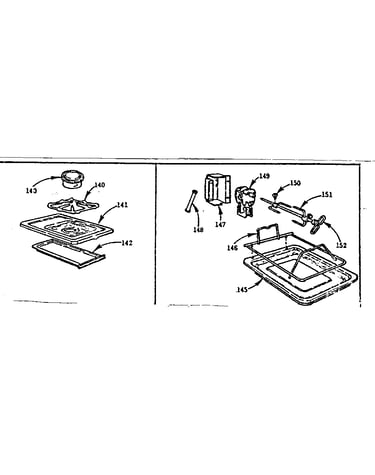

Optional equipment diagram

Spit assembly

Part #71903

The manufacturer no longer makes this part, and there's no substitute part

Valve Knob 97996
#25

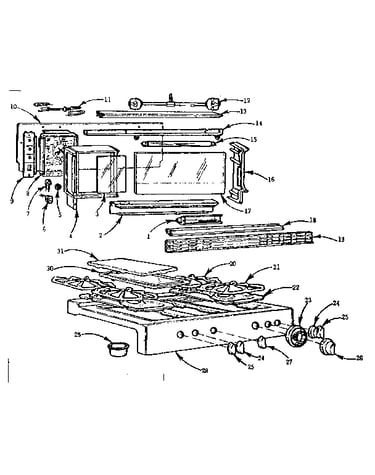

Backguard and main top diagram

Valve knob

Part #97996

The manufacturer no longer makes this part, and there's no substitute part
