Model # WWA8879RBLAA Official GE backsplash

Here are the diagrams and repair parts for Official GE WWA8879RBLAA backsplash, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

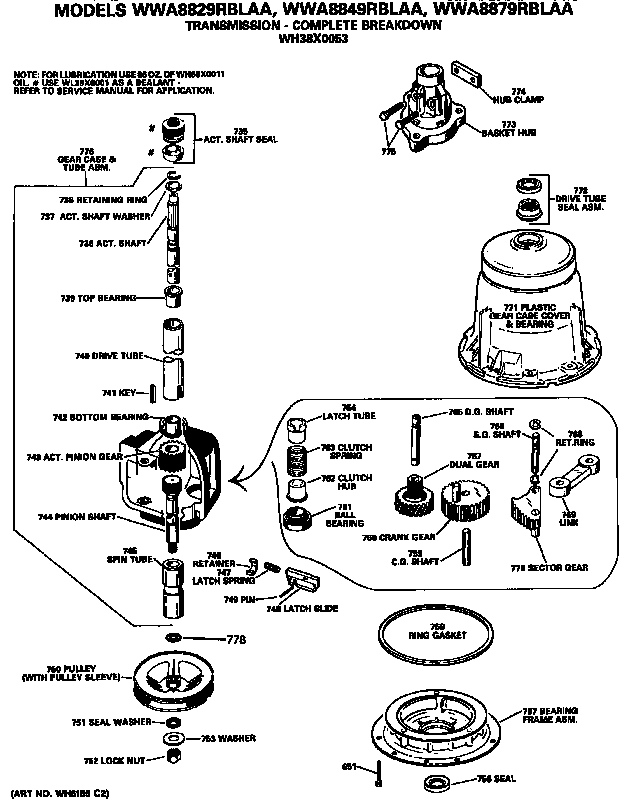

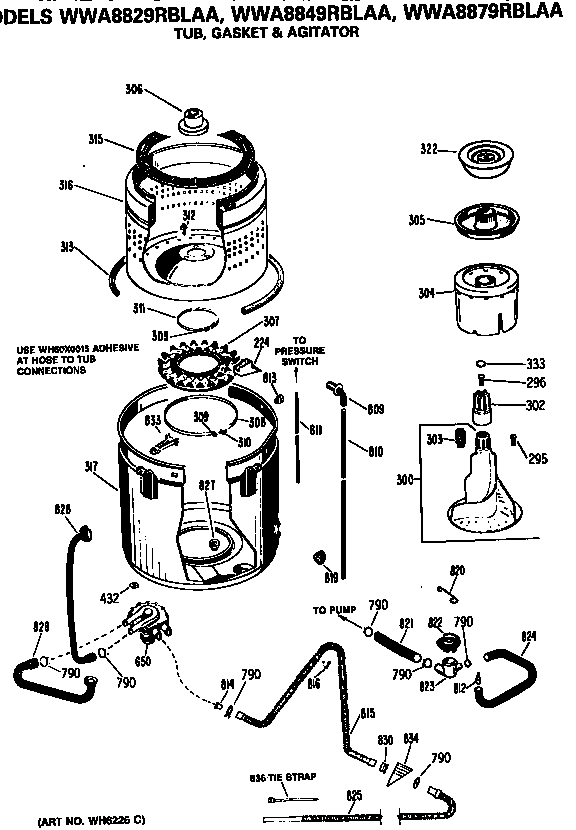

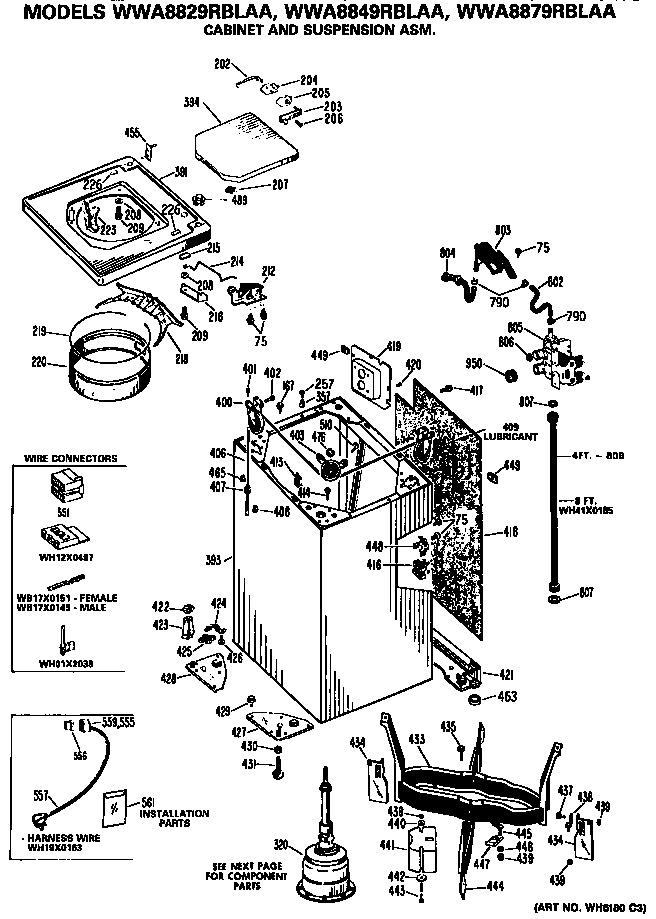

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |

Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117

#9

All parts diagram

Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

BEST SELLER
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Washer Hose Clamp Kit WH1X2036

#790

All parts diagram

Washer hose clamp kit

Part #WH1X2036

$11.59
15% OFF Phone Price : $13.59
In Stock
Washer Drain Hose WH41X324

#825

All parts diagram

Washer drain hose

Part #WH41X324

$21.10
22% OFF Phone Price : $27.10
In Stock
Washer Leveling Leg Rubber Pad WH1X484

#463

All parts diagram

Washer leveling leg rubber pad

Part #WH1X484

$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Drain Hose Retainer Strap WH1X2594

#835

All parts diagram

Washer drain hose retainer strap

Part #WH1X2594

$7.88
11% OFF Phone Price : $8.88
In Stock
Use And Care Guide 49-9772

#1

All parts diagram

Use and care guide

Part #49-9772

This item is not returnable
In Stock
Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026

#603

All parts diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

$7.73
11% OFF Phone Price : $8.73
In Stock
Use And Care Guide 49-9771

#1

All parts diagram

Use and care guide

Part #49-9771

This item is not returnable
In Stock
Mini Manual 31-2577

#1

All parts diagram

Mini manual

Part #31-2577

This item is not returnable
In Stock
Mini Manual 31-2576

#1

All parts diagram

Mini manual

Part #31-2576

This item is not returnable
In Stock
