Model # TGO336BGW2 Official Tappan gas over/under range

Here are the diagrams and repair parts for Official Tappan TGO336BGW2 gas over/under range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

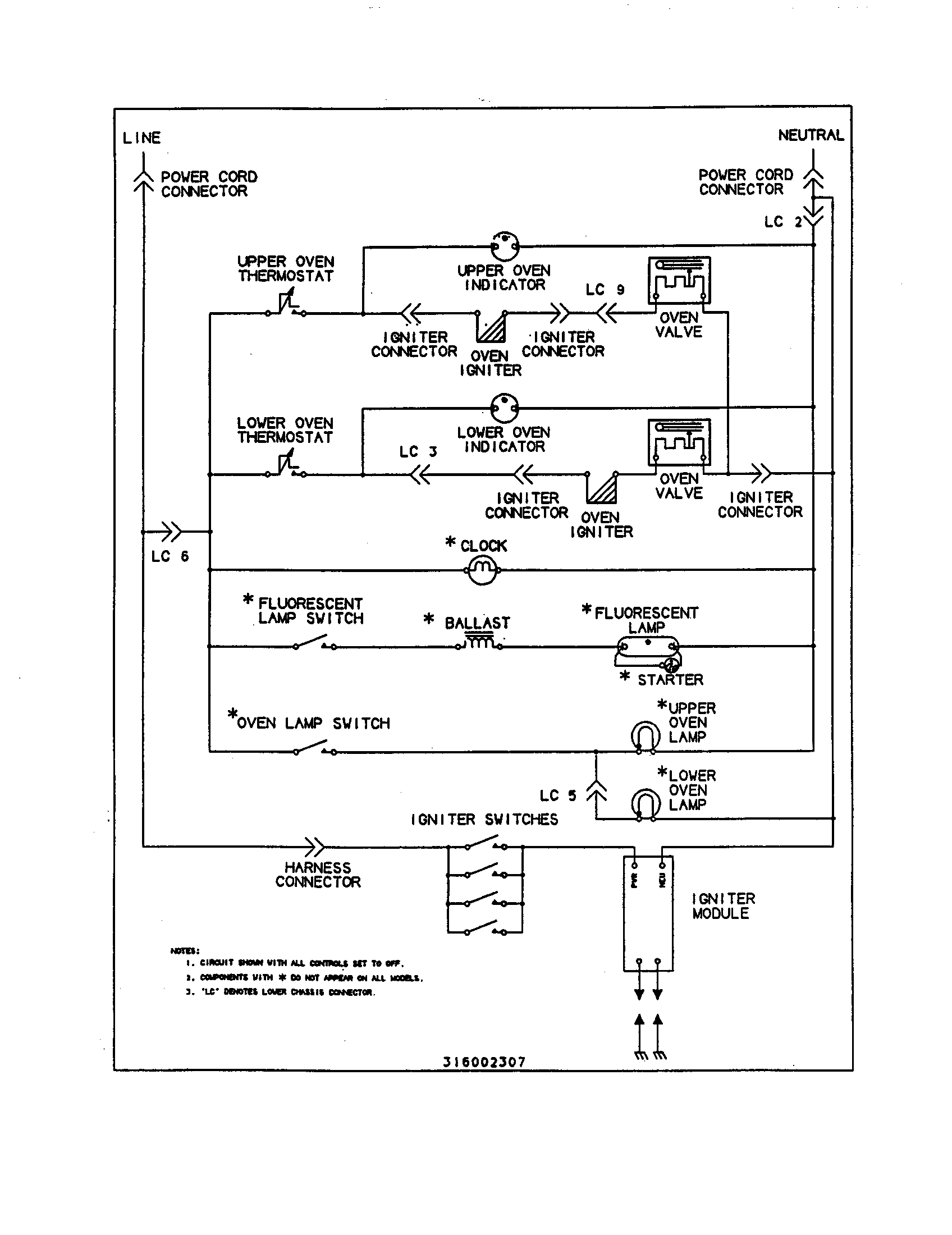

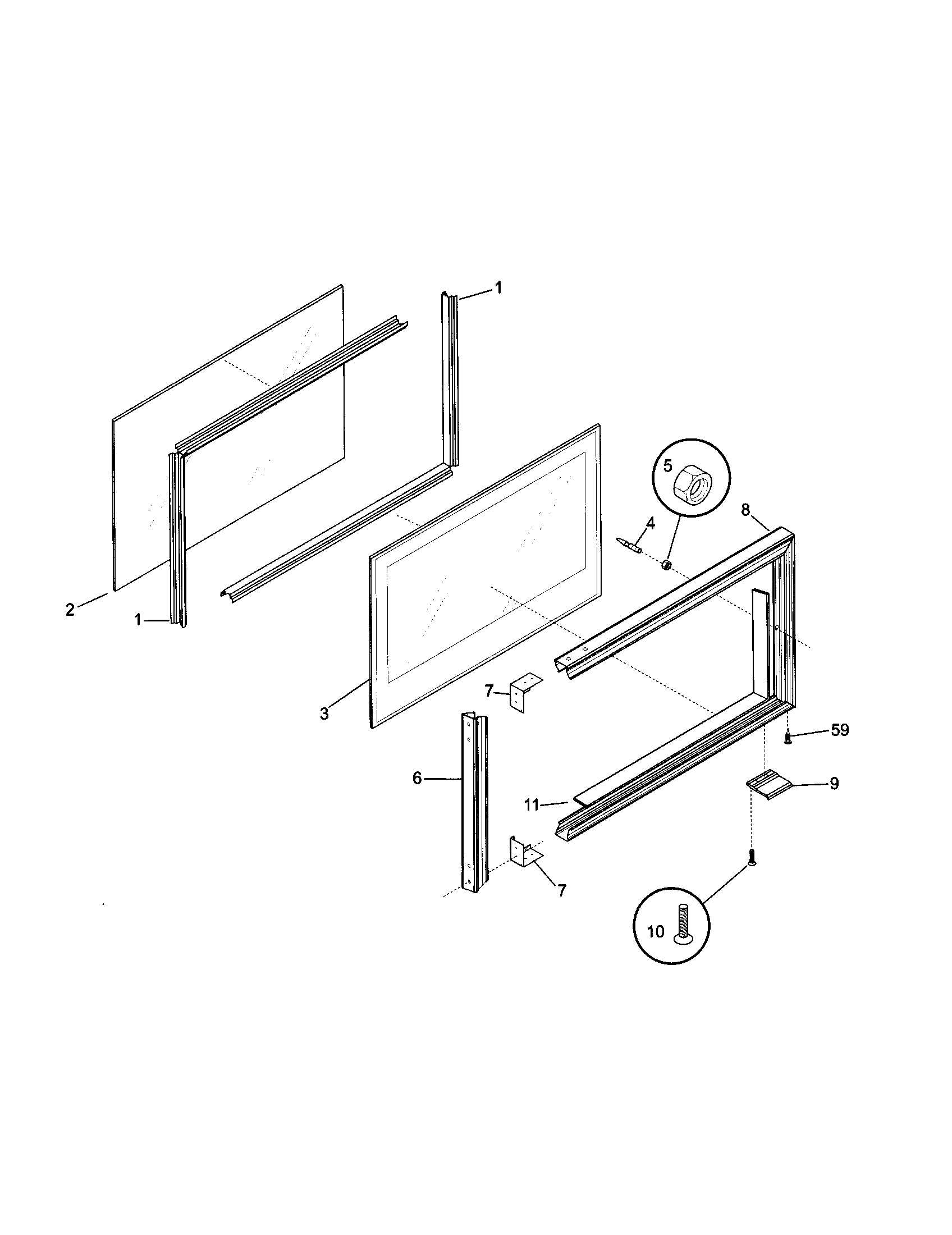

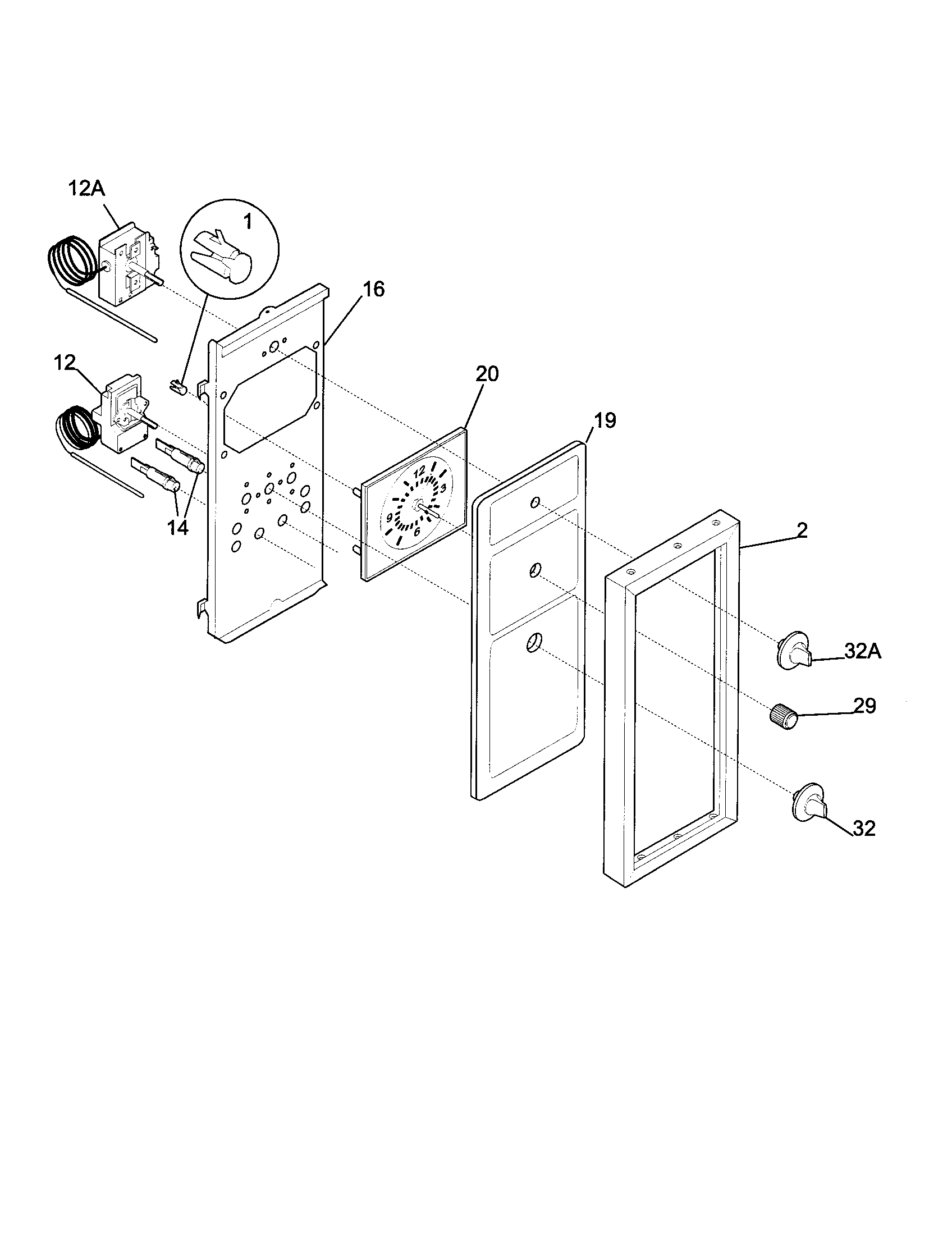

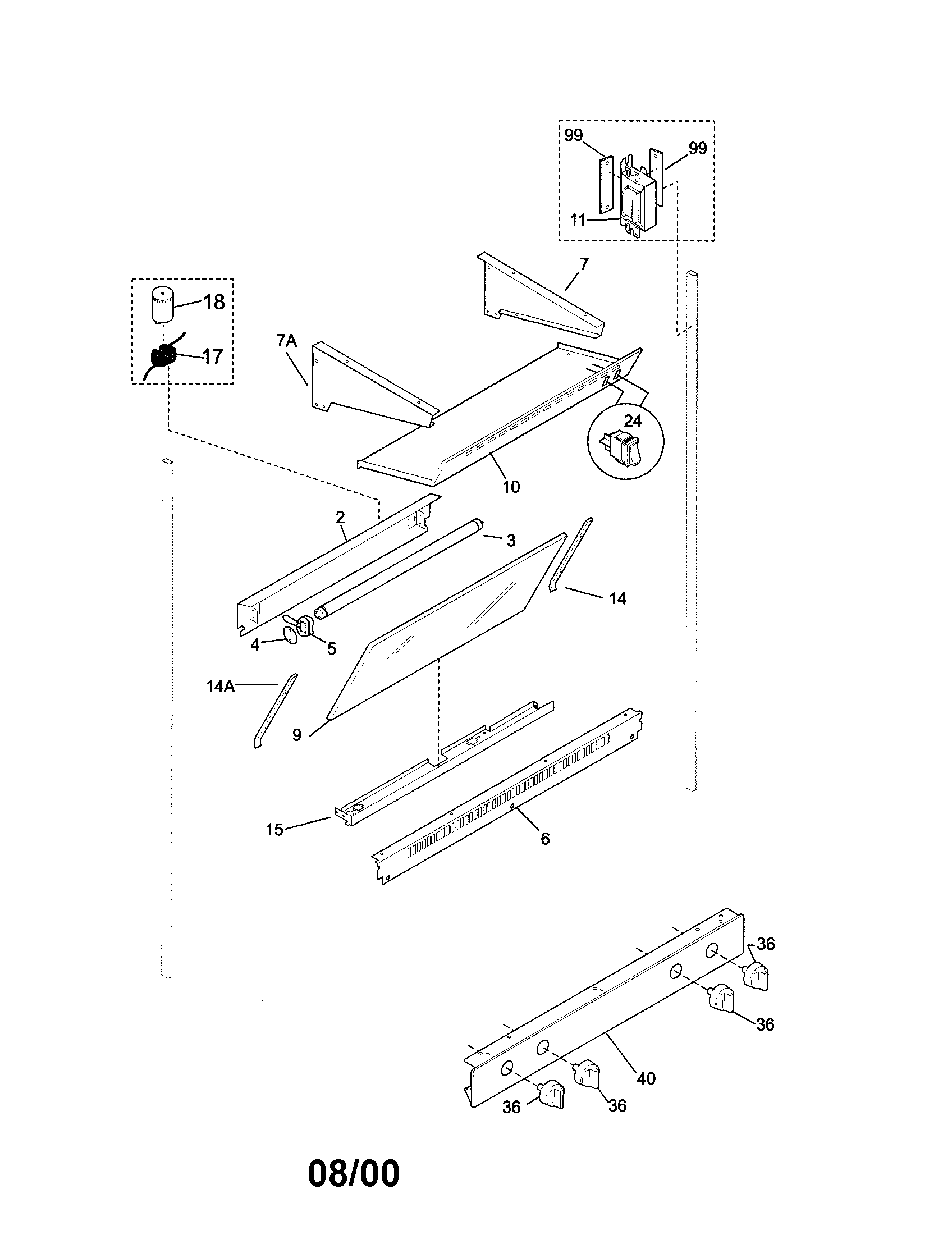

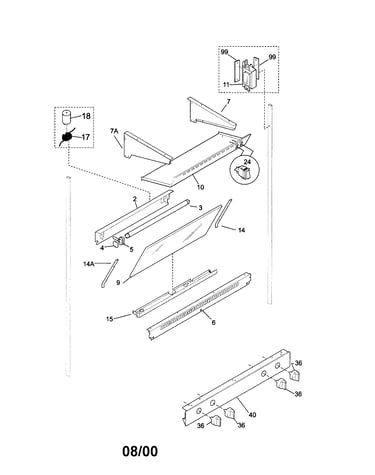

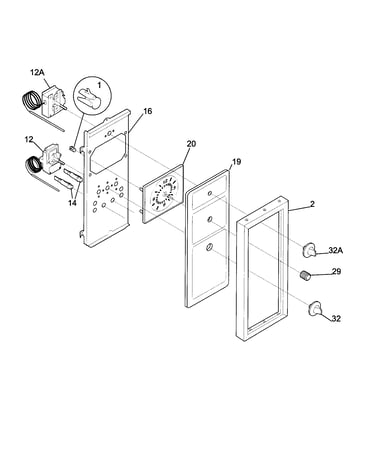

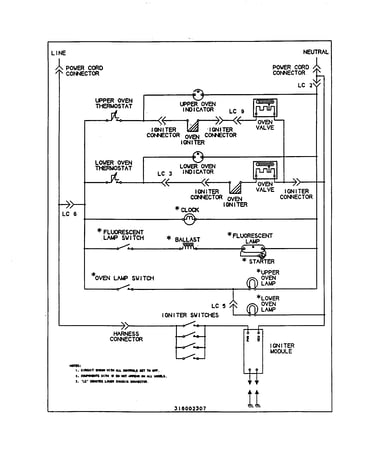

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

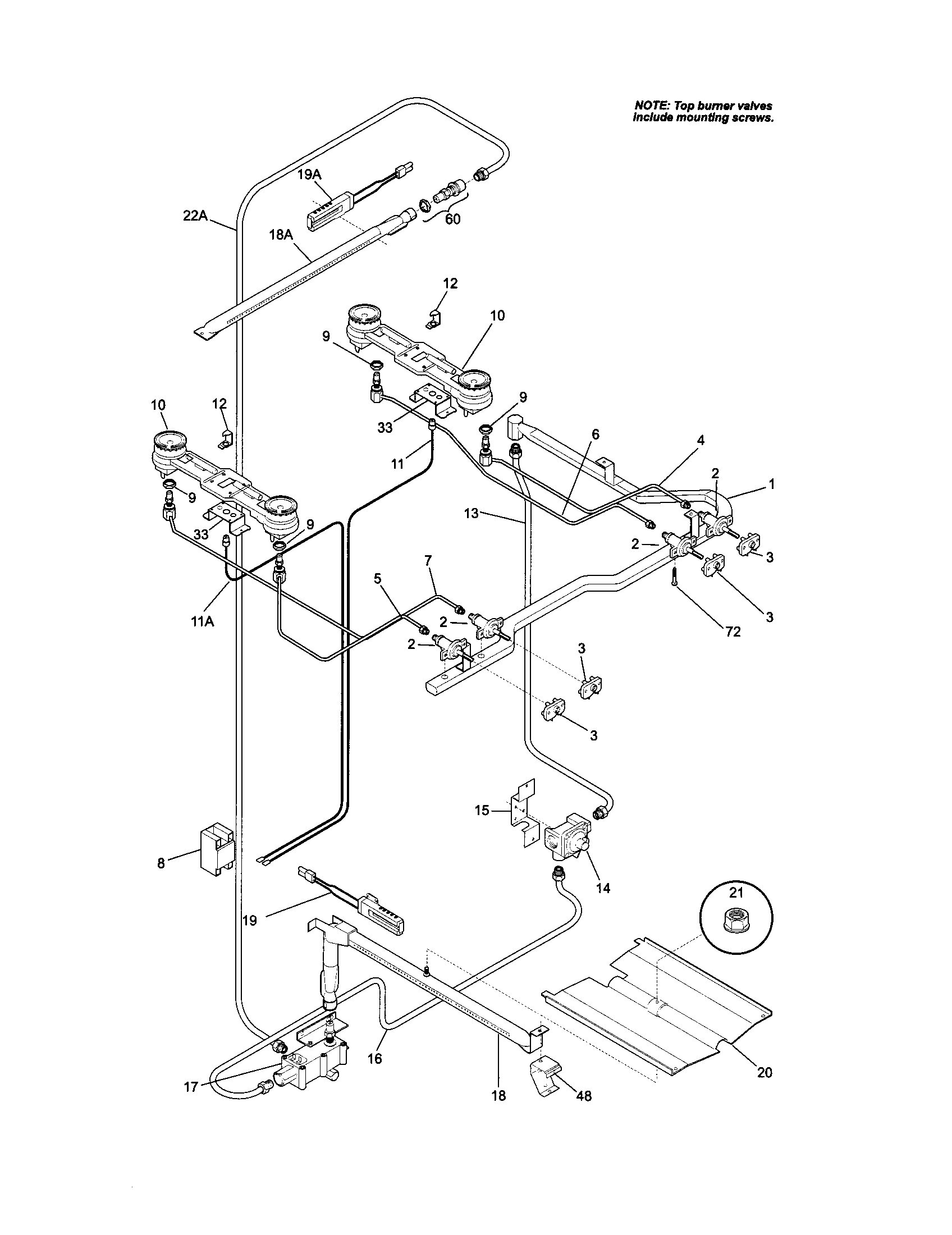

Burner diagram

Range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Range Oven Light Bulb 5303013071
#15

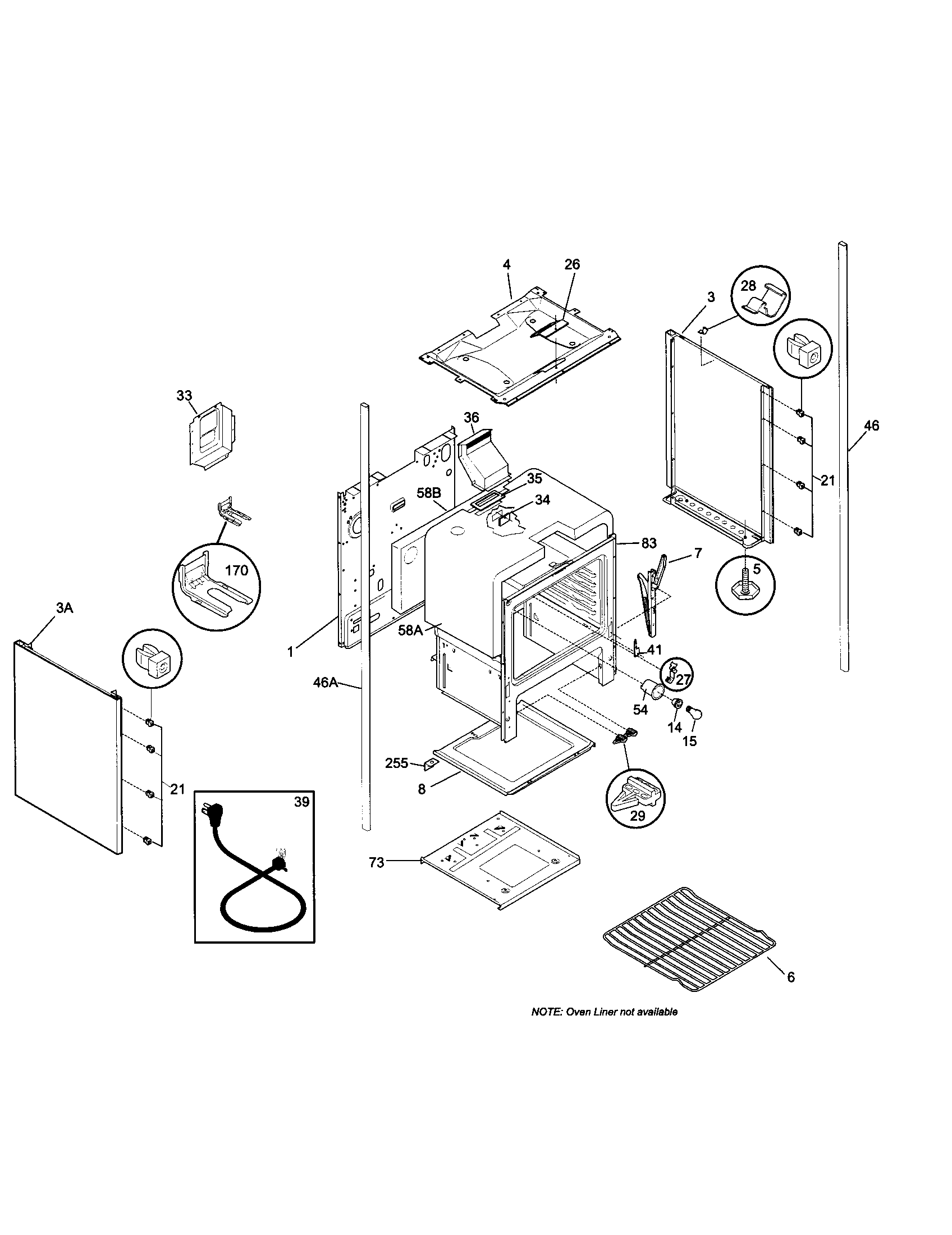

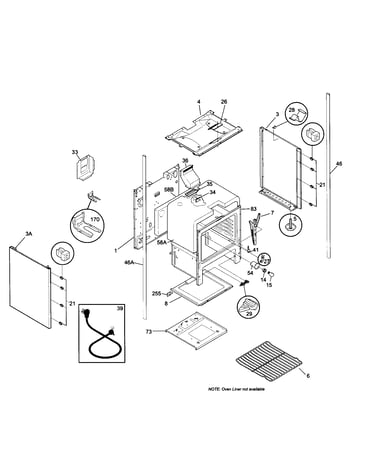

Lower body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Bulb 3201908
#18

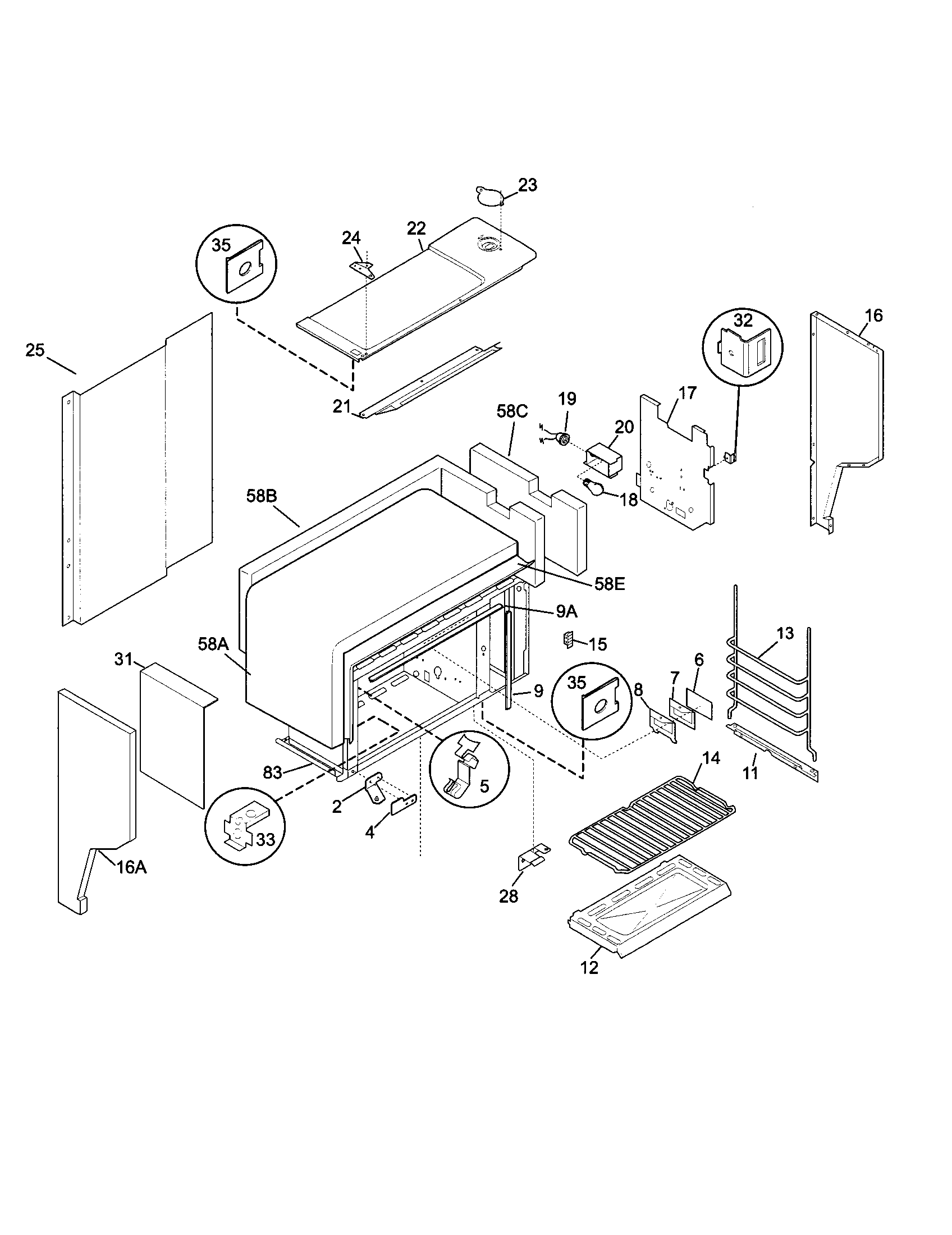

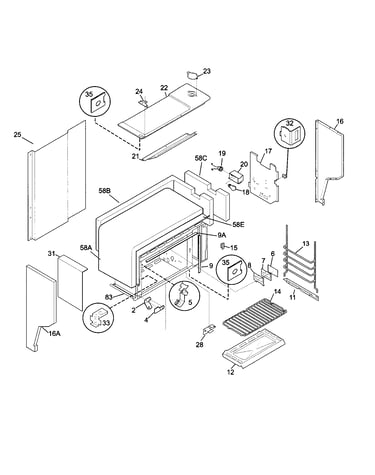

Upper body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$66.32 |
8% OFF Phone Price : $72.32
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#55

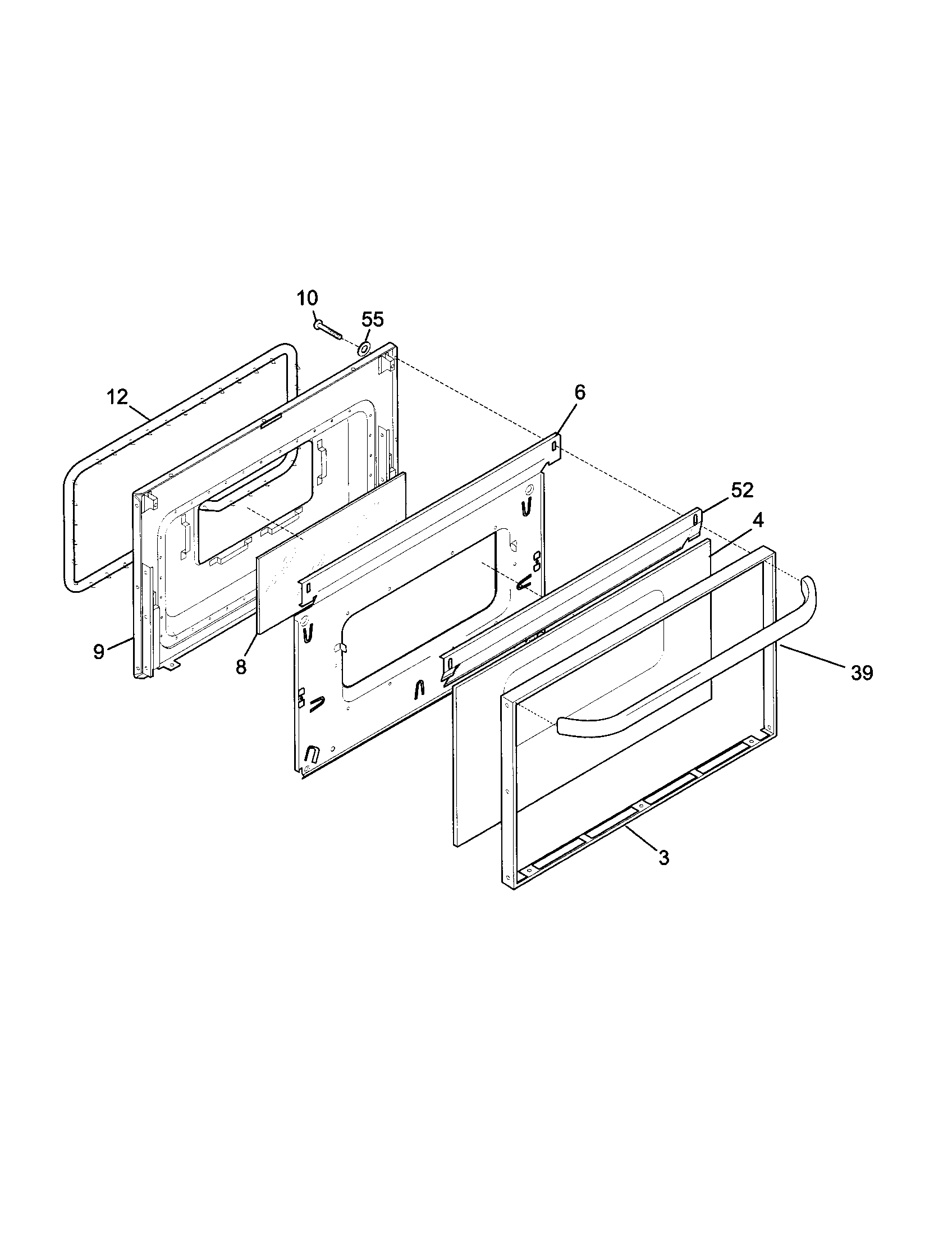

Lower door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Lower body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Receptacle 5308011085
#19

Upper body diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Oven Rack 316067902
#6

Lower body diagram

Range oven rack

Part #316067902

$76.01 |
7% OFF Phone Price : $82.01
In Stock
Range Screw 316021110

#NI

All parts diagram

Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Drawer Screw 316021112
#139

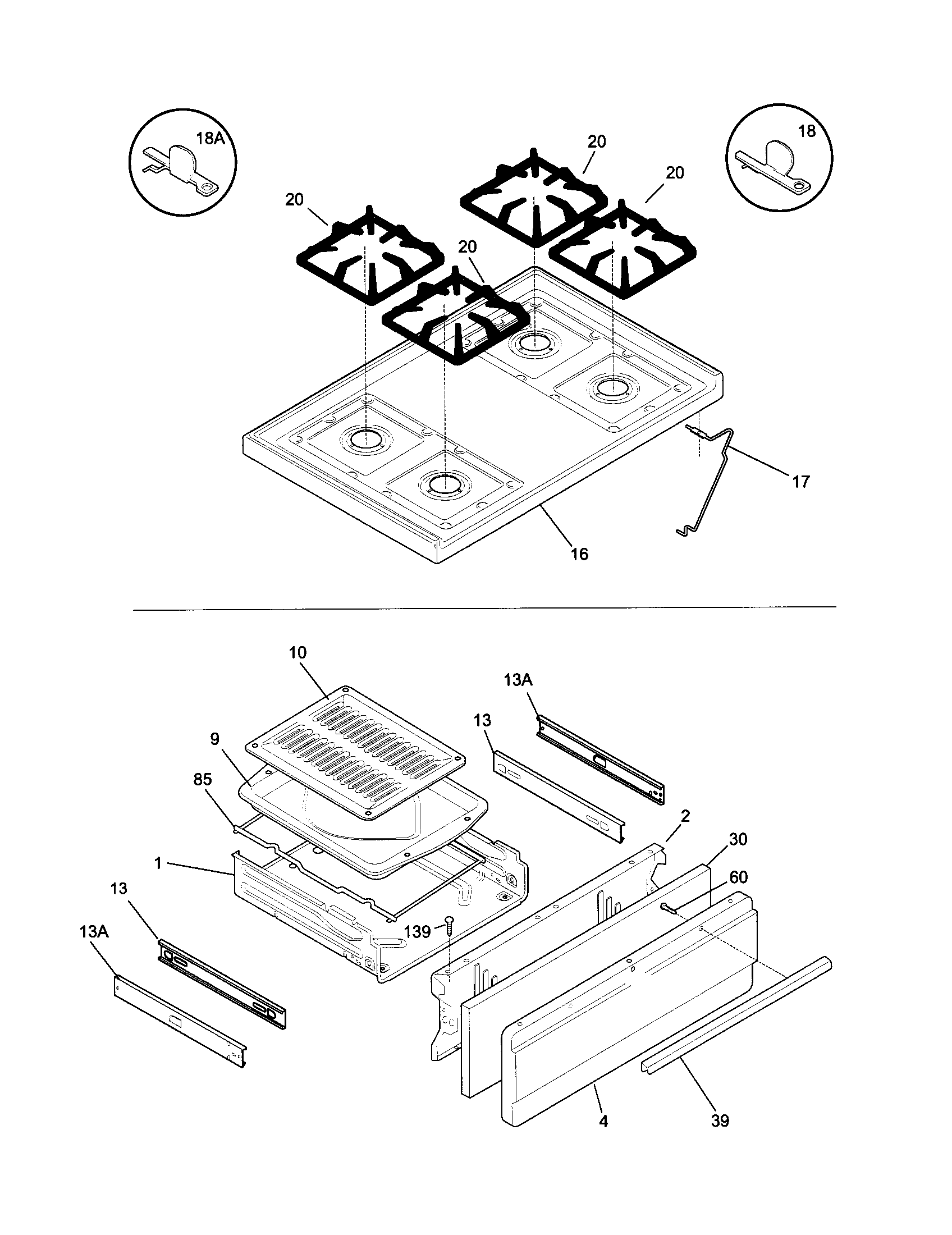

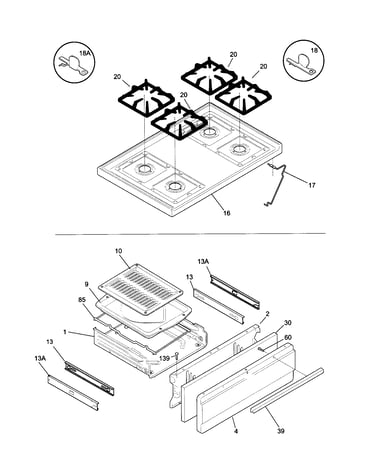

Top/drawer diagram

Drawer screw

Part #316021112

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021112. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
