McCulloch
Lawn Edger

Model # TITAN 2380 GLE 12-400065-01 Official McCulloch edger

Here are the diagrams and repair parts for Official McCulloch TITAN-2380-GLE-12-400065-01 edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

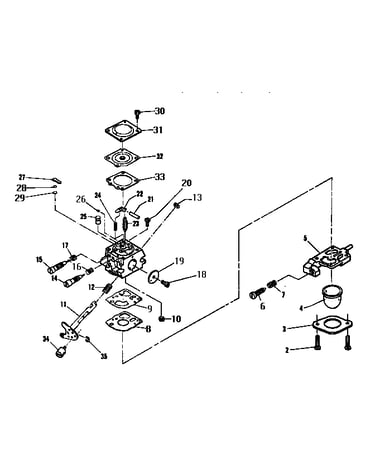

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Muffler Assembly 322011
#25

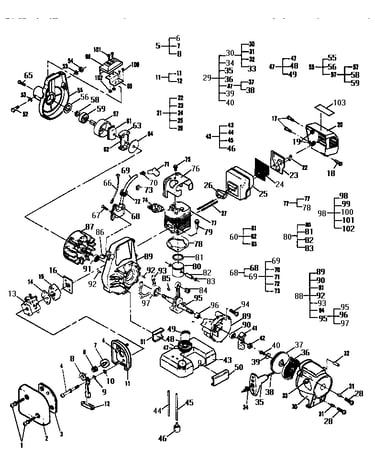

Engine diagram

Muffler assembly

Part #322011

The manufacturer no longer makes this part, and there's no substitute part

Tank/hose As 222239
#43

Engine diagram

Tank/hose as

Part #222239

The manufacturer no longer makes this part, and there's no substitute part

Spring 229973
#8

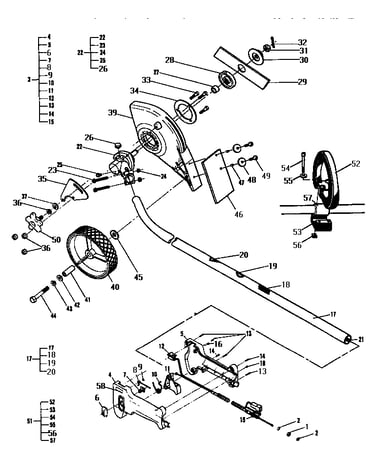

Shaft / shield / cutter diagram

Spring

Part #229973

The manufacturer no longer makes this part, and there's no substitute part

Rotor 215536
#61

Engine diagram

Rotor

Part #215536

The manufacturer no longer makes this part, and there's no substitute part

Screw 111054
#49

Shaft / shield / cutter diagram

Screw

Part #111054

The manufacturer no longer makes this part, and there's no substitute part

Washer 218941
#34

Engine diagram

Washer

Part #218941

The manufacturer no longer makes this part, and there's no substitute part

Spring 223770
#62

Engine diagram

Spring

Part #223770

The manufacturer no longer makes this part, and there's no substitute part

Handle 229836
#5

Shaft / shield / cutter diagram

Handle

Part #229836

The manufacturer no longer makes this part, and there's no substitute part

Starter Housing 301163
#30

Engine diagram

Starter housing

Part #301163

The manufacturer no longer makes this part, and there's no substitute part

Ring 227065
#9

Shaft / shield / cutter diagram

Ring

Part #227065

The manufacturer no longer makes this part, and there's no substitute part
