Kenmore
Water Heater

Model # 153311160 Official Kenmore solar power 8 water heater

Here are the diagrams and repair parts for Official Kenmore 153311160 solar power 8 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Nipple 0560119
#34

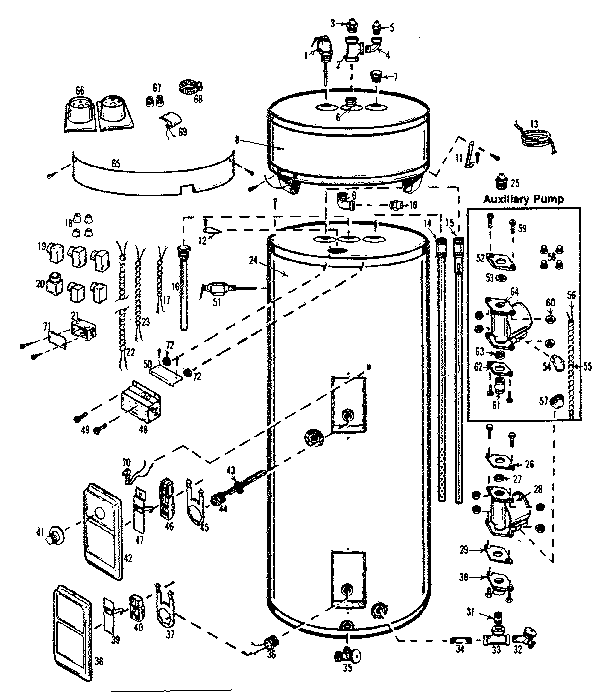

Replacement parts diagram

Nipple

Part #0560119

This item is not returnable
$2.29
In Stock
Nipple 0560033
#31

Replacement parts diagram

Nipple

Part #0560033

This item is not returnable
$2.49
In Stock
Elbow 0660003
#9

Replacement parts diagram

Elbow

Part #0660003

This item is not returnable
$4.49
In Stock
Junction Box 0880008
#21

Replacement parts diagram

Junction box

Part #0880008

This item is not returnable
$4.49
In Stock
Light 9000311
#70

Replacement parts diagram

Light

Part #9000311

$15.49
In Stock
Conduit 0370148
#22

Replacement parts diagram

Conduit

Part #0370148

$7.99
In Stock
T & P Valve 0720054
#51

Replacement parts diagram

T & p valve

Part #0720054

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 2190575
#42

Replacement parts diagram

Access panel

Part #2190575

Replaced by #9002644

?
Manufacturer substitution
This part replaces 2190575. Substitute parts can look different from the original.
$16.99
In Stock
Thermostat Bracket 0110322
Thermostat bracket

Part #0110322

Replaced by #100108380

?
Manufacturer substitution
This part replaces 0110322. Substitute parts can look different from the original.
$27.78
In Stock
Drain 0170032
#32

Replacement parts diagram

Drain

Part #0170032

Replaced by #100108361

?
Manufacturer substitution
This part replaces 0170032. Substitute parts can look different from the original.
$17.14
In Stock
