Model # CSA1201RSS02 Official GE microwave

Here are the diagrams and repair parts for Official GE CSA1201RSS02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

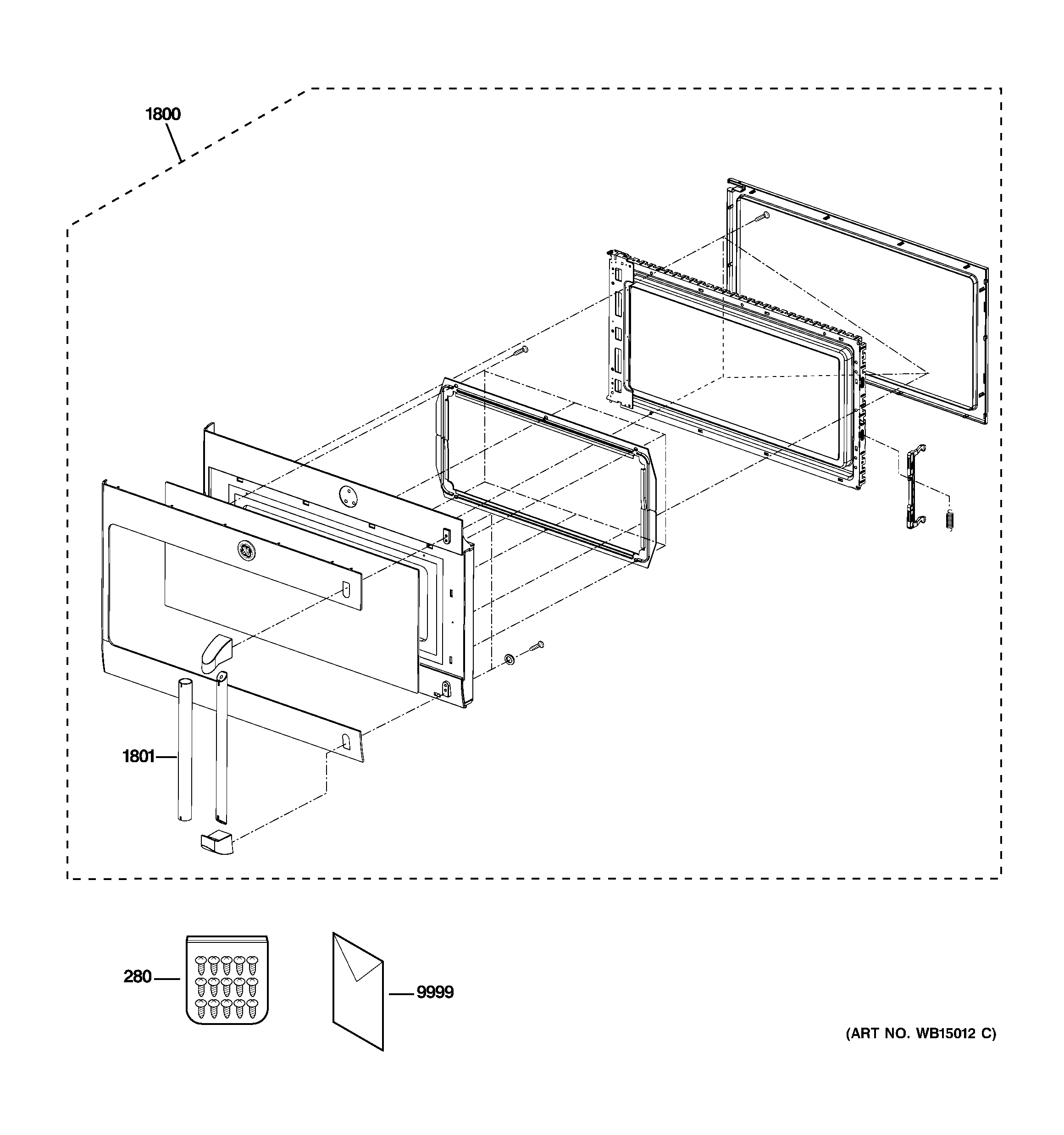

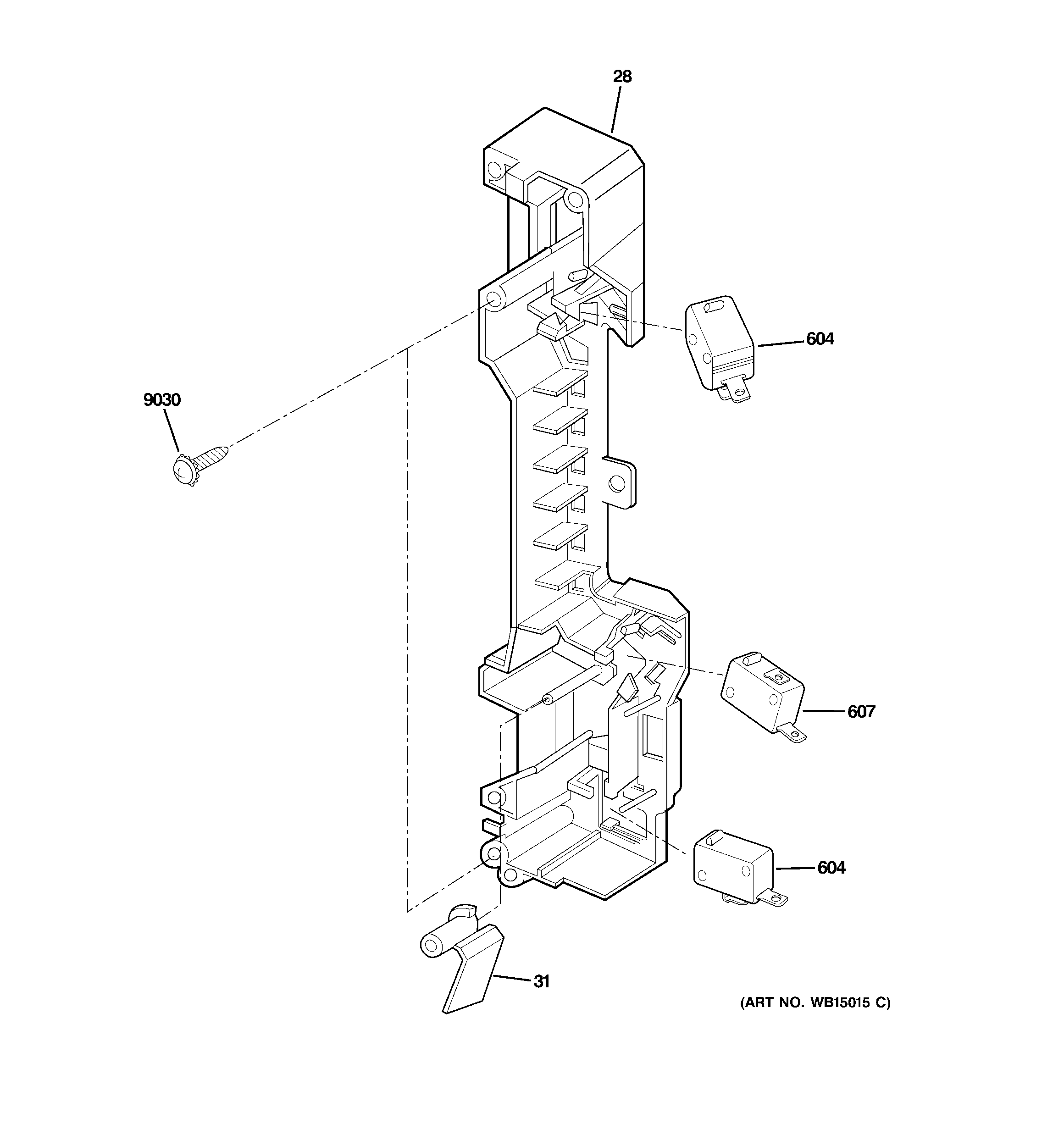

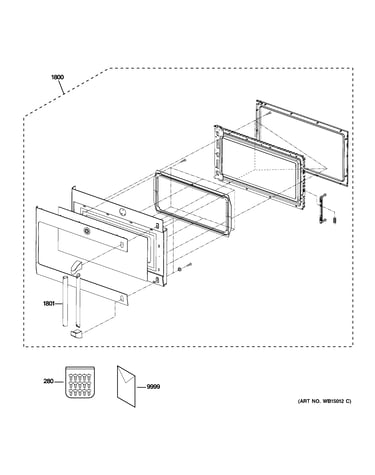

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Microwave Fuse WB27X10388
#47

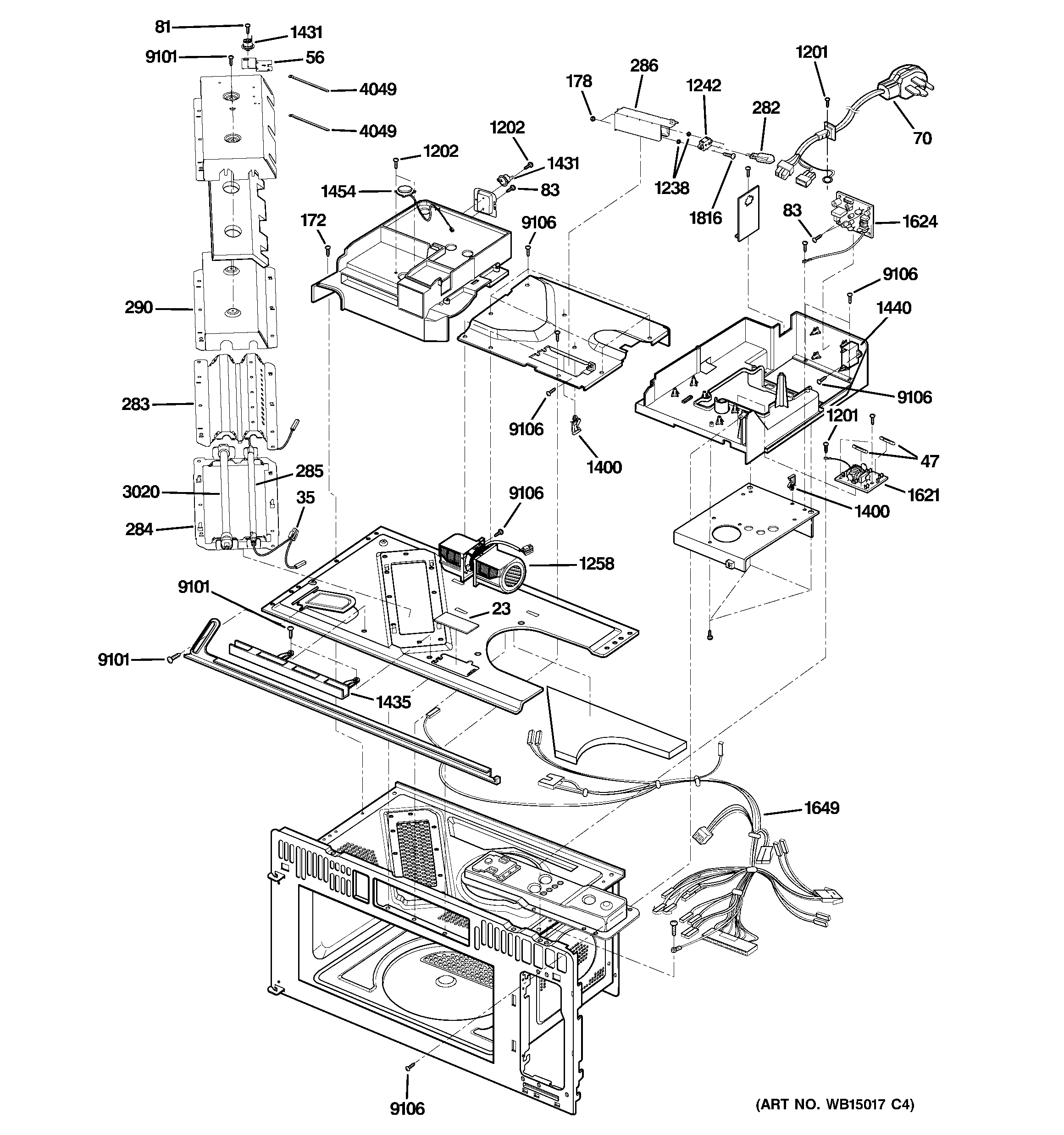

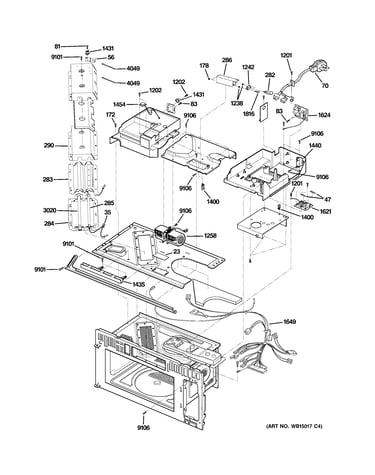

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Cable WB18X10286
#1648

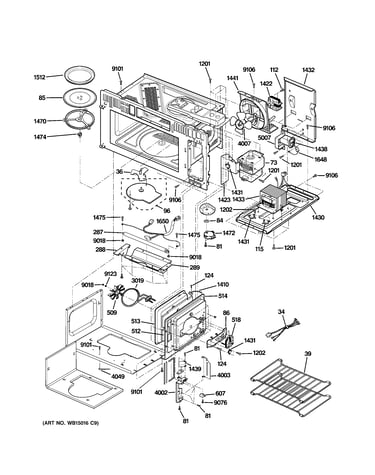

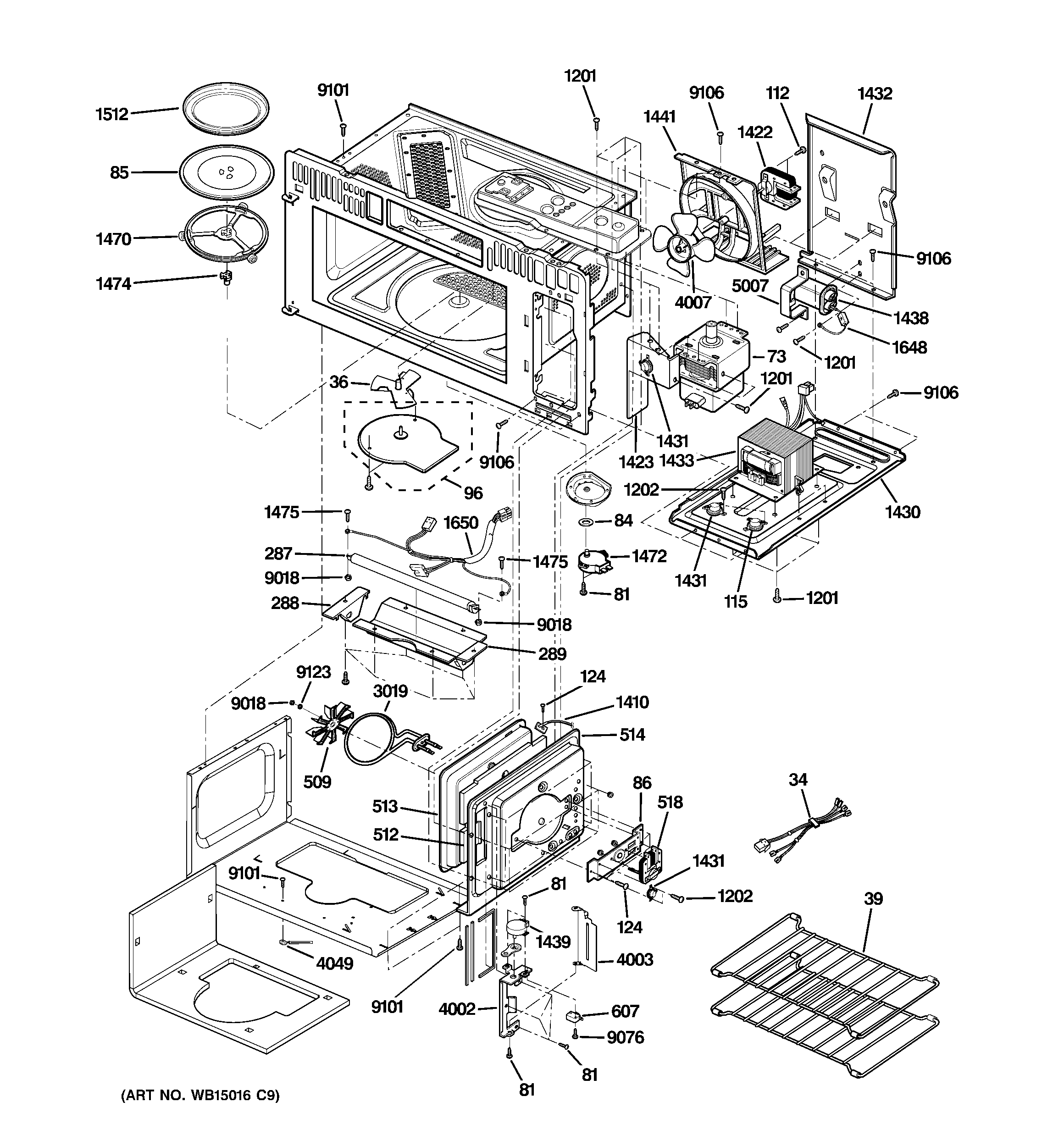

Interior parts (1) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Magnetron WB27X10865
#73

Interior parts (1) diagram

Magnetron

Part #WB27X10865

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb (replaces Wb08x10051, Wb25x21248, Wb25x25393) WB08X10057
#291

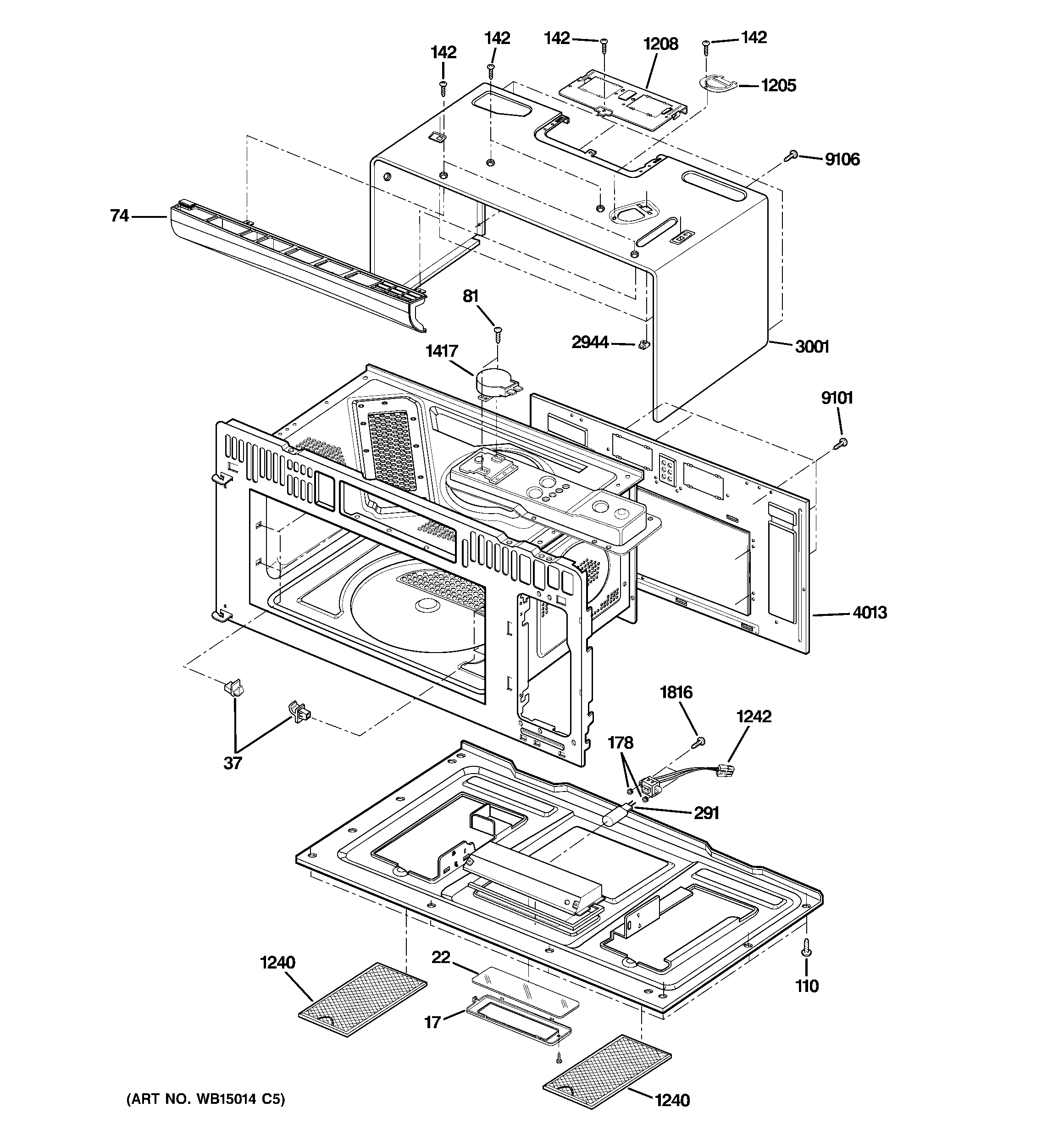

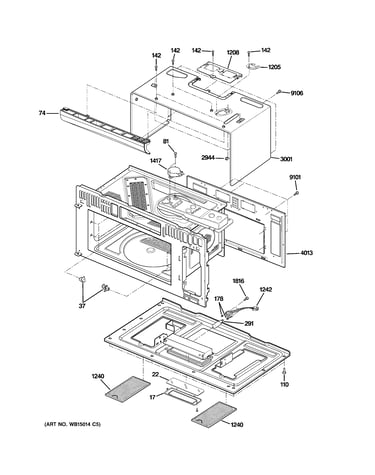

Oven cavity parts diagram

Microwave light bulb (replaces wb08x10051, wb25x21248, wb25x25393)

Part #WB08X10057

BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Microwave High-voltage Capacitor WB27X11031
#1438

Interior parts (1) diagram

Microwave high-voltage capacitor

Part #WB27X11031

BEST SELLER
$39.54 |
13% OFF Phone Price : $45.54
In Stock
Encoder Board WB27X11022
#1610

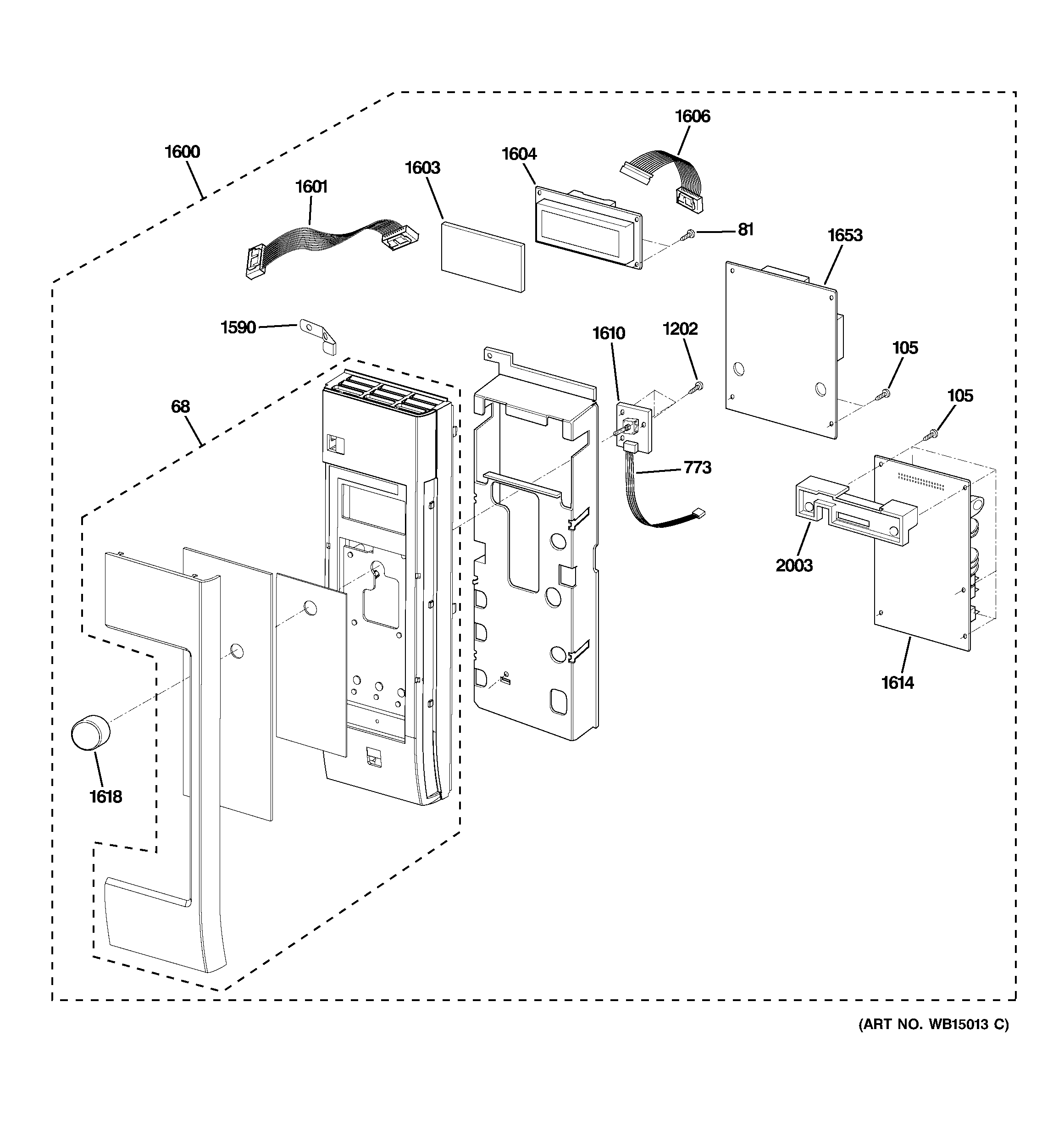

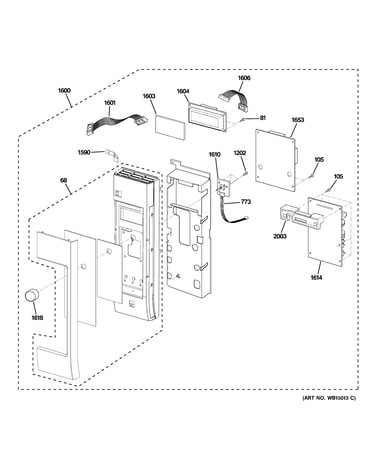

Control parts diagram

Encoder board

Part #WB27X11022

Replaced by #WB27X32632

?
Manufacturer substitution
This part replaces WB27X11022. Substitute parts can look different from the original.
$53.29 |
10% OFF Phone Price : $59.29
In Stock
Wall Oven Display Board WB06X10835
#1604

Control parts diagram

Wall oven display board

Part #WB06X10835

Replaced by #WB27X44086

?
Manufacturer substitution
This part replaces WB06X10835. Substitute parts can look different from the original.
$321.64 |
$12.00 OFF Phone Price : $333.64
In Stock
Microwave Mounting Plate WB56X10204
#9001

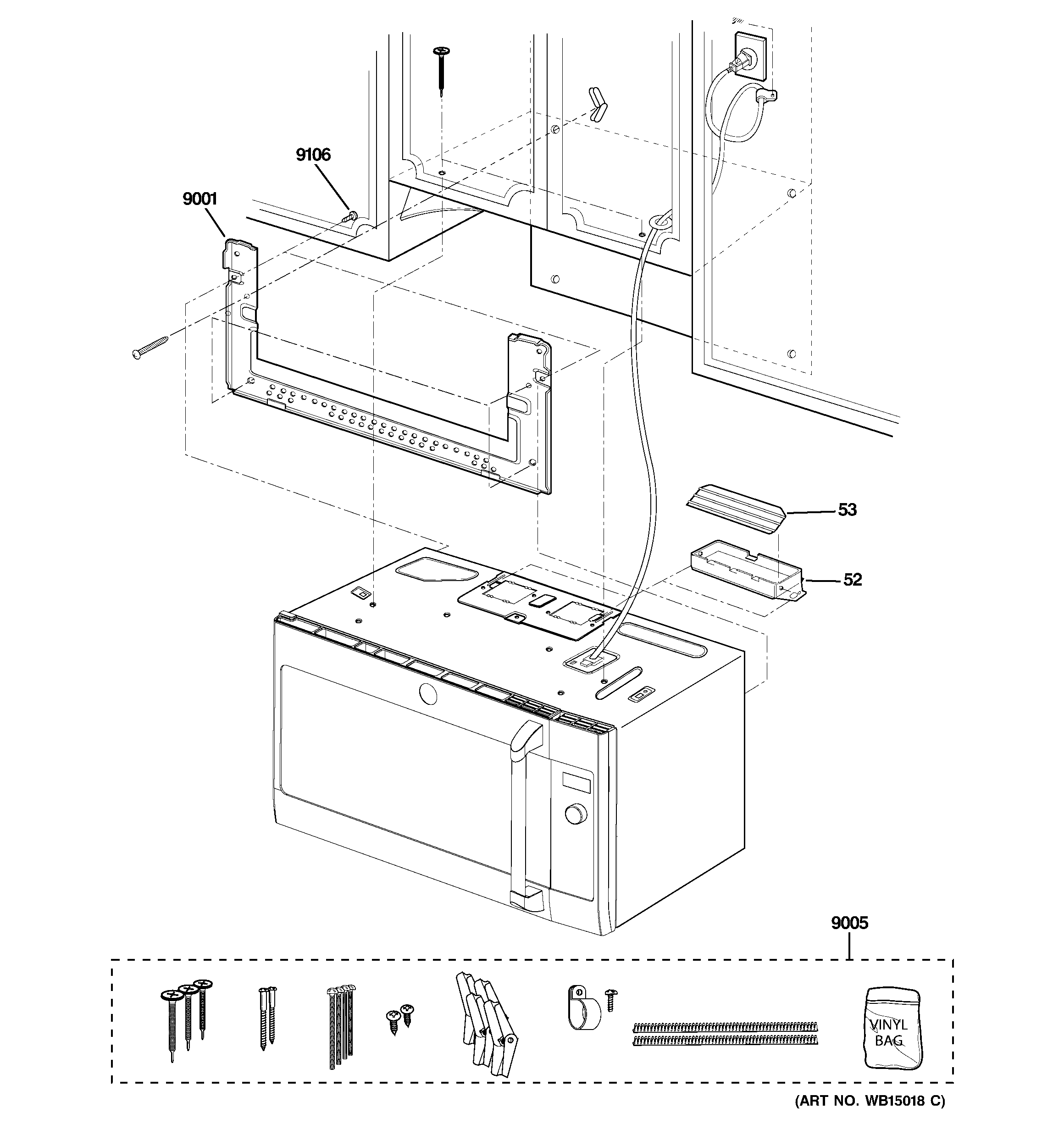

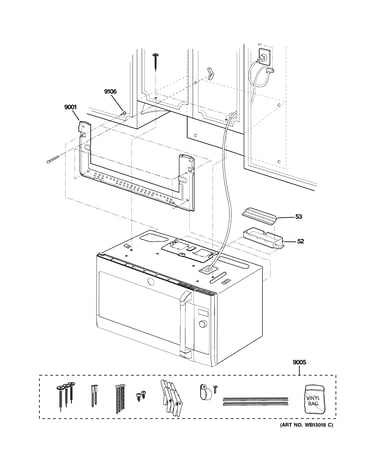

Installation parts diagram

Microwave mounting plate

Part #WB56X10204

Replaced by #WB56X35363

?
Manufacturer substitution
This part replaces WB56X10204. Substitute parts can look different from the original.
This item is not returnable
$20.80 |
22% OFF Phone Price : $26.80
In Stock
Metal Tray WB49X10053
#1512

Interior parts (1) diagram

Metal tray

Part #WB49X10053

Replaced by #WB49X10240

?
Manufacturer substitution
This part replaces WB49X10053. Substitute parts can look different from the original.
$108.72 |
10% OFF Phone Price : $120.72
In Stock
Microwave Vent Hood Thermostat (replaces Wb27x10713) WB27X11034
#115

Interior parts (1) diagram

Microwave vent hood thermostat (replaces wb27x10713)

Part #WB27X11034

$15.47 |
11% OFF Phone Price : $17.47
In Stock
