Model # GDGM253YLP Official Maytag laundry

Here are the diagrams and repair parts for Official Maytag GDGM253YLP laundry, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

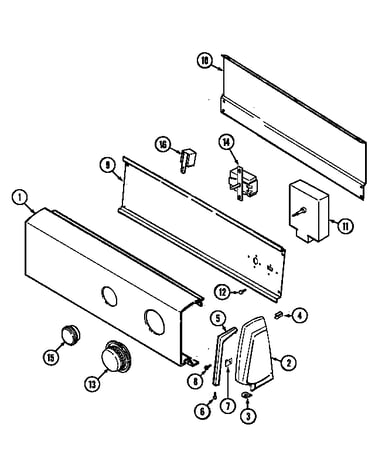

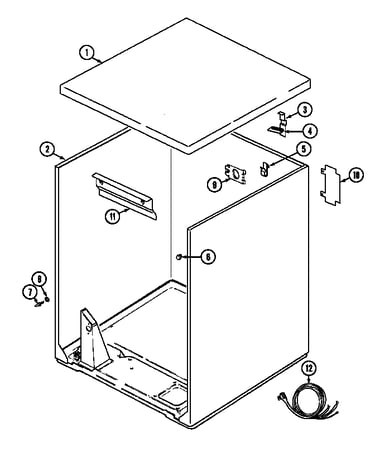

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Belt, Cylind 53-1589
#5

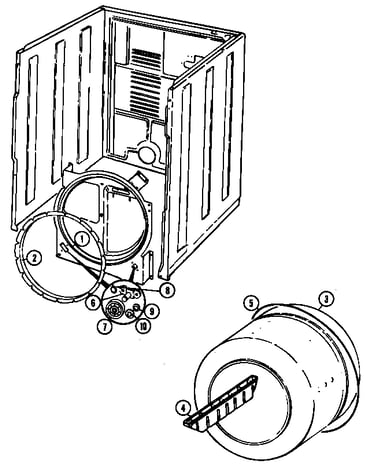

Tumbler diagram

Belt, cylind

Part #53-1589

Replaced by #341241

?
Manufacturer substitution
This part replaces 53-1589. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Sensor 63-5013
#13

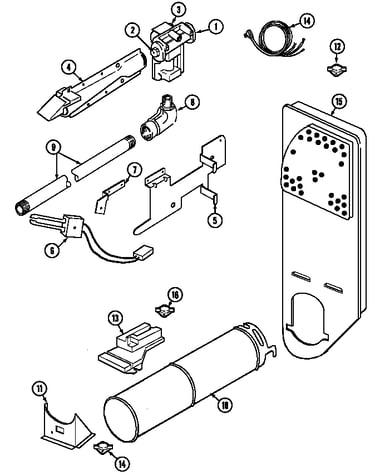

Gas carrying diagram

Sensor

Part #63-5013

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 63-5013. Substitute parts can look different from the original.
BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Clamp 25-7823
#15

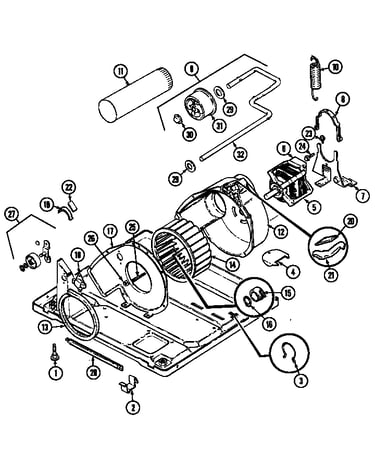

Motor & drive diagram

Clamp

Part #25-7823

Replaced by #WP312967

?
Manufacturer substitution
This part replaces 25-7823. Substitute parts can look different from the original.
BEST SELLER
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Screw, Suppo 25-7828
#22A

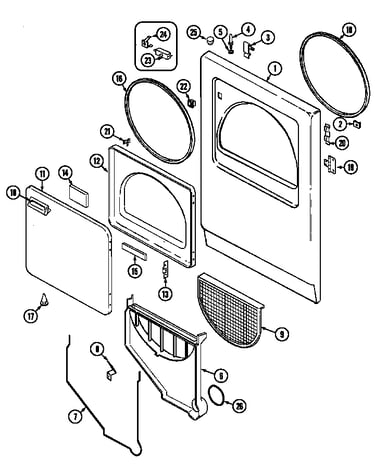

Door diagram

Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Motor Clamp 53-0214
#8

Motor & drive diagram

Motor clamp

Part #53-0214

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 53-0214. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 25-7820
#2A

Door diagram

Screw

Part #25-7820

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 25-7820. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Locator Nut 25-0224
Locator nut

Part #25-0224

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Idler Pulley 53-1628
#31

Motor & drive diagram

Idler pulley

Part #53-1628

Replaced by #WP31001344

?
Manufacturer substitution
This part replaces 53-1628. Substitute parts can look different from the original.
This item is not returnable
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Idler Assembly 53-2287
#9

Motor & drive diagram

Idler assembly

Part #53-2287

Replaced by #WP53-2287

?
Manufacturer substitution
This part replaces 53-2287. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Idler Arm 53-2250
#32

Motor & drive diagram

Idler arm

Part #53-2250

Replaced by #WP53-2287

?
Manufacturer substitution
This part replaces 53-2250. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
