Bosch
Circular Saw

Model # CCS180B Official Bosch circular saw

Here are the diagrams and repair parts for Official Bosch CCS180B circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Bosch Switch Pcb 1607233334
#4

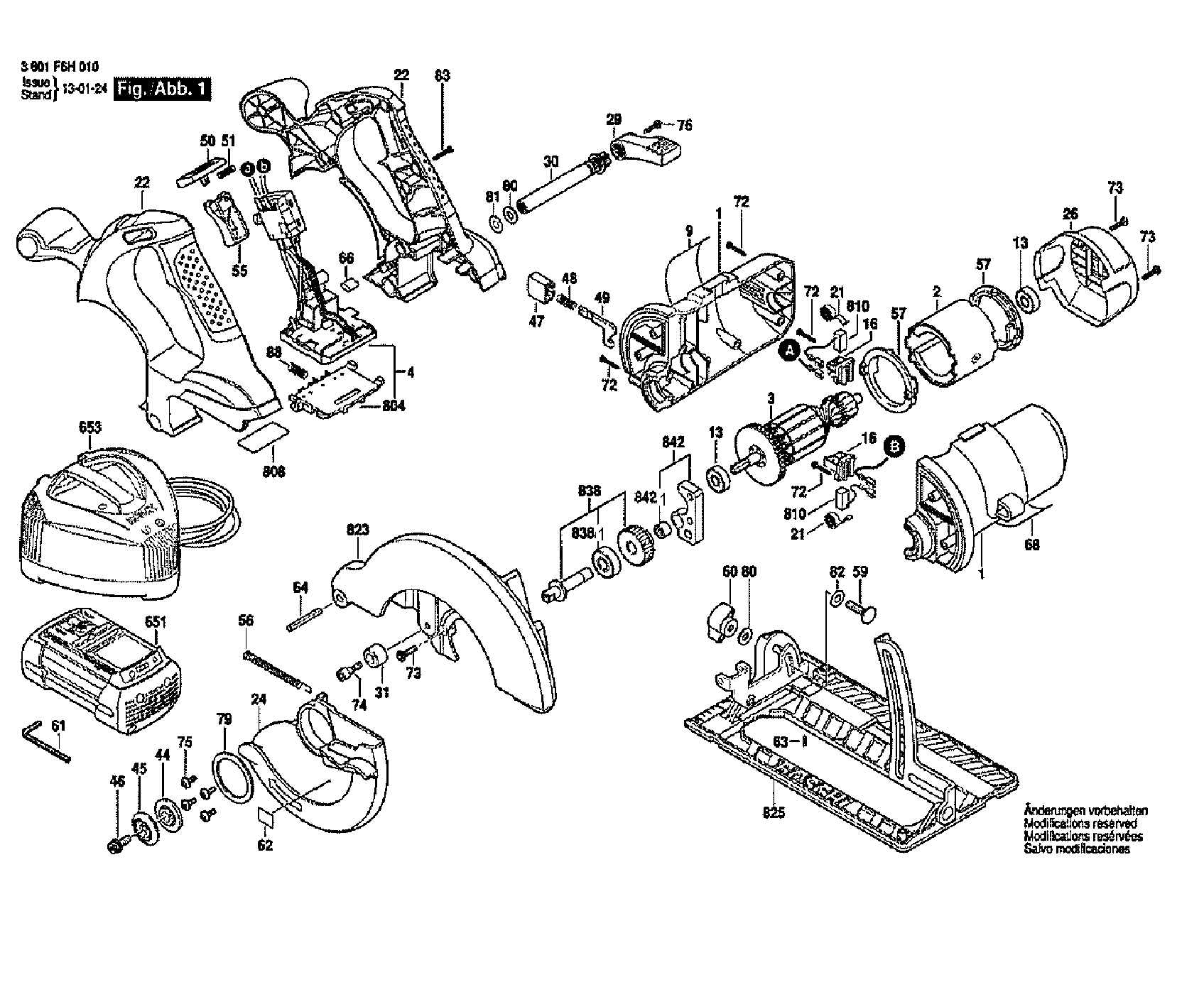

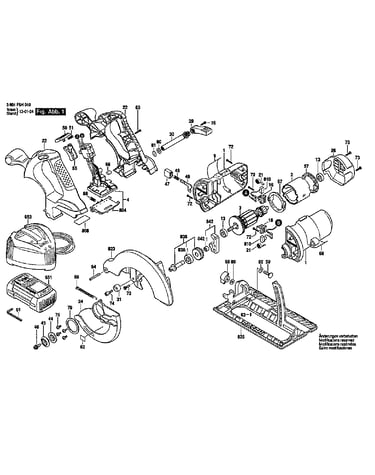

Main asy diagram

Bosch switch pcb

Part #1607233334

The manufacturer no longer makes this part, and there's no substitute part

Bosch Screw 2610957469
#76

Main asy diagram

Bosch screw

Part #2610957469

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 1900905173
#8381

Main asy diagram

Ball bearing

Part #1900905173

The manufacturer no longer makes this part, and there's no substitute part

Spring 2610947075
#56

Main asy diagram

Spring

Part #2610947075

The manufacturer no longer makes this part, and there's no substitute part

Bosch Armature 1619P01902
#3

Main asy diagram

Bosch armature

Part #1619P01902

The manufacturer no longer makes this part, and there's no substitute part

Washer 2610940969
#45

Main asy diagram

Washer

Part #2610940969

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2610935247
#46

Main asy diagram

Bolt

Part #2610935247

The manufacturer no longer makes this part, and there's no substitute part

Field 2610942109
#2

Main asy diagram

Field

Part #2610942109

The manufacturer no longer makes this part, and there's no substitute part

Screw 2610937508
#74

Main asy diagram

Screw

Part #2610937508

The manufacturer no longer makes this part, and there's no substitute part

Skil Washer 2610386556
#79

Main asy diagram

Skil washer

Part #2610386556

The manufacturer no longer makes this part, and there's no substitute part
