Model # GFB1051G02 Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFB1051G02 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Mounting Plate WC2X354
#14

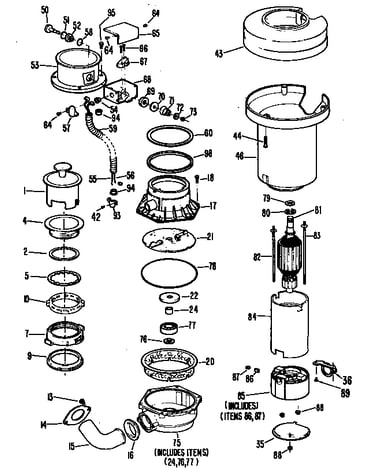

Disposer assembly diagram

Mounting plate

Part #WC2X354

This item is not returnable
$5.49
In Stock
Mounting Ring WC5X104
#7

Disposer assembly diagram

Mounting ring

Part #WC5X104

Replaced by #WC15X20161

?
Manufacturer substitution
This part replaces WC5X104. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
Support Ring WC5X103
#10

Disposer assembly diagram

Support ring

Part #WC5X103

Replaced by #WC05X10002

?
Manufacturer substitution
This part replaces WC5X103. Substitute parts can look different from the original.
This item is not returnable
$11.68 |
15% OFF Phone Price : $13.68
In Stock
Screw WB1X481
#64

Disposer assembly diagram

Screw

Part #WB1X481

The manufacturer no longer makes this part, and there's no substitute part

Slinger WC4X34
#22

Disposer assembly diagram

Slinger

Part #WC4X34

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire WC12X142
#55

Disposer assembly diagram

Lead wire

Part #WC12X142

The manufacturer no longer makes this part, and there's no substitute part

Retainer Plunger WC1X229
#73

Disposer assembly diagram

Retainer plunger

Part #WC1X229

The manufacturer no longer makes this part, and there's no substitute part

Armature Assembly WC26X75
#81

Disposer assembly diagram

Armature assembly

Part #WC26X75

The manufacturer no longer makes this part, and there's no substitute part

Unknown WC1X252
#79

Disposer assembly diagram

Unknown

Part #WC1X252

The manufacturer no longer makes this part, and there's no substitute part

Motor Brush WC2X367
#86

Disposer assembly diagram

Motor brush

Part #WC2X367

The manufacturer no longer makes this part, and there's no substitute part
