Kenmore
Canister Vacuum

Model # 72123083300 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 72123083300 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

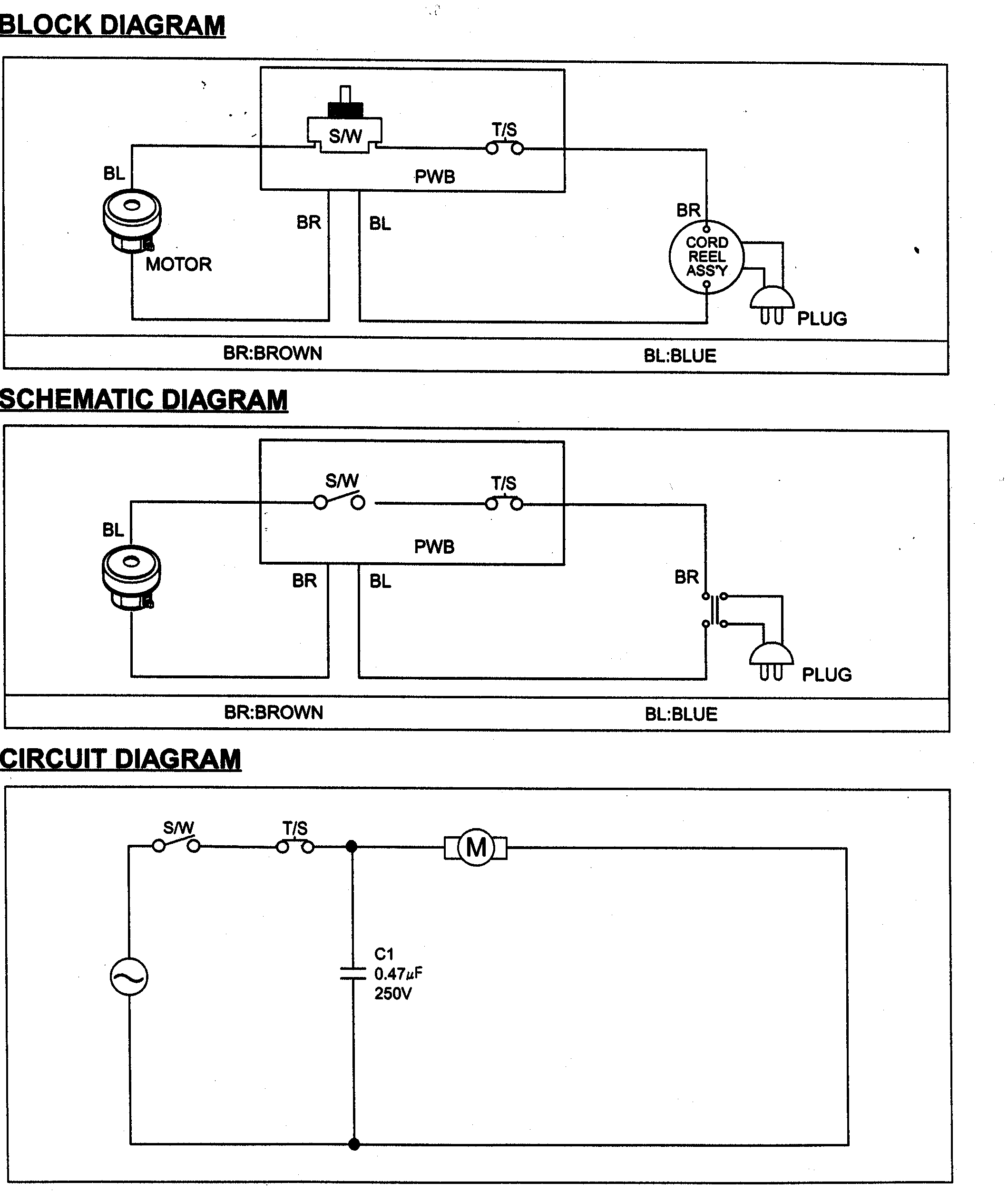

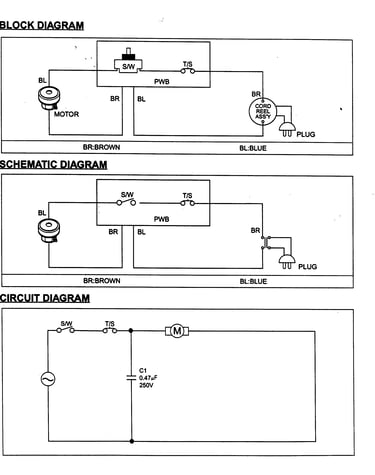

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Package Filter 3920FI3734A
#C005

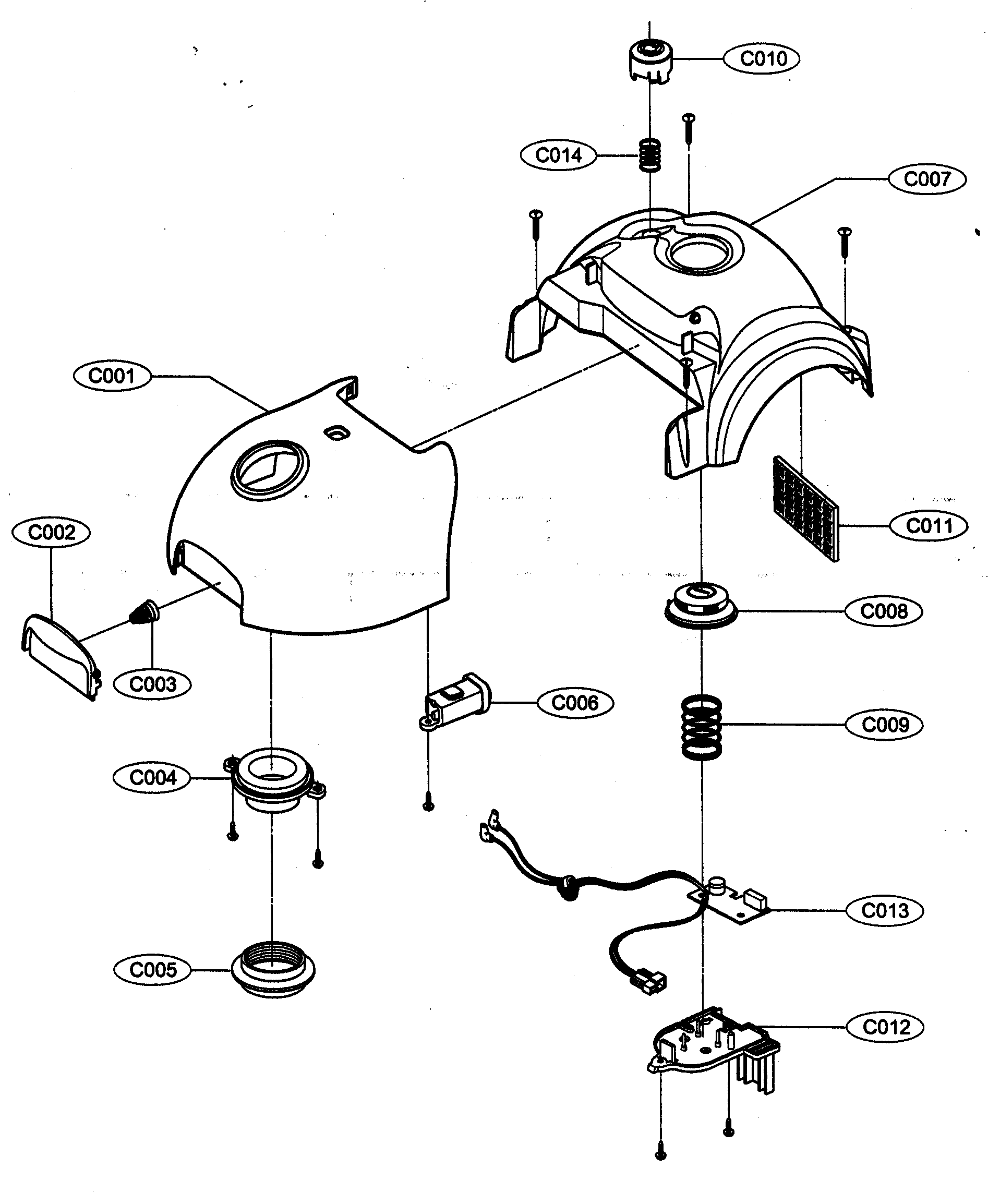

Cabinet parts 2 diagram

Package filter

Part #3920FI3734A

This item is not returnable
$3.49
In Stock
Vacuum Crevice Tool 3I21007N
#B010

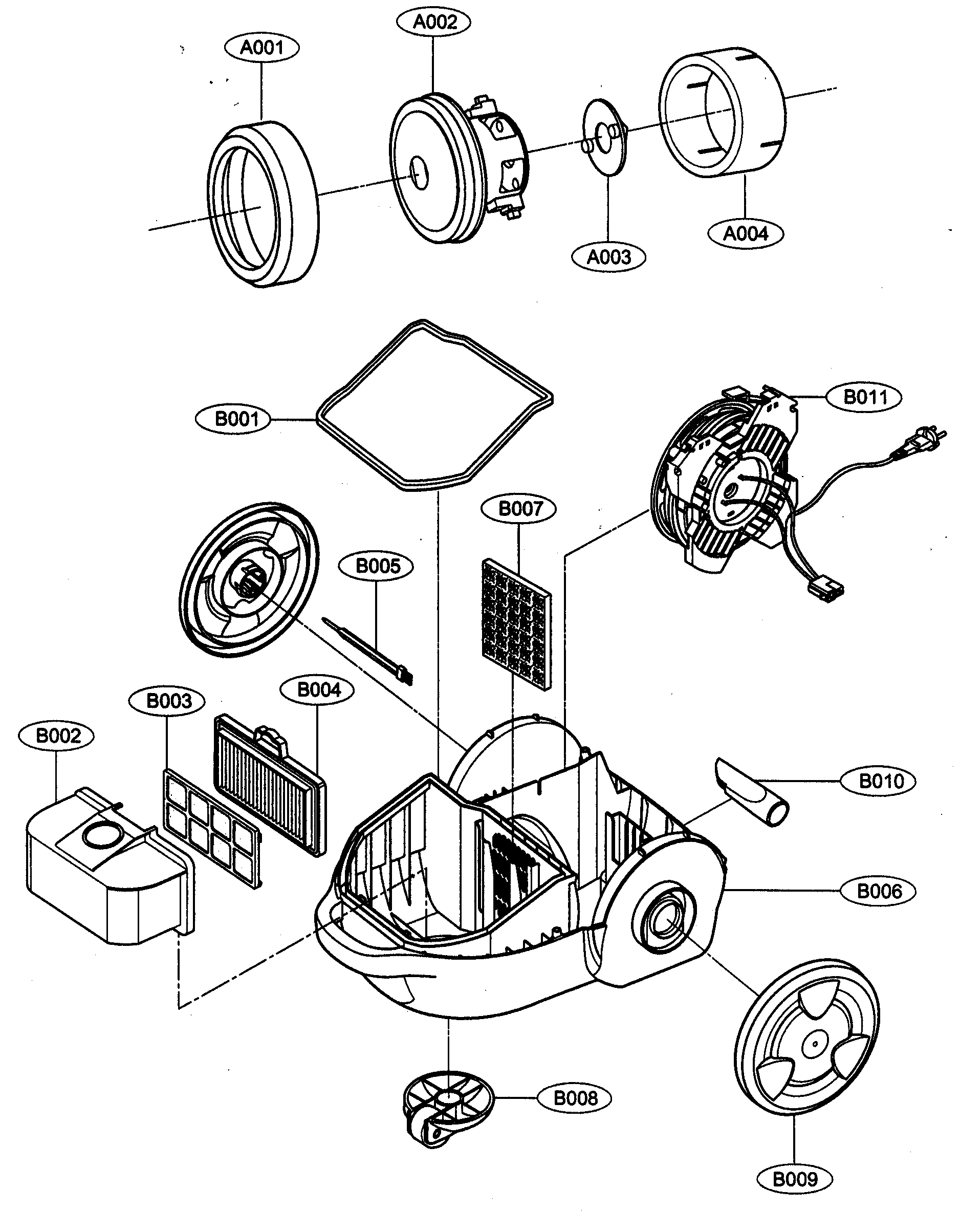

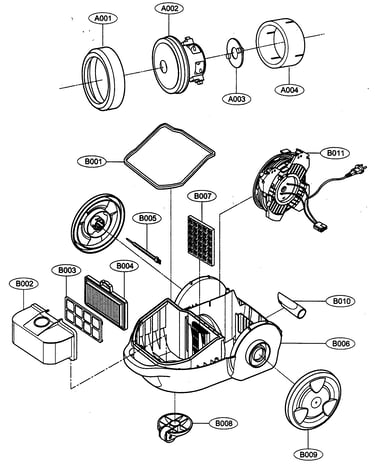

Cabinet parts 1 diagram

Vacuum crevice tool

Part #3I21007N

The manufacturer no longer makes this part, and there's no substitute part

Dust Bin 4838FI1403A
#B002

Cabinet parts 1 diagram

Dust bin

Part #4838FI1403A

The manufacturer no longer makes this part, and there's no substitute part

Packing Seal 3920FI3763B
#A003

Cabinet parts 1 diagram

Packing seal

Part #3920FI3763B

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 4660FI2412D
#B009

Cabinet parts 1 diagram

Vacuum wheel

Part #4660FI2412D

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Exhaust Filter 5230FI3767A
#C011

Cabinet parts 2 diagram

Vacuum exhaust filter

Part #5230FI3767A

The manufacturer no longer makes this part, and there's no substitute part

Floor Nozzle 5249FI1405J
#D002

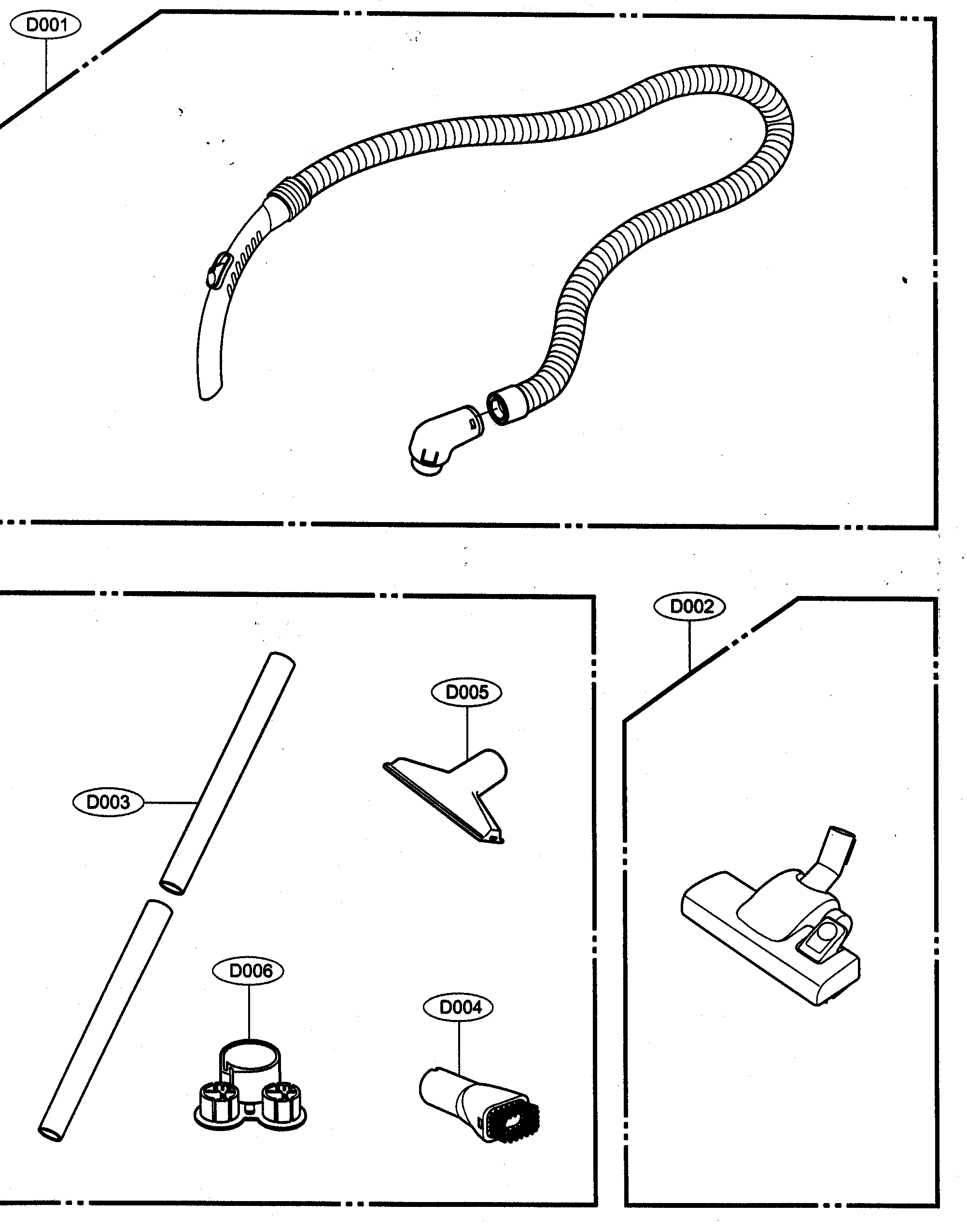

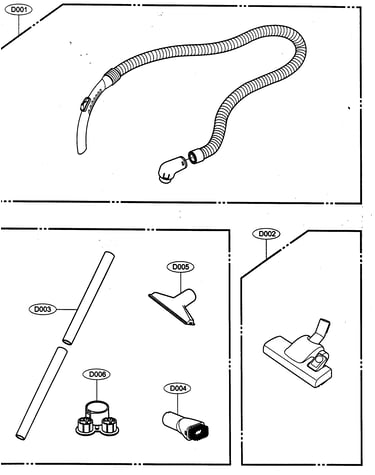

Accessorys diagram

Floor nozzle

Part #5249FI1405J

The manufacturer no longer makes this part, and there's no substitute part

Button Red 5020FI3783F
#C008

Cabinet parts 2 diagram

Button red

Part #5020FI3783F

The manufacturer no longer makes this part, and there's no substitute part

Body Base 3040FI1496D
#B006

Cabinet parts 1 diagram

Body base

Part #3040FI1496D

The manufacturer no longer makes this part, and there's no substitute part

Upholstery Nozzle 5249FI2259A
#D005

Accessorys diagram

Upholstery nozzle

Part #5249FI2259A

The manufacturer no longer makes this part, and there's no substitute part
