Side-By-Side Refrigerator

Model # ZISS420NXBSS Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE ZISS420NXBSS refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

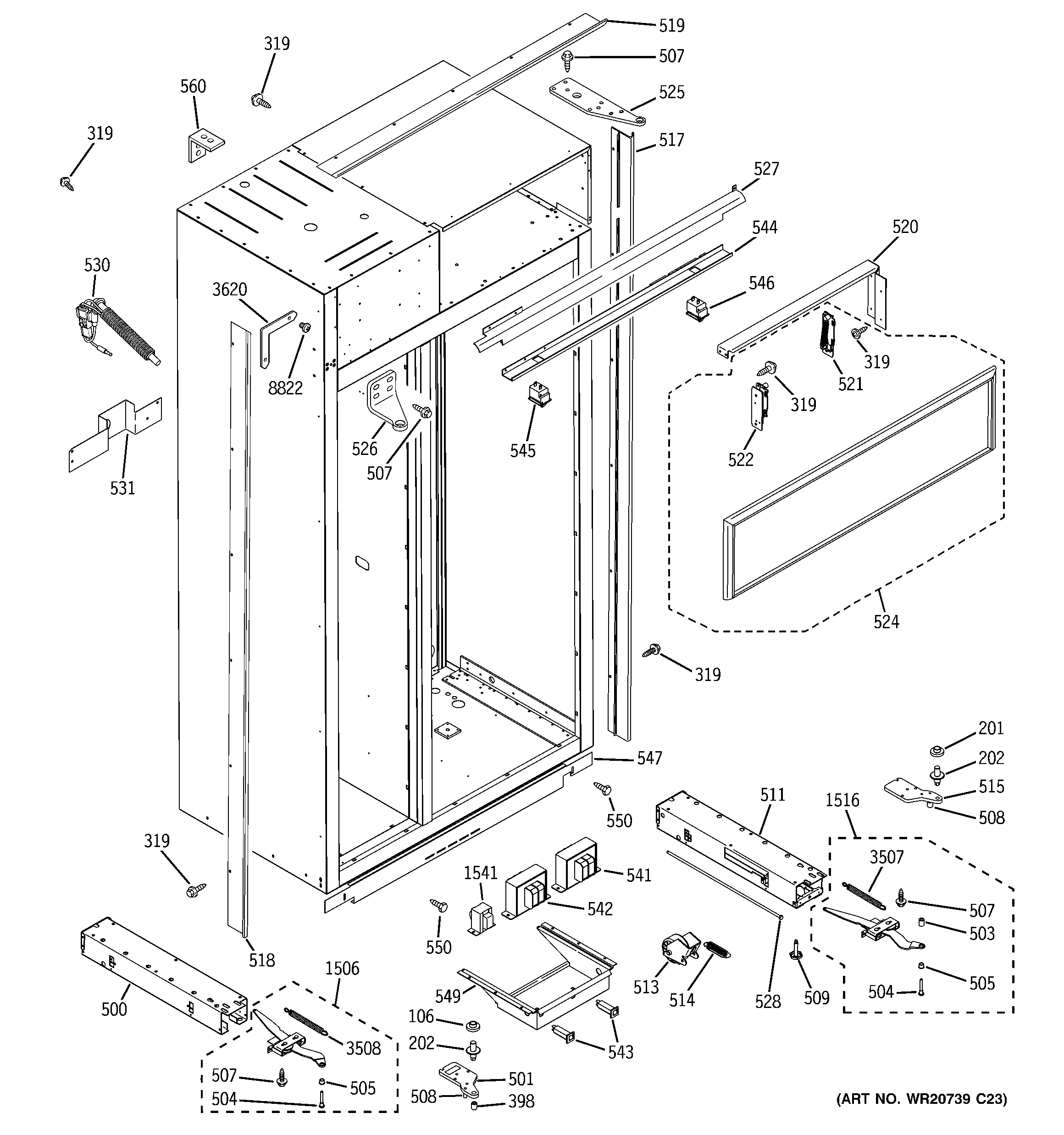

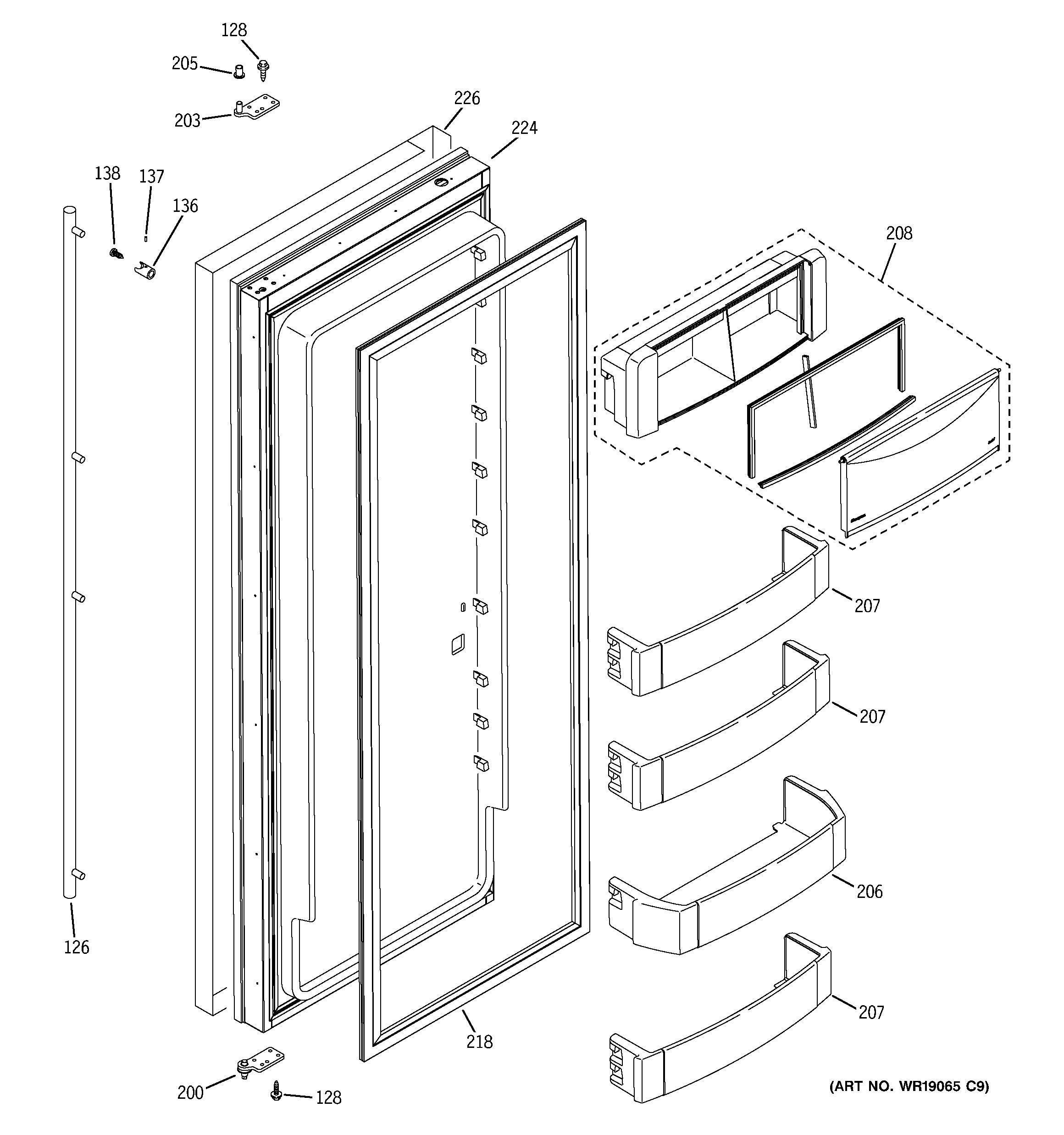

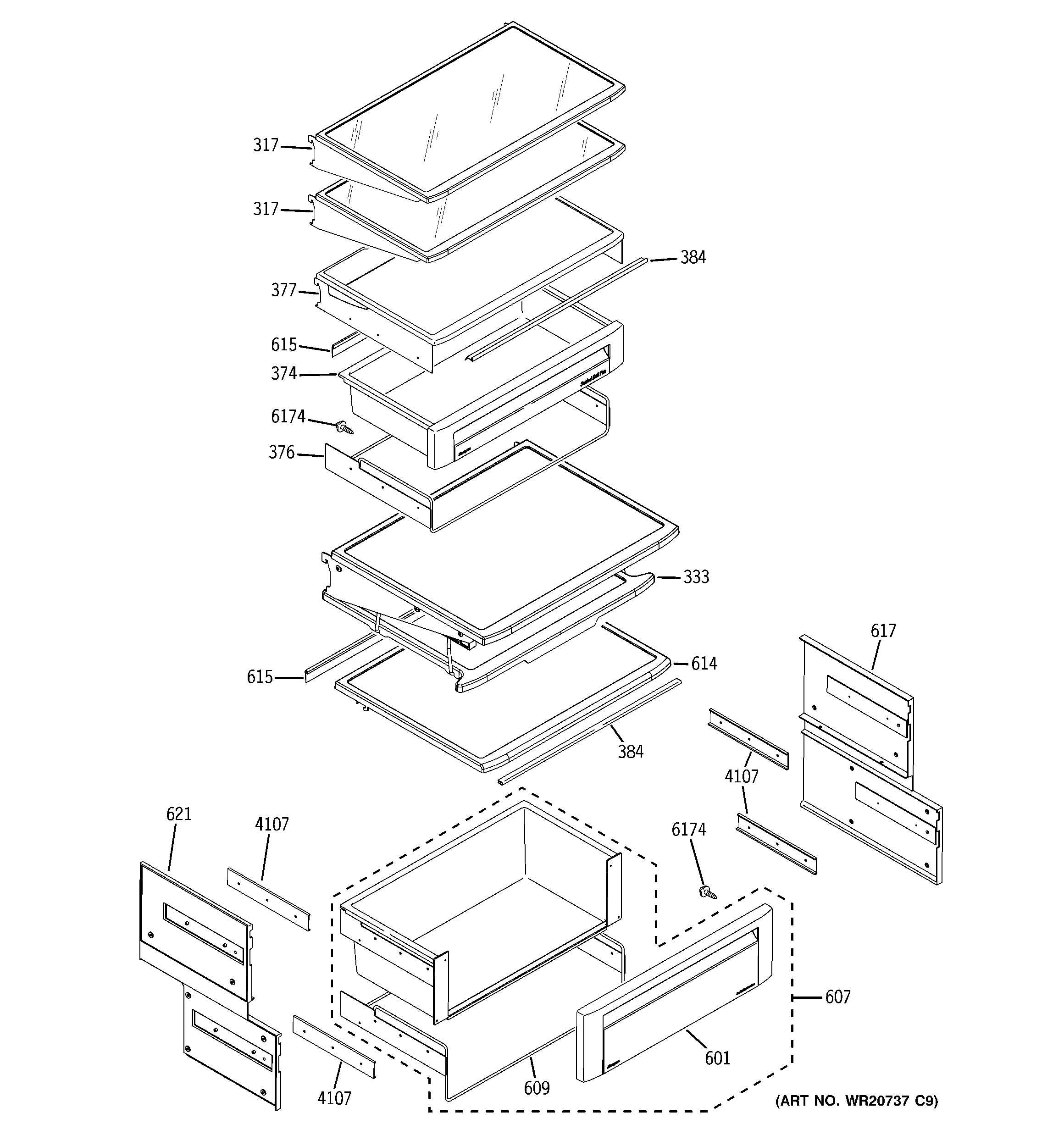

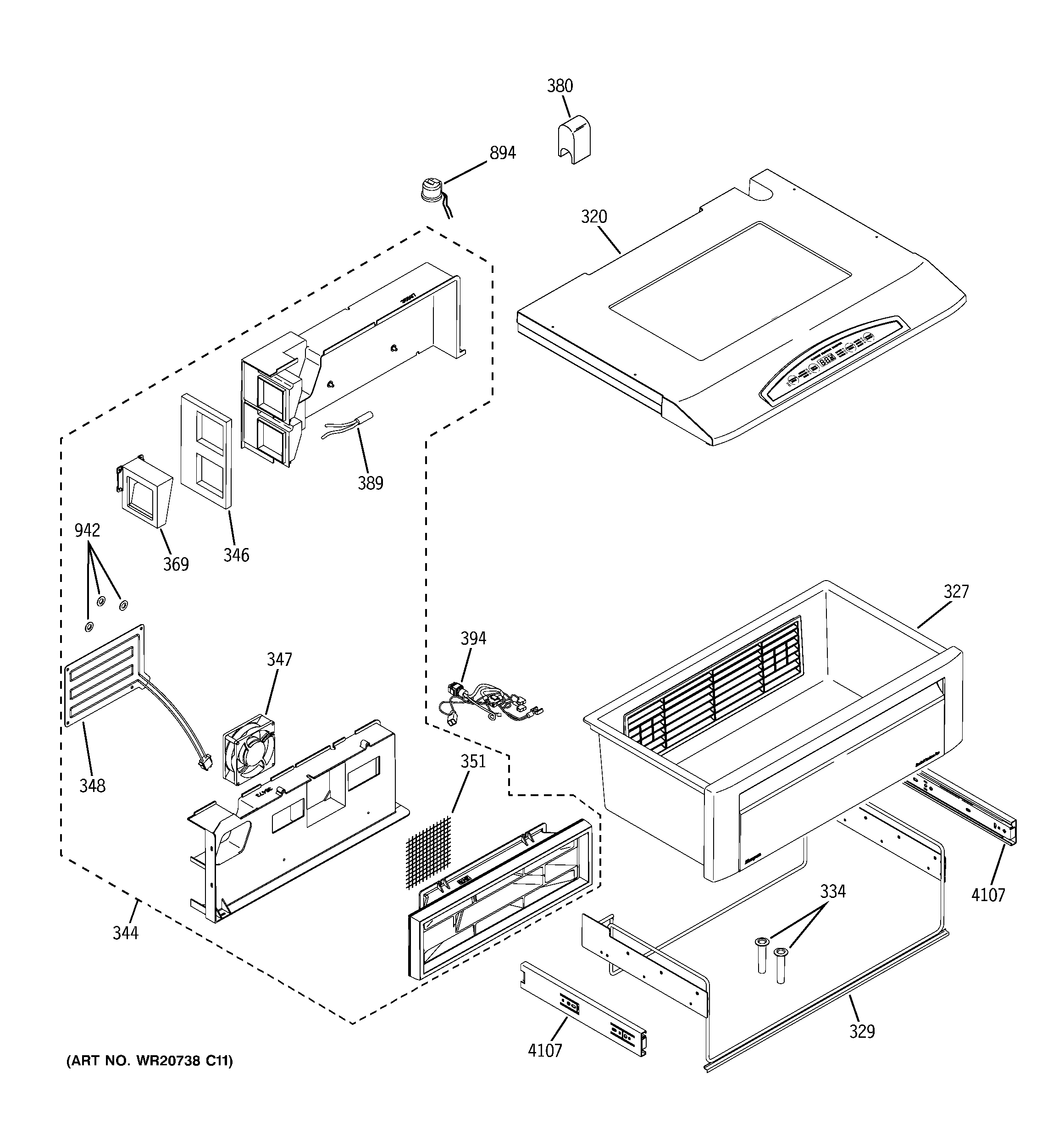

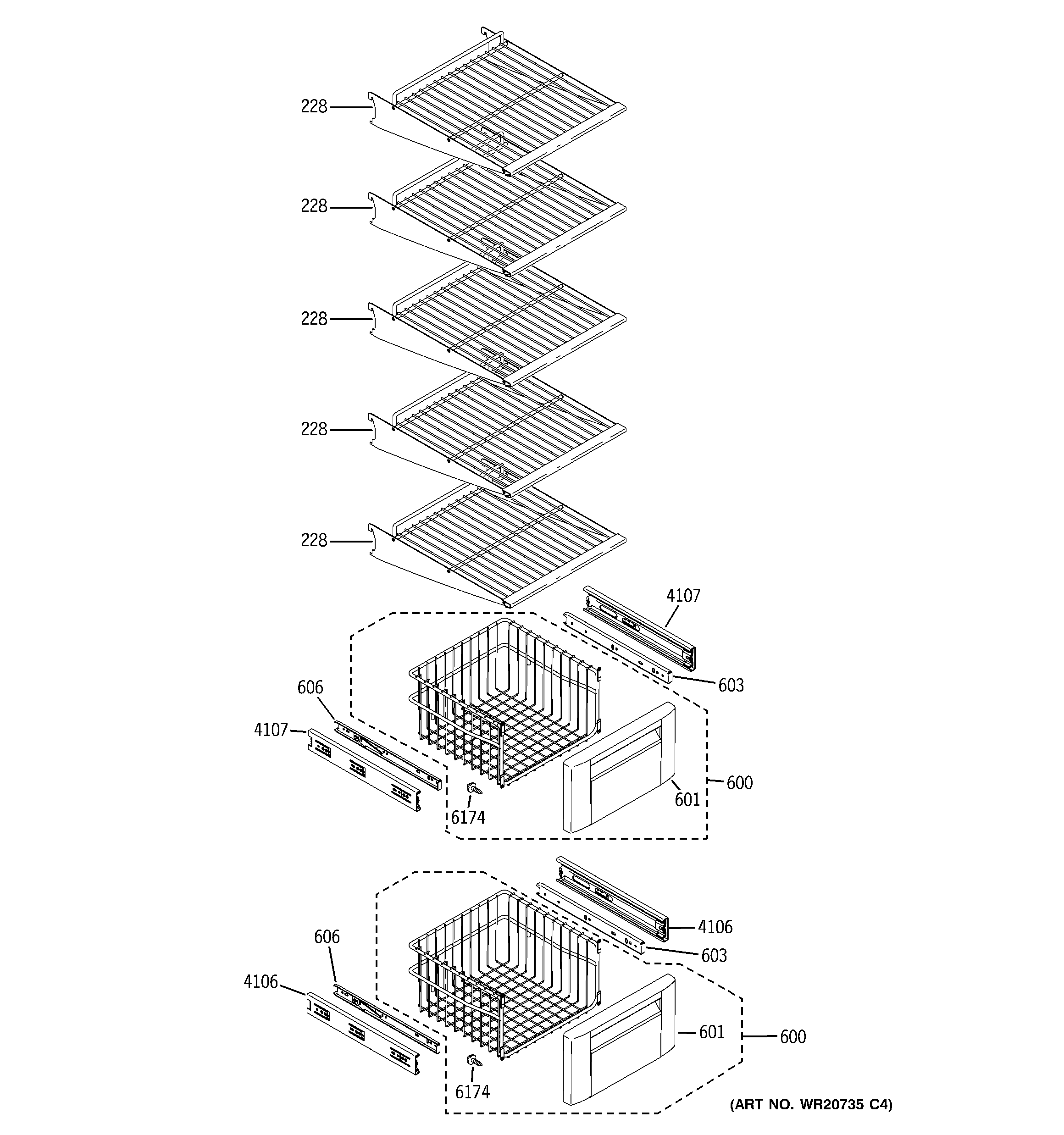

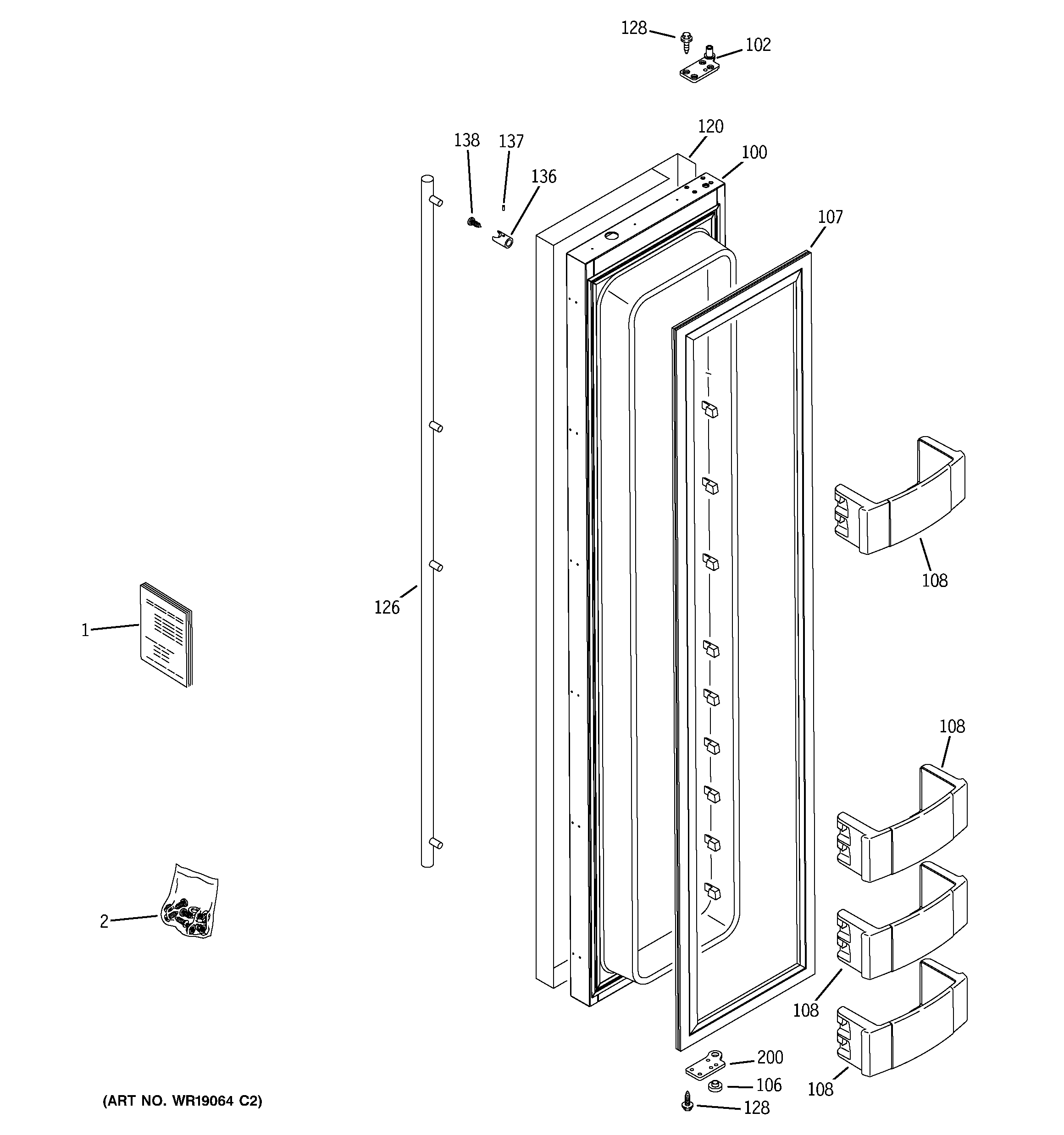

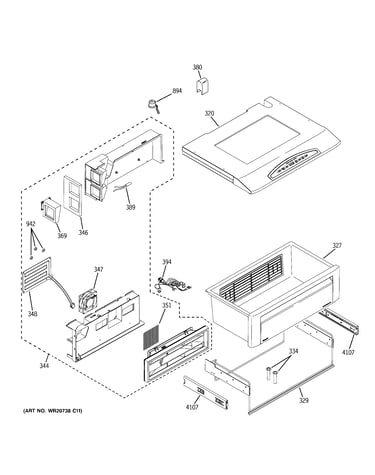

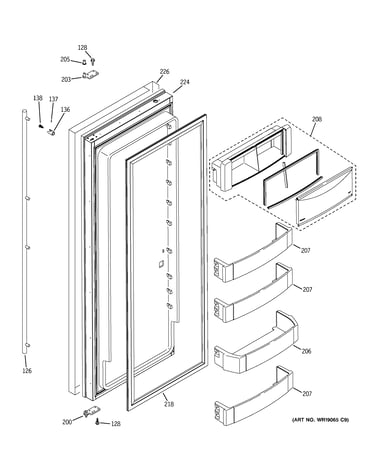

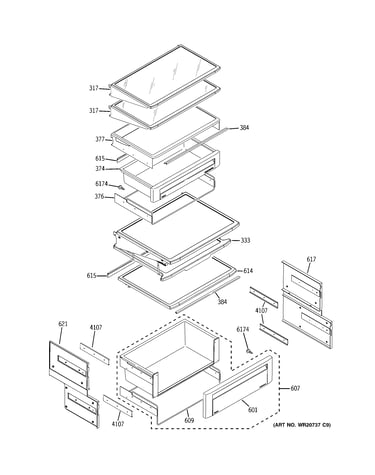

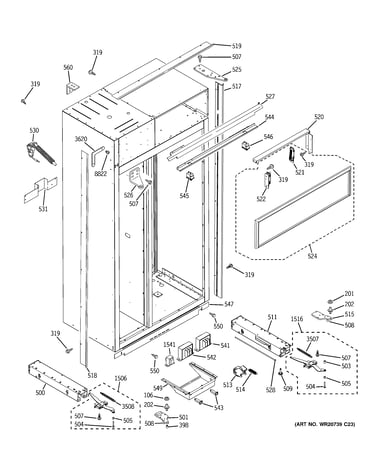

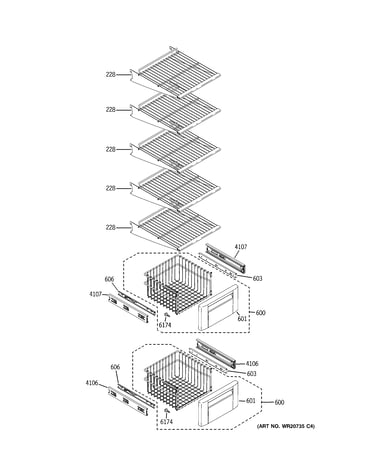

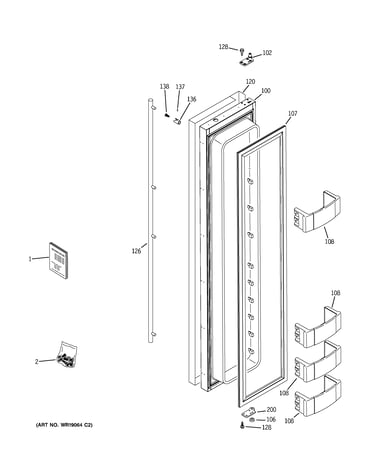

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Temperature Sensor WR55X10030
Temperature sensor

Part #WR55X10030

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10030. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

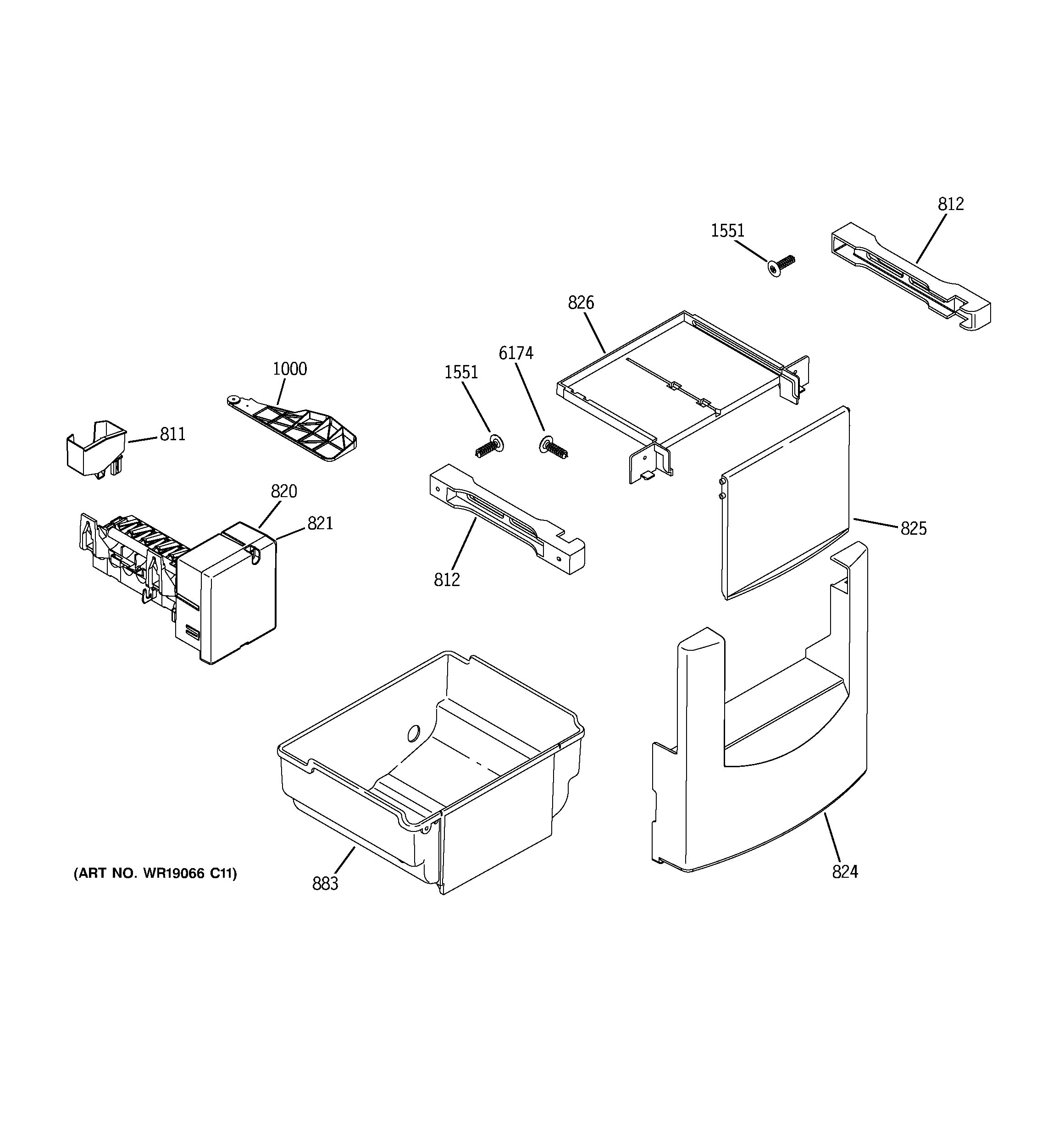

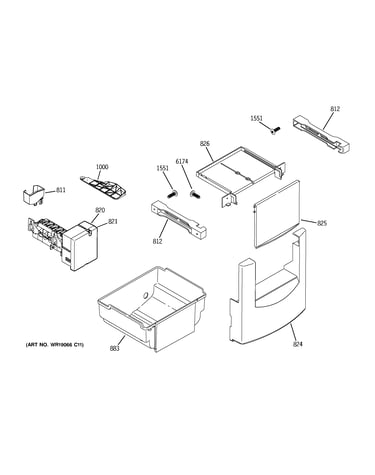

Ice maker & dispenser diagram

Refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Toe Kick WR74X10125
#706

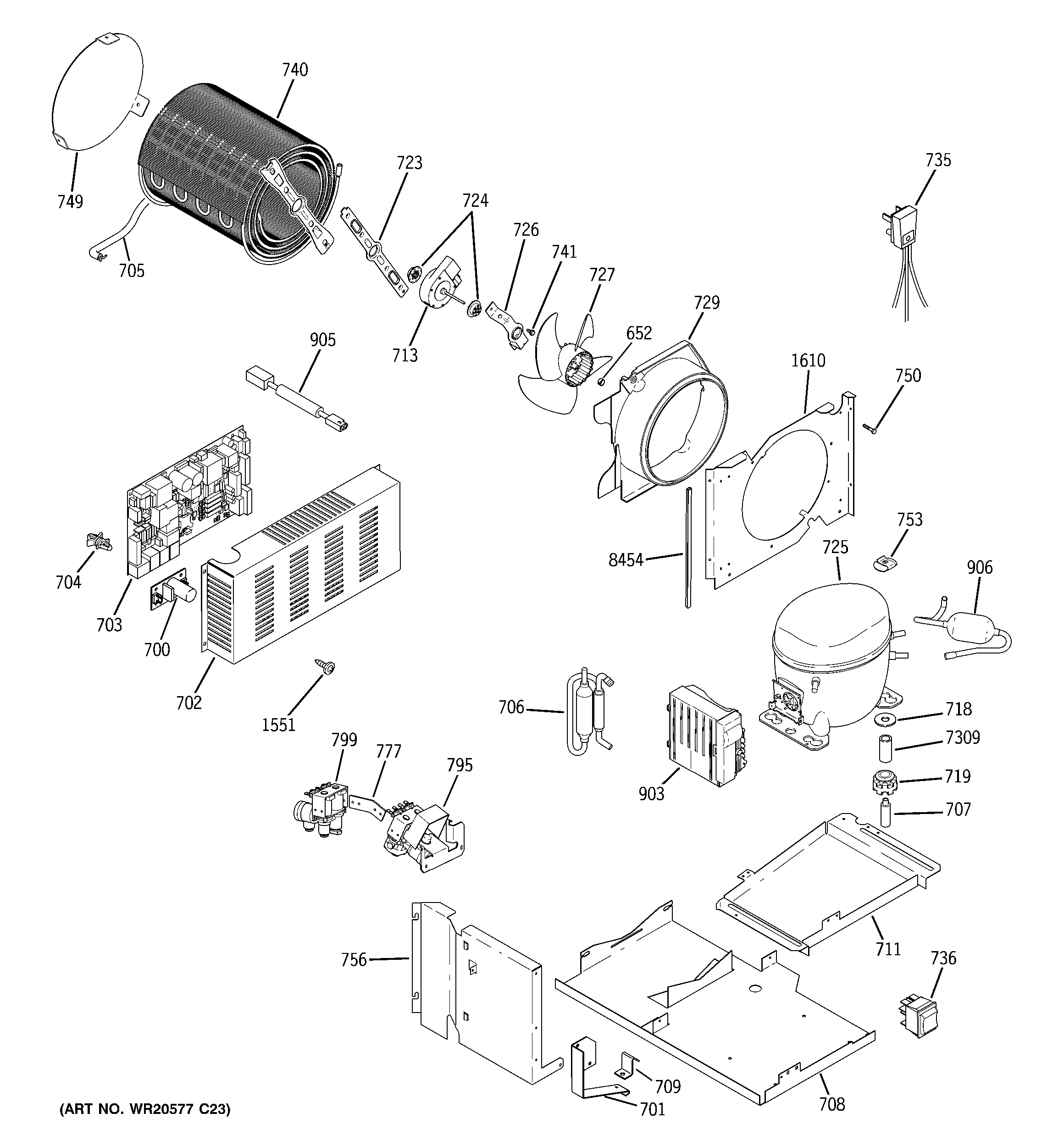

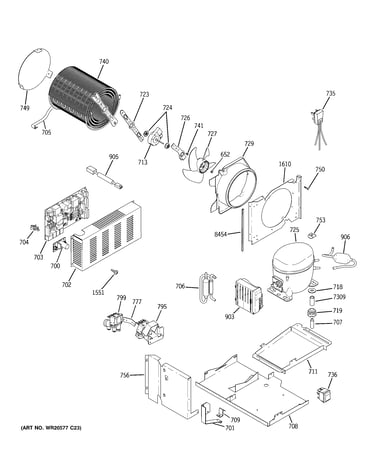

Sealed system & mother board diagram

Toe kick

Part #WR74X10125

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR74X10125. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Inverter WR55X10685
#903

Sealed system & mother board diagram

Inverter

Part #WR55X10685

Replaced by #WR49X10283

?
Manufacturer substitution
This part replaces WR55X10685. Substitute parts can look different from the original.
BEST SELLER
$214.52 |
5% OFF Phone Price : $226.52
In Stock
Compressor V WR87X10123
#725

Sealed system & mother board diagram

Compressor v

Part #WR87X10123

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10123. Substitute parts can look different from the original.
BEST SELLER
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
Condenser Motor WR60X10216
#713

Sealed system & mother board diagram

Condenser motor

Part #WR60X10216

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10216. Substitute parts can look different from the original.
BEST SELLER
$57.54 |
9% OFF Phone Price : $63.54
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x12008) WR02X10519
#864

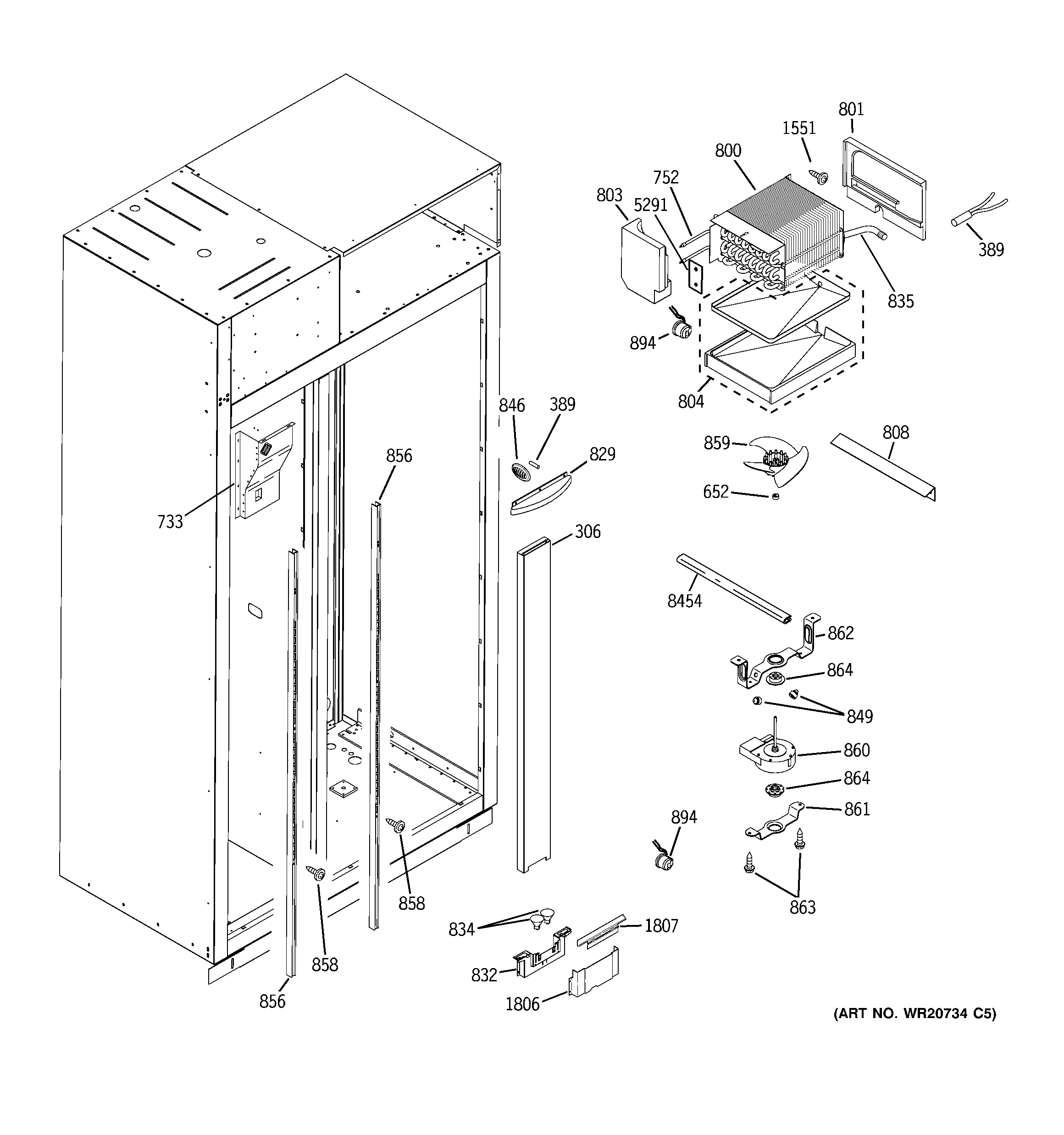

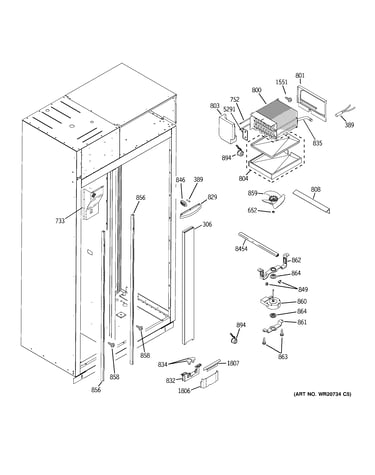

Freezer section diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519

Replaced by #WR02X12008

?
Manufacturer substitution
This part replaces WR02X10519. Substitute parts can look different from the original.
BEST SELLER
$19.32
In Stock
Refrigerator Water Filter Bypass WR02X11705
#301

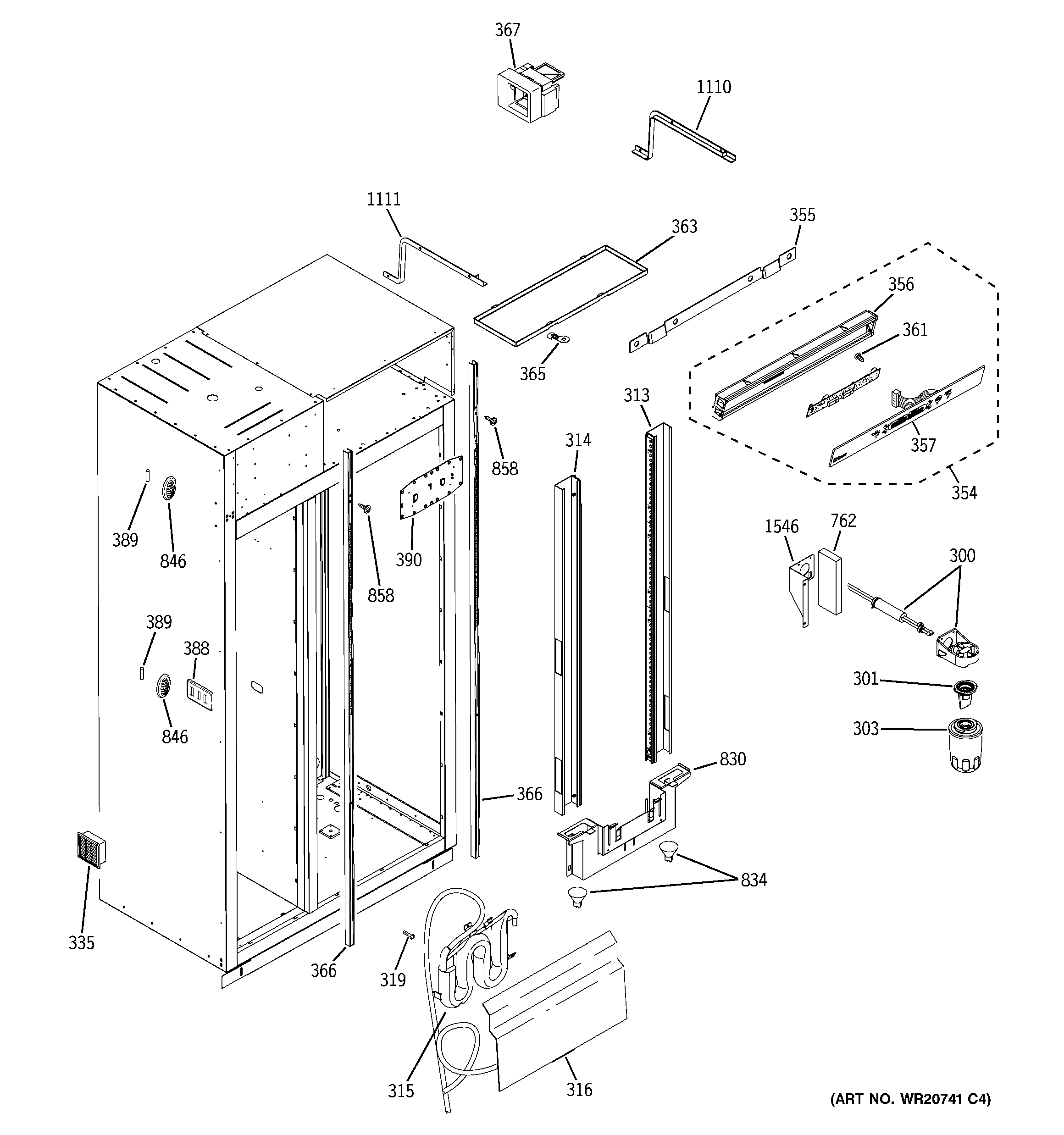

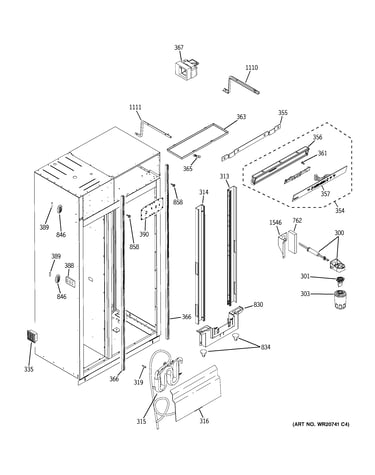

Fresh food section diagram

Refrigerator water filter bypass

Part #WR02X11705

Replaced by #WR17X22070

?
Manufacturer substitution
This part replaces WR02X11705. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Ge Profile Refrigerator Condenser Coil (replaces Wr49x10151, Wr84x10065, Wr84x10071, Wr84x10072, Wr84x10074, Wr84x10078, Wr84x37865, Wr87x37966) WR84X10022
#740

Sealed system & mother board diagram

Ge profile refrigerator condenser coil (replaces wr49x10151, wr84x10065, wr84x10071, wr84x10072, wr84x10074, wr84x10078, wr84x37865, wr87x37966)

Part #WR84X10022

BEST SELLER
$386.88 |
$12.00 OFF Phone Price : $398.88
In Stock
Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#303

Fresh food section diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

Replaced by #MWFP

?
Manufacturer substitution
This part replaces MWF. Substitute parts can look different from the original.
$64.22
In Stock
