Model # AJCQ10DCHK1 Official GE room a/c

Here are the diagrams and repair parts for Official GE AJCQ10DCHK1 room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Air Filter WP85X26339
#2

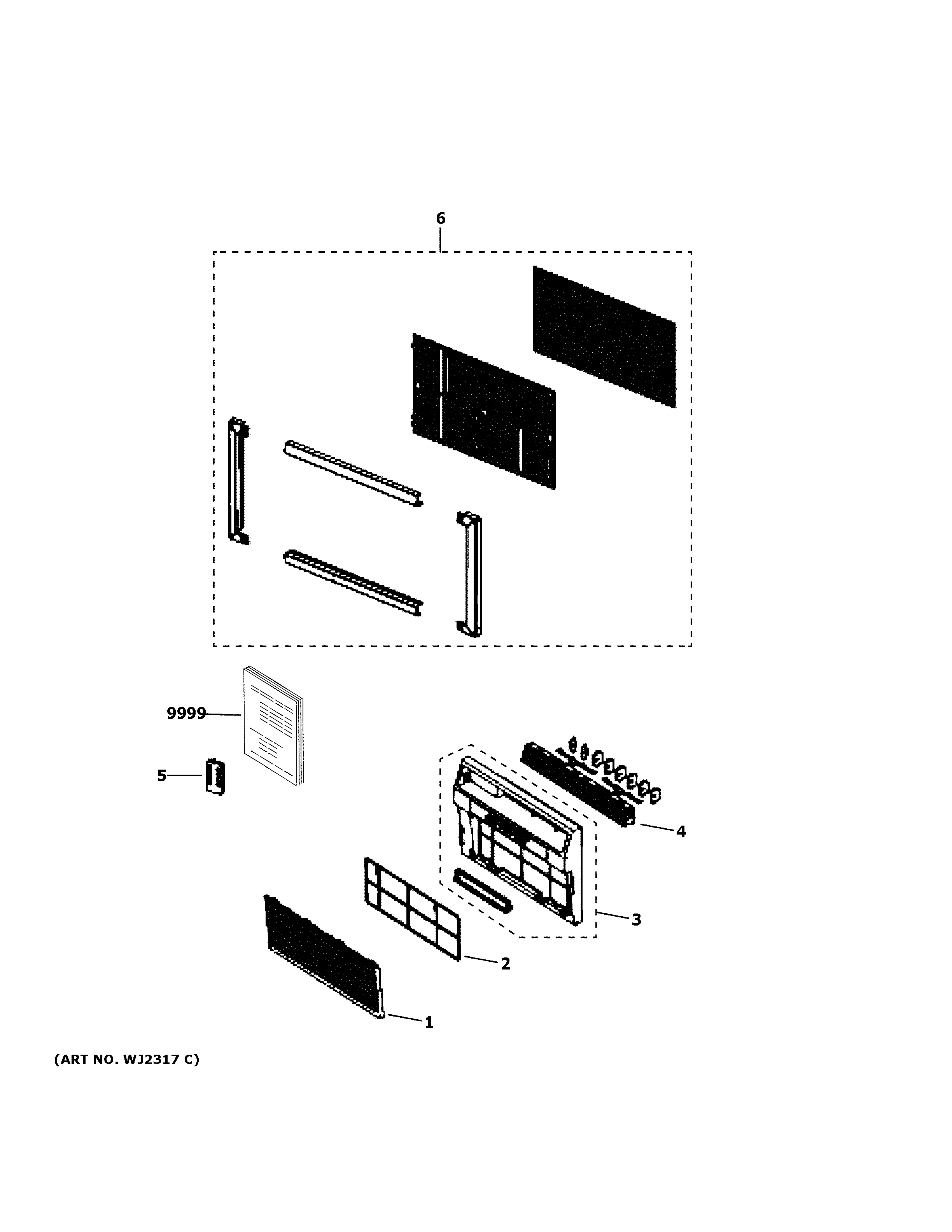

Room air conditioner diagram

Air filter

Part #WP85X26339

$27.53
In Stock
Remote Control WJ26X25977
#5

Room air conditioner diagram

Remote control

Part #WJ26X25977

$63.74 |
9% OFF Phone Price : $69.74
In Stock
Front Panel Assembly WP71X26340
#3

Room air conditioner diagram

Front panel assembly

Part #WP71X26340

$185.18
In Stock
Front Grille WP71X26337
#1

Room air conditioner diagram

Front grille

Part #WP71X26337

$27.31
In Stock
Air Outlet Louver WP71X26338
#4

Room air conditioner diagram

Air outlet louver

Part #WP71X26338

$31.98
In Stock
Installation Accessory WP01X26157
#6

Room air conditioner diagram

Installation accessory

Part #WP01X26157

$8.11
In Stock
Pm Owners Manual 49-5000492
#9999

Room air conditioner diagram

Pm owners manual

Part #49-5000492

The manufacturer no longer makes this part, and there's no substitute part
