Model # DB2221N Official Speed Queen food waste disposer

Here are the diagrams and repair parts for Official Speed Queen DB2221N food waste disposer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Ground Bracket 80901
#23

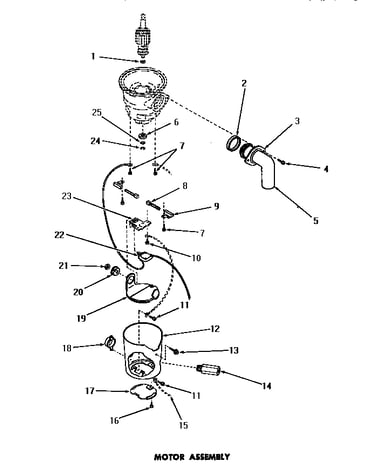

Motor assembly diagram

Ground bracket

Part #80901

The manufacturer no longer makes this part, and there's no substitute part

Deflector 80804
#1

Sink flange, mounting rings & boot diagram

Deflector

Part #80804

The manufacturer no longer makes this part, and there's no substitute part

Clamp Ring 80874
#3

Sink flange, mounting rings & boot diagram

Clamp ring

Part #80874

The manufacturer no longer makes this part, and there's no substitute part

Mounting Ring 80880
#5

Sink flange, mounting rings & boot diagram

Mounting ring

Part #80880

The manufacturer no longer makes this part, and there's no substitute part

Latch 80835
#12

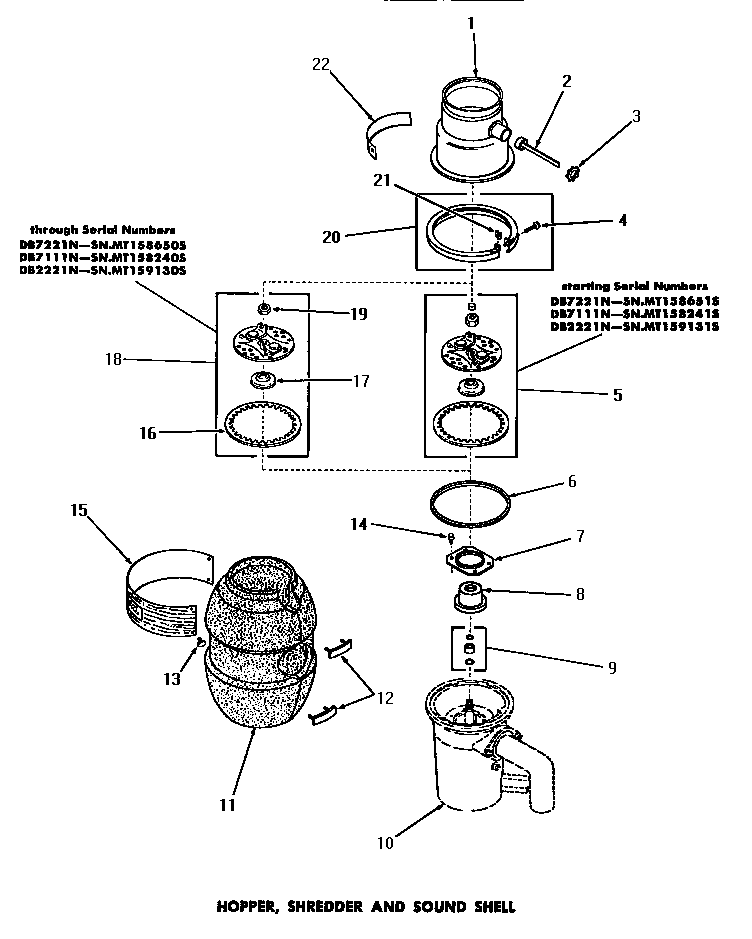

Hopper, shredder & sound shell diagram

Latch

Part #80835

The manufacturer no longer makes this part, and there's no substitute part

Insulation 80897
#19

Motor assembly diagram

Insulation

Part #80897

The manufacturer no longer makes this part, and there's no substitute part

Hopper Gasket 80882
#6

Hopper, shredder & sound shell diagram

Hopper gasket

Part #80882

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw 80828
#4

Hopper, shredder & sound shell diagram

Hex head screw

Part #80828

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw 80892
Hex head screw

Part #80892

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 80910
#12

Motor assembly diagram

Motor housing

Part #80910

The manufacturer no longer makes this part, and there's no substitute part
