KitchenAid
Top-Mount Refrigerator

Model # KTRS19KKBT00 Official KitchenAid top-mount refrigerator

Here are the diagrams and repair parts for Official KitchenAid KTRS19KKBT00 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

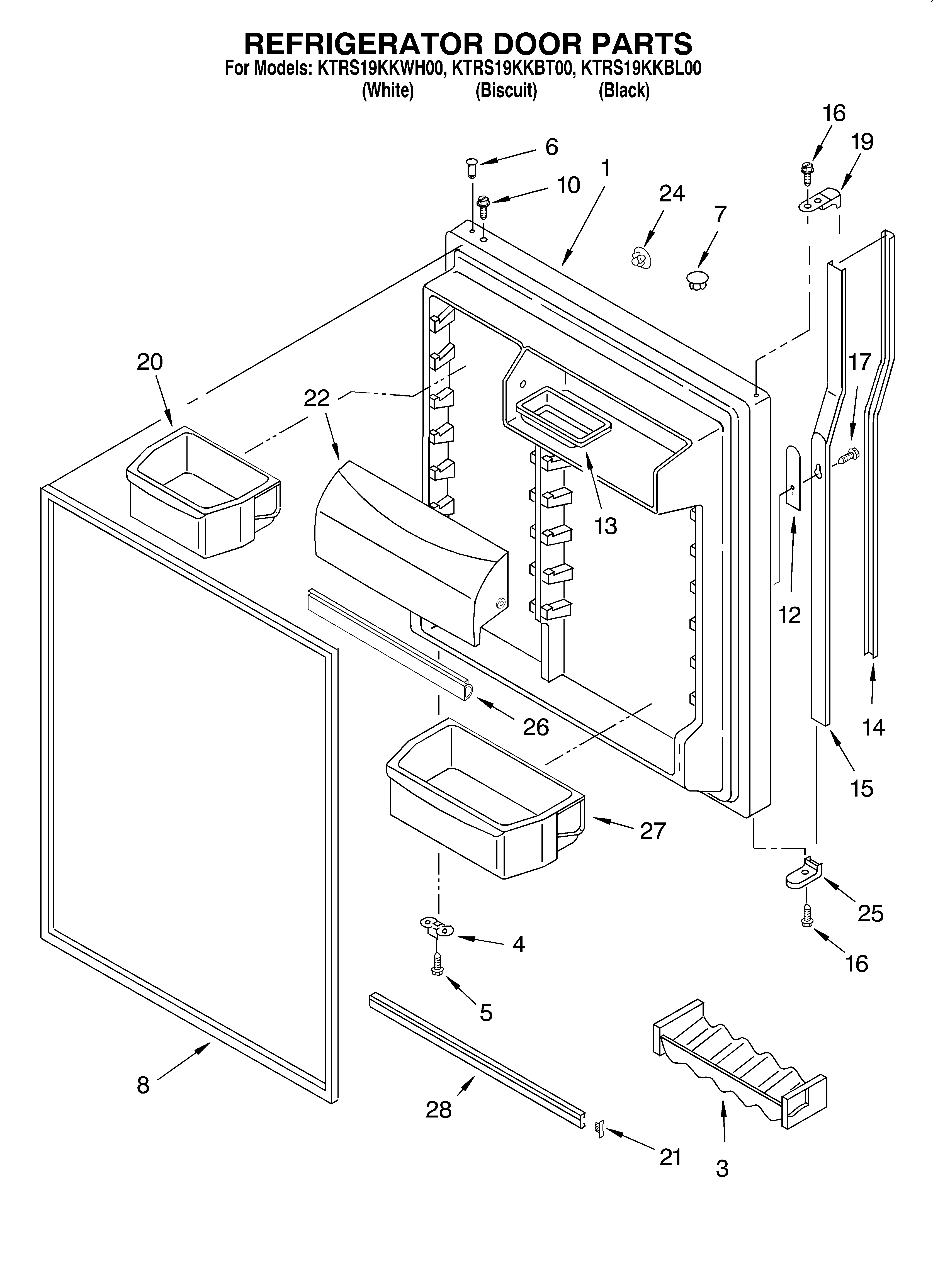

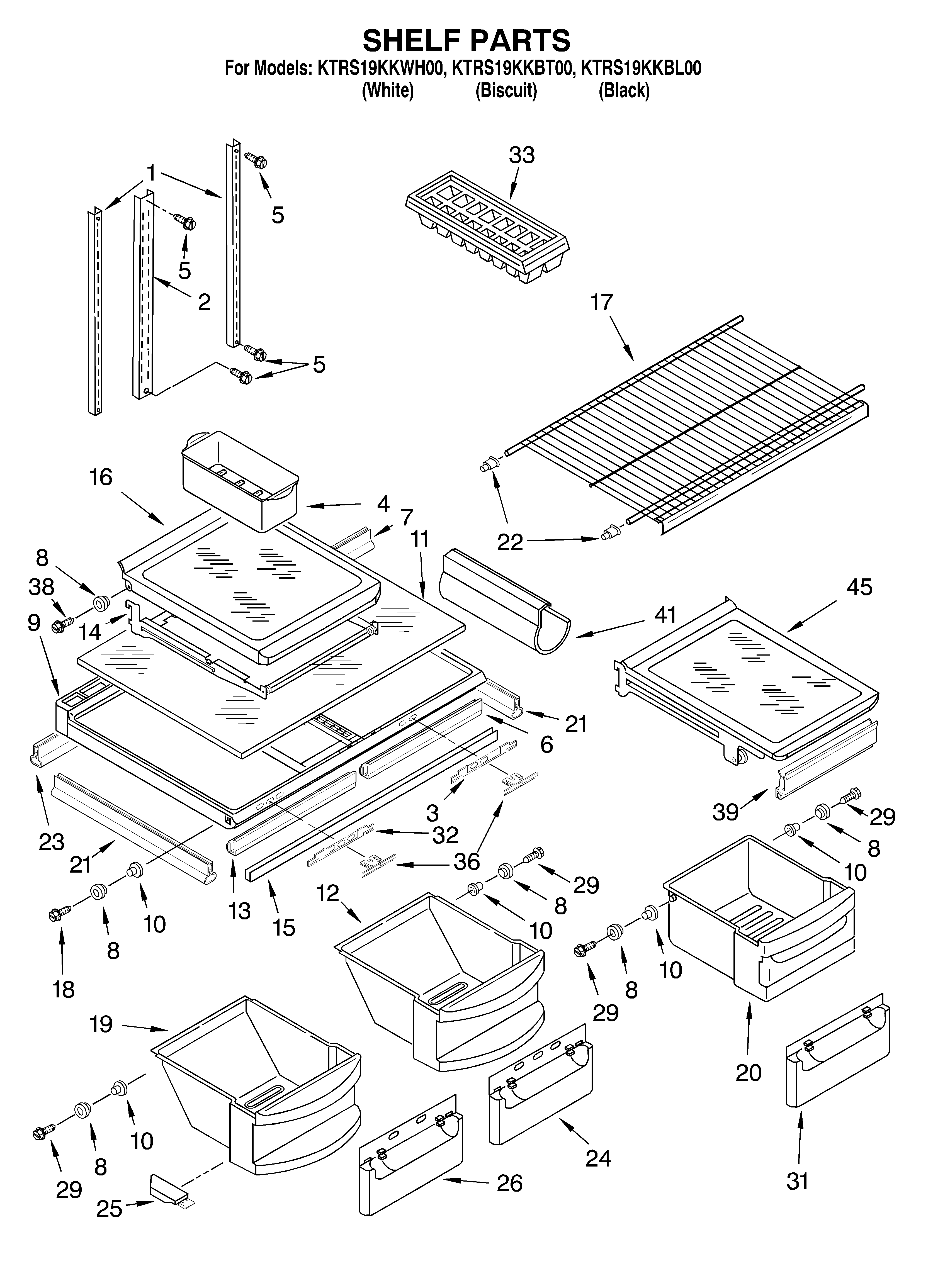

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Light Bulb 527949
#17

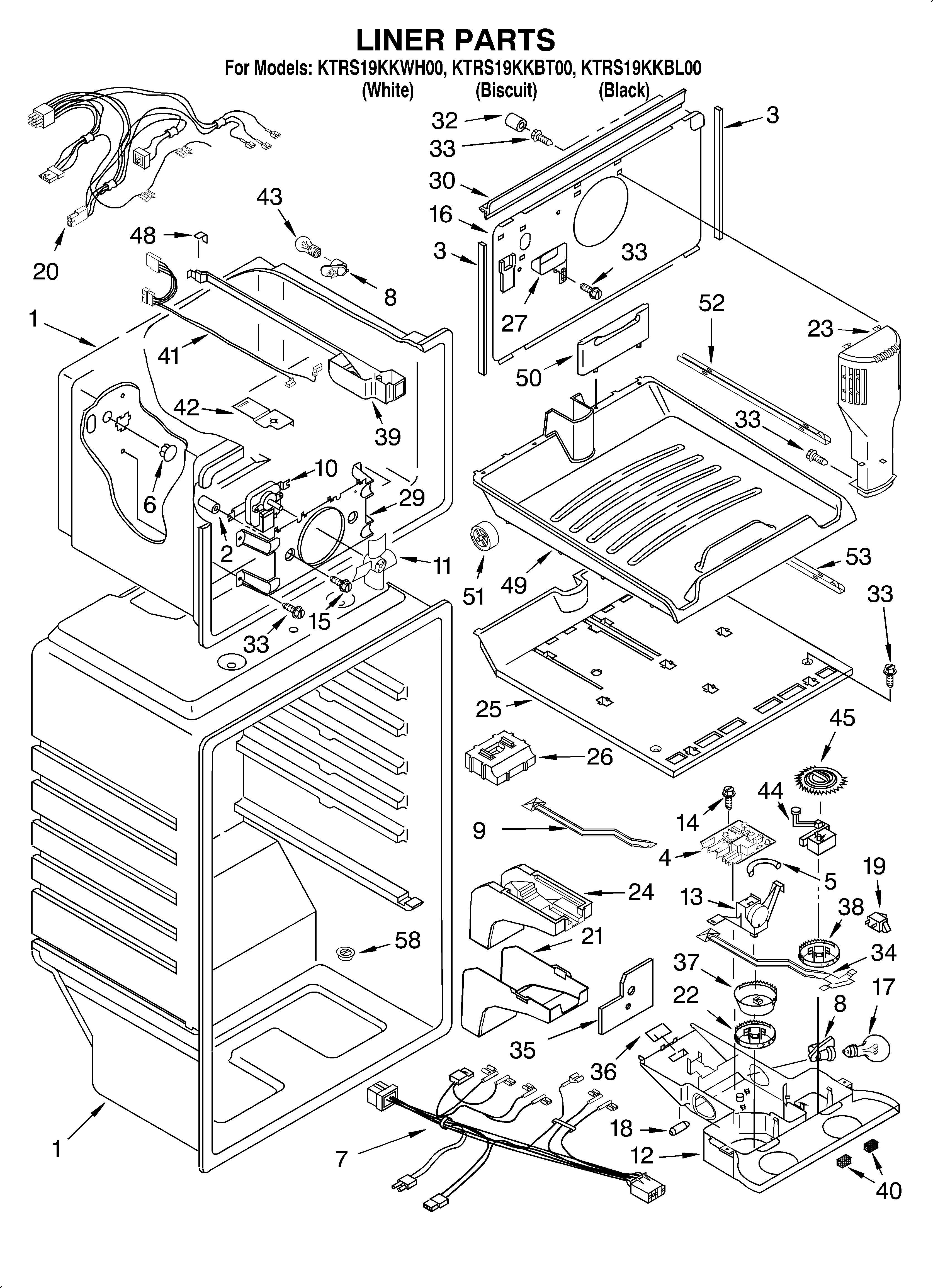

Liner diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Drier-tue 2199167
#29

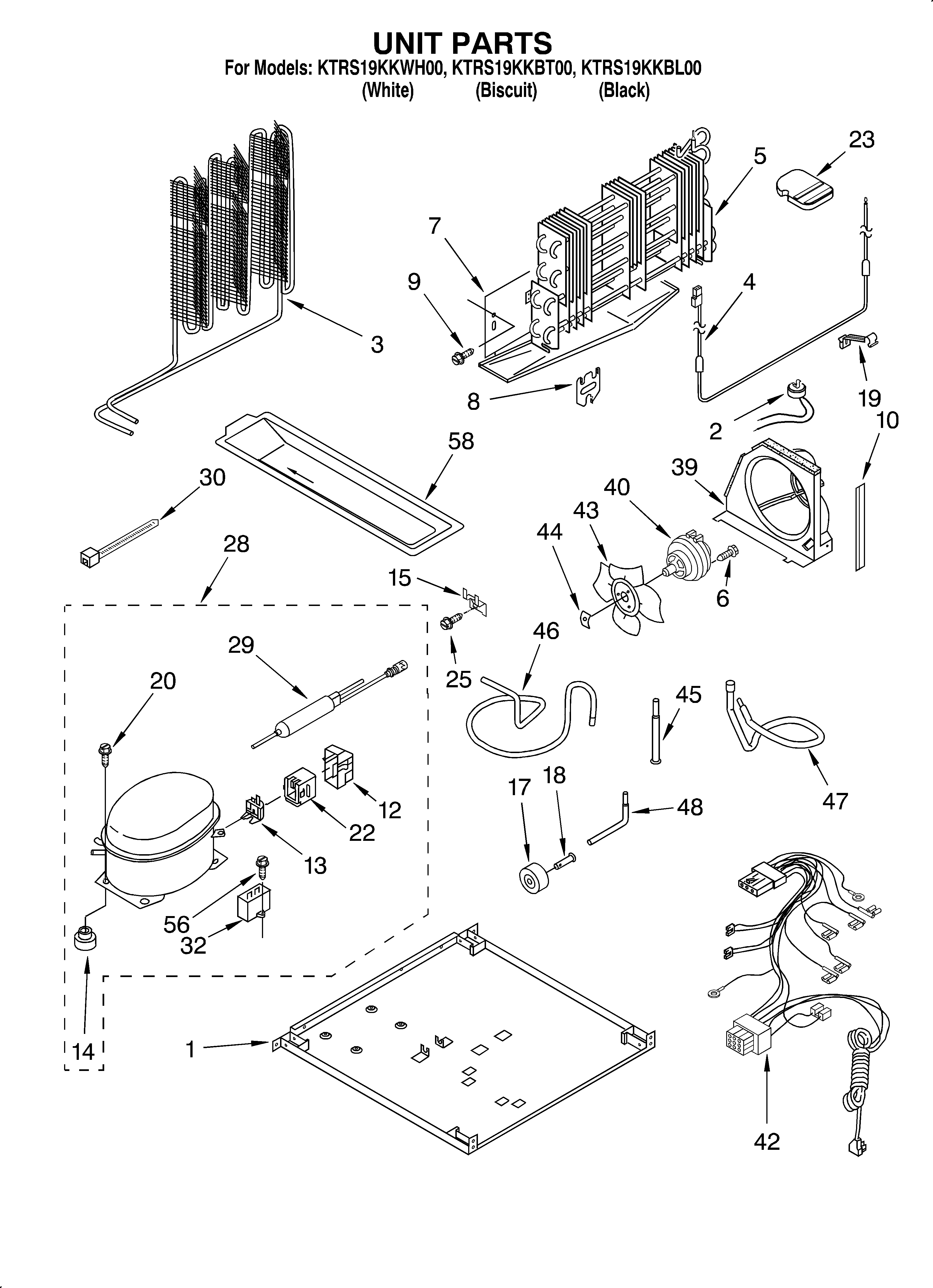

Unit diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Dryer Tube 4387019
#29A

Unit diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 2216049
#28

Unit diagram

Refrigerator compressor

Part #2216049

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2216049. Substitute parts can look different from the original.
BEST SELLER
$282.03 |
$12.00 OFF Phone Price : $294.03
In Stock
Refrigerator Defrost Bi-metal 2182380
#2

Unit diagram

Refrigerator defrost bi-metal

Part #2182380

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2182380. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Ice Maker 2155469
#NI

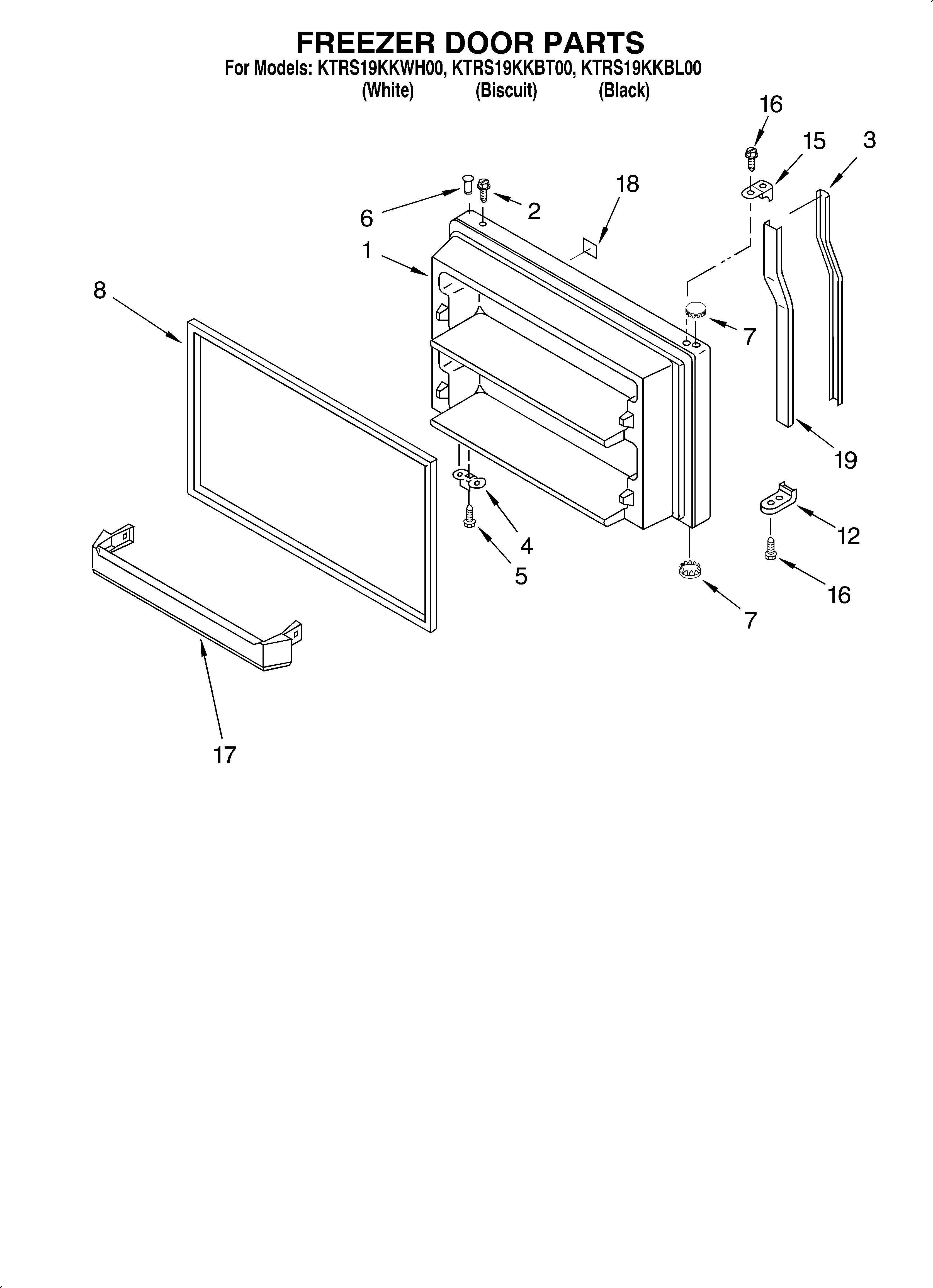

Freezer door/optional diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Refrigerator Evaporator Fan Blade 2163777
#11

Liner diagram

Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Refrigerator Defrost Timer 2213100
#4

Liner diagram

Refrigerator defrost timer

Part #2213100

Replaced by #WP2304099

?
Manufacturer substitution
This part replaces 2213100. Substitute parts can look different from the original.
BEST SELLER
$249.55 |
5% OFF Phone Price : $261.55
In Stock
Refrigerator Washer 487576
#38

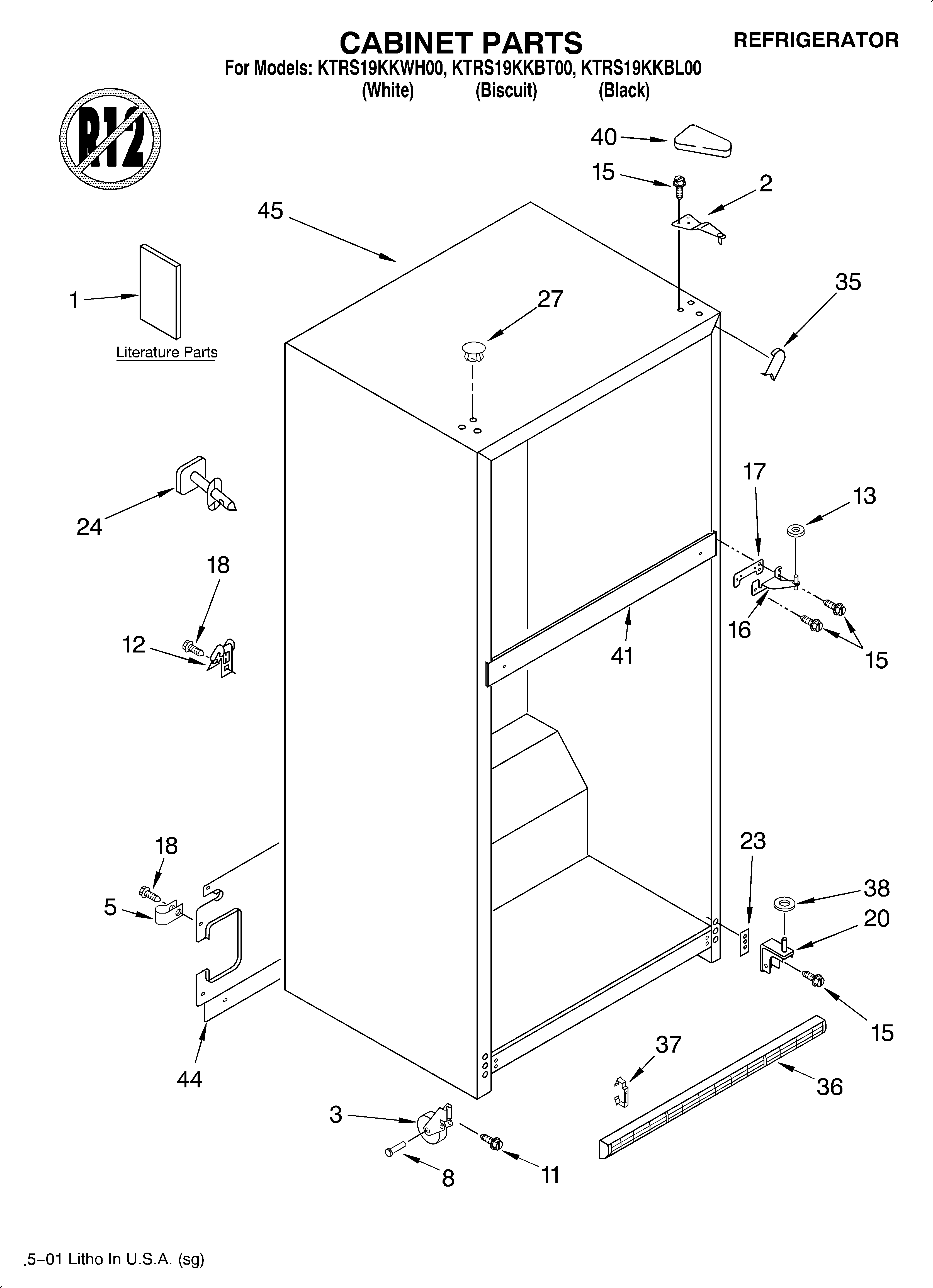

Cabinet/literature diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
