Kenmore
Top-Mount Refrigerator

Model # 25370642613 Official Kenmore top-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 25370642613 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

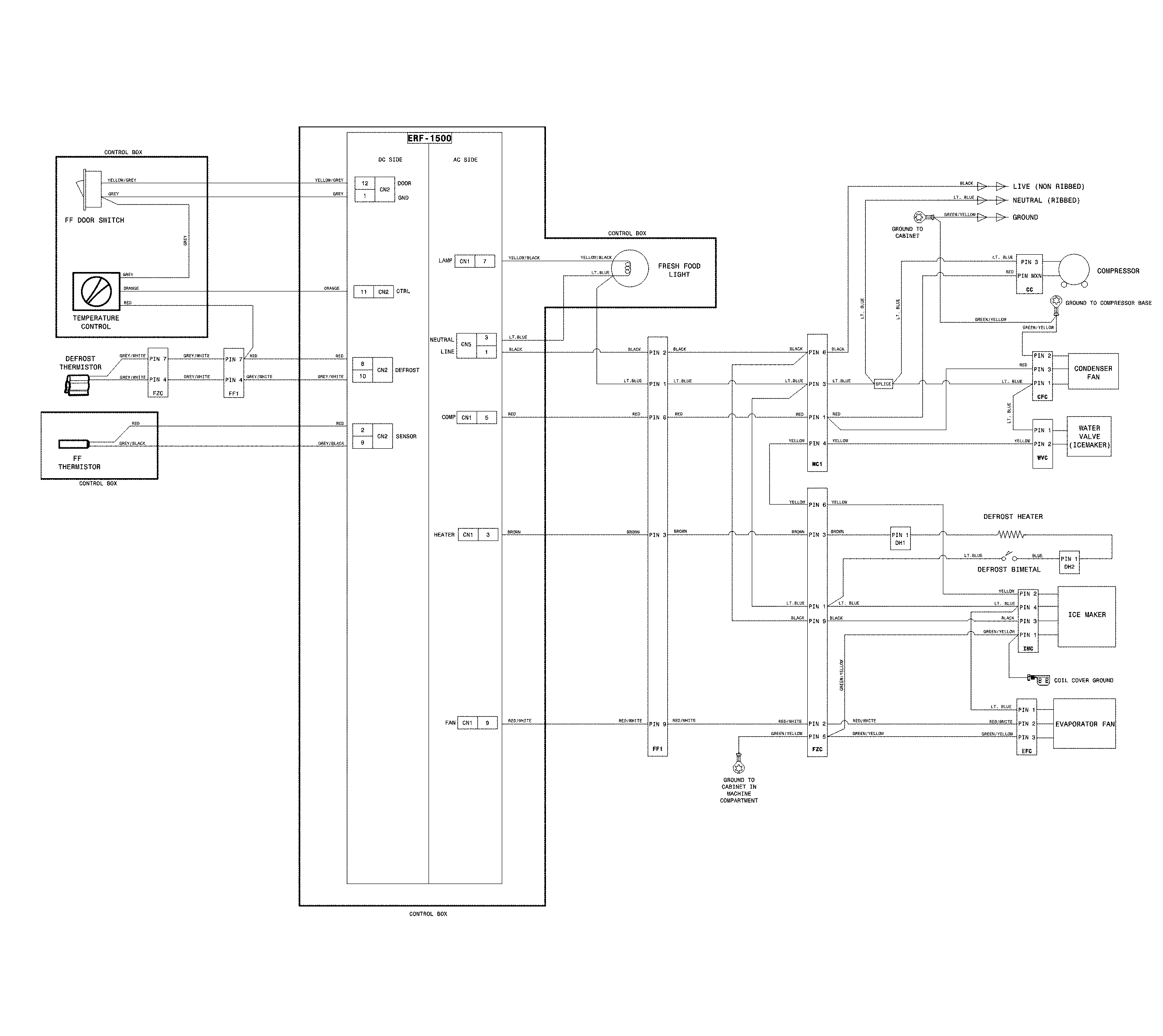

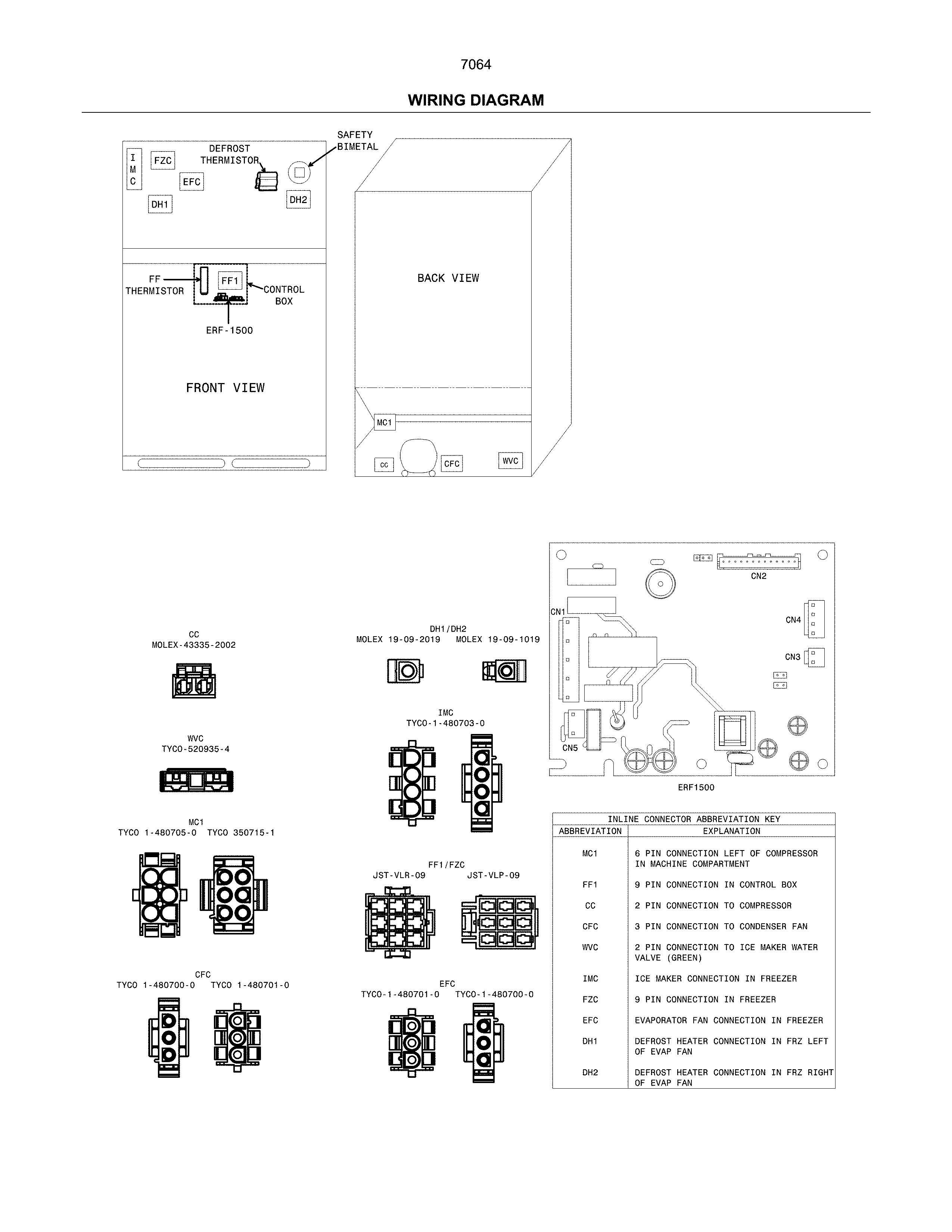

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Refrigerator Filter Dryer 242047603
#4

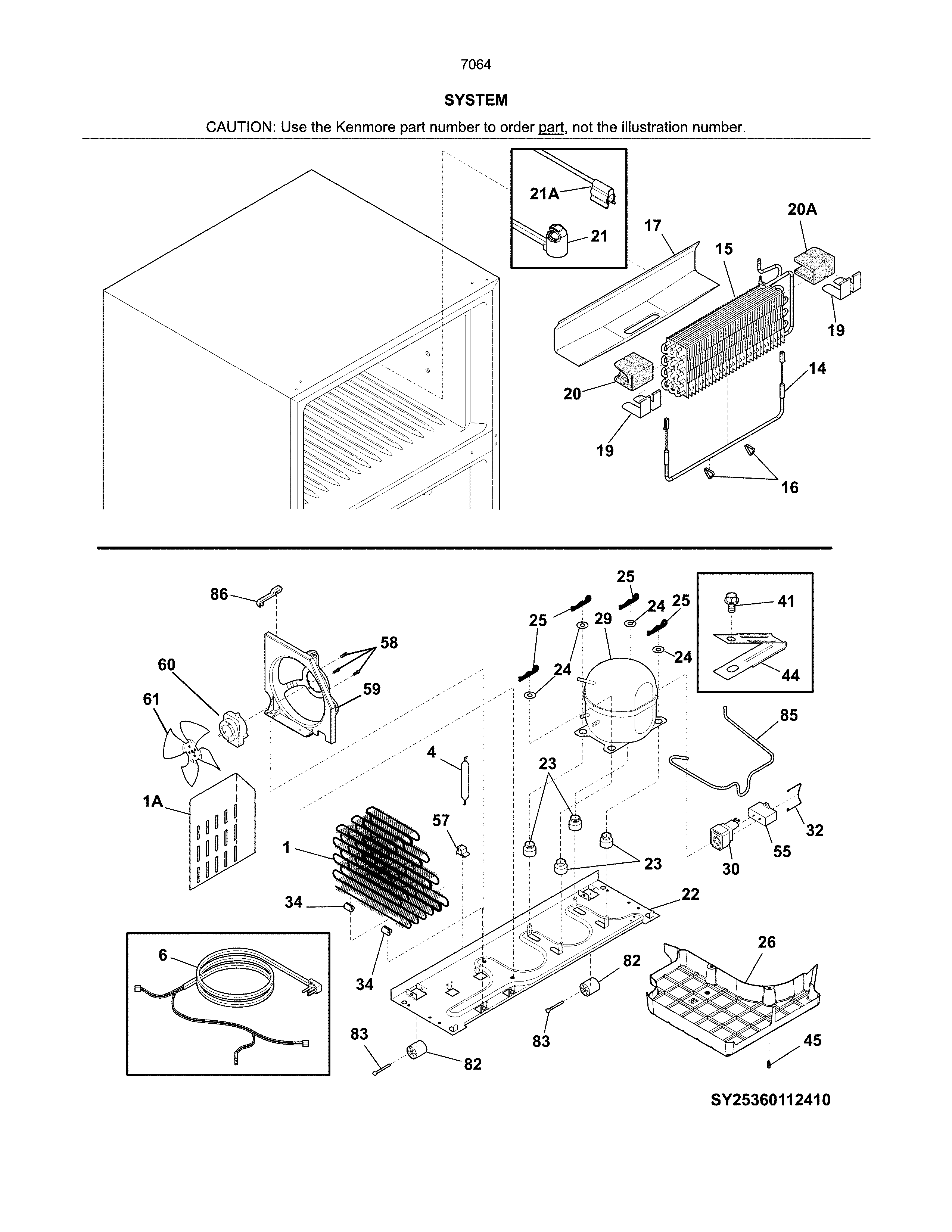

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Door Gallon Bin 240338001
#48B

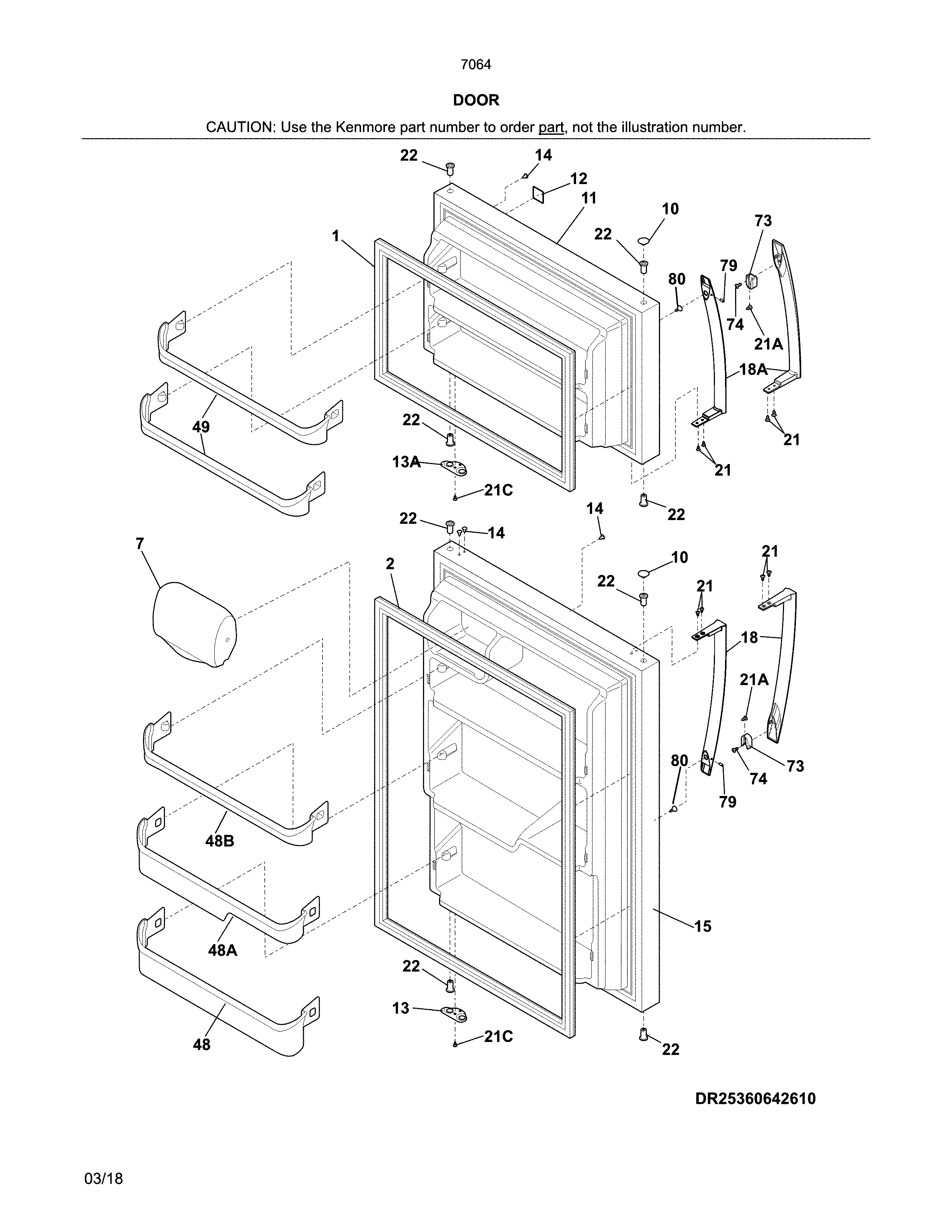

Doors diagram

Refrigerator door gallon bin

Part #240338001

BEST SELLER
$42.36 |
12% OFF Phone Price : $48.36
In Stock
Refrigerator Door Bin 240337901
#48A

Doors diagram

Refrigerator door bin

Part #240337901

BEST SELLER
$44.16 |
12% OFF Phone Price : $50.16
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#22

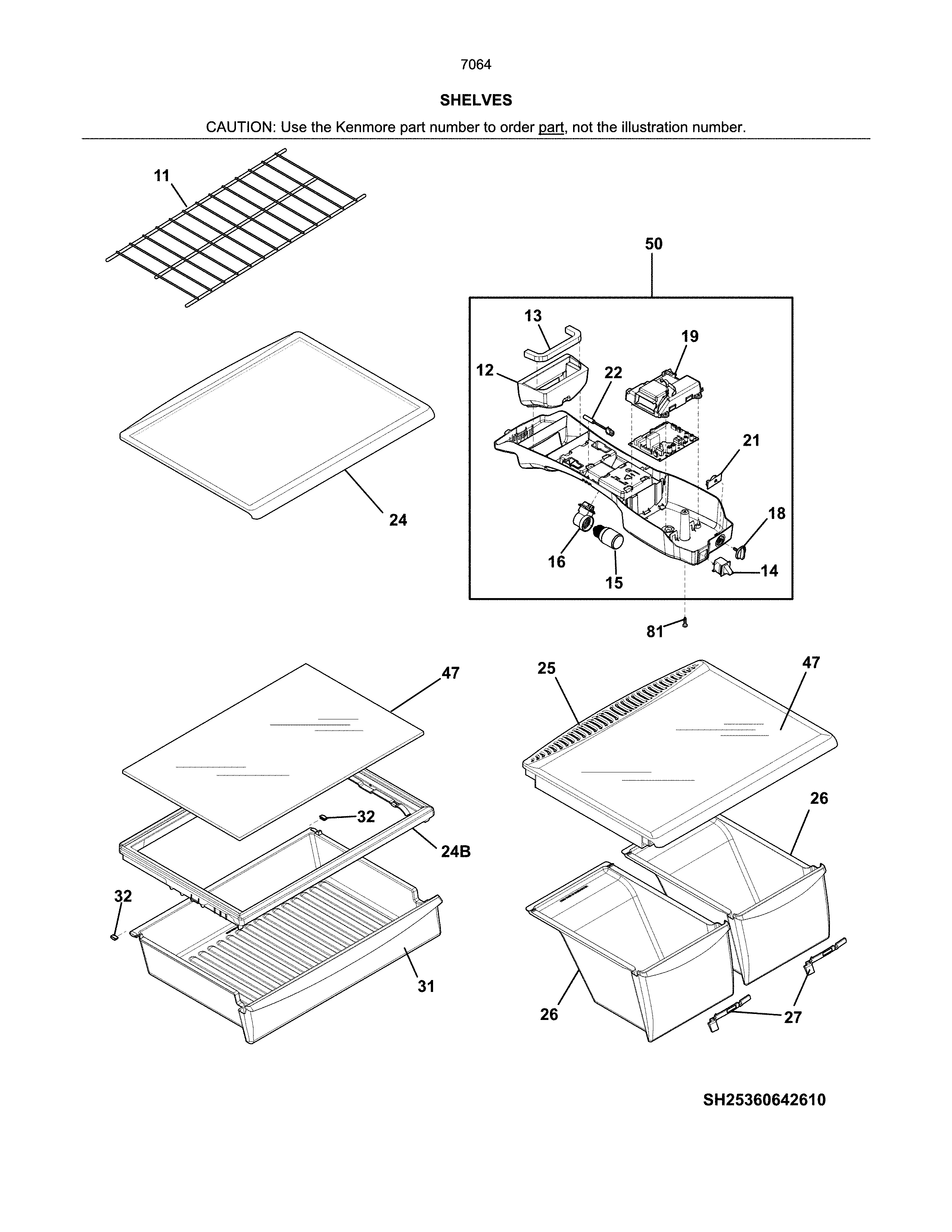

Shelves diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$40.44 |
13% OFF Phone Price : $46.44
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

Doors diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
Kenmore Elite Refrigerator Water Inlet Valve Assembly (replaces 241803703) 242252603
#55

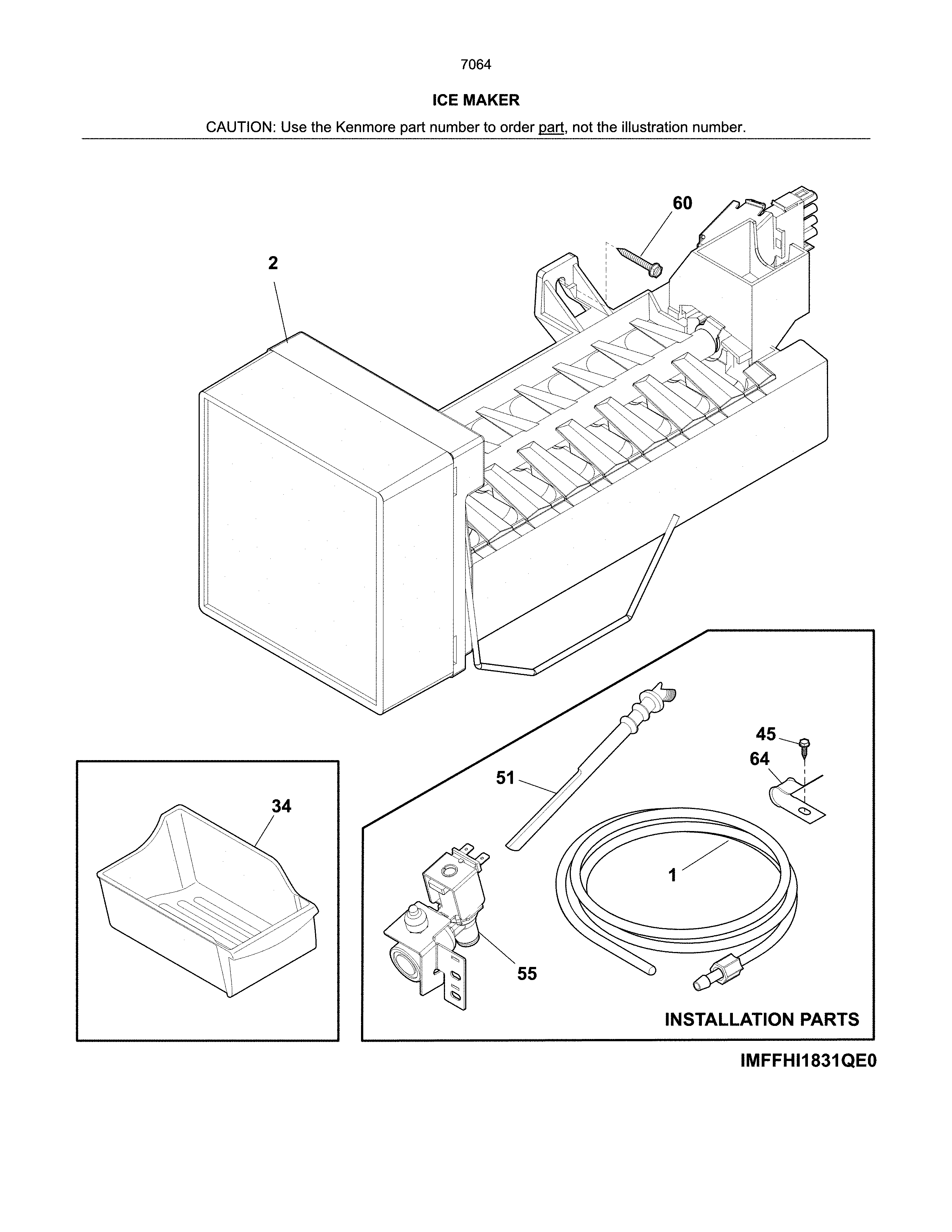

Ice maker diagram

Kenmore elite refrigerator water inlet valve assembly (replaces 241803703)

Part #242252603

BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

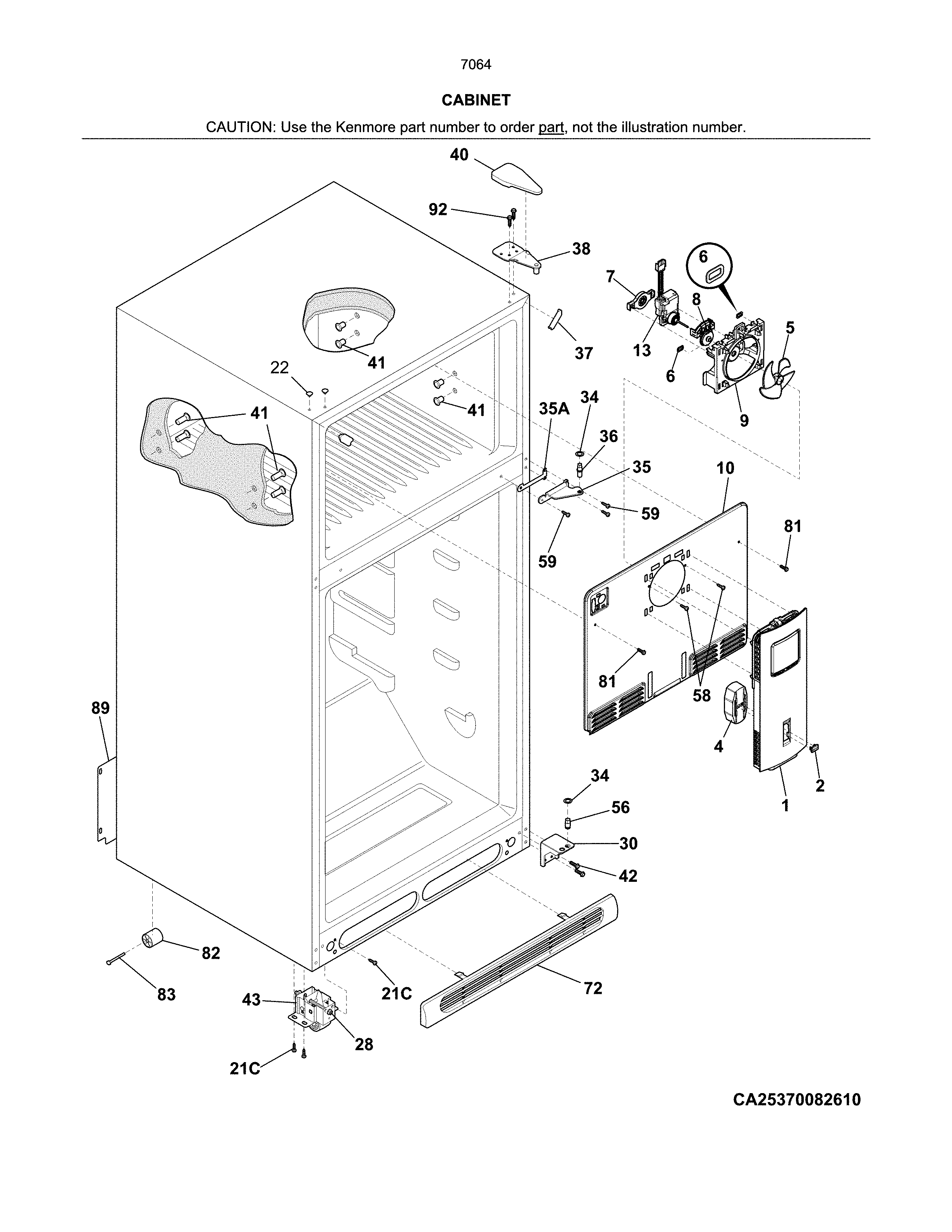

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Blower Motor 5304514392
#13#

Cabinet diagram

Blower motor

Part #5304514392

Replaced by #242077705

?
Manufacturer substitution
This part replaces 5304514392. Substitute parts can look different from the original.
BEST SELLER
$87.80 |
6% OFF Phone Price : $93.80
In Stock
