Model # 153331492 Official Kenmore water heater
Here are the diagrams and repair parts for Official Kenmore 153331492 water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153331492 Water Heaters
#18

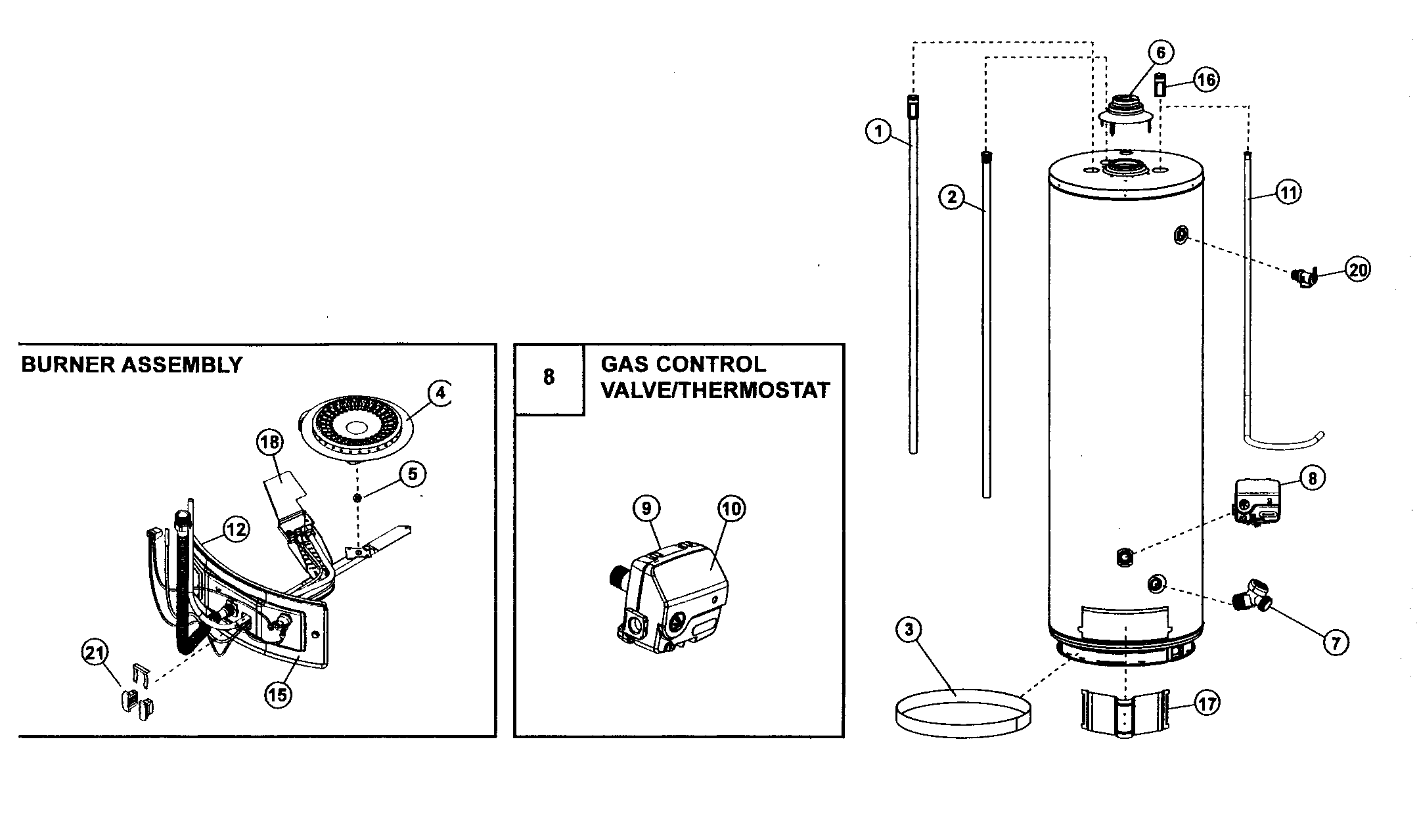

Water heater diagram
Pilot light assembly
Part #9006792
Replaced by #100111490
?
Manufacturer substitution
This part replaces 9006792. Substitute parts can look different from the original.
$109.00
In Stock
#5
Water heater diagram
Orifice
Part #186016-034
Replaced by #100046976
?
Manufacturer substitution
This part replaces 186016-034. Substitute parts can look different from the original.
$15.71
In Stock
#1
Water heater diagram
Water heater secondary anode (replaces 9000947, 9001792, 9003450, 9003937, 9003967)
Part #9003934
Replaced by #100300397
?
Manufacturer substitution
This part replaces 9003934. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
#2
Water heater diagram
Water heater anode rod (replaces 183463-26, 183463-29, 29109, 9001834, 9003465, 9003487, 9003922)
Part #9003721
Replaced by #100109434
?
Manufacturer substitution
This part replaces 9003721. Substitute parts can look different from the original.
$36.67
In Stock
#10
Water heater diagram
Control module
Part #9006148
Replaced by #100110941
?
Manufacturer substitution
This part replaces 9006148. Substitute parts can look different from the original.
$360.91
In Stock
#NI
Water heater diagram
Water heater tank sensor
Part #9006163
Replaced by #100110953
?
Manufacturer substitution
This part replaces 9006163. Substitute parts can look different from the original.
$92.22
In Stock
#6
Water heater diagram
Water heater vent draft hood (replaces 185917-002, 700795-020)
Part #9006647
Replaced by #100111362
?
Manufacturer substitution
This part replaces 9006647. Substitute parts can look different from the original.
$34.44
In Stock
#17
Water heater diagram
Water heater burner access door
Part #9006648
Replaced by #100111363
?
Manufacturer substitution
This part replaces 9006648. Substitute parts can look different from the original.
$35.56
In Stock
#NI
Water heater diagram
Mag erad
Part #23600
Replaced by #23600
?
Manufacturer substitution
This part replaces 23600. Substitute parts can look different from the original.
$35.19
In Stock
#3
Water heater diagram
Water heater air intake screen
Part #9006616
Replaced by #100111332
?
Manufacturer substitution
This part replaces 9006616. Substitute parts can look different from the original.
$33.33
In Stock
Most common symptoms to help you fix your water heaters
Choose a symptom to see related water heater repairs.
Main causes: water supply needs chlorine treatment, anode rod too reactive…
Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…
Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…
Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…
Main causes: faulty pressure relief valve, water is overheating…
Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…
Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…
