Digital Camcorder

Model # MHS-FS2/G Official Sony camera

Here are the diagrams and repair parts for Official Sony MHS-FS2/G camera, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MHS-FS2/G Camcorders
Cable Mcu- 427921401
#117

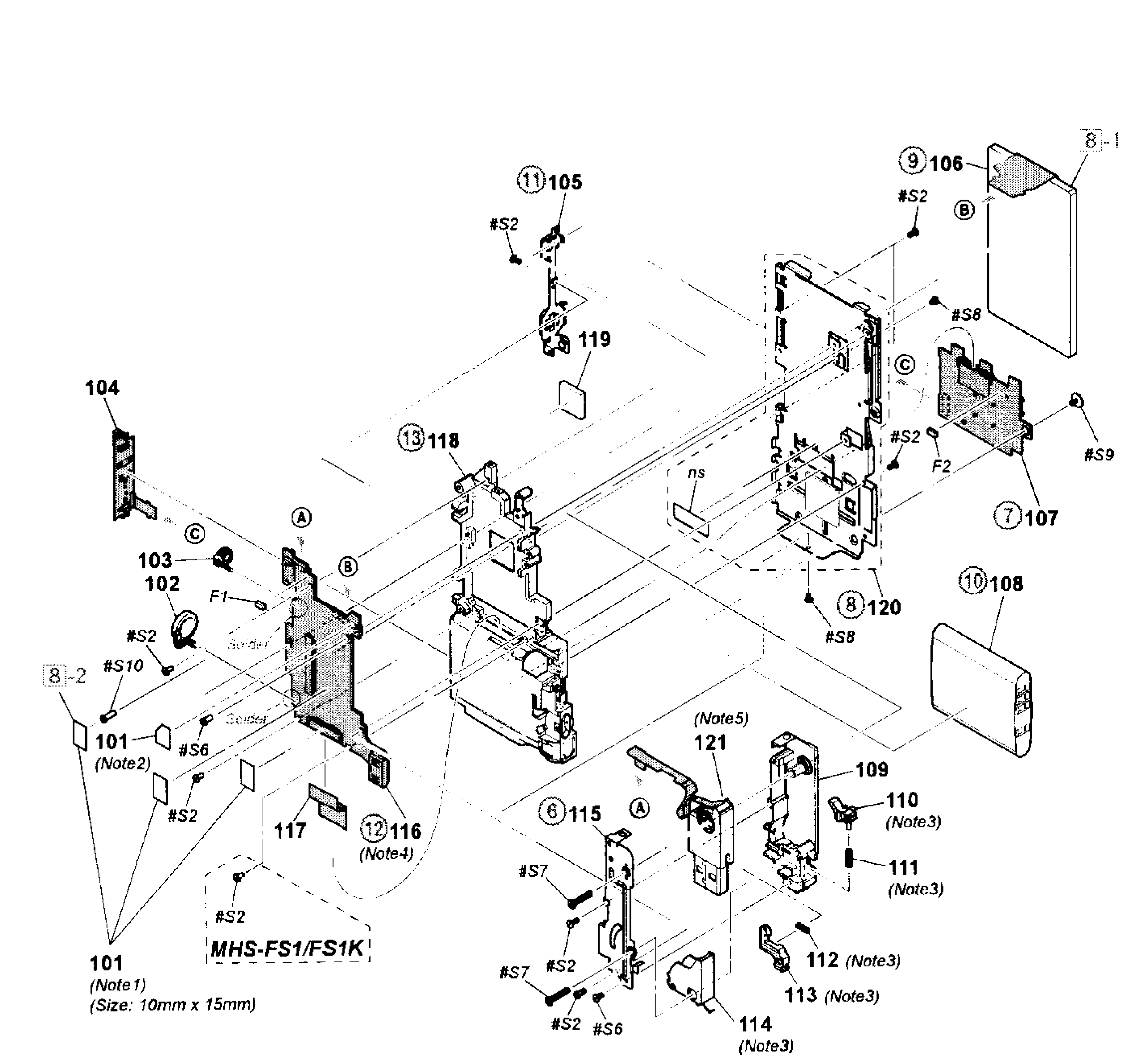

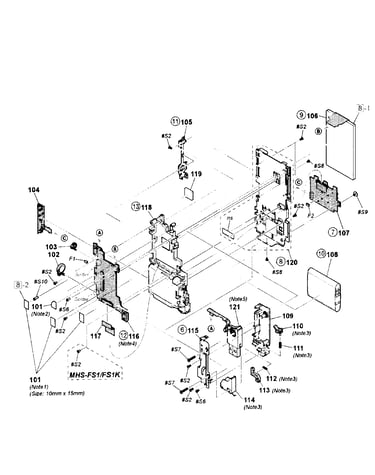

Main frame diagram

Cable mcu-

Part #427921401

In Stock
Sheet, Mcu 428461101
Sheet, mcu

Part #428461101

This item is not returnable
In Stock
Main Pcb A1817524A
#116

Main frame diagram

Main pcb

Part #A1817524A

In Stock
Latch Usb 427915501
#110

Main frame diagram

Latch usb

Part #427915501

This item is not returnable
In Stock
Usb Lock 427921601
#113

Main frame diagram

Usb lock

Part #427921601

This item is not returnable
In Stock
Sony Jack Usb X25811671
#121

Main frame diagram

Sony jack usb

Part #X25811671

In Stock
Sony Usb Knob 427904301
#65

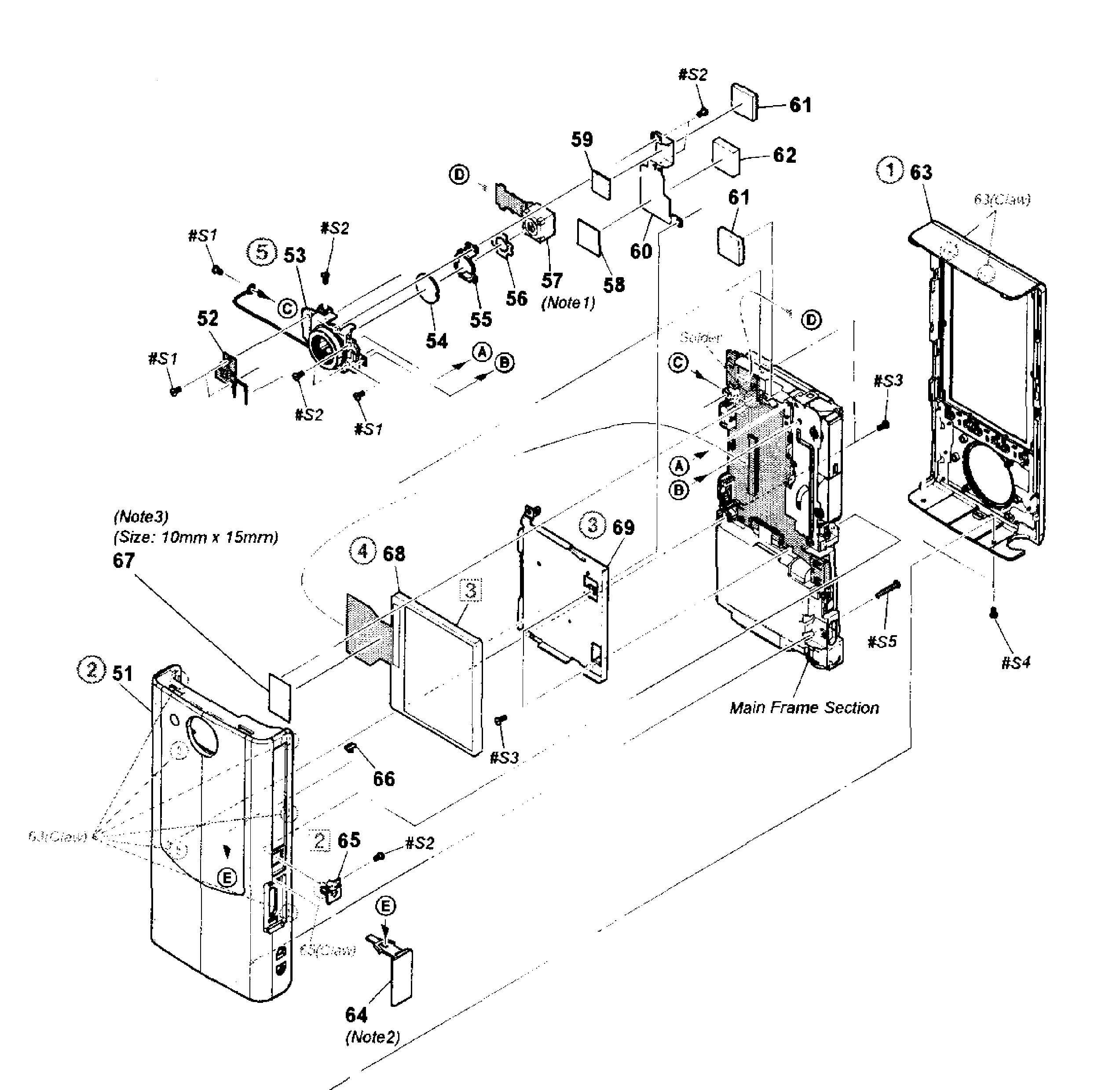

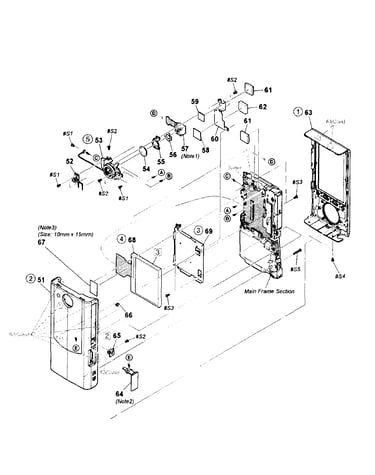

Overall assy diagram

Sony usb knob

Part #427904301

In Stock
Led Pcb 427713501
#52

Overall assy diagram

Led pcb

Part #427713501

In Stock
Sw Pcb 427713401
#107

Main frame diagram

Sw pcb

Part #427713401

In Stock
Rad Sheet 428743101
#62

Overall assy diagram

Rad sheet

Part #428743101

In Stock
